Chrome Plated Alcove Clip

Chrome plated zamac die casting, for use on 1" doors and 1-1/4" posts. Horizontal leg in picture is 1-1/4" wide and 1-1/2" tall. The vertical leg is 1-5/32" wide. The holes are 1/4" diameter. Also known as Bathroom Stall Alcove Clip, Toilet Partition Alcove Clip, and Toilet Stall Alcove Clip. The manufacturers part number is 1550 Alcove Clip and 650-6650 Alcove Clip.

The General Toilet Partitions Slide Bolt Latch is constructed of Zamac die cast metal that is chrome plated and polished.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.  Shipped with mounting screws.

Stainless steel shelves available in 5", 6" or 8" depths. The widths are 12"-72".  The shelf is fabricated of 18 gauge stainless steel, with the edges turned down and back 1/2" for maximum strength and rigidity.  All corners are deburred and polished smooth for safety.  The mounting brackets 16 gauge stainless steel and are permanently welded to the shelf with exposed mounting points.  Manufacturers part number 0692 series shelves. Note 8"x72" shelves are 3-4 weeks out. All other sizes ship out in 2 weeks.

The Mills Toilet Partition Keeper Bumper is for use on 1-1/4" thick square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110.  Shipped with mounting screws.

Toilet Partition Urinal Screen Bracket Chrome Plated

Constructed of polished chrome plated zamac die cast. The wall mounted base is 7" across with 6" center to center screw holes. The bracket projects out 12" and the two thru holes are 7" on center. The bracket is designed for use on 1" thick panels or urinal screens. The 6 holes are 1/4" diameter. This bracket is sometimes called the 2700 Wing Bracket, 650-6440 Wing Bracket, Urinal Screen Bracket, Urinal Screen Wing Bracket, Bathroom Stall Wing Bracket, or Toilet Partitoin Screen Bracket

The Metpar Toilet Partition Bottom Door Insert For 7/8" Door is constructed of Zamac die cast metal and then chrome plated.  The door insert measures 2-5/16" wide by 1" wide by 1-3/16" high. The hex shaped hole is 5/8" and the round hole is 7/32" diameter. The material or rim is 5/16" high. Also known as a Bathroom Stall Door Insert Bottom 7/8". Manufacture part # 1530.

Bobrick B-35649 surface mounted waste receptacle in a satin finish stainless steel all welded construction. The door is secured to cabinet with a concealed full length stainless piano hinge. Equipped with a cable door swing limit and tumbler lock. Waste bin constructed of heavy gauge stainless steel. The unit is a 12 gallon capacity and is 17-3/8"w x 40-1/8"h x 8-7/8" depth.

If your toilet partition or bathroom stall wall bracket is cast with the number 1940 on the back, then you have the “U” Wall Bracket for 1-1/4″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-1/2″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.

The General Toilet Partitions Bottom Hinge 1-1/4" Round Edge is for use on 1-1/4" thick round edged pilaster posts.   It is constructed on Zamac die cast metal that is chrome plated and polished.  Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Also known as a Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3010.  Shipped with mounting screws.  A=1-7/6".

Toilet Partition Continuous 'L' Wall Bracket 2-3/4" X 57-1/2" Aluminum

Extruded aluminum construction. Base is 1-3/8" and the leg projects out 2-3/4". These are sold individually. It is also known as a Bathroom Stall Continuous L Wall Bracket. The manufacturers part # is 2684.

The American Sanitary Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal that is chrome plated and polished.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.  Shipped with mounting screws.

The Accurate Toilet Partition Keeper Bumper for In swing doors is constructed of Zamac die cast metal, then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for in swinging doors. Also known as a Bathroom Stall Strike and Keeper Inswing 1-1/4" Square Edge. Manufacture part # 5110. Shipped with mounting screws.

The Toilet Partition ADA Throw Latch & Keeper Chrome Plated is constructed of brass that is chrome plated and polished.  This heavy duty latch has a base that is 2" by 2" and is 3/16" thick. The throw latch is 5-7/16" long by 1-1/4" by 7/32" thick. The keeper is 2" by 2" by 21-32" high. Meets ADA codes in most States. Also known as a Bathroom Stall Heavy Duty ADA Throw Latch and Keeper and Toilet Partition Locks. Manufacture part # 5701.  Shipped with mounting screws.

The baby changing tables are ADA compliant units and are welded stainless steel for long and reliable use in commercial buildings. Exposed surfaces are satin finish. Easy one handed operation is assisted by a pull handle and concealed spring. The changing surface is high-impact-resistant plastic for easy cleaning. Its two part adjustable safety strap and 400 lb load capacity assure child protection. This unit is used for recess mounting , also know as part number 9013 with American Specialties.

The All American Toilet Partitions Nylon Cam is used on metal and plastic laminate hinges.

Hand Driver with Magnetic End, used to install and remove fasterners. Accepts Hex bits for use with different fasterners. Can be used with TBIT(T-27 Torx) bit we offer for installing fasteners on restroom partitions. End holds a standard 1/4" Hex Bit.

Toilet Partition Two Ear Wall Bracket For 1 1/4" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 4" with 3" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 1". Manufacture part # 1833

Shipped with mounting screws.

The General Toilet Partition Top Hinge For 1-1/4" Round Edge is for use on 1-1/4" thick round edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and then polished.  Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Also known as a Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3510.  Shipped with mounting screws.  A=1-7/6"

Chrome Plated Toilet Partition Flat Stop Keeper

Polished chrome plated Zamac construction. The keeper base is 2-1/2" tall by 1-3/32" wide. The latch face measures 2-1/2" tall with a 7/8" projection. The hole spacing is 1-1/2". The slot measures 5/16" by 1-9/16". Also known as a Bathroom Stall Keeper-Inswing Flat. Manufacture part # 5160.

Shipped with mounting screws.

Compact high-speed hand dryer for applications where less space is available. 5-year warranty. 9-25/32" W x 6-5/8" H x 5-7/16" D
FEATURES

• Quick drying — less than 15 seconds
• Operates automatically using infrared sensor
• Auto-resetting thermostat
• 60-second automatic shut off
• Cover fabricated of heavy-duty, one-piece-formed stainless steel

The baby changing tables are ADA compliant units and are welded stainless steel for long and reliable use in commercial buildings. Exposed surfaces are satin finish. Easy one handed operation is assisted by a pull handle and concealed spring. The changing surface is high-impact-resistant plastic for easy cleaning. Its two part adjustable safety strap and 400 lb load capacity assure child protection. This unit is used for surface mounting , also know as part number 9013-9 with American Specialties.

The Toilet Partition Surface Mounted S.S. Hinge Set is for use on Right In Swing and Left Out Swinging Doors.  The hinge is constructed of 3/32" thick stainless steel. They measure 3-1/4" wide x 2-29/32" high outside dimensions. 1-1/2" hole spacing up and down, and  2-7/16" right to left hole spacing. Also known as a Bathroom Stall Surface Mounted Hinge Set. Manufactures part # 7033.  Shipped with the fasteners.

The Toilet Partition Surface Mounted S.S. Hinge Set is for use on Left In Swing and Right Out Swinging Doors.  The hinge is constructed of 3/32" thick stainless steel. They measure 3-1/4" wide x 2-29/32" high outside dimensions. 1-1/2" hole spacing up and down, and  2-7/16" right to left hole spacing. Also known as a Bathroom Stall Surface Mounted Hinge Set. Manufactures part # 7043.  Shipped with the fasteners.

The Toilet Partition Bottom Hinge for 1-1/4" Sq Edge Cast Stainless Steel is a replacement for the Zamac Die Cast hinges for General, American Sanitary, Flush Metal and Fiat Partitions.  It features cast stainless steel construction, which is much more durable.  The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a General Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3293.  Shipped with mounting screws.  A=1-5/8"

Chrome Plated Toilet Partitions Bumper Keeper For 1-1/4" Round Edge

Polished chrome plated Zamac construction. The strike and keeper measures 2-1/2" tall by 1-7/8" wide. The mounting holes are 1-1/2" on center. The stop measures 3/4" wide by 17/32" deep with a rubber insert bumper. Slot is 7/16" deep. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing 1-1/4". Manufacture part # 5430.

Shipped with mounting screws.

The Toilet Partition Slide Bolt Latch 3/8" Bar To Door Clearance is constructed of Zamac die cast metal that is chrome plated and then polished.  Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 5/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5060.  Shipped with mounting screws.

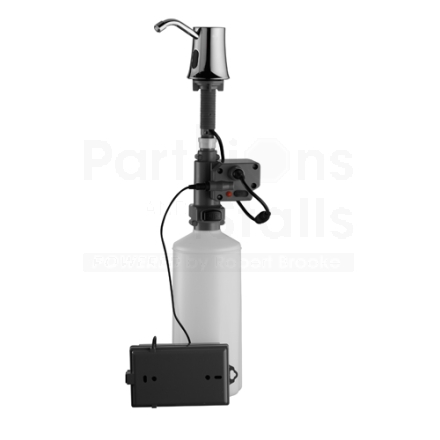

Roval Automatic Deck Mounted Soap Dispenser, 20333 Constructed of polished type 304 stainless steel on exposed surfaces with battery-operated, hands-free sensor. LEDs indicate function, battery condition and soap supply level on face front. Translucent tank holds 54 oz. (1600 ml) of liquid soap

Bobrick 1080/1090 series phenolic reinforced composite wall privacy. All standard stainless steel brackets included with option of a continuous full length stainless steel channel for back wall. The 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

Bobrick 1080/1090 series phenolic reinforced floor mount privacy. All standard stainless steel brackets included with option of a continuous full length stainless steel channel for back wall. The 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

Toilet Partition One Ear Wall Bracket For 3/4" Panel Cast Stainless Steel

Cast stainless steel construction. Base of the bracket is 2" x 1-1/2", with 1-1/8" hole spacing. Bracket legs project out 2-1/2" with the screws at 2-1/8" on center from the base. The four holes are 1/4" diameter. Also known as a Bathroom Stall One Ear Wall Bracket or One Ear 3/4". Manufacture part # 1643.

Shipped with mounting screws.

Toilet Partition Bracket One Ear For 1-1/4" Panel Aluminum

Constructed of extruded anodized aluminum. The base is 2-5/8" wide x 1-1/2" high, with the two mounting screws 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The distance between the legs is 1-1/4". It is designed for 1-1/4" thick panels. The 4 screw holes are 1/4" diameter. This bracket is also known as a One Ear Wall Bracket, 1844 One Ear Wall Bracket, Toilet Partitoin One Ear Bracket, or Bathroom Stall One Ear Bracket. The bracket is shipped with all the mounting screws.

Retractable White Cushion Shower Seat lh, Left hand seat with cushion covered in off-white Naugahyde. Frame, support legs, flanges, and bracket are type 304 satin finish stainless steel. Seat measures 33″ wide and projects 22-7⁄8″ from wall. Meets ADA Accessibility Guidelines and the needs of the physically disabled and elderly.

Partition Door Stop, Pilaster Mounted, 2-1/2" X 4-1/4", Toilet Partition Door Stop Pilaster Mounted Polished Stainless Steel.

Partition Polished Stainless Steel Construction. The door stop base is 3" wide by 1-1/4" high with a 2-5/16" hole spacing. The stop projects out 2-1/2" and has a rubber insert in it. This door stop is usually mounted on the pilaster or post. Also known as a Bathroom Stall Door Stop. Manufacture part # 4155.

Partition Keeper Bumper Inswing 1" Post Square Edge Cast Stainless Steel

Cast stainless steel construction. Strike and Keeper measures 2-1/2" high by 1-15/16" wide. Stop is 17/32" thick and projects out 13/16". The screw holes are 1-1/2" on center. The slot is 5/16" deep by 1-1/2" high. This Bathroom Toilet Door Keeper is designed for use on 1" thick square edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing 1". Manufacture part # 5623.

Shipped with mounting screws.

The General Partitions Top Hinge is constructed of Zamac die cast metal that is chrome plated and polished.  The wrap around dimension is 1-1/4" wide by 1-3/4" high and 11-16" deep. The hole spacing is 1-1/8" on center. The lug projects out 1-3/8" and is 1/2" thick with a 1/4" bushing diameter. Also known as a Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3910.  A=1-11/16".
