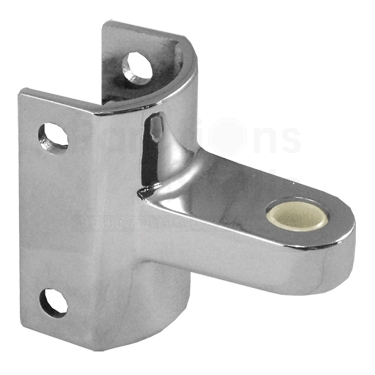

General Toilet Partition Top Hinge For 1-1/4" Round Edge

In stock
Part #
91500B
$10.12

The General Toilet Partition Top Hinge For 1-1/4" Round Edge is for use on 1-1/4" thick round edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and then polished.  Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Also known as a Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3510.  Shipped with mounting screws.  A=1-7/6"

The General Toilet Partition Top Hinge For 1-1/4" Round Edge is for use on 1-1/4" thick round edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and then polished.  Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Also known as a Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3510.  Shipped with mounting screws.  A=1-7/6"

More Information
Part # 91500B
Availability In Stock
Manufacturer General Toilet Partition
Short Description

The General Toilet Partition Top Hinge For 1-1/4" Round Edge is for use on 1-1/4" thick round edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and then polished.  Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Also known as a Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3510.  Shipped with mounting screws.  A=1-7/6"

Description

The General Toilet Partition Top Hinge For 1-1/4" Round Edge is for use on 1-1/4" thick round edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and then polished.  Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Also known as a Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3510.  Shipped with mounting screws.  A=1-7/6"
