Partition Brackets

Browse our stockpile of toilet partition brackets for restroom partitions. The bathroom partition brackets we sell can be used in public restrooms to replace any worn out bathroom partition brackets that were previously in place.

We have been selling brackets and similar hardware for almost 40 years, and we assure you that the bathroom partition brackets you receive from us are some of the best around. We have been able to supply bathroom partition brackets to many types of organizations and we always welcome working with other companies.

Our website offers a time-saving way to shop for bathroom partition brackets. There is no need to make trips to the hardware store when you have an online source for purchasing bathroom partition brackets from your home or place of business. Our wish is that our user-friendly service greatly accommodates our customers while they shop for bathroom partition brackets.

Bathroom Partition Brackets Styles

In order to make sure you purchase the right parts and can assemble them correctly, you will have to understand a little bit about how bathroom partition brackets work. Bathroom partition brackets are pretty much what hold restroom partitions together. Without bathroom partition brackets, your restroom partitions would very likely be useless.

There are several different kinds of bathroom partition brackets plus similar hardware that often falls under the same category. You will want to understand what type of brackets are required to fix your bathroom stall before placing your order.

Among the different types of bathroom partition brackets are U shaped brackets, L shaped brackets, H shaped brackets and F shaped brackets. It’s easy to gauge which type of bracket it is when you look at its shape.

U shaped bathroom partition brackets create a T to connect a pilaster to a panel. There are also Continuous U Shaped Brackets which are much longer than the standard shaped U bracket.

Our bathroom partition brackets supply also consists of one ear and two ear brackets. One ear brackets also go by the name one wing bracket or single leg bracket. They are also sometimes called F shaped brackets.

One ear brackets are used at the end panel on the back wall of partitions. Two ear brackets are used with mid bracket panels to mount partitions to the back wall. Fasteners are included with all brackets.

Urinal Screen Bracket

We carry several styles of urinal screen brackets. The urinal screen brackets that we have for sale come in different shapes, sizes and materials. Urinal screen brackets hold urinal screen dividers to the restroom wall.

Alcove Clips

We carry a few types of alcove clips. Alcove clips connect a panel to a pilaster inline while partition braces help support a panel off the floor.

We have die cast zamak Alcove Clips that can be used on 1-inch doors and 1-¼-inch posts. We also have the Alcove 2 Piece Clip Set in die cast zamak and stainless steel.

Pilaster Shoes

We also have pilaster shoes listed in our selection of brackets. Pilaster shoes are often referred to as floor shoes. We have two types of pilaster shoes in stock on our webstore.

Both of the floor shoes we sell can be used on square shaped posts. They are both made of zamak metal, but they differ in size.

Product Sizes

Always check the sizing details of the brackets we sell. This will show you what size pilasters each bracket can generally be used with. The hardware could be good to use on 1-¼ inch thick pilasters and 1-¼ inch thick panels, but not on another size.

Toilet Partition Brackets Materials

Check to see the material the brackets are made out of. We offer brackets in a variety of materials such as chrome plated zamak die cast metal, stamped stainless steel, cast stainless steel, and extruded anodized aluminum.

The product pages will have descriptions of which material each bracket product is constructed of. Our product descriptions not only show you the material of the hardware, but they also display part numbers, sizes, how the product is used and any important attachments that come with it. Type of material will be a significant decision to make when purchasing bathroom partition brackets so don’t overlook it.

Zamak die cast is the standard material that you will see on many bathroom partition brackets. Each material is good for a specific use.

Are you looking for seriously strong brackets? If so, then our staff at RB Partitions and Stalls recommend that your bathroom partition brackets have full length aluminum channels or stainless steel continuous channels.

Bathroom Partition Brackets Online Distributors

If it is a weekday during business hours, then our bathroom partition brackets team is currently standing by to answer your questions. We will also respond to messages sent to us during the weekend on the following business day.



Facilitating the process of buying new bathroom partition brackets so that you can make large scale improvements to your building’s restroom is our mission. We try to lend a hand in distributing great products such as bathroom partition brackets to customers whenever we can.


We would like to further assist you with your questions about material, size, price, shipping, and installation of bathroom partition brackets. Send out an email about bathroom partition brackets to Sales@PartitionsAndStalls.com so that we can take care of answering those questions that you have. For more direct assistance with brackets, you can even call our business phone at (800) 642-2403.

List  Grid

Desc
  1. 13 $13.00
    SKU: 9A2189

    U Bracket Stainless Steel for 1/2" Panel. This is used with a 1/2" thick panel only. The hole spacing is 1-1/2" and height is 3", and sticks out from the wall 2-1/2". The overall width is 5/8". This is also known as 2189. The stainless steel is flat and rolled to form a two ear partition bracket.

  2. 12.2 $12.20
    SKU: 9A2209

    Two Ear Stainless Steel Partition Bracket for 1/2" Panel. This is used with a 1/2" thick panel only. The hole spacing is 1-1/2" and height is 3", and sticks out from the wall 2-1/2". The overall width is 3-1/4". The screw holes are 1/4" diameter at 8 places. This is also known as 2209. The stainless steel is flat and rolled to form a two ear partition bracket.

  3. 3.45 $3.45
    SKU: 9A0189

    Toilet Partition U Bracket Chrome Plated For 3/4" X 1-1/2" X 1-3/8. If your toilet partition or bathroom stall wall bracket is cast with the number 1890 on the back, then you have the “U” Bracket for 3/4″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or Wall Bracket.

  4. 3.45 $3.45
    SKU: 9A0190

    Partition "U" Bracket Chrome Plated For 7/8" X 1-1/2" X 1-3/8 . If your toilet partition or bathroom stall wall bracket is cast with the number 1900 on the back, then you have the “U” Wall Bracket for 7/8″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-5/32″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.

  5. 3.45 $3.45
    SKU: 9A0191

    Partition "U" Bracket Chrome Plated 1" X 1-1/2" X 1-3/8" . If your toilet partition or bathroom stall wall bracket is cast with the number 1910 on the back, then you have the “U” Wall Bracket for 1″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-1/4″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.

  6. 3.45 $3.45
    SKU: 9A0194

    If your toilet partition or bathroom stall wall bracket is cast with the number 1940 on the back, then you have the “U” Wall Bracket for 1-1/4″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-1/2″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.

  7. 4 $4.00
    SKU: 9A0164

    If your toilet partition (bathroom stall) wall bracket is stamped 1640, then chances are you have the One Ear Wall Bracket for 3/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2″ long with 1-1/8″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

  8. 4 $4.00
    SKU: 9A0165

    If your toilet partition (bathroom stall) wall bracket is stamped 1650, then chances are you have the One Ear Wall Bracket for 7/8″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2-1/8″ long with 1-1/8″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

  9. 4.9 $4.90
    SKU: 9A0176

    If your toilet partition (bathroom stall) wall bracket is cast 1760, then chances are you have the One Ear Wall Bracket for 1″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2-21/32″ long with 1-1/2″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

  10. 4.72 $4.72

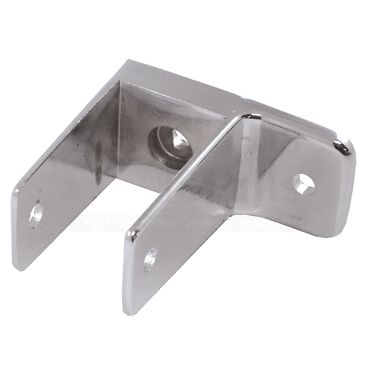

    SKU: 9A0184

    If your toilet partition (bathroom stall) wall bracket is cast 1840, then you have the One Ear Wall Bracket for 1-1/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2-3/4″ long with 1-1/2″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

  11. 4 $4.00
    SKU: 9A0162

    If your toilet partition (bathroom stall) wall bracket is stamped 1620, then chances are you have the Two Ear Wall Bracket for 3/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3″ long with 2-7/32″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket

  12. 4 $4.00
    SKU: 9A0163

    If your toilet partition (bathroom stall) wall bracket is stamped 1630, then chances are you have the Two Ear Wall Bracket for 7/8″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3-1/2″ long with 2-3/4″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket.

  13. 4.9 $4.90
    SKU: 9A0175

    If your toilet partition (bathroom stall) wall bracket is stamped 1750, then chances are you have the Two Ear Wall Bracket for 1″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3-15-16″ long with 3″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket.

  14. 4.9 $4.90
    SKU: 9A0183

    If your toilet partition (bathroom stall) wall bracket is stamped 1830, then chances are you have the Two Ear Wall Bracket for 1-1/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3-15-16″ long with 3″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket, they can be ordered on our website.

  15. 2.7 $2.70
    SKU: 9A0155

    Chrome Plated Alcove Clip

    Chrome plated zamac die casting, for use on 1" doors and 1-1/4" posts. Horizontal leg in picture is 1-1/4" wide and 1-1/2" tall. The vertical leg is 1-5/32" wide. The holes are 1/4" diameter. Also known as Bathroom Stall Alcove Clip, Toilet Partition Alcove Clip, and Toilet Stall Alcove Clip. The manufacturers part number is 1550 Alcove Clip and 650-6650 Alcove Clip.

  16. 4.3 $4.30
    SKU: 9A8340

    Toilet Partition Alcove Clip Set, 2 Pieces, For 1" To 1-1/4" Panel Chrome Plated

    These clips are 1-1/2" tall x 2-1/4" wide. The screws are 1-1/2" on center, with 1/4" diameter holes. The clip is constructed of polished chrome plated zamac die cast materail. This part is also know as Bathroom Stall Alcove Clip Set, or Toilet Partition Alcove Clip. The manufacturers part number is 8340, 560157, and 650-6656. These clips are sold in sets with the fasteners. They are used to connect a 1" panel to a 1-1/4" panel.

  17. 13 $13.00
    SKU: 9A0160

    Toilet Partition Angle Bracket Chrome Plated 1 3/4" X 1 3/4"

    Constructed of stainless polished finish with chrome plated zamac die casting. Base is 1-3/4" x 1-3/8", projects out 1-3/4". Two screw holes are 1/4" diameter, and are located 1-1/4" from opposing face. Sometimes called Bathroom Stall Angle Bracket. Sold individually, and shipped with required screws. Manufacturer part number 2011.

  18. 7.6 $7.60
    SKU: 9A1270

    The bracket is a zamac die cast material that is then polished chrome plated. The base measures 1-1/2" wide x 2-21/32" long with two mounting holes 1-1/2" on centers. The bracket projects out 3-1/2" with the legs 1" apart, it is used for mounting a 1" thick panel. The mounting holes are located 3-1/8" from the base of the the bracket, and all the holes are 1/4" diameter. The bracket is sometimes called a Toilet Partition One Ear Bracket, Bathroom Stall One Ear Bracket, 1270 wall bracket, 650-6407 wall bracket or sometimes One Wing Bracket.

  19. 6.02 $6.02
    SKU: 9A1310

    Is your Toilet Partition Bracket stamped 1310, if it is you have a one ear urinal bracket. The bracket is made from a zamac die casting that is then polished chrome plated. It sometimes goes by the name Toilet Partition One Ear Urinal Screen Bracket, Urinal Wall Bracket, 1310 Wall Bracket, 650-6410 wall bracket, or just Wall Bracket. The base is 1-1/2" wide x 2-3/4" long with a 1-1/2" on center hole spacing. The legs project out 3-1/2" with the mounting holes at 3-1/8" from the base. The holes are 1/4" diameter.

    For use on 1-1/4" thick panels

  20. 7.5 $7.50
    SKU: 9A1280

    Partition Two Ear Urinal Bracket For 1" X 1-1/2" X 3-1/2

    This bracket is usually used on Urinal Screens, which are the walls between men's urinals, to hold the partitions to the wall. The bracket is made of a zamac casting that is then chrome plated. The bracket base measures 1-1/2" x 4", with a 3" center to center hole spacing. The bracket projects out 3-1/2", with the mounting holes at 2-1/8" and 3-1/8" from the base. The holes used to mount the bracket to the wall and to the urinal are 1/4" diameter. The 1280 Bracket is sometimes called a Bathroom Stall Bracket, Toilet Partition Bracket, Two Wing Bracket, or Urinal Screen Bracket.

    For 1" thick panels

  21. 7.2 $7.20
    SKU: 9A1330

    Two Ear Urinal Bracket For 1-1/4" X 1-1/2" X 3-1/2"

    This bracket is constructed of zamac die cast material that is then polished chrome plated. The base is 1-1/2" wide x 4" long, with two screws 3" on center. The legs project out 3-1/2" with the thru screws at 3-1/8" and 2-1/8" from the base. The 6 holes are 1/4" diameter. This bracket is also known as a Toilet Partition Bracket, Bathroom Stall Bracket, Two Ear Extra Long Bracket, Two Wing Bracket, Urinal Screen Bracket X-Long. The manufacturers part # are 1330, and 650-6449. The bracket includes all the fasteners.

    This bracket is for a 1-1/4" thick panel

  22. 36.5 $36.50
    SKU: 9AWB27

    Toilet Partition Urinal Screen Bracket Chrome Plated

    Constructed of polished chrome plated zamac die cast. The wall mounted base is 7" across with 6" center to center screw holes. The bracket projects out 12" and the two thru holes are 7" on center. The bracket is designed for use on 1" thick panels or urinal screens. The 6 holes are 1/4" diameter. This bracket is sometimes called the 2700 Wing Bracket, 650-6440 Wing Bracket, Urinal Screen Bracket, Urinal Screen Wing Bracket, Bathroom Stall Wing Bracket, or Toilet Partitoin Screen Bracket

  23. 10.75 $10.75
    SKU: 9AWB25

    Urinal Screen Bracket Chrome Plated

    This bracket is usually used on Toilet Partition Stall Urinal Screens to hold the divider on the wall. The base measures 6-1/4" across, and the holes are 5" on center. The bracket projects out 6" with the two thru holes 3-7/32" on center. The channel that projects out is 1-1/4" wide. This bracket is sometimes called a 2500 Wing Bracket, 2500 Wall Bracket, 2500 Urinal Screen Bracket, Bathroom Partition Wing Bracket, ect..

  24. 5 $5.00
    SKU: 9A1860

    Toilet Partition Urinal Screen Bracket Chrome Plated. This bracket is for any thickness panel. The bracket is 2 separate pieces. The base is 1-1/2" x 1-1/2". The base mounting hole is 1" from the inside face of the leg face. The bracket projects out 2-1/2", and the holes are at 2-1/8" and 1-1/8" from the mounting face. The brackets are made of a zamac die cast material and polished chrome plated. This bracket is also known as a Two Piece Bracket - Two Holes, Toilet Partition Bracket, or Bathroom Stall Bracket. The manufacturers part number is 1860 or 650-6437. The bracket is shipped as two pieces plus all of the fasteners.

  25. 7.5 $7.50
    SKU: 9A1320

    Toilet Partition Urinal Screen Bracket Chrome Plated

    This bracket is for any thickness panel. The bracket is 2 separate pieces. The base is 1-1/2" x 1-1/2". The base mounting hole is 1" from the inside face of the leg face. The bracket projects out 3-1/2", and the holes are at 3-1/8" and 2-1/8" from the mounting face. The brackets are made of a zamac die cast material and polished chrome plated. This bracket is also known as a Two Piece Bracket - X-long Two Holes, Toilet Partition Bracket, or Bathroom Stall Extra Long Bracket. The manufacturers part number is 1320 or 650-6434. The bracket is shipped as two pieces plus all of the fasteners.
