Continuous Two Ear Bracket Aluminum, 1" Panel, 47"L x 2-3/4"H x4-1/4"W
Description

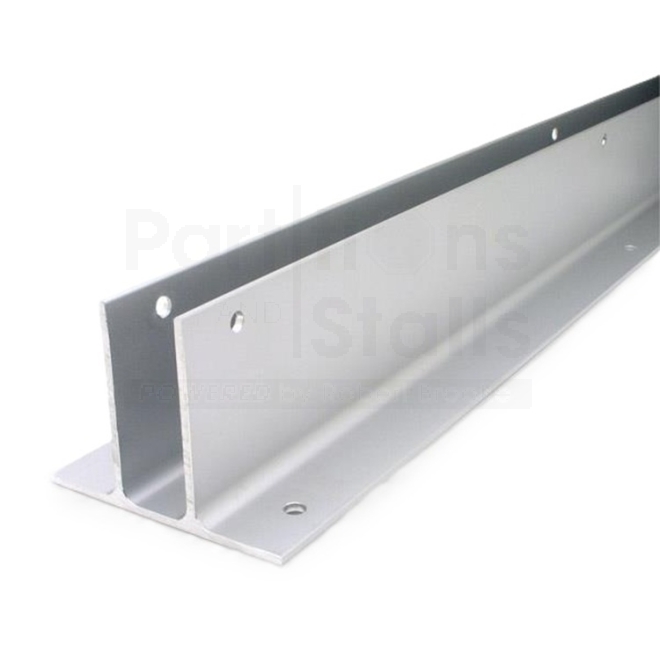

This bracket is constructed of extruded anodized aluminum. Typically used on Panels or Urinal Screens that are 48" in Height. Bracket measures 47"L by 4-1/4"W by 2-3/4H, with screw holes every 15". The legs project out 2-3/4" from the base with base being 4-1/" wide. The legs have a opening of 1" for 1" thick panels. Known as Manufacturer part number 520559. These brackets are shipped with all the needed fasteners.
Measurements
Length: 47"
Width(Base): 4-1/4"
Height: 2-3/4"
Thickness: For 1" Material
Holes: (8) Back Mounting Holes and (8) Thru Mounting Holes, 15" Apart, Starts 1" from Ends
This bracket is constructed of extruded anodized aluminum. Typically used on Panels or Urinal Screens that are 48" in Height. Bracket measures 47"L by 4-1/4"W by 2-3/4H, with screw holes every 15". The legs project out 2-3/4" from the base with base being 4-1/" wide. The legs have a opening of 1" for 1" thick panels. Known as Manufacturer part number 520559. These brackets are shipped with all the needed fasteners.
Measurements
Length: 47"
Width(Base): 4-1/4"
Height: 2-3/4"
Thickness: For 1" Material
Holes: (8) Back Mounting Holes and (8) Thru Mounting Holes, 15" Apart, Starts 1" from Ends
| Part # | 9A520559 |
|---|---|
| Availability | 1 Week Lead Time |
| Return Policy | Non-Returnable |
| Manufacturer | Hadrian Toilet Partition |
| Description | This bracket is constructed of extruded anodized aluminum. Typically used on Panels or Urinal Screens that are 48" in Height. Bracket measures 47"L by 4-1/4"W by 2-3/4H, with screw holes every 15". The legs project out 2-3/4" from the base with base being 4-1/" wide. The legs have a opening of 1" for 1" thick panels. Known as Manufacturer part number 520559. These brackets are shipped with all the needed fasteners.
Measurements Length: 47" Width(Base): 4-1/4" Height: 2-3/4" Thickness: For 1" Material Holes: (8) Back Mounting Holes and (8) Thru Mounting Holes, 15" Apart, Starts 1" from Ends |
| Detailed Description | This bracket is constructed of extruded anodized aluminum. Typically used on Panels or Urinal Screens that are 48" in Height. Bracket measures 47"L by 4-1/4"W by 2-3/4H, with screw holes every 15". The legs project out 2-3/4" from the base with base being 4-1/" wide. The legs have a opening of 1" for 1" thick panels. Known as Manufacturer part number 520559. These brackets are shipped with all the needed fasteners.
Measurements Length: 47" Width(Base): 4-1/4" Height: 2-3/4" Thickness: For 1" Material Holes: (8) Back Mounting Holes and (8) Thru Mounting Holes, 15" Apart, Starts 1" from Ends |
