Flush Metal Partition Parts for Commercial Restrooms

Flush metal partition hardware are commonly used in commercial restrooms.  It is very important that you know who made your partitions. If you have a turn latch system there is a name on the outside of the door. Most manufactures have their own door kits. For hinges, turn latches and keepers the parts below show what we have in stock. For brackets, coat hooks, door bumpers, panel bracket kits, pilaster bracket kits, aluminum head rails and brackets are items that are common to all factories. Search by category for quicker assistance. These parts for the toilet stalls can break or rust in most cases overtime and are replaceable. Flush metal manufacturing plant is located in Melville NY and nearly 50 years in business. Robert Brooke & Associate is a leading commercial bathroom partition parts provider with over 35 years of experience in the industry. We have worked with schools, churches, athletic facilities, and many other organizations with heavy bathroom traffic to provide them with everything they need for their commercial restrooms. For high quality, affordable commercial partition hardware, look no further than Robert Brooke.

Some available hardware options:

  • Chrome plated zamak (most common)
  • Cast stainless steel
  • Stamped stainless steel
  • Aluminum

Material options for Flushmetal Partition:

  • Powder coated steel partitions use chrome plated or cast stainless steel.
  • Plastic laminate partitions use chrome plated or cast stainless steel.
  • Solid plastic partitions use aluminum or cast stainless steel.
  • Stainless steel partitions use chrome plated or cast stainless steel.
  • Solid phenolic partitions use cast stainless steel

Shipping options:

Orders are shipped same day in most cases if ordered before 2:00 pm Eastern Time zone. This time frame will be dependent on the product selected. Lead time in stock means this is in our warehouse for quick shipping. If the item shows 1-2 days that means the part is not in stock with us and will ship from the factory.
RBA Partitions and Parts Catalog

List  Grid

Desc
  1. 5 $5.00
    SKU: 9FL650

    The Flush Metal Toilet Partition Top Door Insert is for use on 7/8" thick doors.  The piece is constructed of Zamac die cast metal that is then chrome plated and polished.  Top hinge insert outside dimensions are 2-3/8" by 1" wide by 1-5/8". Two of the three holes are 13/32" diameter and the third is 7/32". Also known as a Bathroom Stall Door Inser Top 7/8". Manufacture part # 1540.  Bobrick also used this insert.

  2. 5.67 $5.67
    SKU: 9FL925

    The Flush Metal Toilet Partition Keeper Bumper Inswing is for use on 1-1/4" thick square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110.  Shipped with mounting screws.

  3. 5.35 $5.35
    SKU: 9FL900

    The Flush Metal Toilet Partition Keeper Bumper is for use on square edged 1-1/4" thick pilaster posts.  The keeper is constructed of Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for out swinging doors. Also known as a Bathroom Stall Strike and Keeper-Outswing 1-1/4". Manufacture part # 5210.  Shipped with mounting screws.

  4. 6.8 $6.80
    SKU: 9FL800

    The Flush Metal Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal that is chrome plated and polished.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.  Shipped with mounting screws.

  5. 7.6 $7.60
    SKU: 9FL700

    The Flush Metal Toilet Partition Bottom Hinge is for use on an 1-1/4" square edged pilaster post.   It is constructed of Zamac die cast metal that is then chrome plated and polished.  The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a Fiat Bathroom Stall Pivot Hinge Bottom 1-1/4". Also known as General, American Sanitary, Flush Metal, Fiat Tiolet Partition 9F0301, 9AM280, 9FL700.  Manufacture part # 3290.  Shipped with mounting screws.  A=1-5/8"

  6. 4 $4.00
    SKU: 9FL775

    The Flush Metal Toilet Partition Bottom Door Insert is for 7/8" thick doors and is constructed of Zamac die cast metal and then chrome plated.  The door insert measures 2-5/16" wide by 1" wide by 1-3/16" high. The hex shaped hole is 5/8" and the round hole is 7/32" diameter. The material or rim is 5/16" high. Also known as a Bathroom Stall Door Insert Bottom 7/8". Manufacture part # 1530.

  7. 3 $3.00
    SKU: 9FL750

    The Flush Metal Toilet Partition Pintle 1/2" is for laminate restroom stalls.  It is constructed of steel and white nylon plastic.  The pintle is 1/2" diameter by 2-5/16" high. The threads are 5/16-18. Also known as a Bathroom Stall Pintle. Manufacture part # 98265.  Shipped with lock washers and nut.

  8. 3 $3.00
    SKU: 9FL725

    The Flush Metal Toilet Partition Nylon Cam is constructed of white nylon.  The partition cam head outside diameter is 23/32" and the inside diameter is 1/2". The cams cylinder is 1-13/32" long with a diameter of 5/8". For use with a 1/2" pintle. Also known as a Bathroom Stall Cam. Manufacture part # 98275.

  9. 15 $15.00
    SKU: 9A3293

    The Toilet Partition Bottom Hinge for 1-1/4" Sq Edge Cast Stainless Steel is a replacement for the Zamac Die Cast hinges for General, American Sanitary, Flush Metal and Fiat Partitions.  It features cast stainless steel construction, which is much more durable.  The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a General Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3293.  Shipped with mounting screws.  A=1-5/8"

  10. 15 $15.00
    SKU: 9A3793

    The Toilet Partition Top Hinge for 1-1/4" Square Edge Cast Stainless Steel is a replacement for the Zamac Die Cast hinges for General, American Sanitary, Flush Metal and Fiat Partitions.  It features cast stainless steel construction, which is much more durable.  The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3793.  A=1-11/16"

  11. 16.18 $16.18
    SKU: 9A5023

    The Toilet Partition Slide Bolt Latch is constructed of Cast Stainless Steel.  The latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5023.  Shipped with mounting security screws.  Also known as 9F0302SS.

    This latch is the same as our 9F0302 (5020), but is made of cast stainless steel, which is much more durable and heavy duty.

  12. 13 $13.00
    SKU: 9A6148

    The Global Partitions Latch Knob Cover Cast SS is constructed of cast stainless steel, making it heavy duty than the standard die cast concealed latch.  Knobs have an outside diameter of 1-5/8" with the inner ring diameter of 1-1/4". The cover plate has a depth of 1-1/4". Also known as a Bathroom Stall Latch Knob and Cover Stainless Steel. Manufacture part # 6148.

  13. 16 $16.00
    SKU: 9A6158

    The Global Partitions Ada Latch Knob Cover Cast SS is constructed of cast stainless steel, making it heavy duty than the standard die cast concealed latch.  This latch meets ADA compliance codes.  Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". The ADA Barrier Free Lever is 2-9/16" long when measured from the all the way across the cover. The cover has an overall depth of 1-1/4". Also known as a Bathroom Stall Concealed ADA Latch Cover and Knob Assembly. Manufacture part # 6158

  14. 8.4 $8.40
    SKU: 9A6606

    The Flush Metal Toilet Partition Latch Housing is constructed of Zamac die cast metal.  The latch body measures 3-3/8" deep by 1-15/16" high. The face plate is 3-1/4" high. The latch bolt is 11/32" diameter and has a travel of 7/16". Also known as a Flush Metal Bathroom Stall Concealed Latch Housing. Manufacture part # 6606.

  15. 8 $8.00
    SKU: 9FL100

    The Flush Metal Toilet Partition Top Hinge is for use on 1-1/4" thick round edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and then polished.  Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Also known as a Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3510.  Shipped with mounting screws.  A=1-7/6"

  16. 2.75 $2.75
    SKU: 9FL125

    The Flush Metal Toilet Partition Top Hinge Pin is for plastic laminate restroom stalls.  The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.  It is constructed of threaded steel.

  17. 8 $8.00
    SKU: 9FL200

    The Flush Metal Toilet Partition Bottom Hinge is for use on 1-1/4" thick round edged pilaster posts.   It is constructed on Zamac die cast metal that is chrome plated and polished.  Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Also known as a Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3010.  Shipped with mounting screws.  A=1-7/6".

  18. 1.7 $1.70
    SKU: 9FL225

    The Flush Metal Toilet Partition Nylon Cam For Steel restrooms is constructed of white nylon plastic.  Square part of nylon cam is 7/8" by 1-1/8" with a diameter of 11/16". The cam has an overall height of 1-1/4", with a cylinder diameter of 7/8". Also known as a Bathroom Stall Cam. Manufacture part # 98185.

  19. 3.5 $3.50
    SKU: 9FL250

    The Flush Metal Toilet Partition Pintle is for use on there steel doors and is constructed of steel and white nylon plastic.  The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.  Shipped with nut and lock washer.

  20. 11 $11.00
    SKU: 9FL265

    The Flush Metal Toilet Partition Top Hinge Casting is for use on there metal restroom stalls.  It is constructed of Zamac die cast metal.  The outside dimensions of the top hinge casting are 5-1/8" high by 2-5/8" deep by 25/32" wide. Two of the three holes are 3/8" diameter, and the other hole is threaded for a 5/16-18 screw. Also known as a Bathroom Stall Door Insert - Top 1". Manufacture part # 4556.

  21. 6.5 $6.50

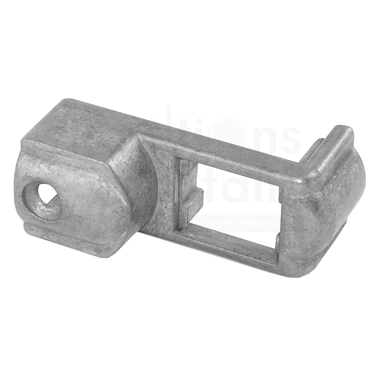

    SKU: 9FL275

    The Flush Metal Toilet Partition Bottom Cam Housing is constructed of Zamac die cast metal.  The bottom cam housing measures 1-3/16" wide by 3" deep. The screw hole is 9/32" diameter. Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4096.

  22. 8 $8.00
    SKU: 9FL275CH

    The Flush Metal Toilet Partition Bottom Cam Housing Chrome Plated is constructed of Zamac die cast metal that is then chrome plated and polished.  The bottom cam housing measures 1-3/16" wide by 3" deep. The screw hole is 9/32" diameter. Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4090.

  23. 6.5 $6.50
    SKU: 9FL325

    The Flush Metal Toilet Partition Latch Knob & Cover is constructed of Zamac die cast metal that is chrome plated and then polished.  Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 1390.

  24. 10 $10.00
    SKU: 9FL325A

    The Flush Metal Toilet Partition Ada Latch Knob & Cover is constructed of Zamac die cast metal that is then chrome plated and polished.  Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". The ADA Barrier Free Lever is 2-9/16" long when measured from the all the way across the cover. The cover has an overall depth of 1-1/4". Also known as a Bathroom Stall Concealed ADA Latch Cover and Knob Assembly. Manufacture part # 6150

  25. 5.25 $5.25
    SKU: 9FL400

    The Flush Metal Toilet Partition Keeper Bumper Concealed is for use with concealed latches that have 1-1/4" thick squared edged pilaster posts.  They are constructed of Zamac dia cast metal that is chrome plated and then polished.  Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510.  Shipped with mounting screws.
