General Toilet Partitions Top Hinge For Steel

In stock
Part #
96320A
$17.71

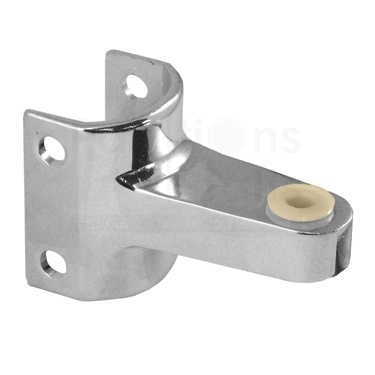

The General Partitions Top Hinge is constructed of Zamac die cast metal that is chrome plated and polished.  The wrap around dimension is 1-1/4" wide by 1-3/4" high and 11-16" deep. The hole spacing is 1-1/8" on center. The lug projects out 1-3/8" and is 1/2" thick with a 1/4" bushing diameter. Also known as a Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3910.  A=1-11/16".

General Partitions Top Hinge is constructed of Zamac die cast metal that is chrome plated and polished.  The wrap around dimension is 1-1/4" wide by 1-3/4" high and 11-16" deep. The hole spacing is 1-1/8" on center. The lug projects out 1-3/8" and is 1/2" thick with a 1/4" bushing diameter. Also known as a Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3910.  A=1-11/16".

More Information
Part # 96320A
Availability In Stock
Manufacturer General Toilet Partition
Short Description

The General Partitions Top Hinge is constructed of Zamac die cast metal that is chrome plated and polished.  The wrap around dimension is 1-1/4" wide by 1-3/4" high and 11-16" deep. The hole spacing is 1-1/8" on center. The lug projects out 1-3/8" and is 1/2" thick with a 1/4" bushing diameter. Also known as a Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3910.  A=1-11/16".

Description

General Partitions Top Hinge is constructed of Zamac die cast metal that is chrome plated and polished.  The wrap around dimension is 1-1/4" wide by 1-3/4" high and 11-16" deep. The hole spacing is 1-1/8" on center. The lug projects out 1-3/8" and is 1/2" thick with a 1/4" bushing diameter. Also known as a Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3910.  A=1-11/16".
