Search results for: 'latch and keeper for 1 1 4 doan larg'

The Metpar Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal and then chrome plated.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch.  Manufacture part # 5020.  Shipped with mounting screws.

Cast S.S. Slide Bolt Latch 5/8" Bar To Door, 3-1/2" Between Screws. Cast stainless steel construction. Base is 4-1/2" tall with a hole spacing of 3-1/2" on center. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick and has a throw of 15/16". The latch projects out 1-9/16". The distance from the back of the base to the underside of the latch bolt is 9/16". Also known as a Bathroom Stall Slide Latch and Toilet Partition Locks. Manufacture part #5053. Shipped with screws. Used by accurate and global.

Stamped SS One Ear Bracket 3/4" Panel 1-1/2" X 2-1/2"

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-5/32" with the mounting screws are 1-11/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1649.

Shipped with screws

The General Toilet Partitions Slide Bolt Latch is constructed of Zamac die cast metal that is chrome plated and polished.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.  Shipped with mounting screws.

Toilet Partition Pilaster Floor Shoe 1-3/4" X 1-3/4" Square Post

Constructed of zamac die cast material, then polished chrome plated. Base is 2-5/32" x 3-7/8", with 3" on center hole spacing. Floor shoe projects up 2" and has a 1/4-20 treaded hole. Also known as a Bathroom Stall Pilaster Post Shoe, or Toilet Partition Pilaster Post Shoe. Manufacture part # 3040 and 40-8512510. Shipped with all the fasteners.

The Partition Slide Bolt Latch 9/16" Bar To Door clearance is constructed of Zamac die cast metal that is then chrome plated and polished.   Base is 3-3/8" high with 2-5/8" hole spacing. Latch bolt is 3-1/8" long by 7/8" wide by 3/16" thick with a 9/16" dimension from the door to the under side of the latch bolt. The latch projects out 1-1/2" when installed on the door. Also known as a Bathroom Toilet Stall Door Slide Latch and Toilet Partition Locks. Manufacture part # 6540.  Shipped with mounting screws.

Hadrian's new style 7/15/19 partition Ada latch knob with set screw included. The latch is ADA compliant and meets barrier free codes.  They are constructed of Zamac die cast metal that is then chrome plated and polished. This part is used on Hadrian Partitions and will replace the old style concealed turn latch. The new manufacturer's part number is 601150, but also associates with old parts and replaces 601100, 601110, 601200. This new turn latch with set screw and cover will replace all standard or old Ada latches prior to 8/1/2019.

The Accurate Toilet Partition Slide Bolt Latch is made of zamac die cast metal and then chrome plated and brought to a polished finish. This latch was used by Accurate Partition Corp and Global Partitions.  Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5050 and also the same as 9G0136.  This latch ships with the mounting screws.

Curtain Roller Snap Hook For 1" or 1-1/4" Rod with metal balls for smooth rolling back and forth. The hook is 2-3/4' High.

The Metpar Toilet Partitions Latch Knob Cover is constructed of Zamac die cast metal that is then chrome plated and polished.   Outside diameter of the knob and cover are 1-3/4" with the inner ring diameter of 1-7/32". Cover lugs project out 1-7/32" . The latch bolt is 11/32" diameter by 2-21/32" long, the square box has a height of 3/4". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 5090

The Ampco Toilet Partition Top Hinge 1-1/4" Sq Edge, Uses 1/4" Pin is for use on square edged pilaster posts that are 1-1/4" thick.  It is constructed of Zamac die cast metal and then chrome plated and polished.  The hinge mounting U channel measures 2-1/4" high by 1-1/4" deep with an insert depth of 1-5/16". The hole spacing is 1-1/2" on centers. The hinge lug projects out 1-11/16" by 1/2" thick with a 1/4" bushing diameter. Also known as a AMPCO Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3610.  Ships with mounting screws.

The All American Toilet Partition Keeper Bumper is for 1-1/4" thick round edged pilaster posts.  The slot measures 1/2" x 3/4".  The manufactures part number is 105.

The Bottom Hinge Assembly Cast SS is for use on 7/8" thick doors and 1-1/4" thick square edged pilaster posts.  The hinge is constructed of cast stainless steel, that is then brushed to the proper finish.  The kit includes bottom hinge, pintle, pin, insert and mounting screws.  Also known as a Bathroom Stall Bottom Pivot Hinge Set. Manufacture part # 63013

Kit includes rod with exposed flanges.

Flanges fabricated of 20ga. stainless steel with a satin finish. Flanges have (3) countersunk 13/64" dia. holes to accept #10 flat or oval head screws furnished by others.

Rod is installed in straight section between two (2) mounting flanges. Rods longer than 36′′ require ceiling hanger Model No 1204-C18.

For use with standard shower curtain model No ’s 1200 or 1200-V having 36′′ length and standard hooks Model No 1200-SHU unit should be installed with rod centerline 74-1/2′′ AFF or 67′′  above tub rim to obtain 6′′ bottom overlap.

Kit includes rod with exposed flanges.

Flanges fabricated of 20ga. stainless steel with a satin finish. Flanges have (3) countersunk 13/64" dia. holes to accept #10 flat or oval head screws furnished by others.

Rod is installed in straight section between two (2) mounting flanges. Rods longer than 72′′ require ceiling hanger Model No 1204-C18.

For use with standard shower curtain model No ’s 1200 or 1200-V having 72′′ length and standard hooks Model No 1200-SHU unit should be installed with rod centerline 74-1/2′′ AFF or 67′′  above tub rim to obtain 6′′ bottom overlap.

Partition Continuous One Ear Wall Bracket For 1"Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2334, one ear 1" x 57, and 650-9750-58. These brackets are shipped with all the needed fasteners.

The American Sanitary Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal that is chrome plated and polished.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.  Shipped with mounting screws.

Hadrian's new style 7/15/19 Partition Ada Latch Knob includes the turn latch wit set screw and cover. The latch is ADA compliant and meets barrier free codes.  They are constructed of die cast stainless steel that is then a brushed finish. This part is used on Hadrian Partitions and will replace the old style concealed turn latch.  The new manufacturer's part number is 901150, but also associates with old parts and replaces 601100-700, 601110-700, 601200-700. This new turn latch with set screw and cover will replace all standard or old Ada latches prior to 8/1/2019.

The Toilet Partition Coat Hook & Bumper 2-3/4" Projection x 2-1/4" High is mainly used on Hadrian Manufacturing Partitions.  The hook is constructed of Zamac die cast metal that is then chrome plated and polished. And measures 2-1/4" high with a projection of 2-3/4".  The manufacturer part number is 601900.

Hadrian Door Kit includes Ada turn latches with hinges that wrap around the edge of the pilaster type. Chrome plated parts include wrap hinges, keeper bumper, ada turn latch, cover plate, pintle, nylon cam, double door pulls, coat hook & bumper, top pin and all security screws included. For Hadrian partitions in steel or stainless steel partitions only. This product manufacture number is 601025, replaces 601005.

The Coat Hook & Bumper Cast SS 2-3/4" Projection x 2-1/4" High is mainly used on Hadrian Manufacturing Partitions.  The hook is constructed of cast stainless steel and measures 2-1/4" high with a projection fo 2-3/4".  The manufacture part number is 601900-700.

The Toilet Partition Top Hinge 1-1/4" Round Edge is constructed of Zamac die cast metal that is then chrome plated and polished.   This hinge is used on 1-1/4" thick round edged pilaster posts.  The outside dimensions of the hinge are 1-1/4" deep by 2-1/2" high by 1-7/16" wide. The U mounting channel is 2-1/8" high by 1-1/4" deep with a slot depth of 11/16". The mounting holes are 1-1/2" apart on center. The lug projects out 1-3/32" by 13/32" thick with a 3/8" diameter bushing. Also know as a Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 4530. Used on Ampco and Metpar Metal Partitions.  Shipped with mounting screws.  A=1-7/16"

Chrome Plated Alcove Clip

Chrome plated zamac die casting, for use on 1" doors and 1-1/4" posts. Horizontal leg in picture is 1-1/4" wide and 1-1/2" tall. The vertical leg is 1-5/32" wide. The holes are 1/4" diameter. Also known as Bathroom Stall Alcove Clip, Toilet Partition Alcove Clip, and Toilet Stall Alcove Clip. The manufacturers part number is 1550 Alcove Clip and 650-6650 Alcove Clip.

Chrome plated inswing door kit for square edge doors and posts. For 1" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 11000.

Is your Toilet Partition Bracket stamped 1310, if it is you have a one ear urinal bracket. The bracket is made from a zamac die casting that is then polished chrome plated. It sometimes goes by the name Toilet Partition One Ear Urinal Screen Bracket, Urinal Wall Bracket, 1310 Wall Bracket, 650-6410 wall bracket, or just Wall Bracket. The base is 1-1/2" wide x 2-3/4" long with a 1-1/2" on center hole spacing. The legs project out 3-1/2" with the mounting holes at 3-1/8" from the base. The holes are 1/4" diameter.

For use on 1-1/4" thick panels

Accurate ADA Turn Latch with Screw. This version started January 2013 for all accurate partition doors and ended September 2021. This old style is the exact same as Global's version, except the name on the cover latch part. Also known as 40-8513350. Chrome plated finish.

This turn latch will not replace previous version of Accurates old style turn latches that are no longer available.

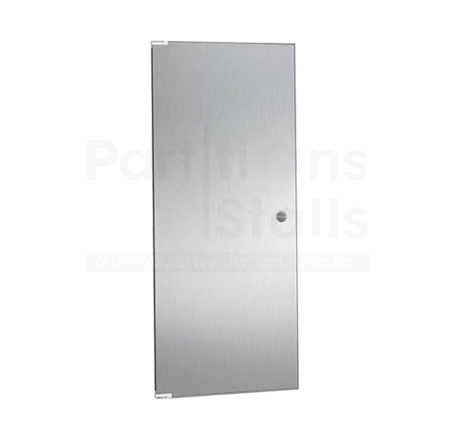

Hadrian Smooth Stainless Steel Doors are available with door kits that include the hinges, keeper and latching. All smooth surface stainless steel doors ship out in 48 hours and usually take 2-4 days travel. We offer a wide range of sizes, all door sizes are the for the opening you have. All partition doors are 1/2" less than the opening for proper gapping and 58" height. Partition doors are mounted 12" off the floor.

Hadrian Stainless Steel Color Chart

Hadrian Instructions Stainless Steel

Accurate stainless steel standard turn latch with screw. This version started January 2013 for all accurate partition doors and end September 2021. This old style is the exact same as Global's version, except the name on the cover latch part. Also known as 40-8263300. Cast stainless steel finish.

This turn latch will not replace previous version of Accurates old style turn latches that are no longer available.

The Flush Metal Partition Latch Knob & Cover is constructed of Zamac die cast metal that is chrome plated and then polished.  Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 1390, 6140.

Brackets designed to mount plexiglass/acrylic sheets to desk surface edge when creating separation/barrier. Brackets are adjustable for thickness from 1/8" to 3/8". It is recommended for use of 1/4" Thick material. Sold as a Pair. Made of Aluminum Alloy. Screws and inserts included. Uses a 5mm/3/16" Allen Key(Not Included) to install screws These are available in either Silver or Black Finish. Silver Finish are readily available while Black Finish may have an extended leadtime depending on quantities being ordered.

Measurements

Height: 2-1/2"

Width: 1-3/4"

Depth: 5/8"

Weight:About 1.3lb

Top to Bottom: 3-5/8"

Plate Width: 1-3/4"

Plate Length: 5-3/4"

Plate Height: 3/16"

Gap/Spacing: 1"

Flush Metal concealed turn latch knob and cover plate with set screw is the current style. This turn latch is one of a kind, under the cover plate and under the turn latch you will notice a diamond shape that are male - female. Only buy this if this is what you have exactly. Many of these parts look the same but are not and will not work unless this is what you have. Manufactures #143520. This part has a 1-3/8" diameter.

If your toilet partition or bathroom stall wall bracket is cast with the number 1940 on the back, then you have the “U” Wall Bracket for 1-1/4″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-1/2″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.

Cast stainless steel outswing door kit for square edge doors and posts. For 1" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 21003.

The Sanymetal Toilet Partitions Ada Latch Knob Cover & Pin is an ADA Compliant latching mechanism.  The pin measures 3-1/8" overall length.   They are constructed of Zamac die cast metal that is then chrome plated and polished.  Manufactures part # 6860 and 8860.

Toilet Partition "U" Wall Bracket For 1-1/4" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 1-13/32" . Leg project out 1-1/2" with the thru hole at 1-1/8" from the base. The 4 thru holes are 1/4" diameter, two of them are the mounting holes. Also known as a Bathroom Stall U Wall Bracket. Manufacturer part # 1949.

Shipped with screws
