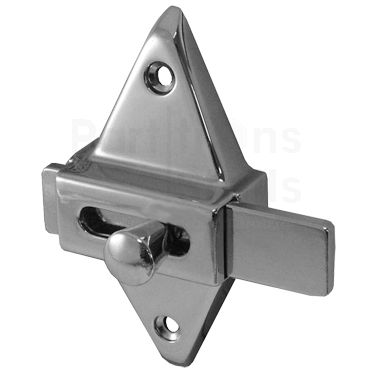

Metpar Toilet Partition Slide Bolt Latch
The Metpar Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal and then chrome plated. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020. Shipped with mounting screws.
The Metpar Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal and then chrome plated. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020. Shipped with mounting screws.
Part # | 9CP100 |
---|---|
Availability | In Stock |
Manufacturer | Metpar Toilet Partition |
Short Description | The Metpar Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal and then chrome plated. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020. Shipped with mounting screws. |
Description | The Metpar Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal and then chrome plated. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020. Shipped with mounting screws. |
