The Hadrian Partition Upper Door Casting SS is the component that fits into the top of the metal door to act as one of the hinge points.   They are constructed of cast stainless steel.  The manufactures part number is 640003-700.

The Partition Slide Bolt Latch Stainless Steel 3/8" Bar To Door, 2-3/4" Screws is constructed of cast stainless steel.  The latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/4" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 3/8" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5033.  Shipped with mounting security screws.

The Partition Slide Latch Stainless Steel 3/8" Bar To Door, 3-1/2" Screws is constructed of cast stainless steel.  The latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 5/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5063.  Shipped with mounting security screws.

The Accurate Toilet Partition Keeper Bumper for In swing doors is constructed of Zamac die cast metal, then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for in swinging doors. Also known as a Bathroom Stall Strike and Keeper Inswing 1-1/4" Square Edge. Manufacture part # 5110. Shipped with mounting screws.

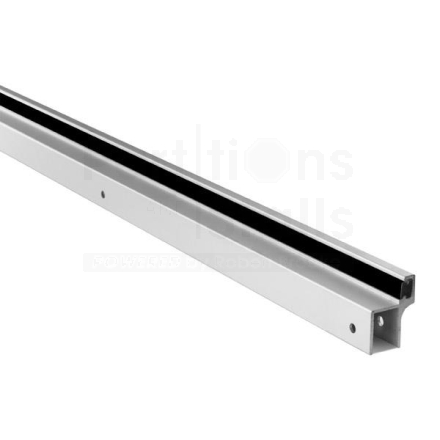

Toilet partition full length aluminum door stop for 1" panel Inswing doors. This product is clear anodized aluminum. This full length door stop with block the gap between the door and the post next to it. For an inswing the slot is 3/8"x1-1/4" wide for the slide latch to latch it. The door keeper and strike is 54" in length and has 5 holes spaced at 13" apart and starts at 1" from the top and the bottom. Also known as 134304 strike & keeper channel. Includes all hardware.

The Accurate Partition ADA Door Kit Old Style has been used from January 2013 to September 2021.  The door kit is replacement hardware for an Accurate Partitions Corp. metal door.  The kit includes the top and bottom hinges, nylon inserts, coat hook, keeper bumper, ADA concealed latch and security screws.  This kit will convert your door to an ADA compliant door.  They are constructed of die cast metal that is then chrome plated and polished.  The manufactures part number is 50-8511515.

These hinges will not replace previous version of Accurates old style hinges that are no longer available.

Global partitions new style door kits, used September 2021 to current. This door kit includes cast stainless steel hardware, hinges and associated parts, slide latch with indicator and door keeper, coat hook. The adder is for outswing doors that included double door pulls, stainless steel top pin and 2" door stop. All security screws included. Factory part number 8263513 for inswing parts and 8263514 for the adder which is double door pulls and door stop. The hinges have been used for over 30 years.

To order out swing version you must order both parts as pictures shown for complete door kit.

Cast stainless steel 5-1/2" double door pulls, for 3/4" thick doors. Also known as 900112 Replaced by 630112. Overall width is 6-3/4" and has hole spacing of 5-7/8" between screws.

The Hadrian Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal that is chrome plated and polished.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.  Shipped with mounting screws.

Chrome Plated Alcove Clip

Chrome plated zamac die casting, for use on 1" doors and 1-1/4" posts. Horizontal leg in picture is 1-1/4" wide and 1-1/2" tall. The vertical leg is 1-5/32" wide. The holes are 1/4" diameter. Also known as Bathroom Stall Alcove Clip, Toilet Partition Alcove Clip, and Toilet Stall Alcove Clip. The manufacturers part number is 1550 Alcove Clip and 650-6650 Alcove Clip.

The Fiat Toilet Partition Top Hinge for Laminate Door is for use on an 1-1/4" Square Edged Pilaster Post and uses a 7/16" Pin.  It is constructed of Zamac die cast metal that is chrome plated and polished.  The hinge U channel measures 2-1/4" high by 1-1/4" deep with a insert depth of 1-5/16". The hole spacing is 1-1/2" on centers. The hinge lug projects out 1-11/16" and is 1/2" thick. The lug hole diameter is 19/32". Also known as a Fiat Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3630.  Ships with mounting screws.  A=1-11/16"

The Accurate Toilet Partition Hinge Cam Set is used on Accurate Partition Corp and Global Partition Corp plastic laminate doors.  The manufactures part numbers are 9G631E, 89820 and 89830.

The Global Partition Complete Stainless Steel Door Kit is the manufactures hardware package.  They are constructed of cast stainless steel. Included in the kit is a top and bottom hinge, concealed latch, keeper bumper, pintle, cam, coat hook and bumper, all of the hinge pins and the security screws.  The manufacture part number is 40-8263501. This was used up until October 2021.

The Electronic Touchless Bulk/Cartridge Soap Dispenser in white, consistently dispenses one (1-1.5ml) drop at a time. The unit operates on 3 "C" batteries for up to 80,000 cycles. The refillable reservoir may be used with quality bulk liquid soaps. The mechanism is a separate piece to prevent damage from the soap.

The Accurate Toilet Partition Top or Bottom Hinge is for plastic laminate doors when attaching them to an 1-1/4" square edge pilaster or post.  The hinge mounts to the post to support the door. Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" deep with a slot depth of 1-5/16" and 1-1/2" between screws on center. Hinge lug projects out 1-11/16" and is 1/2" thick with a 5/8" diameter hole. Also known as a Bathroom Stall Pivot Hinge Top/Bottom 1-1/4". Manufacture part # 3540. Same as 9G631A on our website.

The Global Toilet Partition Bottom Cam Housing Chrome Plated is constructed of Zamac die cast metal that is then chrome plated and polished.  The bottom cam housing measures 1-3/16" wide by 3" deep. The screw hole is 9/32" diameter. Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4090.

The American Sanitary Toilet Partition Nylon Cam is constructed of natural nylon plastic. The nylon cam head diameter is 7/8" with an inside diameter of 11/16". The cylinder diameter is 3/4" and has an overall length of 1-11/32". For use with a 5/8" diameter pintle. Also known as a Bathroom Stall Door Hinge Cam. Manufacture part # 98245.

Toilet partition full length aluminum door stop for 1" panel outswing doors. This product is clear anodized aluminum. This full length door stop with block the gap between the door and the post next to it. For an outswing the latch locks on the back side of the bumper. The door keeper and strike is 54" in length and has 5 holes spaced at 13" apart and starts at 1" from the top and the bottom. Also known as 134314 strike & keeper channel. Includes all hardware.

Toilet partition continuous door stop for powder coated steel partitions, this has a slight round edge for attaching. The length is 57" and is used on a 1-1/4" slight round edge pilaster for mounting. Used with 1" doors and has a concealed turn latch with the pin coming out the center edge of the door. The hole spacing for the slot is 28-1/2" dead center of unit. The slot for the bolt to lock to is 7/16" wide x 5/8"ht. This helps with blocking the door gaps on the locking side of the door. This is made of brushed aluminum material and is used with in or out swing doors. Also known as Hadrian partitions part number 560058.

Door Stop, Pilaster Mounted, 2-1/2" X 4-1/4", Stainless Steel.

Cast Stainless Steel construction. The door stop base is 3" wide by 1-1/4" high with a 2-5/16" hole spacing. The stop projects out 2-1/2" and has a rubber insert in it. This door stop is usually mounted on the pilaster or post. Also known as a Bathroom Stall Door Stop. Manufacture part # 4153.

The Chrome Plated Bottom Hinge Assembly For 7/8" Door, 1-1/4" Pilaster if for use on 7/8" thick doors and 1-1/4" thick squared edged pilaster posts.  Hinge is constructed of Zamac die cast metal that is chrome plated and polished.  Kit includes Bottom Hinge, Pintle, Nylon Cam, Bottom Hinge Door Insert and mounting Screws. Bottom hinge measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Mounting lug projects out 1-1/4". Also known as a Bathroom Stall Bottom Hinge Kit. Manufacture part number 63010.

The Matte Black Hadrian Door Kit is designed to work with doors and pilasters that are 3/4" thickness. Hinges, Coat Hook and Latch Keeper are constructed of stainless steel and indicator latch is constructed of zamac with all having a matte black finish. The door kits comes with (2) Hinges, (1)Indicator Latch, (1) Latch Keeper, (1) Coat Hook and fasteners for installing. Hinges are field adjustable so door and swing in or out as well as right or left. Known as manufacturers part number 671000-BLK.

The Global Partition Complete Standard Door Kit is the manufactures hardware package.  They are constructed of Zamac die cast metal that is then chrome plated and polished. Included in the kit is a top and bottom hinge, concealed latch, keeper bumper, pintle, cam coat hook and bumper, all of the hinge pins and the security screws.  The manufacture part number is 40-8513500. This was used up until October 2021.

The Matte Black Hadrian double door pull is designed to mount through a 3/4" thickness partition door. Constructed of stainless steel to have a matte black finish. Measures 6-3/4" in length with center to center holes spacings of 6-1/8". Designed for outswing and ADA doors. Will require a 7/32" hole to be drilled into door and should be istalled 7" from door edge. Comes with fasteners to mount double pulls through door. Known as manufacturers part number 670112-BLK.

The Global Toilet Partition Cam Set For Laminate is used on Accurate Partition Corp and Global Partition Corp plastic laminate doors.  The manufactures part numbers are 9HAP35, 89820 and 89830.

The American Sanitary Toilet Partition Top Hinge Insert is constructed of Zamac die cast metal that is chrome plated then polished.  The hinge insert outside dimensions are 2-3/16" wide by 1-5/32" deep by 1-13/16" high. The two holes have a diameter of 13/32". Also known as a Bathroom Stall Door Insert Top 1". Manufacture part # 2400.

The Global Partition ADA Door Kit is the manufacturer's conversion kit from regular door to ADA door.  They are constructed of Zamac die cast metal that is then chrome plated and polished.  The kit includes ADA handle, door stop and bumper, handles, and hinge pin.  The manufactures part number is 40-8513512.   If you want the complete kit, order 9G4000, which is a complete hardware package. This was used up until October 2021.

Double sided door pulls in a chrome finish. The overall width is 4-3/4" x 1" deep. The center screws are 3-1/2". This manufacturer number is 54400. This kit includes both handles and screws for 1" thick doors.

The Accurate Partition Stainless ADA Door Kit Old Style has been used from January 2013 to September 2021.  The door kit is replacement hardware for an Accurate Partitions Corp. metal door.  The kit includes the top and bottom hinges, nylon inserts, coat hook, keeper bumper, ADA concealed latch and security screws.  This kit will convert your door to an ADA compliant door.  They are constructed of cast stainless steel. The manufactures part number is 50-8261515.

Partition Bottom Hinge Assembly For 1" Door, 1-1/4" Post is for use with 1-1/4" thick square edged pilaster posts and 1" thick doors.  Bottom hinge measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Mounting lug projects out 1-1/4". The package includes bottom hinge, pintle, nylon cam, bottom hinge door insert and mounting screws.  The hinge is constructed of Zamac die cast metal that is chrome plated and then polished.  Also known as a Bathroom Stall Bottom Hinge Kit. Manufacture part number 63710.

The Flush Metal Partition Bottom Door Insert is for 7/8" thick doors and is constructed of Zamac die cast metal and then chrome plated.  The door insert measures 2-5/16" wide by 1" wide by 1-3/16" high. The hex shaped hole is 5/8" and the round hole is 7/32" diameter. The material or rim is 5/16" high. Also known as a Bathroom Stall Door Insert Bottom 7/8". Manufacture part # 1530.

The Accurate Partition Door Kit Old Style has been used from January 2013 to September 2021.  The door kit is replacement hardware for an Accurate Partitions Corp. metal door.  The kit includes the top and bottom hinges, nylon inserts, coat hook, keeper bumper, concealed latch and security screws.  They are constructed of die cast Stainless steel. The manufactures part number is 40-8261505.

The Toilet Partition Slide Bolt Latch is constructed of Cast Stainless Steel.  The latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5023.  Shipped with mounting security screws.  Also known as 9F0302SS.

This latch is the same as our 9F0302 (5020), but is made of cast stainless steel, which is much more durable and heavy duty.

Toilet Partition Top & Bottom Hinge Assembly For 1" Door, 1-1/4" Pilaster Square Edge. Polished chrome plated zamac die cast construction. Kit includes Bottom & Top Hinges, Pintle, Nylon Cam, Top Pin and Bottom & Top Hinge Door Inserts. Hinges measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Manufacture part number 63130 kit. The top hinge wall to center of the 3/8" diameter hole is 1-1/4" which is known as a 3790 hinge. The bottom hinge wall is also 1-1/4" to the center of the 5/16" hole and known as 3290 hinge. The Top Pin is 3/8" x 3-1/2". Screws are also included.

The Partition Hinge Assembly Cast SS is for use on 1" thick  Doors  and 1" squared edged pilaster Posts.  The kit includes top and bottom hinges, pintle, pin, inserts and all of the mounting screws.  They are constructed of cast stainless steel that is then brushed to the proper finish.  Also known as a Bathroom Stall Pivot Hinge Set. Manufacture part # 63153.

The Mills Toilet Partition Keeper Bumper is for use on 1-1/4" thick square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110.  Shipped with mounting screws.
