One Ear Pilaster Bracket Kit for 1-1/4" Post are available for quick deliveries and cast stainless steel plated. Includes security screws for installation. Also known as 615233.

The Accurate Partition Stainless ADA Door Kit Old Style has been used from January 2013 to September 2021.  The door kit is replacement hardware for an Accurate Partitions Corp. metal door.  The kit includes the top and bottom hinges, nylon inserts, coat hook, keeper bumper, ADA concealed latch and security screws.  This kit will convert your door to an ADA compliant door.  They are constructed of cast stainless steel. The manufactures part number is 50-8261515.

The Partition Slide Bolt Latch Stainless Steel 3/8" Bar To Door, 2-3/4" Screws is constructed of cast stainless steel.  The latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/4" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 3/8" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5033.  Shipped with mounting security screws.

Stainless Alcove Two Ear Bracket Panel Kit for 1/4" Offset. This kit is used for panel to pilaster 1/4" offset and for 1" panel to wall bracket cast stainless steel plated. Security screws included. Also known as 615333.

The Accurate Partition Door Kit Old Style has been used from January 2013 to September 2021.  The door kit is replacement hardware for an Accurate Partitions Corp. metal door.  The kit includes the top and bottom hinges, nylon inserts, coat hook, keeper bumper, concealed latch and security screws.  They are constructed of die cast Stainless steel. The manufactures part number is 40-8261505.

Alcove Two Ear Bracket Panel Kit for 3/4" Panel to 1" Post. Wall brackets and alcove clips are cast stainless steel construction. Security screws included. Also known as 615313.

Hadrian Door Kit includes Ada turn latches with hinges that wrap around the edge of the pilaster type. Chrome plated parts include wrap hinges, keeper bumper, ada turn latch, cover plate, pintle, nylon cam, double door pulls, coat hook & bumper, top pin and all security screws included. For Hadrian partitions in steel or stainless steel partitions only. This product manufacture number is 601025, replaces 601005.

The Sanymetal Partitions Top Hinge Door Escutcheon For 1" Door is constructed of Zamac die cast metal that is then chrome plated and polished.   The outside measurements of this part is 1-3/16" wide by 2-96/32" long by 1-5/8" high.  The hole through the middle is 3/8" diameter.  The manufactures part number is 2450.

Global partitions vault door kit for Solid Plastic material. Comes in a brushed steel finish and are for 15/16" thick material only. You will need to choose in or out swing when ordering. Can be used as right or left handed. See manufacturers numbers listed below. Used with Global and Accurate partitions.

Inswing Door Kit: 40-8571007

Outswing door Kit: 40-8571008

Ordering Online All Solid Plastic (HDPE) Panels Manufactured by Hadrian Partitions, see color chart below. For other factory colors please call for pricing. All panels ship from the factory after 5 business day, plus 2-4 days travel. Note 14", 18", 24", 28", 34", 40", 46", 52", 55", 58", 59", 64", 70" and 76" x 55"ht are available. All panels are 1/4" less than size. The panels include standard aluminum mid bracket kit or up grade to ss channels for better support, includes 2 two ear brackets and 2 u brackets for 1" thick material.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Global partitions vault door kit for Phenolic material. Comes in a brushed steel finish and are for 3/4" thick material only. You will need to choose in or out swing when ordering. Can be used as right or left handed. See manufacturers numbers listed below. Used with Global and Accurate partitions.

Inswing Door Kit: 40-8571005

Outswing door Kit: 40-8571006

Alcove Two Ear Bracket Panel Kit for 1/2" Panel to 3/4" Post. Wall brackets and alcove clips are cast stainless steel construction. Security screws included. Also known as 615353.

Toilet partition full length aluminum door stop for 1" panel outswing doors. This product is clear anodized aluminum. This full length door stop with block the gap between the door and the post next to it. For an outswing the latch locks on the back side of the bumper. The door keeper and strike is 54" in length and has 5 holes spaced at 13" apart and starts at 1" from the top and the bottom. Also known as 134314 strike & keeper channel. Includes all hardware.

Partition Strike/Keeper For 3/4" Door Inswing 1-7/8" Between Screw Stamped Stainless Steel

Stamped stainless steel .075" thickness construction. The strike and keeper measures 2-7/8" tall by 2" wide by 1-15/16" deep with a 1-7/8" hole spacing. The stop is 7/16" thick with a rubber insert. Also known as a Bathroom Stall Strike and Keeper Inswing 3/4". Manufacture part # 6469.

Shipped with mounting screws.

Alcove Two Ear Bracket Panel Kit for 3/4". This kit is used for 3/4" panel to 3/4" pilaster. Wall brackets and alcove clips are chrome plated. Security screws included. Also known as 615660.

Toilet partition full length aluminum door stop for 1" panel Inswing doors. This product is clear anodized aluminum. This full length door stop with block the gap between the door and the post next to it. For an inswing the slot is 3/8"x1-1/4" wide for the slide latch to latch it. The door keeper and strike is 54" in length and has 5 holes spaced at 13" apart and starts at 1" from the top and the bottom. Also known as 134304 strike & keeper channel. Includes all hardware.

Toilet Partition Top & Bottom Hinge Assembly For 1" Door, 1-1/4" Pilaster Square Edge. Polished chrome plated zamac die cast construction. Kit includes Bottom & Top Hinges, Pintle, Nylon Cam, Top Pin and Bottom & Top Hinge Door Inserts. Hinges measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Manufacture part number 63130 kit. The top hinge wall to center of the 3/8" diameter hole is 1-1/4" which is known as a 3790 hinge. The bottom hinge wall is also 1-1/4" to the center of the 5/16" hole and known as 3290 hinge. The Top Pin is 3/8" x 3-1/2". Screws are also included.

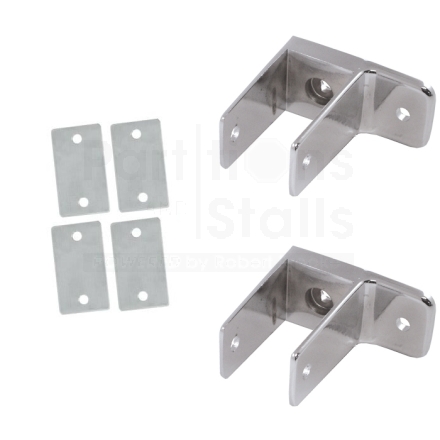

Alcove One Ear Bracket Panel Kit for 3/4". This kit is used for 3/4" panel to 3/4" pilaster. Wall brackets and alcove clips are chrome plated zamac. Security screws included. Also known as 615400.

Bobrick 1550 metro series plastic laminate in a corner partitions, Plastic laminate overhead braced floor mounted stalls. Standard stalls 36" x 60"depth (24" door), ADA stall 60" x 60" depth (36" door). All hardware included. Doors are either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select (1) ADA 24", plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select (2) standard stalls and (1) ADA stall 24". Plastic laminate Partitions ship in 1 week.

Bobrick 1550 plastic laminate color chart

Bobrick 1550 Instructions

Stainless Steel Double Door Pull made for 3/4” and 1” thick doors. Measurements for the handle 6-5/8" width, 5-1/2" hole to hole spacing, 5" interior opening and 2" height. Constructed of stainless steel with though bolts for mounting back to back on partition doors.Commonly known as part number 189373. This double door pull kit comes with fasteners and Torx Bit(T-20) for 3/4" and 1" thck doors.

Bobrick 1550 metro series plastic laminate free standing partition configuration, Plastic laminate overhead braced floor mounted stalls. Standard stalls 36" x 60"depth (24" door), ADA stall 60" x 60" depth (36" door). All hardware included. Doors are either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select (1) ADA 24", plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select (2) standard stalls and (1) ADA stall 24". Plastic laminate Partitions ship in 1 week.

Bobrick 1550 plastic laminate color chart

Bobrick 1550 Instructions

The Hadrian Partition Lower Door Casting Unplated is the component that fits into the bottom of a metal door.   This piece acts as one of the pivot points in the hinge.   They are constructed of Zamac die cast metal.  The manufacture part number is 640004.

The Hadrian Partition Lower Door Casting SS is the component that fits into the bottom of a metal door.   This piece acts as one of the pivot points in the hinge.   They are constructed of cast stainless steel.  The manufacture part number is 640004-700.

One Ear Pilaster Bracket Kit for 1" Post are available for quick deliveries and cast stainless steel plated. Includes security screws for installation. Also known as 615253.

Alcove One Ear Bracket Panel Kit for 1/4" Offset. This kit is used for panel to pilaster 1/4" offset and for 1" panel to wall bracket chrome plated. Security screws included. Also known as 615360.

Stainless Alcove Two Ear Bracket Panel Kit for 3/4". This kit is used for 3/4" panel to 3/4" pilaster. Wall brackets and alcove clips are cast stainless steel. Security screws included. Also known as 615663.

Partition Door Integral Hinge Set Top & Bottom. The bottom pin is 4-7/8" high & the top pin 3" X 1/2" high. Most manufactures used this integral hinge pin set for solid plastic partitions. The Pilasters next to the door are cut out for this door to fit in it. The hinge pins break often due to swinging on the door which causes the pin to bend and breaks the door. Manufacture part #7005.

Hadrian Door Kit for Ada Concealed Hinges. Standard hinges that butt up to the edge of the pilaster. Chrome plated parts include concealed hinges with toggle & screw, keeper bumper, ada turn latch, cover plate, pintle, nylon cam, double door pull handles, coat hook & bumper, top pin and all security screws included. For Hadrian partitions in steel or stainless steel partitions only. This product manufacture number is 601010, replaces 601000.

Alcove Two Ear Bracket Panel Kit for 3/4" Panel to 1" Post. Wall brackets and alcove clips are chrome plated zamac. Security screws included. Also known as 615310.

Bobrick SCRC solid phenolic material in a Corner Partition layout with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall are 60" x 60" depth (36" door). All standard stainless steel hardware included with option of full stainless channels and piano hinges. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must add Ada to add 24" to a standard stall of 36" to create 60" width, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and add Ada 24". 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

Bobrick B-35639 surface mounted waste receptacle with disposal door in a satin finish stainless steel all welded construction. The door is secured to cabinet with a concealed full length stainless piano hinge. Equipped with a cable door swing limit and tumbler lock. Waste bin constructed of heavy gauge stainless steel. The unit is a 3 gallon capacity and is 14-13/16"w x 28-3/16"h x 4-1/2" depth.

Partition Strike And Keeper For 1" Door, 1-7/8" Between Screws, Stamped Stainless Steel

Stamped stainless steel .075" thick construction. The strike and keeper measure 2-7/8" high by 2" wide with a 1-7/8" hole spacing. The stop posts are 5/8" wide by 7/8" tall with rubber inserts. For use with 1" square edge posts. Also known as a Bathroom Stall Strike and Keeper Outswing 1". Manufacture part # 6459.

Shipped with mounting screws.

The Partition Keeper Bumper- In swing For 1-1/4"  is for in swinging doors and pilaster posts of 1-1/4" thickness.  The bracket is constructed of die cast metal and then chrome plated and polished.  The Keeper is used by many manufactures.  The manufacture part # is 40-8512353.

Global partitions door kit for plastic laminate material. The hinges and door stop are for 1" thick material only. We offer in a chrome finish or a stainless steel version. You will need to choose in or out swing and which finish you would like. These manufacturers numbers below. Used with Global and Accurate partitions.
See link for Instructions ***Plastic laminate hinge instructions

Chrome inswing 8512013
Chrome outswing 8512014

Stainless Steel Inswing 8262013
Stainless Steel outswing 8262014

Global partitions plastic laminate between 2 walls stalls for commercial businesses. Plastic laminate overhead braced floor mounted stalls are mostly used. Standard stalls are 36" x 60" depth (24" door), an Ada stall is 60" x 60" depth (36" door). All standard chrome hardware included. Doors can be either in or out swing and up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an Ada stall you must select 1 Ada 24 x 60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24 x 60. Plastic laminate Partitions ship in 2 business days.

Global Plastic Laminate color chart

Hadrian Door Kit includes Ada turn latches with hinges that wrap around the edge of the pilaster type. Cast stainless steel parts include wrap hinges, keeper bumper, ada turn latch, cover plate, pintle, nylon cam, double door pulls, top pin, coat hook with bumper and all security screws included. For Hadrian partitions in steel or stainless steel partitions only. This product manufacture number is 901010, replaces the 901000.
