The Global Toilet Partitions Top Pin is constructed of zinc plated steel.  The hinge pin is 3/8" diameter by 3-3/4" long. Also known as a Bathroom Stall Door Hinge Pin. Manufacture part # 98544.

The American Sanitary Partitions Top Pin is constructed of zinc plated steel.  The hinge pin is 3/8" diameter by 3-3/4" long. Also known as a Bathroom Stall Door Hinge Pin. Manufacture part # 98544.

The All American Toilet Partition Hinge Pin has a 5/16" Diameter x 2 13/16" Long, and is used in conjunction with the top hinge.  The manufactures part number is 101.

Ordering online all powder coated metal stall doors are Manufactured by Global Partitions. Partition doors that ship in 48 hours are 24, 26, 34, 36 doors. All other sizes take 5 business days to ship from the factory. Standard chrome plated door kits included with option of stainless steel door kits. When ordering a restroom stall door you need to know that the door will come 3/8" narrower than the opening.  The door size is the opening you have to replace, so a 36" door is for a 36" opening.

Global Partitions Color Chart

Ordering Online All Solid Plastic (HDPE) Doors Manufactured by Hadrian Partitions, see color chart below. For other factory colors please call for pricing. All doors ship from the factory after 5 business day, plus 2-4 days travel. Note 22", 23", 24", 26",32", 34" & 36" are the opening you have between posts. The doors Include standard 8" wrap hinge sets or up grade to ss cam piano style hinges. All hardware is for 1" thick material, aluminum latching and door stop all in aluminum finish included. (actual door size is 1/2" narrower that the opening).

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Global partitions stainless steel doors are manufactured in the USA. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Note only 24, 26, 34 & 36 are quick ship, note 22, 28, 30 and 32 doors ship out after 1 week. Stainless Steel Doors Include: Hinges for 1-1/4" round edge pilaster, Bumper keeper hardware and turn latch locking system all in standard chrome plated finish. The size of the door is the exact opening width. All doors are 3/8" less than the opening for gapping.

Global Stainless Steel Color Chart

Global Partitions Bottom Hinge For Surface Mount. Stainless Steel die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-9/16" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Manufacture part # 3010, 111710, 111713. Also used with Flush Metal and General Partitions. Shipped with mounting screws. A=1-9/16". Also used with Accurate Partition doors after January 2013.

The Sanymetal Toilet Partitions Bottom Hinge  Sq Edge is for use on 1-1/4" thick square edged pilaster posts.  They are constructed of Zamac die cast metal that is then chrome plated and polished.  The manufacturer's part number is 3460. A=1-1/2". 1-1/4" hole.

Global partitions solid plastic doors are manufactured in the USA. Quick ship doors are 24, 26, 34, 36 and ship out in 48-72 hours. All other sizes ship in 5 business days. All partition doors come with a door kit that includes hnges, latching and a keeper bumer for the door to stop and lock into. All the colors are quick ship.

Global Solid Plastic Color Chart

Surface Mounted Stainless Hinge sets in stock for quick deliveries, this version is a right hand inswing and left hand outswing hinge set, always facing the toilet compartments. The overall wide is 3-1/4" x 3-5/32"ht, the hole spacing is 2-5/16" and 1-1/2"ht with 1/4" holes. This is a gravity type hinge that uses a stainless adjustable pintle to close the door. This part is also known for 7273. All hardware included to install. Maximum door weight is 80lbs.

The Knickerbocker Partition Top Hinge Casting is constructed of Zamac die cast metal and is not plated.  This piece is used on Knickerbocker, Global and General Partitions metal doors, there maybe more, but this is all we know at this point.  The outside measurements are 2-7/31" by 2-11/16" x 2-5/8", which is the measurement, less the tabs that go into the door.  The hole throgh the center has a diameter of 1/4".  The manufactures part number is 4646.

Hadrian Door Kit includes Ada turn latches with hinges that wrap around the edge of the pilaster type. Chrome plated parts include wrap hinges, keeper bumper, ada turn latch, cover plate, pintle, nylon cam, double door pulls, coat hook & bumper, top pin and all security screws included. For Hadrian partitions in steel or stainless steel partitions only. This product manufacture number is 601025, replaces 601005.

Hadrian partition steel stall Panels are available with many colors to choose from and sizes. Quick ship colors will ship in 48-72 hours. Usually one week delivery time for those colors. There is a 3 week lead time for non stock colors. The color chart shows an American flag which indicates a quickship color. All bathroom panels come with standard chrome plated panel kits which includes two each u brackets and two ear brackets. Stainless steel hardware is available as an option. The panel widths are 14"-76" wide are available. All panels are 1/2" narrower than panel size and are 58" in height.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Accurate Commercial Partitions Between Wall Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x 60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate Steel Color chart

Accurate Steel Instructions

The Sanymetal Toilet Partitions SS Bottom Hinge For 1-1/4" thick Round Edged pilaster posts.  They are constructed of stainless steel cast.   The manufacturer part number is 3060, 3403  A=1-9/16".

The Accurate Toilet Partition Hinge Cam Set is used on Accurate Partition Corp and Global Partition Corp plastic laminate doors.  The manufactures part numbers are 9G631E, 89820 and 89830.

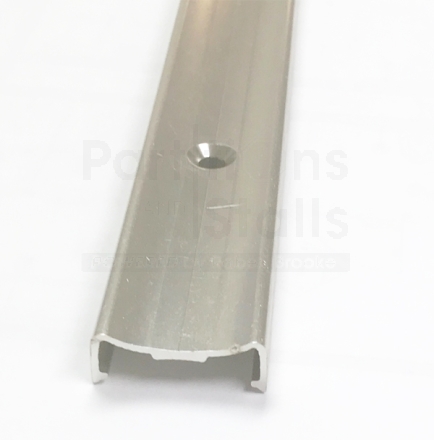

Toilet partition door hinge side sightline filler for 1-1/4" thick powder coated steel pilaster post. This product has a slight round edge specifically for this material. The demensions are 1-1/4"x 54-1/2", this product is brushed aluminum and can be cut in the field. This product will help block the gap on the toilet partition hinge side. Known as 560458 from Hadrian partitions and can be used with other factories.

Hadrian Headrail Retrun Kit is designed to work with Hadrians Metal Stall Partitions. The headrail retun kit will work with 1-1/4" thickness headrails from Hadrian. Designed to work with powder coated steel and stainless steel stalls. This kit includes Brackets,Wall Anchoring Screws, Plastic Anchors, Fastening Screws and Headrail End Cap. Can be used to run across the top of partitions either between two wall or runnning from a rear wall to a pilaster. Often used in conjuction with Hadrian Headrail (60")9HR60A, (74")9HR74A and (96")9HR96A.

Manufacturer Part# 607200.

The Sanymetal Partitions Top Hinge Door Escutcheon For 1" Door is constructed of Zamac die cast metal that is then chrome plated and polished.   The outside measurements of this part is 1-3/16" wide by 2-96/32" long by 1-5/8" high.  The hole through the middle is 3/8" diameter.  The manufactures part number is 2450.

Accurate Partition Corner Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate Steel Color chart

Accurate Steel Instructions

Accurate Toilet Partition Free Standing Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate Steel Color chart

Accurate Steel Instructions

The Sanymetal Toilet Partitions Top Hinge is for use with there 1-1/4" thick square edged pilaster posts.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The manufactures part number on this is 3960.  A=1-1/2".

Hadrian Headrail Retrun Kit is designed to work with Hadrians Solid Plastic Stall Partitions. The headrail retun kit will work with 1" thickness headrails from Hadrian. Designed to work with solid plastic stalls. This kit includes Brackets,Wall Anchoring Screws, Plastic Anchors, Fastening Screws and Headrail End Cap. Can be used to run across the top of partitions either between two wall or runnning from a rear wall to a pilaster. Often used in conjuction with Hadrian Headrail 9HRXXSP.

Ordering Online All Solid Plastic (HDPE) Panels Manufactured by Hadrian Partitions, see color chart below. For other factory colors please call for pricing. All panels ship from the factory after 5 business day, plus 2-4 days travel. Note 14", 18", 24", 28", 34", 40", 46", 52", 55", 58", 59", 64", 70" and 76" x 55"ht are available. All panels are 1/4" less than size. The panels include standard aluminum mid bracket kit or up grade to ss channels for better support, includes 2 two ear brackets and 2 u brackets for 1" thick material.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Global Partitions Top Hinge For Flat Surface Mounting. Stainless Steel die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Manufacturer part # 135580, 111723. Same part for Flush Metal and General Partitions. Shipped with mounting screws. A=1-7/6". Also used with Accurate Partition doors after January 2013.

Ordering Online All Solid Plastic (HDPE) Pilasters Manufactured by Hadrian Partitions, see color chart below. For other factory colors please call for pricing. All panels ship from the factory after 5 business day, plus 2-4 days travel. Note 3", 4", 5", 6", 7", 8", 10", 12", 14", 16",20", 23", 24 x 82"ht are available. The pilaster includes the stainless steel shoe and floor hardware, all is for 1" thick material.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Scranton Products solid plastic Ada Alcove partitions traditionally called Hiny Hider Partitions are great for moisture and high traffic commercial buildings. All plastic material is 1" thick, doors are self closing by gravity 8" aluminum hinges or a continuous spring piano hinge, all hardware is standard aluminum brackets. Offering only Classic color collect on the website, all textures please submit drawings for us to quote with color you are looking for. All doors and panels are 55" ht, pilasters are 82" ht mounted to the floor and an overhead aluminum headrail running across the top to support the top of the pilasters. Alcove stalls include 36" door, 2 pilasters and panel to make up the balance needed.

Scranton Color Chart

Scranton Bathroom Stall Instructions

Scranton Products solid plastic between wall partitions traditionally called Hiny Hider Partitions are great for moisture and high traffic commercial buildings. All plastic material is 1" thick, doors are self closing by gravity 8" aluminum hinges or a continuous spring piano hinge, all hardware is standard aluminum brackets. Offering only Classic color collect on the website, all textures please submit drawings for us to quote with color you are looking for. All doors and panels are 55" ht, pilasters are 82" ht mounted to the floor and an overhead aluminum headrail running across the top to support the top of the pilasters. Up to 8 standard stalls total or 7 standard and 1 Ada stall. All Scranton partitions colors take 3 weeks from the time you place the order. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Scranton Color Chart

Scranton Bathroom Stall Instructions

Global partitions plastic laminate panels & 10' aluminum post are great for extra privacy and extra strength and support. All bathroom toilet partitions ship in 1 week, 2-4 days travel. The post is 10' x 1-3/4" Square Post, panels are 58"ht. All standard chrome hardware included. 16- 76" panels available, note panels are 1/2" less than width size.

Global Plastic Laminate color chart

The All American Toilet Partition Pintle 1/2" Diameter is used on metal and plastic laminate restroom stalls.  This component is used on the hinges to make the door self closing.

Global partitions solid plastic (HDPE) wall mounted urinal screens are manufactured in the USA. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Plastic wall mounted screens can be 48" in height by 1" thick panel. Available in 12, 18, 24, 30 widths. Continuous aluminum channel bracket shown in picture included.

Global Solid Plastic Color Chart

The Knickerbocker Partition Top Hinge For 1-1/4" Sq Edge is designed for use on square edged pilaster posts that are 1-1/4" thick.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The manufactures part number is 3860.  A=1-11/16".

The Global Toilet Partitions Top Pin is for plastic laminate restroom stalls.  The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.  It is constructed of threaded steel.
