The Sanymetal Toilet Partitions Coat Hook Bumper has a 3" projection.  The coat hook base measures 2" by 1-11/16" with a 1-1/8" hole spacing. The hook projects out 1-13/16". The bumper projects out 3" with a rubber insert on the tip. They are constructed of Zamac die cast metal that is then chrome plated and polished.   Also known as a Bathroom Stall Hook. Manufacture part # 4280.  Shipped with mounting screws.

Global partitions vault door kit for Phenolic material. Comes in a brushed steel finish and are for 3/4" thick material only. You will need to choose in or out swing when ordering. Can be used as right or left handed. See manufacturers numbers listed below. Used with Global and Accurate partitions.

Inswing Door Kit: 40-8571005

Outswing door Kit: 40-8571006

Toilet partition full length aluminum door stop for 1" panel outswing doors. This product is clear anodized aluminum. This full length door stop with block the gap between the door and the post next to it. For an outswing the latch locks on the back side of the bumper. The door keeper and strike is 54" in length and has 5 holes spaced at 13" apart and starts at 1" from the top and the bottom. Also known as 134314 strike & keeper channel. Includes all hardware.

Hadrian Floor Mounted Privacy Screens in powder coated are available in 58" heights and starting out with 14" widths through 58" width panels, includes 5" x 69" pilaster in matching color. Standard chrome brackets are included. Floor braced panel dividers are great for between urinals, a sink and urinal or extra privacy at the entrance doors. The colors that are marked with an asterisk or has a usa flag on the color chart are a quick ship and take 48 hours to ship, then 2-4 day travel delivered any where in the usa. we also offer continuous aluminum and stainless steel brackets for extra support.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Partition Door Integral Hinge Set Top & Bottom. The bottom pin is 4-7/8" high & the top pin 3" X 1/2" high. Most manufactures used this integral hinge pin set for solid plastic partitions. The Pilasters next to the door are cut out for this door to fit in it. The hinge pins break often due to swinging on the door which causes the pin to bend and breaks the door. Manufacture part #7005.

Toilet partition full length aluminum door stop for 1" panel Inswing doors. This product is clear anodized aluminum. This full length door stop with block the gap between the door and the post next to it. For an inswing the slot is 3/8"x1-1/4" wide for the slide latch to latch it. The door keeper and strike is 54" in length and has 5 holes spaced at 13" apart and starts at 1" from the top and the bottom. Also known as 134304 strike & keeper channel. Includes all hardware.

Hadrian Door Kit for Ada Concealed Hinges. Standard hinges that butt up to the edge of the pilaster. Chrome plated parts include concealed hinges with toggle & screw, keeper bumper, ada turn latch, cover plate, pintle, nylon cam, double door pull handles, coat hook & bumper, top pin and all security screws included. For Hadrian partitions in steel or stainless steel partitions only. This product manufacture number is 601010, replaces 601000.

Ordering Online All Solid Plastic (HDPE) Doors Manufactured by Hadrian Partitions, see color chart below. For other factory colors please call for pricing. All doors ship from the factory after 5 business day, plus 2-4 days travel. Note 22", 23", 24", 26",32", 34" & 36" are the opening you have between posts. The doors Include standard 8" wrap hinge sets or up grade to ss cam piano style hinges. All hardware is for 1" thick material, aluminum latching and door stop all in aluminum finish included. (actual door size is 1/2" narrower that the opening).

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Global partitions solid plastic doors are manufactured in the USA. Quick ship doors are 24, 26, 34, 36 and ship out in 48-72 hours. All other sizes ship in 5 business days. All partition doors come with a door kit that includes hnges, latching and a keeper bumer for the door to stop and lock into. All the colors are quick ship.

Global Solid Plastic Color Chart

Stainless Steel Double Door Pull made for 3/4” and 1” thick doors. Measurements for the handle 6-5/8" width, 5-1/2" hole to hole spacing, 5" interior opening and 2" height. Constructed of stainless steel with though bolts for mounting back to back on partition doors.Commonly known as part number 189373. This double door pull kit comes with fasteners and Torx Bit(T-20) for 3/4" and 1" thck doors.

Partition Strike And Keeper For 1" Door, 1-7/8" Between Screws, Stamped Stainless Steel

Stamped stainless steel .075" thick construction. The strike and keeper measure 2-7/8" high by 2" wide with a 1-7/8" hole spacing. The stop posts are 5/8" wide by 7/8" tall with rubber inserts. For use with 1" square edge posts. Also known as a Bathroom Stall Strike and Keeper Outswing 1". Manufacture part # 6459.

Shipped with mounting screws.

Hadrian Headrail Retrun Kit is designed to work with Hadrians Metal Stall Partitions. The headrail retun kit will work with 1-1/4" thickness headrails from Hadrian. Designed to work with powder coated steel and stainless steel stalls. This kit includes Brackets,Wall Anchoring Screws, Plastic Anchors, Fastening Screws and Headrail End Cap. Can be used to run across the top of partitions either between two wall or runnning from a rear wall to a pilaster. Often used in conjuction with Hadrian Headrail (60")9HR60A, (74")9HR74A and (96")9HR96A.

Manufacturer Part# 607200.

Bobrick B-35639 surface mounted waste receptacle with disposal door in a satin finish stainless steel all welded construction. The door is secured to cabinet with a concealed full length stainless piano hinge. Equipped with a cable door swing limit and tumbler lock. Waste bin constructed of heavy gauge stainless steel. The unit is a 3 gallon capacity and is 14-13/16"w x 28-3/16"h x 4-1/2" depth.

The Sanymetal Toilet Partitions Bottom Hinge  Sq Edge is for use on 1-1/4" thick square edged pilaster posts.  They are constructed of Zamac die cast metal that is then chrome plated and polished.  The manufacturer's part number is 3460. A=1-1/2". 1-1/4" hole.

Global partitions door kit for plastic laminate material. The hinges and door stop are for 1" thick material only. We offer in a chrome finish or a stainless steel version. You will need to choose in or out swing and which finish you would like. These manufacturers numbers below. Used with Global and Accurate partitions.
See link for Instructions ***Plastic laminate hinge instructions

Chrome inswing 8512013
Chrome outswing 8512014

Stainless Steel Inswing 8262013
Stainless Steel outswing 8262014

Stainless Steel Door Hook Fix it kit comes with stainless steel plate 3"x3", stainless steel hook and screws included. Also known as 115523. Hook projects 3" also known as 4113 or 4003.

The Partition Inswing Keeper For Throw Latch for use on a 1-1/4" Square Post or pilaster.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The strike and keeper measure 2-1/2" high by 1-7/8" wide with a hole spacing of 1-1/2" on center. The stop is 2-1/2" tall by 3/4" wide with a rubber insert. The slot measures 13/16" high by 1/4" deep. Commonly known as a Bathroom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5340.  Shipped with mounting screws.

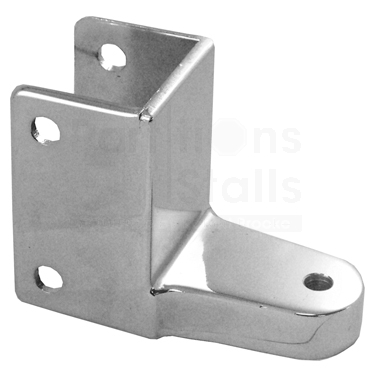

The Knickerbocker Partition Bottom Hinge 1-1/4" Sq Post are for use on 1-1/4" thick square edged pilaster post.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The manufacture part is 3310.   A=1-11/16".

Toilet partition door hinge side sightline filler for 1-1/4" thick powder coated steel pilaster post. This product has a slight round edge specifically for this material. The demensions are 1-1/4"x 54-1/2", this product is brushed aluminum and can be cut in the field. This product will help block the gap on the toilet partition hinge side. Known as 560458 from Hadrian partitions and can be used with other factories.

Hadrian Door Kit includes Ada turn latches with hinges that wrap around the edge of the pilaster type. Cast stainless steel parts include wrap hinges, keeper bumper, ada turn latch, cover plate, pintle, nylon cam, double door pulls, top pin, coat hook with bumper and all security screws included. For Hadrian partitions in steel or stainless steel partitions only. This product manufacture number is 901010, replaces the 901000.

Hadrian Headrail Retrun Kit is designed to work with Hadrians Solid Plastic Stall Partitions. The headrail retun kit will work with 1" thickness headrails from Hadrian. Designed to work with solid plastic stalls. This kit includes Brackets,Wall Anchoring Screws, Plastic Anchors, Fastening Screws and Headrail End Cap. Can be used to run across the top of partitions either between two wall or runnning from a rear wall to a pilaster. Often used in conjuction with Hadrian Headrail 9HRXXSP.

The Metpar Toilet Partitions Top Hinge is for use on there 1-1/4" thick square edged pilaster posts.  The outside dimensions of the U mounting channel are 1-1/4" deep by 2-1/4" high by 1-3/8" depth with a hole spacing of 1-1/2". The hinge lug projects out 1-1/2" by 1/2" thick with a bushing diameter of 3/8". They are constructed of Zamac die cast metal that is then chrome plated and polished.   Also known as a Metpar Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3930.  Shipped with mounting screws.  A=1-9/16".

Toilet partition continuous door stop for powder coated steel partitions, this has a slight round edge for attaching. The length is 57" and is used on a 1-1/4" slight round edge pilaster for mounting. Used with 1" doors and has a concealed turn latch with the pin coming out the center edge of the door. The hole spacing for the slot is 28-1/2" dead center of unit. The slot for the bolt to lock to is 7/16" wide x 5/8"ht. This helps with blocking the door gaps on the locking side of the door. This is made of brushed aluminum material and is used with in or out swing doors. Also known as Hadrian partitions part number 560058.

The Knickerbocker Partition Latch Knob Cover is the female portion of there concealed latches.  The latch knob that goes with this latch is the 9K0250. They are constructed of Zamac die cast metal that is then chrome plated and polished.  The manufacturer part number on this piece is 2620. Works with General partitions. Used with powder coated steel toilet partitions.

The Hadrian Partition Keeper Bumper Cast SS is for use on 1-1/4" thick round edged pilaster posts.  The rectangular slot measures 9/16" by 11/16" and is meant to be the receiver for a concealed latch.  They are constructed of cast stainless steel and then brushed to the proper finish.  The manufactures part number is 601800-700.

Partition Door Piano Hinge W/Cover rh in/lh out 54" aluminum anodized is a heavy duty 1/4" pin with spring to close. this hinge has 5 holes on each side with 13" centers and starts at 1" from top and bottom. The cover makes the hinge holes not as noticeable. Also known as 8674.

The Metpar Toilet Partitions Bottom Hinge 1-1/4" Sq Edge is for use on square edged 1-1/4" thick pilaster posts.  The bottom hinge U channel measures 1-1/4" deep by 2-1/4" high with an insert depth of 1-5/16". The hole spacing is 1-1/2" between screw holes. The hinge lug projects out 1-9/16" by 1/2" thick with a 5/16" diameter hole. They are constructed of Zamac die cast metal that is then chrome plated and polished.   Also known as a Metpar Bathroom Stall Pivot Hinge - Bottom 1-1/4". Manufacture part # 3430.  Shipped with mounting screws.  A=1-9/16".

The Hadrian Partition Keeper Bumper is for use on 1-1/4" thick round edged pilaster posts.  The rectangular slot measures 9/16" by 11/16" and is meant to be the receiver for a concealed latch.  They are constructed of Zamac die cast metal that is then chrome plated and polished.  The manufactures part number is 601800.

The Sanymetal Toilet Partitions SS Bottom Hinge For 1-1/4" thick Round Edged pilaster posts.  They are constructed of stainless steel cast.   The manufacturer part number is 3060, 3403  A=1-9/16".

The Sanymetal Toilet Partitions Bottom Power Bearing is for Metal restroom stalls.  This is the mechanism that makes the doors self closing on there metal doors.   The manufacture part number is 97290.

Accurates commercial stainless steel between walls bathroom partitions floor mounted overhead braced stalls with a smooth surface. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate color chart

Accurate Instructions

The Hadrian Partition Wrap Around Top Hinge is for use on 1-1/4" round edged pilaster posts.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The manufactures part number is 601350.

Current style Global chrome plated door catch includes screws for mounting. This is used with the 9g600 latch in ss. Product part number is 40-8212360. This part has a 3/8" gap for the catch and is 2-1/8" in length, 1-5/8" hole spacing and is 3/4" wide.

The Global Partitions Latch Knob Cover, with Screw, are a concealed latch that is held together by a screw.  They are constructed of Zamac die cast metal that is then chrome plated and polished.  This is one of 3 concealed latches that we know of that are held together by a screw instead of the retaining clip we find on most latches.  The manufacture part number is 40-8513380G. This was used up until October 2021.

Stainless Steel Partition Support Brace U Shape. Used with up to a 1-1/4" Thick Post. Do your Toilet partition panels keep falling out of the bathroom stall wall mounted brackets? If so, the answer might be a Toilet Partition brace or support, which would support the panel and pilaster from falling, or as preventive maintenance to strengthen the compartment. They are also sometimes called Pilaster Support U-Brackets. The we stock 3 versions that are adjustable from 7-1/2″ to 10″, 9-1/2″ to 12″ and 11-1/2″ to 14″, floor to bottom of panel clearance. The bathroom stall brace is made of stainless steel, with a round base of 2-3/8″ and a support bracket that is 1-1/2″ x 2-3/8″. The diameter of the toilet partition support shaft is 1″. If you have any questions on the Toilet Partition Support Braces let us know!
Same as 8503, 85083, 85093. Most common **8503, 9a8503, 9a85083, 9a85093. The U-Shape is for 1-1/4" panel.

Note the most common are 11-1/2" to 14" due to the partitions are mounted 12" off the floor.

Also note quantities of 10 or more not returnable.

Accurate partitions urinal privacy wall mounted steel material are great for between two urinals, between a urinal and sink or a privacy for the entrance of the restroom. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Wall hung 1" thick by 42" , 48" and 58" high panel. Available in the following widths  18, 22, 24, 28 widths. Specify part # 9SWHS-XX (where XX is the screen width) x 42", 48", 58"ht screen. Two Standard Chrome Plated Brackets included.

Accurate Steel Color Chart

Accurate Steel Instructions
