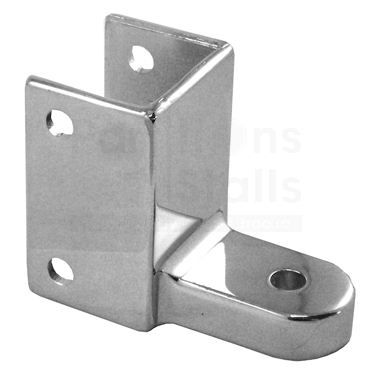

Metpar Toilet Partitions Bottom Hinge 1-1/4" Sq Edge

In stock
Part #
9CP300
$16.45

The Metpar Toilet Partitions Bottom Hinge 1-1/4" Sq Edge is for use on square edged 1-1/4" thick pilaster posts.  The bottom hinge U channel measures 1-1/4" deep by 2-1/4" high with an insert depth of 1-5/16". The hole spacing is 1-1/2" between screw holes. The hinge lug projects out 1-9/16" by 1/2" thick with a 5/16" diameter hole. They are constructed of Zamac die cast metal that is then chrome plated and polished.   Also known as a Metpar Bathroom Stall Pivot Hinge - Bottom 1-1/4". Manufacture part # 3430.  Shipped with mounting screws.  A=1-9/16".

Metpar Toilet Partitions Bottom Hinge 1-1/4" Sq Edge is available to buy in increments of 1

The Metpar Toilet Partitions Bottom Hinge 1-1/4" Sq Edge is for use on square edged 1-1/4" thick pilaster posts.  The bottom hinge U channel measures 1-1/4" deep by 2-1/4" high with an insert depth of 1-5/16". The hole spacing is 1-1/2" between screw holes. The hinge lug projects out 1-9/16" by 1/2" thick with a 5/16" diameter hole. They are constructed of Zamac die cast metal that is then chrome plated and polished.   Also known as a Metpar Bathroom Stall Pivot Hinge - Bottom 1-1/4". Manufacture part # 3430.  Shipped with mounting screws.  A=1-9/16".

More Information
Part # 9CP300
Description

The Metpar Toilet Partitions Bottom Hinge 1-1/4" Sq Edge is for use on square edged 1-1/4" thick pilaster posts.  The bottom hinge U channel measures 1-1/4" deep by 2-1/4" high with an insert depth of 1-5/16". The hole spacing is 1-1/2" between screw holes. The hinge lug projects out 1-9/16" by 1/2" thick with a 5/16" diameter hole. They are constructed of Zamac die cast metal that is then chrome plated and polished.   Also known as a Metpar Bathroom Stall Pivot Hinge - Bottom 1-1/4". Manufacture part # 3430.  Shipped with mounting screws.  A=1-9/16".

Short Description

The Metpar Toilet Partitions Bottom Hinge 1-1/4" Sq Edge is for use on square edged 1-1/4" thick pilaster posts.  The bottom hinge U channel measures 1-1/4" deep by 2-1/4" high with an insert depth of 1-5/16". The hole spacing is 1-1/2" between screw holes. The hinge lug projects out 1-9/16" by 1/2" thick with a 5/16" diameter hole. They are constructed of Zamac die cast metal that is then chrome plated and polished.   Also known as a Metpar Bathroom Stall Pivot Hinge - Bottom 1-1/4". Manufacture part # 3430.  Shipped with mounting screws.  A=1-9/16".

Availability In Stock
Manufacturer Metpar Toilet Partition
