Search results for: 'Slide Latch for Polymer Partition, 2 1/2 inH x 3 1/4slide latch 1" x 3 inW x 1 1/2 in Thickness'

The Continuous Hinge without Spring Stainless Steel, is 57-1/2" long by 3".   It is constructed of 16 gauge (.060" thick) stainless steel.  Holes are located every 11" or so, and the hinge pin diameter is 1/8".  Hinge can be raised up 3/8" for emergency entry. This hinge is not self closing.  Also known as a Bathroom Stall Piano Hinge, or Full Length Stainless Steel Continuous Piano Hinge. Manufacture part # 7649.  Shipped with all the fasteners.

The Matte Black Hadrian 1/2" Pedestal Support Brace is constructed of stainless steel. Pedestal support brace is used in place of a traditional pilaster where the pilaster anchors to the ground. This pedestal support brace allows pilasters to be off the ground but still provide structure to partitions. Designed to be used under a pilaster or panel that is 1/2" thickness. Available in 12", 9" and 4" heights and comes with fasteners for installing. Known as manufacturers part number 673441-12AF-BLK, 673441-9AF-BLK and 673441-4AF-BLK.

The General Toilet Partitions Latch Knob, Cover & Pin is constructed of Zamac die cast metal that is then chrome plated and polished.  Outside diameter of the knob and cover are 1-3/4" with the inner ring diameter of 1-7/32". The pegs project out 1-7/32" on the cover. Pin has a diameter of 11/32" and comes in Straight or Offset and is 2-11/32" long. Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 5190 Offset Pin is used with powder coated steel and 5080 Straight Pin is used with plastic laminate. Only 1 pin is sent. Also used with Global and Fiat partitions.

Toilet Partition Stainless Steel Continuous Two Ear Bracket, 71", 1/2"x2-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge.Two ear bracket is for 1/2" wide partitions and is 2-1/2" height by 3" wide by 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous Two Ear Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182679

The Bobrick Partitions Inswing Keeper Bumper For Throw Latch For 1" Square Edge is constructed of chrome plated Zamac die cast metal.  It is designed for use on 1" thick square edged pilaster posts, and features a slot for a throw latch.  The strike and keeper is 2-1/2" tall by 1-15/16" wide. The mounting holes are 1-1/2" on center. The stop is 2-1/2" tall by 13/16" projection with a rubber insert. The two slots are 5/16" deep by 13/16" high. Also known as Bathroom Stall Strike and Keeper Inswing 1". Manufacture part # 5820.  Shipped with mounting screws.

Chrome Plated Partition Keeper Bumper For Throw Latch, For Inswing Flat Stop

Chrome plated Zamac die casting. The strike and keeper is 1-1/4" high by 2-1/2" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. The slots are 1/4" deep. Also known as a Bathroom Stall Strike and Keeper Inswing Flat. Manufacture part # 5650.

Shipped with mounting screws.

The General Toilet Partitions Bottom Hinge 1-1/4" Round Edge is for use on 1-1/4" thick round edged pilaster posts.   It is constructed on Zamac die cast metal that is chrome plated and polished.  Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Also known as a Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3010.  Shipped with mounting screws.  A=1-7/6".

The Mills Toilet Partitions Keeper Bumper Concealed is for use on 1-1/4" thick round edged pilaster posts.  Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. They are constructed of Zamac die cast metal that is then chrome plated and polished.  Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5590.  Shipped with mounting screws.

Bobrick 5/64" allen wrench only for slide latch for partition doors. Also known as 1000900. Used with slide latch for assembly.

Torque Head Barrel Nut Shoulder Screw for 1/2" - 3/4" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe head torque. Both pieces included.

Toilet Partition Continuous 'U' Wall Bracket For 3/4" Thick Panel 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 57" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Continuous U Wall Bracket. Manufacturer part # 2069.

Screws included with bracket.

Alcove Two Ear Bracket Panel Kit for 1/2" Panel to 3/4" Post. Wall brackets and alcove clips are cast stainless steel construction. Security screws included. Also known as 615353.

Alcove Clip Set Stainless Steel 2 Pieces for same thickness material 2-1/2"w x 1-5/8"ht. Security thru bolts included. Manufacture part 8369.

Toilet partition continuous door stop for powder coated steel partitions, this has a slight round edge for attaching. The length is 57" and is used on a 1-1/4" slight round edge pilaster for mounting. Used with 1" doors and has a concealed turn latch with the pin coming out the center edge of the door. The hole spacing for the slot is 28-1/2" dead center of unit. The slot for the bolt to lock to is 7/16" wide x 5/8"ht. This helps with blocking the door gaps on the locking side of the door. This is made of brushed aluminum material and is used with in or out swing doors. Also known as Hadrian partitions part number 560058.

Urinal Screen Bracket Chrome Plated

This bracket is usually used on Toilet Partition Stall Urinal Screens to hold the divider on the wall. The base measures 6-1/4" across, and the holes are 5" on center. The bracket projects out 6" with the two thru holes 3-7/32" on center. The channel that projects out is 1-1/4" wide. This bracket is sometimes called a 2500 Wing Bracket, 2500 Wall Bracket, 2500 Urinal Screen Bracket, Bathroom Partition Wing Bracket, ect..

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included

Global partition complete compartments In a corner bathroom stalls. Powder coated steel overhead braced floor mounted stalls is most often used. Standard commercial stalls are 36"x 60" depth (24" door), ADA stall 60"x60"depth (ADA 36" door). All standard hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60 this adds 24". New Style Integragated Privacy Doors with slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Global Partitions Color Chart

The Partition Double Door Pull 5-1/2" Chrome Plated come as two handles for mounting back to back handles on an one inch thick door.   The handles have 5-7/8" center to center hole spacing, and the screws included are for a 1" thick door.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The manufacturer part number on this part is 610112. Overall width is 6-3/4".

Toilet Partition Stainless Steel Continuous One Ear Bracket, 71", 1"x2-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge. One ear bracket is for 1" wide partitions and is 2-1/2" height by 2-13/32" wide by 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous One Ear Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182339

ASI Headrail is designed for use with Global and Accurate Partitions. This headrail was introduced in May of 2023 and offers a lower profile than the previous design which is no longer available. The ASI Headrail comes in three headrail thickness options: 3/4", 1" and 1-1/4". Options for length are 65" or 98" which can be cut down to size needed. Being constructed of extruded mluminum, allows for the headrail to be durable and easily customizable. Headrails are use to help stability restroom toilet partitions and give a finished look. Installed a top of pilasters or also used to connect a back wall to a pilaster. Often used in conjuction with ASI Headrail Retrun Kit (9A8448).

Known as Manufacturer Part# 8440651, 8440981, 8460651, 8460981, 8450651 and 8450981.

Also known as Part# 9A846534, 9A849834, 9A84651, 9A84981, 9A8465114, and 9A8498114.

The Toilet Partition Bottom Hinge For 1-1/4" Round Edge  is constructed of chrome plated Zamac die cast metal.  This hinge is used on round edged pilaster posts of 1-1/4" thickness.  The hinge measures 1-1/4" deep by 2-1/8" high by 1-7/16" wide. The U part of the hinge measures 2-1/8" high by 1-1/4" deep with a slot depth of 11/16". The hole spacing is 1-1/2". The lug projects out 1-3/32" and is 1/2" thick with a 5/16" diameter hole. Also known as a Bathroom Stall Pivot Hinge - Bottom 1-1/4". Manufacture part # 4040. Used on Ampco and Metpar Metal Partitions.  Shipped with mounting screws.  A=1-7/16"

Global partitions plastic laminate between 2 walls stalls for commercial businesses. Plastic laminate overhead braced floor mounted stalls are mostly used. Standard stalls are 36" x 60" depth (24" door), an Ada stall is 60" x 60" depth (36" door). All standard chrome hardware included. Doors can be either in or out swing and up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an Ada stall you must select 1 Ada 24 x 60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24 x 60. Plastic laminate Partitions ship in 2 business days.

Global Plastic Laminate color chart

Occupancy Indicator Handle Set, European Design, Stainless Steel Construction. This product offers the European style with a sleek and modern feel. Features the capability of being installed on partitions with thickness of either 3/4" or 1", Built-In Handle, and Emergency unlatching access on front face of indicator, make this an extremely versatile option for restroom partitions. Traditionally these are designed for partitions that have routed edges to create a no-sightline system but can be used with non-routed edge partitions with addition hardware under related products.

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Square edge for Plastic Laminate
All Hardware included

The All American Toilet Partition Hinge Pin has a 5/16" Diameter x 2 13/16" Long, and is used in conjunction with the top hinge.  The manufactures part number is 101.

The Flush Metal Toilet Partition Ada Latch Knob & Cover is constructed of Zamac die cast metal that is then chrome plated and polished.  Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". The ADA Barrier Free Lever is 2-9/16" long when measured from the all the way across the cover. The cover has an overall depth of 1-1/4". Also known as a Bathroom Stall Concealed ADA Latch Cover and Knob Assembly. Manufacture part # 6150

The Global Toilet Partitions Keeper Bumper Concealed is for use with concealed latches that have 1-1/4" thick squared edged pilaster posts.  They are constructed of Zamac die cast metal that is chrome plated and then polished.  Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510.  Shipped with mounting screws. Globals manufacturer part number 40-8511530.

The Toilet Partition ADA Throw Latch & Keeper Chrome Plated is constructed of brass that is chrome plated and polished.  This heavy duty latch has a base that is 2" by 2" and is 3/16" thick. The throw latch is 5-7/16" long by 1-1/4" by 7/32" thick. The keeper is 2" by 2" by 21-32" high. Meets ADA codes in most States. Also known as a Bathroom Stall Heavy Duty ADA Throw Latch and Keeper and Toilet Partition Locks. Manufacture part # 5701.  Shipped with mounting screws.

Alcove Two Ear Bracket Panel Kit for 1/2" Panel to 3/4" Post. Wall brackets and alcove clips are chrome plated zamac. Security screws included. Also known as 615350.

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Square edge for Plastic Laminate
All Hardware included

The General Toilet Partition Ada Latch Cover Knob w/ Offset Pin is constructed of Zamac die cast metal that is then chrome plated and polished.  Outside diameter of the knob and cover are 1-3/4" with the inner ring diameter of 1-7/32". The ADA Barrier Free Lever is 3-3/4" long. The off set pin has a diameter of 11/32" and 2-11/16". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 8190. Typically used with powder coated steel toilet partitions.

Toilet Partition Stainless Steel Continuous One Ear Bracket, 71", 1-1/4"x2-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge. One ear bracket is for 1-1/4" wide partitions and is 2-1/2" height by 2-11/16" wide by 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous One Ear Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182359

Grab Bar 30" x 33" Ht ; ADA Accessible Compartments Require: 1-1/2" diameter with concealed snap on flange 30" x 33"ht.  2nd leg sticks out 5" x 12"ht. Right hand shown, left hand is on opposite side.

Global partition complete solid phenolic between 2 wall partitions with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), Ada stall 60" x 60" depth (36" door). All stainless steel hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel.
Global Solid Phenolic Color Chart

Occupancy Indicator Latch Handle is constructed of cast stainless steel with a satin finish. Latch handle is designed for 3/4" Doors and is through mounted to the occupancy indicator. Features a 4-1/2" length handle that is tapered at one end to engage with keeper for locking. Features emergency unlatching access on front of indicator. Shipped with fasteners for mounting occupancy indicator to door and pilaster. Known as manufacturer part number 4993.

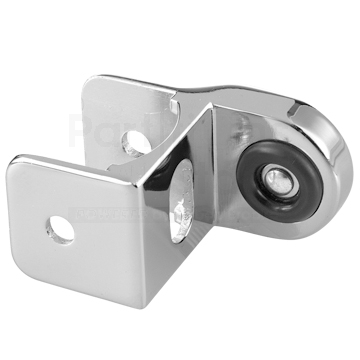

The General Top Hinge For 1-1/4" Square Edge Pilaster is for use on 1-1/4" square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a Fiat Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3790.  A=1-5/8"
