General Toilet Partitions Latch Knob, Cover & Pin

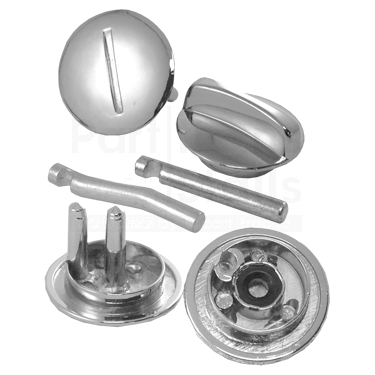

The General Toilet Partitions Latch Knob, Cover & Pin is constructed of Zamac die cast metal that is then chrome plated and polished. Outside diameter of the knob and cover are 1-3/4" with the inner ring diameter of 1-7/32". The pegs project out 1-7/32" on the cover. Pin has a diameter of 11/32" and comes in Straight or Offset and is 2-11/32" long. Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 5190 Offset Pin is used with powder coated steel and 5080 Straight Pin is used with plastic laminate. Only 1 pin is sent. Also used with Global and Fiat partitions.
The General Toilet Partitions Latch Knob, Cover & Pin is constructed of Zamac die cast metal that is then chrome plated and polished. Outside diameter of the knob and cover are 1-3/4" with the inner ring diameter of 1-7/32". The pegs project out 1-7/32" on the cover. Pin has a diameter of 11/32" and comes in Straight or Offset and is 2-11/32" long. Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 5190 Offset Pin and 5080 Straight Pin. Only 1 pin is sent. Also used with Global and Fiat partitions.
| Part # | 92500B |
|---|---|
| Availability | In Stock |
| Manufacturer | General Toilet Partition |
| Short Description | The General Toilet Partitions Latch Knob, Cover & Pin is constructed of Zamac die cast metal that is then chrome plated and polished. Outside diameter of the knob and cover are 1-3/4" with the inner ring diameter of 1-7/32". The pegs project out 1-7/32" on the cover. Pin has a diameter of 11/32" and comes in Straight or Offset and is 2-11/32" long. Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 5190 Offset Pin is used with powder coated steel and 5080 Straight Pin is used with plastic laminate. Only 1 pin is sent. Also used with Global and Fiat partitions. |
| Description | The General Toilet Partitions Latch Knob, Cover & Pin is constructed of Zamac die cast metal that is then chrome plated and polished. Outside diameter of the knob and cover are 1-3/4" with the inner ring diameter of 1-7/32". The pegs project out 1-7/32" on the cover. Pin has a diameter of 11/32" and comes in Straight or Offset and is 2-11/32" long. Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 5190 Offset Pin and 5080 Straight Pin. Only 1 pin is sent. Also used with Global and Fiat partitions. |
