Chrome Plated One-Way Shoulder Screw & Barrel 1 1/16" - 1 5/16" Grip. Use a Flat Head Screw Driver to install. This is a 10-24 thread.

Surface Mounted Stainless Hinge sets in stock for quick deliveries, this version is a left hand inswing and right hand outswing hinge set, always facing the toilet compartments. The overall wide is 3-1/4" x 3-5/32"ht, the hole spacing is 2-5/16" and 1-1/2"ht with 1/4" holes. This is a gravity type hinge that uses a stainless adjustable pintle to close the door. This part is also known for 7283. All hardware included to install. Maximum door weight is 80lbs.

Surface Mounted Stainless Hinge sets in stock for quick deliveries, this version is a right hand inswing and left hand outswing hinge set, always facing the toilet compartments. The overall wide is 3-1/4" x 3-5/32"ht, the hole spacing is 2-5/16" and 1-1/2"ht with 1/4" holes. This is a gravity type hinge that uses a stainless adjustable pintle to close the door. This part is also known for 7273. All hardware included to install. Maximum door weight is 80lbs.

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1-1/4" - 1-5/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread stainless steel unplated and uses a 6 lobe head torque. Both pieces included.

Global partition complete solid phenolic between 2 wall partitions with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), Ada stall 60" x 60" depth (36" door). All stainless steel hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel.
Global Solid Phenolic Color Chart

Toilet Partition Continuous Hinge 54" With 20 Degree Cam Close Stainless Steel. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

Stainless Steel Construction, 14 gauge (.075" thick). Hinge is 3" wide when laid flat, by 54" long. Holes are spaced every 13" and are 9/32" diameter and 5 sets of holes. The hinge is self closing by a cam action, which is made possible by angle cuts on the continuous hinge leafs. Cam features 20 Degree Closing for ADA Doors. Can be raised up 3/8" for emergency entry. This hinge is also known as a Bathroom Stall Full Length Continuous Hinge. This hinge is non handed. Manufacture part # 130219, 7598, 125319, 650-9402.

Ordering online all powder coated metal stall doors are Manufactured by Global Partitions. Partition doors that ship in 48 hours are 24, 26, 34, 36 doors. All other sizes take 5 business days to ship from the factory. Standard chrome plated door kits included with option of stainless steel door kits. When ordering a restroom stall door you need to know that the door will come 3/8" narrower than the opening.  The door size is the opening you have to replace, so a 36" door is for a 36" opening.

Global Partitions Color Chart

The Toilet Partition Continuous Hinge Stainless Steel, 54", 1/4" Pin is 54" long by 3" wide with a pin diameter of 1/4".  They are constructed of 14 gauge (.075" thick) stainless steel.  Holes are spaced every 13" and are 9/32" diameter and has 5 sets of holes. The hinge is self closing by a cam action, which is made possible by angle cuts on the continuous hinge leafs.Cam features Zero Degree Closing. Can be raised up 3/8" for emergency entry. This hinge is also known as a Bathroom Stall Full Length Continuous Hinge. This hinge is non handed. This piece features a cam, which makes it self closing.  Manufacture part # 130209,7599, 125319, 650-9402. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside. This hinge is known as 7599.

Torque Head Barrel Nut Shoulder Screw for 7/8" - 1-3/16" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe  head torque. Both pieces included.

Torque Head Barrel Nut Shoulder Screw for 1-1/4" - 1-5/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe  head torque. Both pieces included.

This L-shaped reversible shower seat is ADA compliant and comes with a one-piece, one-half inch thick ivory phenolic top.  The reversible L-shaped component allows the handing of the seat to be determined in the field.  The seat is 32 inches by 23 inches and includes a self-locking mechanism to secure the seat in the upright position when it is not in use.  The tubular components are fabricated from stainless steel.

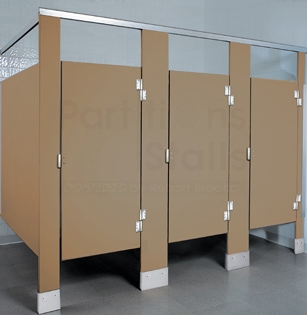

Global partitions plastic laminate free standing compartment stalls. Plastic laminate overhead braced floor mounted stalls are most common and used in commercial businesses. Standard stalls are 36" x 60" depth (24" door), Ada stall 60" x 60" depth (36" door). All standard chrome hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an Ada stall you must select 1 Ada 24 x 60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60. Plastic laminate Partitions ship in 2 business days.

Global Plastic Laminate color chart

Continuous Hinge Stainless Steel, is 71-1/2" long by 3" wide, and is for use on Right Out Swing, Left In swing restroom stall doors.  The hinge is constructed of 16 gauge (.060" thick) stainless steel and the screws are placed every 11" or so.  The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.  Manufacture part # 7769

Hadrian partition steel stall doors are available with many colors to choose from and sizes. Quickship colors will ship in 48-72 hours. Usually one week delivery time for those colors. There is a 3 week lead time for non stock colors. The color chart shows an American flag which indicates a quickship color. All stalls doors come with a standard chrome plated door kit which includes wrap hinges, keeper and latching. Stainless steel hardware is available. The door widths start out at 23"-36" available. All doors are 1/4" narrower than door size for gapping and are 58" tall. All sizes are for the opening you have. A 36" door is for a 36" opening. Note we now offer Square Edge wrap hinges which are not very common, most have a slight round edge.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Grab Bar 30" x 33" Ht ; ADA Accessible Compartments Require: 1-1/2" diameter with concealed snap on flange 30" x 33"ht.  2nd leg sticks out 5" x 12"ht. Right hand shown, left hand is on opposite side.

Hadrian partition steel stall Panels are available with many colors to choose from and sizes. Quick ship colors will ship in 48-72 hours. Usually one week delivery time for those colors. There is a 3 week lead time for non stock colors. The color chart shows an American flag which indicates a quickship color. All bathroom panels come with standard chrome plated panel kits which includes two each u brackets and two ear brackets. Stainless steel hardware is available as an option. The panel widths are 14"-76" wide are available. All panels are 1/2" narrower than panel size and are 58" in height.

Hadrian Color Chart

Hadrian Instructions Powder Coated

• Partition Door Privacy Strip are aluminum construction
• 1-1/8" x 60" ht.
• Also known as 121974.
• Partition Door Privacy strips are designed to eliminate any gaps between door and pilaster. Add your own self threading screws to complete the job, includes 1 privacy strip
• This product ships in an oversize box ground.

Hadrian partition stainless steel corner bathroom partitions floor mounted overhead braced stalls with a smooth surface. Standard stalls 36" x 60" depth (26" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60.

Hadrian Stainless Steel Color Chart

Hadrian Instructions Stainless Steel

Global Partition Plastic Laminate Alcove Stalls are great for churches, office buildings and commercial businesses. Plastic laminate overhead braced floor mounted alcove stalls include a 36" door, 2 pilasters and panel. Doors can be either in or out swing. Plastic laminate Partitions ship in 2 business days

Global Plastic Laminate color chart

Accurate toilet partitions in stainless steel in a corner commercial stalls floor mounted overhead braced stalls with a smooth surface. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate color chart

Accurate Instructions

Hadrian Headrail Retrun Kit is designed to work with Hadrians Metal Stall Partitions. The headrail retun kit will work with 1-1/4" thickness headrails from Hadrian. Designed to work with powder coated steel and stainless steel stalls. This kit includes Brackets,Wall Anchoring Screws, Plastic Anchors, Fastening Screws and Headrail End Cap. Can be used to run across the top of partitions either between two wall or runnning from a rear wall to a pilaster. Often used in conjuction with Hadrian Headrail (60")9HR60A, (74")9HR74A and (96")9HR96A.

Manufacturer Part# 607200.

Retractable White Cushion Shower Seat lh, Right hand seat with cushion covered in off-white Naugahyde. Frame, support legs, flanges, and bracket are type 304 satin finish stainless steel. Seat measures 33″ wide and projects 22-7⁄8″ from wall. Meets ADA Accessibility Guidelines and the needs of the physically disabled and elderly.

Global partitions vault door kit for Solid Plastic material. Comes in a brushed steel finish and are for 15/16" thick material only. You will need to choose in or out swing when ordering. Can be used as right or left handed. See manufacturers numbers listed below. Used with Global and Accurate partitions.

Inswing Door Kit: 40-8571007

Outswing door Kit: 40-8571008

Global partitions complete HDPE solid plastic between 2 wall partitions, Overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), Ada stall 60" x 60" depth (36" door). All standard aluminum hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 Ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an Ada stall you must select 1 Ada 24 x 60, plus 1 standard stall for 1 complete 60x60 Ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Aa stall 24x60.

Global Solid Plastic Color Chart

Global partitions complete HDPE solid plastic free standing partitions with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), Ada stall 60" x 60"depth (36" door). All standard aluminum hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an Ada stall you must select 1 Ada 24 x 60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Global Solid Plastic Color Chart

Global partitions complete stainless steel free standing partitions with overhead braced floor mounted. Standard stalls 36" x 60" depth (24" door), Ada stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60

Global Stainless Steel Brochure

Hadrian Headrail Retrun Kit is designed to work with Hadrians Solid Plastic Stall Partitions. The headrail retun kit will work with 1" thickness headrails from Hadrian. Designed to work with solid plastic stalls. This kit includes Brackets,Wall Anchoring Screws, Plastic Anchors, Fastening Screws and Headrail End Cap. Can be used to run across the top of partitions either between two wall or runnning from a rear wall to a pilaster. Often used in conjuction with Hadrian Headrail 9HRXXSP.

Hadrian partition stainless steel free standing bathroom stalls floor mounted overhead braced with a smooth surface. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60.

Hadrian Stainless Steel Color Chart

Hadrian Instructions Stainless Steel

B-2112 Bobrick automatic wall mounted soap dispenser with satin finish in stainless steel. The vale dispenses all purpose hand soaps. Capacity 40 fl oz. The soap is refillable at the top and has an eye for soap level. The demensions are 8-1/8"w x 4-3/4" x 3-1/2"depth with push button included.

Global partition complete solid phenolic material in a corner partition with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). All Stainless Steel hardware included. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60 x 60 Ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24 x 60. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel.
Global Solid Phenolic Color Chart

Global partitions complete solid phenolic free standing toilet partitions with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). All Stainless Steel hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select 1 ADA 24 x 60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24 x 60. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel.
Global Solid Phenolic Color Chart

Global partitions vault door kit for Phenolic material. Comes in a brushed steel finish and are for 3/4" thick material only. You will need to choose in or out swing when ordering. Can be used as right or left handed. See manufacturers numbers listed below. Used with Global and Accurate partitions.

Inswing Door Kit: 40-8571005

Outswing door Kit: 40-8571006

Hadrian Toilet Partition Stainless Steel Ada Alcove Bathroom Partitions floor mounted overhead braced stalls. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. Standard chrome plated alloy hardware included. All toilet partitions ship in 48-72 hours plus 2-4 days travel.

Hadrian Stainless Steel Color Chart

Hadrian Instructions Stainless Steel

Hadrian Alcove Channel Instruction
