Search results for: 'lock swivel hing tabl insert insw duty'

Accurate and Global partitions door hinge kits for plastic laminate partitions. The top and bottom hinge kits are the exact same. The door kit includes the hinge, hinge pin, door insert, plastic cam set and all the security screws to install. This part is also known as 63160. The hinge mounts to a pilaster with 1-1/4" thickness, the doors are 1" thick.

The Partition Surface Mounted SS Hinge Set are for use on  Right Hand Inswing and Left Hand Out Swinging Doors.  One of the better reasons to use this hinge is the fact that they have a stainless steel pin.  Nearly all of the Gravity Hinges out there use plastic pins.  Stainless Steel construction, 1/8" thick. Outside dimensions of the hinge are 3-5/16" wide by 2-7/8" high. The screw spacing is 2-5/16" wide by 1-1/2" high. The mounting holes are 1/4" diameter. For use on a left hand outswing door, or right hand inswing door. See "More Views" for the handing diagram. Also known as a Bathroom Stall Gravity Hinge Set, or Toilet Partition Surface Mounted Hinge Set. Manufacture part # 7093.  Shipped with mounting screws.

The Bottom Hinge Assembly Cast SS is for use on 7/8" thick doors and 1-1/4" thick square edged pilaster posts.  The hinge is constructed of cast stainless steel, that is then brushed to the proper finish.  The kit includes bottom hinge, pintle, pin, insert and mounting screws.  Also known as a Bathroom Stall Bottom Pivot Hinge Set. Manufacture part # 63013

The Accurate Toilet Partition U Trim Door Insert is for top or bottom 1" plastic laminate doors.  It is constructed of Zamac die cast metal, then chrome plated and polished.  Large hole is 3/4" diameter, small hole is 3/8" diameter. Hole in the U is 9/32" and counter sunk. Insert measures 1" wide by 2-9/32" deep by 2-3/16" high. Also known as a Bathroom Stall Door Insert Top/Bottom 1". Used on Accurate and Global Toilet Partitions.  Also known as 9G631B, manufacture part # 1680.

The Global Toilet Partitions U Trim Door Insert is for top or bottom 1" plastic laminate doors.  It is constructed of Zamac die cast metal, then chrome plated and polished.  Large hole is 3/4" diameter, small hole is 3/8" diameter. Hole in the U is 9/32" and counter sunk. Insert measures 1" wide by 2-9/32" deep by 2-3/16" high. Also known as a Bathroom Stall Door Insert Top/Bottom 1". Used on Accurate and Global Toilet Partitions.  Also known as 9G631B, manufacture part # 1680.

Dual Access Napkin Disposal

Body: Type 304 #22 ga stainless steel, #4 satin finish.

Flanges: Type 304 #22 ga stainless steel, drawn one-piece construction with 1/4" returns to wall surface. One flange is welded to body the other is adjustable to fit 3/4" - 1 1/4" thick partitions. (No miters or welds)

Push Panels: Type 304 #22 ga stainless steel self closing push panel door. *International graphic symbol optional*

Waste: Type 304 #22 ga stainless steel removable from one side with pin tumbler type lock securing in place.

*Optional finger grip in lieu of lock* Also known as 0472.

The Partition Surface Mounted SS Hinge Set are for use on  Left Hand Inswing and Right Out Swinging Doors.  One of the better reasons to use this hinge is the fact that they have a stainless steel pin in them.  Nearly all of the Gravity Hinges out there use plastic pins.  Stainless Steel construction, 1/8" thick. Outside dimensions of the hinge are 3-5/16" wide by 2-7/8" high. The screw spacing is 2-5/16" wide by 1-1/2" high. The mounting holes are 1/4" diameter. For use on a left hand inswing door, or right hand outswing door. See "More Views" for the handing diagram. Also known as a Bathroom Stall Gravity Hinge Set, or Toilet Partition Surface Mounted Hinge Set. Manufacture part # 7103.  Shipped with mounting screws.

The Bobrick Partitions Inswing Keeper Bumper For Throw Latch For 1" Square Edge is constructed of chrome plated Zamac die cast metal.  It is designed for use on 1" thick square edged pilaster posts, and features a slot for a throw latch.  The strike and keeper is 2-1/2" tall by 1-15/16" wide. The mounting holes are 1-1/2" on center. The stop is 2-1/2" tall by 13/16" projection with a rubber insert. The two slots are 5/16" deep by 13/16" high. Also known as Bathroom Stall Strike and Keeper Inswing 1". Manufacture part # 5820.  Shipped with mounting screws.

The Toilet Partition Slide Bolt Latch is constructed of Cast Stainless Steel.  The latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5023.  Shipped with mounting security screws.  Also known as 9F0302SS.

This latch is the same as our 9F0302 (5020), but is made of cast stainless steel, which is much more durable and heavy duty.

The Top Hinge Assembly Cast SS is for use on a Square Edged 1-1/4" thick Pilaster Post and 7/8" thick Door.  The hinge is constructed of cast stainless steel that is then brushed to the proper finish.  The kit includes top hinge, pintle, pin, inserts and mounting screws.  Also known as a Bathroom Stall Top Pivot Hinge Set. Manufacture part # 63023.

The Toilet Partition Top & Bottom Hinge Kit  is for use on 1" Doors with 1" Square Edged Pilaster Posts.  The top and bottom hinges are constructed of Zamac die cast metal that is then chrome plated and polished.  The kit includes top and bottom hinge, inserts, pintle, cam, top pin and all of the mounting screws.  This hinge set is designed for a maximum rotation of 110 degrees, past 110 degrees the hinge may fail.   Manufacture part # 63150.

The Partition Surface Mounted Hinge Set is for use on Right Out Swing and Left Hand In Swinging doors.  The hinges raise the door up 1/4" when opening, and then gravity causes the door to shelf close.  They measure 1-1/2" center to center hole spacing on the vertical and 2-7/16" center to center on the horizontal.  Constructed of cast brass with chrome plating and polished.  They are also known as a Bathroom Stall Gravity Hinge Set.  Manufacture part # 7021.

The Flush Metal Partition Bottom Door Insert is for 7/8" thick doors and is constructed of Zamac die cast metal and then chrome plated.  The door insert measures 2-5/16" wide by 1" wide by 1-3/16" high. The hex shaped hole is 5/8" and the round hole is 7/32" diameter. The material or rim is 5/16" high. Also known as a Bathroom Stall Door Insert Bottom 7/8". Manufacture part # 1530.

Partition Bottom Hinge Assembly For 1" Door, 1-1/4" Post is for use with 1-1/4" thick square edged pilaster posts and 1" thick doors.  Bottom hinge measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Mounting lug projects out 1-1/4". The package includes bottom hinge, pintle, nylon cam, bottom hinge door insert and mounting screws.  The hinge is constructed of Zamac die cast metal that is chrome plated and then polished.  Also known as a Bathroom Stall Bottom Hinge Kit. Manufacture part number 63710.

The Toilet Partition Top Hinge Casting Unplated is constructed of Zamac die cast metal.  The outside dimensions of the top hinge casting are 3-7/16" high by 2-3/8" wide by 1-5/32" deep. The casting features four holes, two of them are 3/8" diameter, one is 7/32" diameter and the fourth is a threaded hole for a 5/16-18 screw. The two U channels have spacings of 13/16" and 1" on the other. Also known as a Bathroom Stall Door Insert - Top 1". Manufacture part # 4546. Used with AMPCO and Metpar Toilet Partitions.

The Ampco Toilet Partition Bottom Door Insert For 7/8" Door is constructed of Zamac die cast metal and then chrome plated.  The door insert measures 2-5/16" wide by 1" wide by 1-3/16" high. The hex shaped hole is 5/8" and the round hole is 7/32" diameter. The material or rim is 5/16" high. Also known as a Bathroom Stall Door Insert Bottom 7/8". Manufacture part # 1530.

The Fiat Toilet Partition Bottom Hinge is constructed of Zamac die cast metal, then chrome plated.  This bottom hinge is for 1-1/4" thick square edged pilaster posts.  The hinge U channel measures 2-1/4" high by 1-1/4" deep with an insert depth of 1-5/16". The hole spacing is 1-1/2" on center. The hinge lug projects out 1-11/16" by 1/2" thick with a hole diameter of 5/16". Also known as a AMPCO Bathroom Stall Pivot Hinge - Bottom 1-1/4". Manufacture part # 3130.  Shipped with mounting screws.  A=1-11/16"

Toilet Partition Keeper For Inswing Doors 1-7/8" Between Screws Stainless Steel

14 gauge (.075" thick) stainless steel construction. Keeper is 2-7/8" high x 1-13/16" wide with 1-7/8" hole spacing. Lip is 9/16" and the slot or cut out is 7/32" x 1". Also known as Bathroom Stall Keeper Inswing. Manufacture part # 6319.

Shipped with screws.

The Ampco Toilet Partition Bottom Hinge is constructed of Zamac die cast metal, then chrome plated.  The hinge U channel measures 2-1/4" high by 1-1/4" deep with an insert depth of 1-5/16". The hole spacing is 1-1/2" on center. The hinge lug projects out 1-11/16" by 1/2" thick with a hole diameter of 5/16". Also known as a AMPCO Bathroom Stall Pivot Hinge - Bottom 1-1/4". Manufacture part # 3130.  Shipped with mounting screws.  A=1-11/16"

The Toilet Partition Surface Mounted SS Hinge Set  are for use on Left Hand Out Swing and  Right Hand In Swinging Doors.  They feature 1/8" thick stainless steel construction.  Outside hinge measurements are 3-1/4" wide by 2-29/32" high. 1-1/2" hole spacing up and down, and 2-3/8" right to left hole spacing. The four mounting holes are 1/4" diameter. This hinge set includes the top and bottom hinges. Also known as Bathroom Stall Gravity Hinge Set. See "More Views" for the handing diagram. Manufacturer part # 7113.  Mounting screws are included.

The Partition Bottom Hinge Assembly Cast Stainless Steel is for use on 1" Door and 1-1/4" thick square edged Pilaster Posts.  They are constructed of cast stainless steel.  Set includes bottom hinge, pin, door insert and mounting screws. Also known as a Bathroom Toilet Stall Bottom Hinge Kit. Manufacture part #63033.

Bobrick inswing keeper for door latch. Known by as 1040-35 or 201099. Used with Bobrick slide latch 1040-42.

The Bobrick Toilet Partition Top Hinge is constructed of Zamac die cast metal that is then chrome plated and polished.  The hinge is designed for use on 1" thick square edged pilaster posts.  he hinge mounting U channel measures 2-1/8" high by 1" deep with an insert depth of 1". The hole spacing is 1-1/2" on centers. The hinge lug projects out 1-9/16" by 1/2" thick with a 1/2" bushing diameter. Also known as a Bobrick Bathroom Stall Pivot Hinge - Top 1". Manufacture part # 3760 and 650-8840.  Ships with mounting screws.

The Top Hinge Assembly Cast SS is for use with 1" Doors, and 1-1/4" thick square edged pilaster posts.  The hinge is constructed of cast stainless steel that is then brushed to the proper finish.  The set included the top hinge, pin, door insert and mounting screws.  Also known as a Bathroom Toilet Stall Top Hinge Kit. Manufacture part #63043.

Toilet Partition Top & Bottom Hinge Assembly For 1" Door, 1-1/4" Pilaster Square Edge. Polished chrome plated zamac die cast construction. Kit includes Bottom & Top Hinges, Pintle, Nylon Cam, Top Pin and Bottom & Top Hinge Door Inserts. Hinges measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Manufacture part number 63130 kit. The top hinge wall to center of the 3/8" diameter hole is 1-1/4" which is known as a 3790 hinge. The bottom hinge wall is also 1-1/4" to the center of the 5/16" hole and known as 3290 hinge. The Top Pin is 3/8" x 3-1/2". Screws are also included.

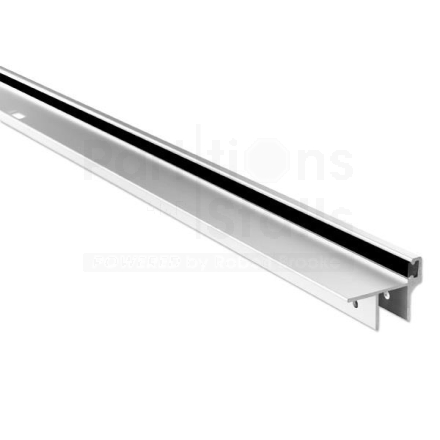

Toilet partition full length aluminum door stop for 1" panel Inswing doors. This product is clear anodized aluminum. This full length door stop with block the gap between the door and the post next to it. For an inswing the slot is 3/8"x1-1/4" wide for the slide latch to latch it. The door keeper and strike is 54" in length and has 5 holes spaced at 13" apart and starts at 1" from the top and the bottom. Also known as 134304 strike & keeper channel. Includes all hardware.

Heavy-duty 9/64" staked piano hinge adds to the robust construction. Drawn one piece seamless door of 22 gauge type 304 stainless steel with a satin finish. 1 gal. (3.7 L) waste capacity. wall opening 11-3/8"tall x 9-5/8"wide x 4"deep. Same as 20470 but mounts through partitions up to 1 1/4" thick. Expandable steel waste can ensures a perfect fit for thicker partitions. This for 2 stalls with a common partition divider.

The Metpar Toilet Partitions Bottom Hinge 1-1/4" Sq Edge is for use on square edged 1-1/4" thick pilaster posts.  The bottom hinge U channel measures 1-1/4" deep by 2-1/4" high with an insert depth of 1-5/16". The hole spacing is 1-1/2" between screw holes. The hinge lug projects out 1-9/16" by 1/2" thick with a 5/16" diameter hole. They are constructed of Zamac die cast metal that is then chrome plated and polished.   Also known as a Metpar Bathroom Stall Pivot Hinge - Bottom 1-1/4". Manufacture part # 3430.  Shipped with mounting screws.  A=1-9/16".

Surface Mounted Stainless Hinge sets in stock for quick deliveries, this version is a right hand inswing and left hand outswing hinge set, always facing the toilet compartments. The overall wide is 3-1/4" x 3-5/32"ht, the hole spacing is 2-5/16" and 1-1/2"ht with 1/4" holes. This is a gravity type hinge that uses a stainless adjustable pintle to close the door. This part is also known for 7273. All hardware included to install. Maximum door weight is 80lbs.

Roval Paper Towel Dispenser & Removable Waste Receptacle. Dispenses 600 C-fold or 800 multi-fold paper towels. 14.8 gal. (56 L) removable waste receptacle. Door made of 18 gauge type 304 stainless steel with a heavy-duty 3/16" staked piano hinge. Wall Opening: 15 3/4" W x 54 1/2" H x 4" D

The Toilet Partition Keeper- Inswing For 1" Square Edge is designed for in swinging doors with a 1" thick square edged pilaster post.  It is constructed of cast stainless steel.  The manufactures part number is 40-8562307.

The Partition Top Hinge Assembly For 1" Door, 1-1/4" Post is for use on square edged 1-1/4" thick pilaster posts and 1" thick doors.   Top hinge measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Mounting lug projects out 1-1/4".  Kit includes Top Hinge, Top Hinge Pin, Top Hinge Door Insert, and mounting screws.  The assembly is constructed of Zamac die cast metal that is then chrome plated and polished.  Also known as a Bathroom Stall Top Hinge Kit. Manufacture part number 63720.

The Global Toilet Partitions Top Hinge Casting is for use on there metal restroom stalls.  It is constructed of Zamac die cast metal.  The outside dimensions of the top hinge casting are 5-1/8" high by 2-5/8" deep by 25/32" wide. Two of the three holes are 3/8" diameter, and the other hole is threaded for a 5/16-18 screw. Also known as a Bathroom Stall Door Insert - Top 1". Manufacture part # 4556.

Heavy-duty 9/64" staked piano hinge adds to the robust construction. Drawn one piece seamless door of 22 gauge type 304 stainless steel with a satin finish. 1 gal. (3.7 L) waste capacity. wall opening 11-3/8"tall x 9-5/8"wide x 4"deep.

The Fiat Toilet Partition Top Hinge for Laminate Door is for use on an 1-1/4" Square Edged Pilaster Post and uses a 7/16" Pin.  It is constructed of Zamac die cast metal that is chrome plated and polished.  The hinge U channel measures 2-1/4" high by 1-1/4" deep with a insert depth of 1-5/16". The hole spacing is 1-1/2" on centers. The hinge lug projects out 1-11/16" and is 1/2" thick. The lug hole diameter is 19/32". Also known as a Fiat Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3630.  Ships with mounting screws.  A=1-11/16"
