Comtec Hiny Hider Partition Integral Hinge Pin Kit with heavy duty L brackets for extra strength. This kit includes everything you see in the picture. The long pin is 6" x 1/2" diameter, the smaller one is 3-1/2" x 1/2" diameter. These brackets help to reinforced the hinge pins so they do not break or the door breaking at the top and bottom.

The Fiat Toilet Partition Top Door Insert is constructed of Zamac die cast metal that is chrome plated and then polished.  The hinge U insert has outside dimesions of 2-3/16" wide by 1-1/2" by 1" deep with tow holes 1/2" diameter. The inside distance between the U's is 1-1/16". Also known as a Fiat Bathroom Stall Door Insert Top 1". Manufacture part # 4800.

The baby changing tables are a horizontal station, has a door facing and collar made from 18 gauge 304 stainless steel. Fabricated of FDA approved fungus and bacteria-resistant plastic. Unit complies with 2010 ADA Accessibility Standards and supports a static load of 300 lbs. This unit is used for recess mounting , also know as part number 9018 with American Specialties.

Partition Door Piano Hinge 57", 14 Gauge SS,1/4" Pin with 20 Degree Cam Close. This hinge keeps the door open 20 degree so the user knows there is nobody in the restroom toilet stall. This is the most Heavy Duty Continuous Full Length Hinge we sell. 14 gauge (.075" thick) stainless steel construction with a 1/4" diameter hinge pin. The hinge leafs are angle cut so your door will close with the camming action. The hinge is 3" wide when laid flat, and 57" long. Screws are spaced 11" apart and the holes are 9/32" diameter and has 6 sets of holes. Hinge can be raised up 3/8" for emergency entry. Also known as a Restroom Toilet Stall Full Length Continuous Hinge. Manufacturer part #650-9401 and 160039. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

The Continuous Hinge Stainless Steel 57-1/2" long, is for use on Right Hand Inswing, Left Outswing restroom stall doors. The hinge is constructed of 16 gauge (.060" thick) stainless steel with 4 springs. It measures 3" wide when laid flat x 57-1/2" long with a 1/8" diameter hinge pin. Mounting screws are located every 11" or so. Can be raise up 3/8" for emergency entrance and springs allow the door to seft close. Also known as a Bathroom Stall Piano Hinge, or Full Length Stainless Steel Continuous Piano Hinge. Manufacture part # 7659.  Shipped with all the fasteners.

Rh Inswing or Lh Outswing See Diagram

Partition Keeper Inswing 1-1/4" Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measure 2-1/2" high by 1-7/8" wide with a hole spacing of 1-1/2" on center. The stop is 2-1/2" tall by 3/4" wide with a rubber insert. The slot measures 13/16" high by 1/4" deep. Commonly known as a Bathroom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5343.

Shipped with mounting screws.

The baby changing tables are ADA compliant units and are welded stainless steel for long and reliable use in commercial buildings. Exposed surfaces are satin finish. Easy one handed operation is assisted by a pull handle and concealed spring. The changing surface is high-impact-resistant plastic for easy cleaning. Its two part adjustable safety strap and 400 lb load capacity assure child protection. This unit is used for surface mounting , also know as part number 9013-9 with American Specialties.

ASI Matte Black paper towel dispenser multi/c-fold is surface mounted and is fabricated of 22 guage stainless steel. Dispenses 400 c-fold or 525 multi fold paper towels without adapters or adjustments. Features a tumbler lock(key included), refill viewing slot on sides and heavy duty stainless steel piano hinge. The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Dimensions

11-1/8″ x 14-5/8″ x 4″ (282 x 371 x 101 mm)

Partition Door Piano Hinge W/Cover lh in/rh out 54" aluminum anodized is a heavy duty 1/4" pin with spring to close. this hinge has 5 holes on each side with 13" centers and starts at 1" from top and bottom. The cover makes the hinge holes not as noticeable. Also known as 8684.

The Bobrick Partitions Bottom Door Insert for 1" Door is constructed of Zamac die cast metal that is then chrome plated and polished.  The door insert outside measurements are 2-5/16" wide by 1-5/32" deep by 1-3/16" tall. The inside dimensions are 1" and the hex hole measures 3/4". The round hole measures 5/16". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 2490.

The Partition Inswing Keeper For Throw Latch for use on a 1-1/4" Square Post or pilaster.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The strike and keeper measure 2-1/2" high by 1-7/8" wide with a hole spacing of 1-1/2" on center. The stop is 2-1/2" tall by 3/4" wide with a rubber insert. The slot measures 13/16" high by 1/4" deep. Commonly known as a Bathroom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5340.  Shipped with mounting screws.

 Continuous Hinge Stainless Steel, is 71-1/2" long by 3" wide, and is for use on Right Inswing, Left Outswing restroom stall doors.  The hinge is constructed of 16 gauge (.060" thick) stainless steel and the screws are placed every 11" or so.  The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.  Manufacture part # 7759

Toilet Partition Continuous Hinge, 57" Long Non Handed,14 Gauge Stainless Steel ,1/4" Diameter Pin, Cam Close. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

This is the most Heavy Duty Continuous Full Length Hinge we sell. 14 gauge (.075" thick) stainless steel construction with a 1/4" diameter hinge pin. The hinge leafs are angle cut so your door will close with the camming action. The hinge is 3" wide when laid flat, and 57" long. Screws are spaced 11" apart and the holes are 9/32" diameter and has 6 sets of holes. Hinge can be raised up 3/8" for emergency entry. Also known as a Bathroom Toilet Stall Full Length Continuous Hinge. Manufacturer part #7789, 160029, 650-9400.

The All American Toilet Partition Bottom Door Insert is for use on there plastic laminate restroom stalls.  The insert has a polished chrome finish.

The Hiny Hider Inswing Flat Stop 6" has Clear anodized aluminum construction. The strike and keeper is 6" tall by 2-9/16" deep and 3/4" thick on the stop. The material is 1/8" thick. The mounting holes are 3" on center. And the locking slot is 1-1/2" high by 3/8" deep. Also known as a Bathroom Stall Strike and Keeper-Inswing Flat. Manufacture part # 5798.  Shipped with mounting screws.

Roval Paper Towel Dispenser, 20210 Dispenses 400 C-fold or 525 multi-fold paper towels. Fabricated of 22 gauge type 304 stainless steel with satin finish. Fitted with tumbler lock and heavy-duty stainless steel staked piano hinge.
ASI spec sheet

Concealed Partition Latch Keeper Bumper Inswing Cast Stainless Steel

Stainless steel casting. The strike and keeper is 1-1/4" high by 2-1/2" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. The slots are 1/4" deep. Also known as a Bathroom Stall Strike and Keeper Inswing Flat. Manufacture part # 5653.

Shipped with mounting screws.

Roval Surface Mount Sanitary Waste Receptacle, 20852 Lid and cabinet are each drawn one piece construction. Lid is secured to the cabinet with a heavy-duty 9/64" multi-staked concealed piano hinge

Continuous Hinge Stainless Steel, is 71-1/2" long by 3" wide, and is for use on Right Out Swing, Left In swing restroom stall doors.  The hinge is constructed of 16 gauge (.060" thick) stainless steel and the screws are placed every 11" or so.  The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.  Manufacture part # 7769

The Toilet Partition ADA Slide Bolt Latch Inswing Latch & Keeper is constructed of Stamped Stainless Steel.  The latch is 2" wide by 2-7/8" tall. Latch bolt is 2-3/4" long by 13/16" wide by 1/8" thick and has a throw of 25/32". The keeper is 1-1/2" by 1-1/2" by .075" thick, and projects out 7/16". Commonly called a Bathroom Stall Latch for inswinging doors and Toilet Partition Locks. Manufacture part # 6409 and 6539.  Shipped with mounting screws.

The Toilet Partition Surface Mounted SS Hinge Set  are for use on Right Hand Out Swing and  Left Hand Inswinging Doors.  They feature 1/8" thick stainless steel construction.  Outside hinge measurements are 3-1/4" wide by 2-29/32" high. 1-1/2" hole spacing up and down, and 2-3/8" right to left hole spacing. The four mounting holes are 1/4" diameter. This hinge set includes the top and bottom hinges. Also known as Bathroom Stall Gravity Hinge Set. See "More Views" for the handing diagram. Manufacturer part # 7123.  Mounting screws are included.

Bobrick B-2888 multi roll toilet tissue dispenser for surface mounted only. Satin finish in stainless steel dispensing mechanism. The door is equipped with a tumbler lock and holds up to two rolls 5-1/4" wide. The extra roll at the top will drop in place when the bottom roll is out. Theft resistant heavy duty spindles. The unit is 6-1/16" w x 11" ht x 5-15/16" deep.

Partition Strike/Keeper For 3/4" Door Inswing 1-7/8" Between Screw Stamped Stainless Steel

Stamped stainless steel .075" thickness construction. The strike and keeper measures 2-7/8" tall by 2" wide by 1-15/16" deep with a 1-7/8" hole spacing. The stop is 7/16" thick with a rubber insert. Also known as a Bathroom Stall Strike and Keeper Inswing 3/4". Manufacture part # 6469.

Shipped with mounting screws.

Partition Keeper Bumper Inswing 3/4" Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper is 2-1/2" tall by 1-15/16" wide. The mounting holes are 1-1/2" on center. The stop is 2-1/2" tall by 13/16" projection with a rubber insert. The two slots are 5/16" deep by 13/16" high. Also known as Bathroom Stall Strike and Keeper Inswing 3/4". Manufacture part # 4903.

Shipped with mounting screws.

Partition Keeper Bumper Inswing 1" Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper is 2-1/2" tall by 1-15/16" wide. The mounting holes are 1-1/2" on center. The stop is 2-1/2" tall by 13/16" projection with a rubber insert. The two slots are 5/16" deep by 13/16" high. Also known as Bathroom Stall Strike and Keeper Inswing 1". Manufacture part # 5823.

Shipped with mounting screws.

Partition Keeper Bumper Inswing 1-1/2" Between Screws Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measure 2-1/2" tall by 2-9/16" deep and is 1/8" thick. The stop projects out 3/4" and has a rubber insert. The mounting holes are 1-19/32" on center. Also known as a Bathroom Stall Strike and Keeper - Inswing Flat. Flat backed for wall mounting. Manufacture part # 5143.

Shipped with mounting screws.

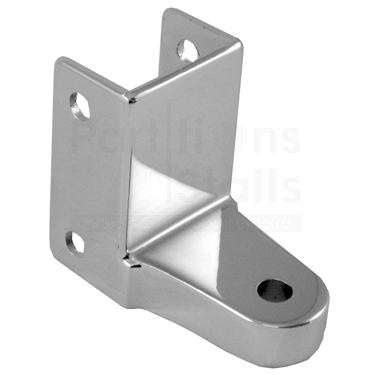

The Bobrick Toilet Partition Bottom Hinge is constructed of Zamac die cast metal and then chrome plated and polished.  This hinge is designed for use on 1" thick square edged pilaster posts.  The hinge mounting U channel measures 2-1/8" high by 1" deep with an insert depth of 1". The hole spacing is 1-1/2" on centers. The hinge lug projects out 1-9/16" by 1/2" thick with a 5/16" diameter hole. Also known as a Bobrick Bathroom Stall Pivot Hinge - Bottom 1". Manufacture part # 3260 and 650-8843.  Ships with mounting screws.

The Fiat Toilet Partition Bottom Door Insert is for use on there 1" thick doors.   It is constructed of Zamac die cast metal that is then chrome plated and polished.  The bottom door insert measures 2-1/8" by 1" by 13/16". The insert has one hole, which is 7/32" diameter. The square hole is 29/32" wide by 1". Also known as a Fiat Bathroom Stall Door Insert Bottom 1". Manufacture part # 4700.

The Accurate Partition Top Hinge Flat Mount Chrome is used when mounting a door on a flat wall surface.  This hinge would be used on the top of the door.  The hinge is constructed of die cast Zamac metal, that is then chrome plated and polished.  The diameter of the larger hole is 1/2".  We sometimes find the number 3710 on the back of the hinge.  The white plastic insert is included.  A=1-1/2". Used with Accurate Partition doors prior to January 2013.

Chrome Plated Keeper Bumper For 1-1/4" Inswing Round Edge Post

Zamac die cast and polished chrome plate construction. The strike and keeper measure 2-1/2" high by 1-7/8" wide with a hole spacing of 1-1/2" on center. The stop is 2-1/2" tall by 3/4" wide with a rubber insert. The slot measures 1-9/16" high by 5/16" deep. Commonly known as a Bathrrom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5310

Shipped with mounting screws.

The Accurate Partition Top Hinge Flat Mount Stainless Steel is constructed or cast stainless steel, and then brushed to the desired finish.  This top hinge comes with the white plastic insert, not shown.   The top hinge hole is 1/2" diameter.  The manufactures part number is 3713.  A=1-1/2". Used with Accurate Partition doors prior to January 2013.

The Partition Hinge Assembly Cast SS is for use on 1" thick  Doors  and 1" squared edged pilaster Posts.  The kit includes top and bottom hinges, pintle, pin, inserts and all of the mounting screws.  They are constructed of cast stainless steel that is then brushed to the proper finish.  Also known as a Bathroom Stall Pivot Hinge Set. Manufacture part # 63153.

The Partition Surface Mounted Hinge Set is for use on Left Hand Out Swing and Right Hand Hand In Swinging doors.  The hinges raise the door up 1/4" when opening, and then gravity causes the door to shelf close.  They measure 1-1/2" center to center hole spacing on the vertical and 2-7/16" center to center on the horizontal.  Constructed of cast brass with chrome plating and polished.  They are also known as a Bathroom Stall Gravity Hinge Set.  Manufacture part # 7011.

Napkin / Tampon Disposal Recessed in Wall

Body: Type 304 #22 ga stainless steel, #4 satin finish.

Flange: Type 304 #22 ga stainless steel #4 satin finish, drawn one piece construction with 1/4" returns to wall surface. (Without miters or welds)

Push Panel: Type 304 #22 ga stainless steel self closing push panel door. *International Graphic Symbols are optional.

Waste: Type 304 #22 ga stainless steel, removable type waste, secured by pin tumbler lock. Pin tumbler commercial quality locks, keyed like all other A & J cabinets. *(Optional finger grip in lieu of lock)

Surface Mounted Stainless Hinge sets in stock for quick deliveries, this version is a left hand inswing and right hand outswing hinge set, always facing the toilet compartments. The overall wide is 3-1/4" x 3-5/32"ht, the hole spacing is 2-5/16" and 1-1/2"ht with 1/4" holes. This is a gravity type hinge that uses a stainless adjustable pintle to close the door. This part is also known for 7283. All hardware included to install. Maximum door weight is 80lbs.

The Flush Metal Partition Top Hinge Casting is for use on there metal restroom stalls.  It is constructed of Zamac die cast metal.  The outside dimensions of the top hinge casting are 5-1/8" high by 2-5/8" deep by 25/32" wide. Two of the three holes are 3/8" diameter, and the other hole is threaded for a 5/16-18 screw. Also known as a Bathroom Stall Door Insert - Top 1". Manufacture part # 4556.
