Hadrian partition steel stall Panels are available with many colors to choose from and sizes. Quick ship colors will ship in 48-72 hours. Usually one week delivery time for those colors. There is a 3 week lead time for non stock colors. The color chart shows an American flag which indicates a quickship color. All bathroom panels come with standard chrome plated panel kits which includes two each u brackets and two ear brackets. Stainless steel hardware is available as an option. The panel widths are 14"-76" wide are available. All panels are 1/2" narrower than panel size and are 58" in height.

Hadrian Color Chart

Hadrian Instructions Powder Coated

The Matte Black Hadrian double door pull is designed to mount through a 3/4" thickness partition door. Constructed of stainless steel to have a matte black finish. Measures 6-3/4" in length with center to center holes spacings of 6-1/8". Designed for outswing and ADA doors. Will require a 7/32" hole to be drilled into door and should be istalled 7" from door edge. Comes with fasteners to mount double pulls through door. Known as manufacturers part number 670112-BLK.

The Metpar Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal and then chrome plated.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch.  Manufacture part # 5020.  Shipped with mounting screws.

Toilet Partition Stainless Steel Continuous Alcove Clip, 71, 14 Gauge, 1/8" offset.

Stainless Steel Construction 14 gauge (.075" thick). Alcove clip is 2-3/8" wide by 71" long. Holes are typically spaced every 13-1/2" vertically and 1-5/8" horizontally. This clip is also known as a Full Length Toilet Partition Continuous Clip. Alcove clip has rounded edge radius. Designed to attach pilasters and panels with different thicknesses by connecting them at the seams and eliminating sightline.

*Fasteners not Included *

Manufacture part # 189979

The baby changing tables are a horizontal station, has a door facing and collar made from 18 gauge 304 stainless steel. Fabricated of FDA approved fungus and bacteria-resistant plastic. Unit complies with 2010 ADA Accessibility Standards and supports a static load of 300 lbs. This unit is used for recess mounting , also know as part number 9018-9 with American Specialties.

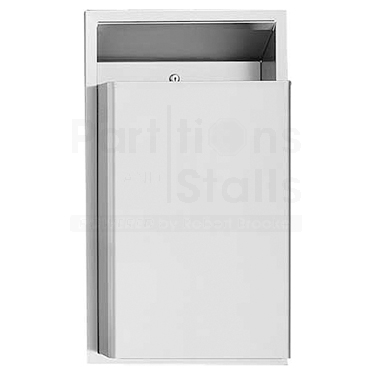

Stainless Steel Waste Receptacle Recessed
22 gauge type 304 stainless steel
Top and bottom edges hammered of safety
12 gallon receptacle
16"w X 29"ht

The 893 Hat And Coat Strip are available in 24", 36", 48" and 56". These are constructed of 18 gauge type 304 stainless steel, the hooks are constructed of 14 gauge stainless steel, both are finished to a #4 satin brushed finish.  The strip is 4" high by length and projects out 1/2".  The hooks are 1" wide by 6-11/16" high and project out 2-1/8", and have radiused ends to prevent injury. Manufactures part number is 1307 by American Specialties.

24" unit has 3 hooks.
36" unit has 4 hooks
48" unit has 5 hooks
56" unit has 6 hooks

The General Toilet Partitions Slide Bolt Latch is constructed of Zamac die cast metal that is chrome plated and polished.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.  Shipped with mounting screws.

The American Sanitary Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal that is chrome plated and polished.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.  Shipped with mounting screws.

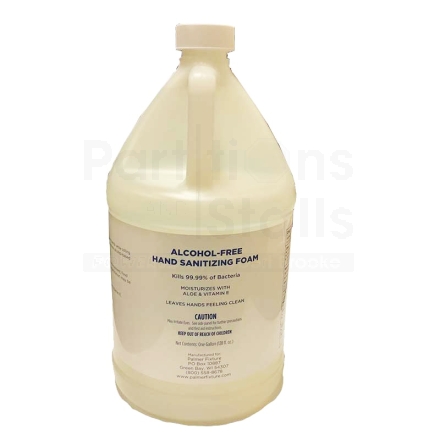

Selling Alcohol Free Hand Sanitizer Foam by the gallon form. This is used for bulk fill type dispensers. This product includes 4 gallons of product per order. This is best used with foaming dispensers whether they are automatic or manual.

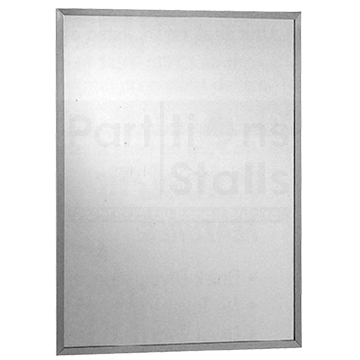

Introducing American Specialties stainless steel channel frame mirrors. Constructed of plate glass and type 304 stainless steel. Frames are roll formed to make the 1/2” x 1/2” x 1/2” channel, the corners are then mitered and secured with stainless steel rivets, with a #4 satin finish. 15 Year warranty against silver spoilage. Includes bracket for easy secure installation. Also known as 0620 series mirrors.

Stainless Alcove Two Ear Bracket Panel Kit for 3/4". This kit is used for 3/4" panel to 3/4" pilaster. Wall brackets and alcove clips are cast stainless steel. Security screws included. Also known as 615663.

Roval Automatic Foam Soap or Foam Hand Sanitizer Dispenser, 20365 A foam drop is dispensed out of the nozzle on unit bottom each time its battery-operated sensor is activated. Capacity: 34 oz. (1000 ml) of liquid foaming soaps within a wide range of viscosity. Overall Size 5 1/2” x 10 7/8” x 4” (140 x 276 x 102 mm) projection. Soap Requirements: Proper usage of this dispenser requires, that only soap/lotion/foaming hand sanitizer within the following range for viscosity and pH may be used.

Roval Surface Mounted Vertical Soap Dispenser, 20363 Same as 20364 but with push button. Valve operation complies with ADAAG, needing no more than 5 lbs of pressure to actuate. Gently radiused edge complements the curves of the ASI Roval Collection. Bulk fill with a 57 oz capacity. Overall Size 5 1/2” x 10 7/8” x 4” projection.

The Toilet Partition Keeper- Inswing For 3/4" Square Edge is for in swinging doors with a 3/4" squared edged pilaster post.  It is constructed of cast stainless steel.  We find this keeper used on Global Partition Corp and Accurate Partition Corp restroom stalls.  The manufacture part # on this is 40-8562305

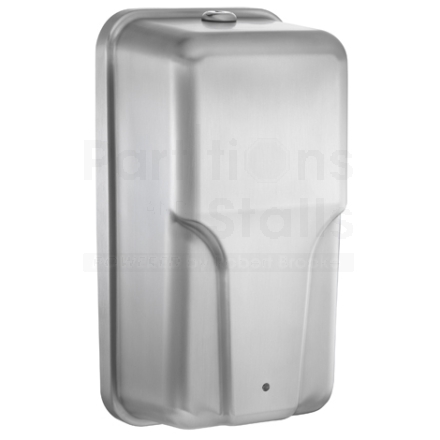

Roval Automatic Soap Dispenser, 20364 Hands-free, battery-operated soap dispenser. Dispensing cycles adjustable with tamper proof magnetic key. Seamless drawn type 304 stainless steel cover. Translucent removable internal tank for easy-to-view soap level. LED indicates adjustment and operation. Bulk fill with a 34 oz capacity. Overall Size 5 1/2" W x 10 7/8" H x 4" D projection

The Fiat Toilet Partition Nylon Cam is constructed of white nylon plastic.  The square head measures 7/8" by 1-1/8" with a 11/16" diameter hole. The cylindrical part is 7/8" diameter. The overall height is 1-3/16", with square part measuring 21/32". Also known as a Fiat Bathroom Stall Cam. Manufacture part # 98195. For use with an 11/16" diameter pintle.

Toilet Seat White Regular W/Cover 16-5/8" x 14-1/2" with cover white

Stainless steel shelves available in 5", 6" or 8" depths. The widths are 12"-72".  The shelf is fabricated of 18 gauge stainless steel, with the edges turned down and back 1/2" for maximum strength and rigidity.  All corners are deburred and polished smooth for safety.  The mounting brackets 16 gauge stainless steel and are permanently welded to the shelf with exposed mounting points.  Manufacturers part number 0692 series shelves. Note 8"x72" shelves are 3-4 weeks out. All other sizes ship out in 2 weeks.

Bobrick B2116 heavy duty clothes hook with concealed mounting. This product has three set screws for theft resistant mounting. The hook and flange are one piece brass casting in satin nickel plated finish to match stainless steel. This hook withstands up to 300lbs downward pull. The diameter is 2-3/4" x 3/7/16" projects out from the wall.

Retractable Wood Grain Phenolic Seat rh,This L-shaped reversible shower seat is ADA compliant and comes with a one-piece, one-half inch thick wood-grain phenolic top.  The reversible L-shaped component allows the handing of the seat to be determined in the field.  The seat is 32 inches by 23 inches and includes a self-locking mechanism to secure the seat in the upright position when it is not in use.  The tubular components are fabricated from stainless steel.

Roval Surface Mount Sanitary Waste Receptacle, 20852 Lid and cabinet are each drawn one piece construction. Lid is secured to the cabinet with a heavy-duty 9/64" multi-staked concealed piano hinge

B-274 Bobrick toilet tissue dispenser for double roll. The unit is made of a cast aluminum satin finish with a plastic spindle that is theft resistant. Holds up to one roll 6" diameter. The unit measures 12-1/2"w x 4-7/8" projecting out from the wall. This also has a controlled delivery.

The Accurate Toilet Partition Slide Bolt Latch is made of zamac die cast metal and then chrome plated and brought to a polished finish. This latch was used by Accurate Partition Corp and Global Partitions.  Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5050 and also the same as 9G0136.  This latch ships with the mounting screws.

The Global Toilet Partitions Slide Bolt Latch is made of zamac die cast metal and then chrome plated and brought to a polished finish. This latch was used by Accurate Partition Corp and Global Partitions.  Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5050 and also the same as 9G0136.  This latch ships with the mounting screws.

The Partition Keeper - Outswing For 3/4" Square Edge is for out swinging doors and mounted on square edge 3/4" thick pilaster posts.  The keeper is constructed of cast stainless steel.  The manufacture part number is 40-8562306.

The Metpar Toilet Partitions Bottom Cam Housing Unplated is constructed of Zamac die cast metal.  The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4066.

The Ampco Toilet Partitions Bottom Cam Housing Unplated is constructed of Zamac die cast metal.  The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4066.

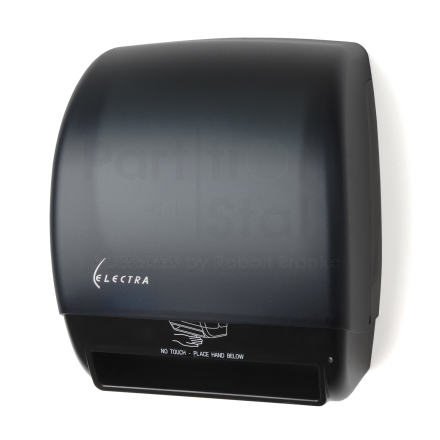

Roll Type No Touch Towel Dispenser Dark Translucent

The Electra Touchless Roll Towel Dispenser provides maximum options and cost reduction. It features adjustable paper lengths (9", 12", 15") and time delay (1, 2, 3 seconds). Our patented paper-savings mode reduces paper consumption by 12-15%. An automatic transfer system eliminates stub roll waste. Three choices for colors, Dark Translucent, Black translucent and White.

Cast S.S. Slide Bolt Latch 5/8" Bar To Door, 3-1/2" Between Screws. Cast stainless steel construction. Base is 4-1/2" tall with a hole spacing of 3-1/2" on center. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick and has a throw of 15/16". The latch projects out 1-9/16". The distance from the back of the base to the underside of the latch bolt is 9/16". Also known as a Bathroom Stall Slide Latch and Toilet Partition Locks. Manufacture part #5053. Shipped with screws. Used by accurate and global.

The Flush Metal Partition Nylon Cam is constructed of white nylon.  The partition cam head outside diameter is 23/32" and the inside diameter is 1/2". The cams cylinder is 1-13/32" long with a diameter of 5/8". For use with a 1/2" pintle. Also known as a Bathroom Stall Cam. Manufacture part # 98275.

The Ampco Toilet Partition Nylon Cam is constructed of white nylon.  The partition cam head outside diameter is 23/32" and the inside diameter is 1/2". The cams cylinder is 1-13/32" long with a diameter of 5/8". For use with a 1/2" pintle. Also known as a Bathroom Stall Cam. Manufacture part # 98275.

The Bobrick Partition Keeper Bumper Outswing is designed for use on a 1" thick square edged pilaster post.  The keeper is constructed of die cast metal and then chrome plated.  Strike and Keeper measures 2-1/2" high by 1-15/16" wide. Stop is 17/32" thick and projects out 13/16". The screw holes are 1-1/2" on center. This Bathroom Toilet Door Keeper is designed for use on 1" thick square edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Outswing 1". Manufacture part # 5720.  Shipped with mounting screws.
