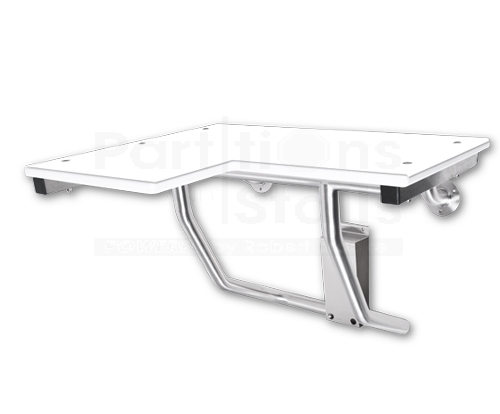

Retractable White Poly Shower Seat rh

In stock
1 Week Lead Time
Part #
9E804P
$436.43

General Specification

Seat: Fabricated of 3/4” thick, one piece polymers (white) with all leading edges having a radius to prevent injury. Seat is secured to frame with carriage bolts and acorn nuts. Seat is reversible and handing is not required

Tubing: Fabricated of #18 ga stainless steel with #4 satin finish.

Main Frame: 1 1/4” diameter square tubing with capped ends.

Flanges: #18 gauge stainless steel with exposed mounting points. Under slung supports have a 11/4” OD

Supports: #18 ga stainless steel 1 1/4” dia diagonal stainless steel support guides for raising and lowering of seat.

Mounting Bracket: #18 gauge stainless steel “hat” style bracket with four (4) mounting points. Bracket acts as a guide for raising and lowering of seat. For maximum support, bracket is mounted resting on floor absorbing load transfer. Seat will remain in an upright position when not in use by means of a spring clip. Seat has been tested to maintain a 500 lb static load.

Overall Size: 32”W x 20 3/4”’D (seating area) When properly mounted seat will support up to 250 lbs.

813mm x 514mm

*Wall to floor mounting design provides equal distribution of weight to ensure safe operation.

Retractable White Poly Shower Seat rh is available to buy in increments of 1

General Specification

Seat: Fabricated of 3/4” thick, one piece polymers (white) with all leading edges having a radius to prevent injury. Seat is secured to frame with carriage bolts and acorn nuts. Seat is reversible and handing is not required

Tubing: Fabricated of #18 ga stainless steel with #4 satin finish.

Main Frame: 1 1/4” diameter square tubing with capped ends.

Flanges: #18 gauge stainless steel with exposed mounting points. Under slung supports have a 11/4” OD

Supports: #18 ga stainless steel 1 1/4” dia diagonal stainless steel support guides for raising and lowering of seat.

Mounting Bracket: #18 gauge stainless steel “hat” style bracket with four (4) mounting points. Bracket acts as a guide for raising and lowering of seat. For maximum support, bracket is mounted resting on floor absorbing load transfer. Seat will remain in an upright position when not in use by means of a spring clip. Seat has been tested to maintain a 500 lb static load.

Overall Size: 32”W x 20 3/4”’D (seating area)

813mm x 514mm

*Wall to floor mounting design provides equal distribution of weight to ensure safe operation.

More Information
Part # 9E804P
Description

General Specification

Seat: Fabricated of 3/4” thick, one piece polymers (white) with all leading edges having a radius to prevent injury. Seat is secured to frame with carriage bolts and acorn nuts. Seat is reversible and handing is not required

Tubing: Fabricated of #18 ga stainless steel with #4 satin finish.

Main Frame: 1 1/4” diameter square tubing with capped ends.

Flanges: #18 gauge stainless steel with exposed mounting points. Under slung supports have a 11/4” OD

Supports: #18 ga stainless steel 1 1/4” dia diagonal stainless steel support guides for raising and lowering of seat.

Mounting Bracket: #18 gauge stainless steel “hat” style bracket with four (4) mounting points. Bracket acts as a guide for raising and lowering of seat. For maximum support, bracket is mounted resting on floor absorbing load transfer. Seat will remain in an upright position when not in use by means of a spring clip. Seat has been tested to maintain a 500 lb static load.

Overall Size: 32”W x 20 3/4”’D (seating area)

813mm x 514mm

*Wall to floor mounting design provides equal distribution of weight to ensure safe operation.

Short Description

General Specification

Seat: Fabricated of 3/4” thick, one piece polymers (white) with all leading edges having a radius to prevent injury. Seat is secured to frame with carriage bolts and acorn nuts. Seat is reversible and handing is not required

Tubing: Fabricated of #18 ga stainless steel with #4 satin finish.

Main Frame: 1 1/4” diameter square tubing with capped ends.

Flanges: #18 gauge stainless steel with exposed mounting points. Under slung supports have a 11/4” OD

Supports: #18 ga stainless steel 1 1/4” dia diagonal stainless steel support guides for raising and lowering of seat.

Mounting Bracket: #18 gauge stainless steel “hat” style bracket with four (4) mounting points. Bracket acts as a guide for raising and lowering of seat. For maximum support, bracket is mounted resting on floor absorbing load transfer. Seat will remain in an upright position when not in use by means of a spring clip. Seat has been tested to maintain a 500 lb static load.

Overall Size: 32”W x 20 3/4”’D (seating area) When properly mounted seat will support up to 250 lbs.

813mm x 514mm

*Wall to floor mounting design provides equal distribution of weight to ensure safe operation.

Availability 1 Week Lead Time
Manufacturer A J Washroom
