Stainless Steel #12 X 2-1/2" Screw 6 Lobe(T-27), 1/2" diameter head, also known as a 91909. This uses a Torx bit to drive screw.

Stainless Steel #14 x 5/8" Screw 6 Lobe(T-27), 7/16" diameter head, also known as 92199. This uses a Torx bit to drive screw.

Stainless Steel #10 x 5/8" Long Screw 6 Lobe(T-27), 7/16" diameter head, Also known as 90969. This uses a Torx bit to drive the screw.

#12 X 2" Screw 6 Lobe(T-27), Chrome, 1/2" diameter head, also known as a 91913. This uses a Torx bit to drive screw.

Stainless Steel #12 X 2" Screw 6 Lobe(T-27), 1/2" diameter head, also known as a 91919. This uses a Torx bit to drive screw.

#12 X 1-1/2" Screw 6 Lobe(T-27), Chrome, 1/2" diameter head, also known as a 91813. This uses a Torx bit to drive screw.

#14 x 5/8" Screw 6 Lobe(T-27), Chrome, 7/16" diameter head, also known as 92193. This uses a Torx bit to drive screw.

#12 X 2-1/2" Screw 6 Lobe(T-27), Chrome, 1/2" diameter head, also known as a 91903. This uses a Torx bit to drive screw.

#10 x 5/8" Long Screw 6 Lobe(T-27) Chrome, 7/16" diameter head, Also known as 90963. This uses a Torx bit to drive the screw.

Post Cap for 1-3/4" post. This is made as a top cap and has a chrome finish. The manufacturer part number is 6500.

Double sided door pulls in a chrome finish. The overall width is 4-3/4" x 1" deep. The center screws are 3-1/2". This manufacturer number is 54400. This kit includes both handles and screws for 1" thick doors.

Chrome plated outswing door kit for square edge doors and posts. For 1" doors and 1" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 21300.

Chrome plated outswing door kit for square edge doors and posts. For 1" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 21000.

Chrome plated inswing door kit for square edge doors and posts. For 1" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 11000.

Cast Stainless steel inswing door kit for square edge doors and posts. For 1" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 11003.

Cast stainless steel outswing door kit for square edge doors and posts. For 1" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 21003.

Bathroom partition chrome plated inswing door kit for square edge doors and posts. For 7/8" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 17800.

Bathroom partition chrome plated outswing door kit for square edge doors and posts. For 7/8" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 27810.

Partition Door Kit Inswing 1" Door & Post Cast Stainless Steel. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 11303.

Restroom Door Kit Outswing 7/8" Door & 1-1/4" Post Cast stainless steel. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 27813.

Double sided door pulls in a cast stainless steel finish. The overall width is 4-3/4" x 1" deep. The center screws are 3-1/2". This manufacturer number is 54403. This kit includes both handles and screws for 1" thick doors.

Euro Style Support Brace for 3/4" thickness material. Available in 4"-4-1/2", 6-6-1/2" and 9-9-1/2" height, all adjustable by a 1/2". Heavy duty industrial #304 stainless steel material. References part numbers are 189003, 189013, 189023.

Toilet Partition Angle Bracket Chrome Plated 1 3/4" X 1 3/4"

Constructed of stainless polished finish with chrome plated zamac die casting. Base is 1-3/4" x 1-3/8", projects out 1-3/4". Two screw holes are 1/4" diameter, and are located 1-1/4" from opposing face. Sometimes called Bathroom Stall Angle Bracket. Sold individually, and shipped with required screws. Manufacturer part number 2015.

Restroom Door Kit Inswing 7/8" Door & 1-1/4" Post Cast SS. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 17803.

Toilet Partition Aluminum Bracket 'U' For 1" Thick Panel

Constructed of extruded anodized aluminum. The base measures 1-5/16" wide by 1-1/2" tall. The screw holes on the base are 5/8" on center. The legs project out 1-5/16". The bracket is also known as a Bathroom Stall U Bracket, Wall Bracket or Toilet Partiton U Bracket. The manufacturers part numbers is 1914. Shipped with mounting screws.

Toilet Partition Wall Bracket 'U' For 1" Panel, 3"H x 1-3/8"L

Extruded aluminum construction. The base is 3" long x 1-5/16" wide. The legs project out 1-3/8" and are 1" apart, for use with 1" panels. The six mounting holes are 1/4" diameter. Also known as a Bathroom Stall U Wall Bracket Extra Long. Manufactures part number is 2304. Shipped with all the fasteners.

Black Occupancy Indicator Latch Handle is constructed of cast stainless steel with black finish. Latch handle is designed for 3/4" Doors and is through mounted to the occupancy indicator. Features a 4-1/2" length handle that is tapered at one end to engage with keeper for locking. Features emergency unlatching access on front of indicator. Shipped with fasteners for mounting occupancy indicator to door and pilaster. Known as manufacturer part number 4995.

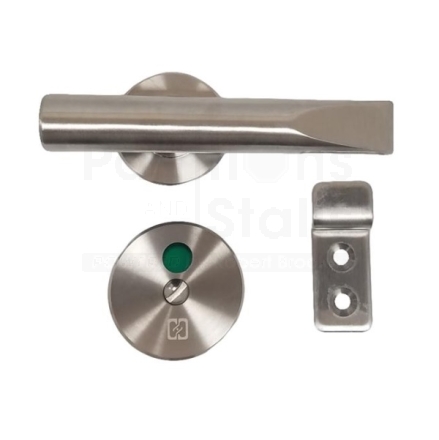

Occupancy Indicator Latch Handle is constructed of cast stainless steel with a satin finish. Latch handle is designed for 3/4" Doors and is through mounted to the occupancy indicator. Features a 4-1/2" length handle that is tapered at one end to engage with keeper for locking. Features emergency unlatching access on front of indicator. Shipped with fasteners for mounting occupancy indicator to door and pilaster. Known as manufacturer part number 4993.

Chrome plated inswing door kit for square edge doors and posts. For 1" doors and 1" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 11300.

Cast stainless steel outswing door kit for square edge doors and posts. For 1" doors and 1" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 21343.

Chrome Plated Alcove Clip

Chrome plated zamac die casting, for use on 1" doors and 1-1/4" posts. Horizontal leg in picture is 1-1/4" wide and 1-1/2" tall. The vertical leg is 1-5/32" wide. The holes are 1/4" diameter. Also known as Bathroom Stall Alcove Clip, Toilet Partition Alcove Clip, and Toilet Stall Alcove Clip. The manufacturers part number is 1550 Alcove Clip and 650-6650 Alcove Clip.

Toilet Partition Top Hinge Assembly For 7/8" Thick Door, 1-1/4" Pilaster Square Edge Chrome Plated Polished chrome plated zamac die cast construction. Kit includes Top Hinge, Pintle, Nylon Cam, and Top Hinge Door Insert. Bottom hinge measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Mounting lug projects out 1-1/4". Also known as a Bathroom Stall Bottom Hinge Kit. Manufacture part number 63020. Screws are also included.

ADA Partition Slide Latch with Occupied Symbol. Stainless steel door lock surface mounted for 1" doors, this can be used for doors less than 1" if the rod is cut down between the two pieces. All hardware included for installation. This manufactures part number is 50553. Hole spacing is 3-1/2".

Toilet Partition Continuous "H" (Alcove) Bracket For 1" Thick Panels Aluminum

Constructed of extruded anodized aluminum. Channel is 2-1/2" high by 1+" wide by 54" long, for use with 1" panels. Thru holes are 1-1/2" on center. Holes are 1/4" diameter. Thru holes are every 13" or so. Sometimes known as Bathroom Stall Continuous Alcove Bracket or Toilet Partiton Alcove Bracket. The manufacturers part numbers are 2858, and 650-1862-54. These brackets are shipped with all the needed fasteners.

The Surface Mount Door Hinge Set LH In/ RH Out is for use on Right Hand Out Swing and Left Hand In Swinging doors. They are self closing. The hinges are constructed on stamped stainless steel that is then polished. The package includes the top and bottom hinges and the mounting screws. Hole spacing right to left 2-1/4", up and down 1-1/2", overall 3" width by 2-1/2" height.  Also known as a toilet partition or bathroom stall gravity surface hinge set. Manufacture part number is 7083.
