Search results for: 'both partition for a fold thei'

Global partition plastic laminate corner stalls for commercial use. Plastic laminate overhead braced floor mounted stalls are most often used. Standard stalls are 36" x 60"depth (24" door), Ada stalls are minimum 60" x 60" depth (36" door). All standard chrome hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an Ada stall you must select 1 Ada 24  x60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60. Plastic laminate Partitions ship in 2 business days.

Global Plastic Laminate color chart

The General Toilet Partition Keeper Bumper For 1-1/4" Inswing Sq Edge is for use on 1-1/4" thick square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110.  Shipped with mounting screws.

The All American Toilet Partition Pintle 1/2" Diameter is used on metal and plastic laminate restroom stalls.  This component is used on the hinges to make the door self closing.

The Knickerbocker Toilet Partition Bottom Hinge is used on round edged 1-1/4" thick pilaster posts.  It features chrome plated Zamac die cast construction. The wrap around dimension is 1-1/4" wide by 1-3/4" high and 11-16" deep. The hole spacing is 1-1/8" on center. The lug projects out 1-3/8" to center hole with a 1/4" bushing diameter. Also known as a Bathroom Stall Pivot Hinge - Bottom 1-1/4". Manufacture part # 3420.  A=1-11/16"

The All American Toilet Partitions Nylon Cam is used on metal and plastic laminate hinges.

Global partitions vault door kit for Phenolic material. Comes in a brushed steel finish and are for 3/4" thick material only. You will need to choose in or out swing when ordering. Can be used as right or left handed. See manufacturers numbers listed below. Used with Global and Accurate partitions.

Inswing Door Kit: 40-8571005

Outswing door Kit: 40-8571006

The Partition Keeper Bumper- In swing For 1-1/4"  is for in swinging doors and pilaster posts of 1-1/4" thickness.  The bracket is constructed of die cast metal and then chrome plated and polished.  The Keeper is used by many manufactures.  The manufacture part # is 40-8512353.

Global Partitions Bathroom Alcove Stall Partitions, Powder Coated Metal Overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. All Hardware included. All toilet partitions ship in 48-72 hours plus 2-4 days travel. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Global Partitions Color Chart

The Fiat Toilet Partition Top Door Insert is constructed of Zamac die cast metal that is chrome plated and then polished.  The hinge U insert has outside dimesions of 2-3/16" wide by 1-1/2" by 1" deep with tow holes 1/2" diameter. The inside distance between the U's is 1-1/16". Also known as a Fiat Bathroom Stall Door Insert Top 1". Manufacture part # 4800.

The Fiat Toilet Partition Bottom Door Insert is for use on there 1" thick doors.   It is constructed of Zamac die cast metal that is then chrome plated and polished.  The bottom door insert measures 2-1/8" by 1" by 13/16". The insert has one hole, which is 7/32" diameter. The square hole is 29/32" wide by 1". Also known as a Fiat Bathroom Stall Door Insert Bottom 1". Manufacture part # 4700.

The Fiat Partition Keeper Bumper Concealed is constructed of Zamac die cast and polished chrome plate.  Keeper is 1-1/4" tall by 2-3/8" wide by 1-3/4" deep. The strike is a1/2" thick and the slot is 7/16" deep. The opening to mount it on the square edge pilaster or post is 1-1/4" by 1-1/4" Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5960.  Shipped with screws for mounting.  Same as the 9S8861

The Partition Keeper - Outswing For 3/4" Square Edge is for out swinging doors and mounted on square edge 3/4" thick pilaster posts.  The keeper is constructed of cast stainless steel.  The manufacture part number is 40-8562306.

The Partition Slide Bolt Latch 1-1/2" wide x 3-1/4 Long is constructed of cast stainless steel, and then brushed to the desired finish.  The hole spacing is 2-3/4" center to center.  This latch is used on Global Partition Corp and Accurate Partition Corp products.  The manufacture part numbers are  40-256300, 40-8562899, and 8698. This latch is Ada approved.

Hadrian Partition Between Wall Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.

Hadrian Color Chart

Hadrian Instructions Powder Coated

The Metpar Toilet Partition Nylon Cam Pintle Combo is made of black nylon plastic.  The piece measures 7/8" diameter on the cylindrical part and 4-7/8" long to the end of the screw. This part is also known as the Metpar Bathroom Stall Candle Cam. Metpar is the only manufacture we know that uses this type of Nylon Cam Pintle Combination piece. Manufacture part # 97435.  Shipped with lock washer and screw.

Global partitions plastic laminate panels & 10' aluminum post are great for extra privacy and extra strength and support. All bathroom toilet partitions ship in 1 week, 2-4 days travel. The post is 10' x 1-3/4" Square Post, panels are 58"ht. All standard chrome hardware included. 16- 76" panels available, note panels are 1/2" less than width size.

Global Plastic Laminate color chart

Global partitions complete stainless steel alcove partitions with overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. Standard chrome plated alloy Hardware included. All toilet partitions ship in 48-72 hours plus 2-4 days travel. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Global Stainless Steel Color Chart

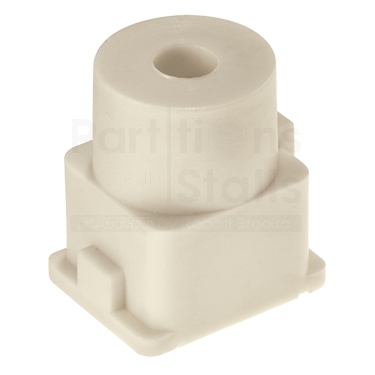

The General Toilet Partition Nylon Cam For Steel For Steel restrooms is constructed of white nylon plastic.  Square part of nylon cam is 7/8" by 1-1/8" with a diameter of 11/16". The cam has an overall height of 1-1/4", with a cylinder diameter of 7/8". Also known as a Bathroom Stall Cam. Manufacture part # 98185.

The Fiat Toilet Partition Bottom Hinge is constructed of Zamac die cast metal, then chrome plated.  This bottom hinge is for 1-1/4" thick square edged pilaster posts.  The hinge U channel measures 2-1/4" high by 1-1/4" deep with an insert depth of 1-5/16". The hole spacing is 1-1/2" on center. The hinge lug projects out 1-11/16" by 1/2" thick with a hole diameter of 5/16". Also known as a AMPCO Bathroom Stall Pivot Hinge - Bottom 1-1/4". Manufacture part # 3130.  Shipped with mounting screws.  A=1-11/16"

The Partition Slide Bolt Latch 9/16" Bar To Door clearance is constructed of Zamac die cast metal that is then chrome plated and polished.   Base is 3-3/8" high with 2-5/8" hole spacing. Latch bolt is 3-1/8" long by 7/8" wide by 3/16" thick with a 9/16" dimension from the door to the under side of the latch bolt. The latch projects out 1-1/2" when installed on the door. Also known as a Bathroom Toilet Stall Door Slide Latch and Toilet Partition Locks. Manufacture part # 6540.  Shipped with mounting screws.

The American Sanitary Toilet Partition Nylon Cam is constructed of natural nylon plastic. The nylon cam head diameter is 7/8" with an inside diameter of 11/16". The cylinder diameter is 3/4" and has an overall length of 1-11/32". For use with a 5/8" diameter pintle. Also known as a Bathroom Stall Door Hinge Cam. Manufacture part # 98245.

The All American Toilet Partition Latch Knob and Cover is used on All American Metal Corp 1" thick metal doors.  The inner and outer knob are included in the package.  The manufactures part number is 104.

The Flush Metal Partition Pintle is for use on there steel doors and is constructed of steel and white nylon plastic.  The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.  Shipped with nut and lock washer.

Hadrian Aluminum Headrails for 1"X96" Type A used on overhead braced floor mounted partitions. For Hadrian Powder Coated Steel and Stainless Steel Partitions. The headrail goes between a U shape which is 1" for the headrail to fit into at the top of the pilaster, the headrail bolts to the pilaster for stability at the top. Also known as part number 580096.

The Fiat Toilet Partition Top Hinge for Laminate Door is for use on an 1-1/4" Square Edged Pilaster Post and uses a 7/16" Pin.  It is constructed of Zamac die cast metal that is chrome plated and polished.  The hinge U channel measures 2-1/4" high by 1-1/4" deep with a insert depth of 1-5/16". The hole spacing is 1-1/2" on centers. The hinge lug projects out 1-11/16" and is 1/2" thick. The lug hole diameter is 19/32". Also known as a Fiat Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3630.  Ships with mounting screws.  A=1-11/16"

The Hadrian Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal that is chrome plated and polished.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.  Shipped with mounting screws.

The Metpar Toilet Partition Top Hinge Pin For Laminate is used on there Plastic Laminate restroom stalls.  The pin features knurled steel construction, and is 3-1/2" long by 3/8" diameter.  The knurled end has a threaded hole of a 10-24 screw. Also known as a Bathroom Stall Hinge Pin. Manufacture part # 99109.

Global Partition online all plastic laminate wall mounted screens are great for between urinals or a urinal and a sink. Laminated partitions ship in 48 hours, 2-4 days travel. Standard chrome bracket's are included. Wall mounted screens 1" thick by 48" high panel. Available in the following widths 12, 18, 24".

Global Plastic Laminate color chart

The Global Toilet Partition Bottom Cam Housing Chrome Plated is constructed of Zamac die cast metal that is then chrome plated and polished.  The bottom cam housing measures 1-3/16" wide by 3" deep. The screw hole is 9/32" diameter. Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4090.

The Flush Metal Partition Bottom Hinge is for use on an 1-1/4" square edged pilaster post.   It is constructed of Zamac die cast metal that is then chrome plated and polished.  The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a Fiat Bathroom Stall Pivot Hinge Bottom 1-1/4". Also known as General, American Sanitary, Flush Metal, Fiat Tiolet Partition 9F0301, 9AM280, 9FL700.  Manufacture part # 3290.  Shipped with mounting screws.  A=1-5/8"

The Partition Chrome Plated ADA Throw Latch 3-1/2" Screws has chrome plated brass construction.  Base is 4-1/2" wide by 1-1/2" high by 3/16" thick. Throw latch is 3-11/16" long by 3/4" x 3/16" thick. The center to center distance between the mounting screws is 3-1/2".  The latch projects from the stall door 1-3/8". Also known as a Bathroom Stall or Toilet Partition Throw Latch. Manufacture part # 5151.  Shipped with mounting screws.

The American Sanitary Toilet Partition Coat Hook Bumper is constructed of Zamac die cast metal that is chrome plated and polished.  Coat hook bumper projects out 3" and has a rubber insert. The hook projects out 1-7/32". The coat hook bumper base is 1-7/16" wide by 2-1/4" high with a hole spacing of 7/8". Also known as a Bathroom Stall Hook. Manufacture part # 4000.

Global partition plastic laminate overhead braced urinal privacy dividers. All toilet partitions ship in 1 week, 2-4 days travel. 6" x 82" ht pilaster and panel included and aluminum headrail and all standard hardware included. 16-76" panels available, note panels are 1/2" less than width size.

Global Plastic Laminate color chart

Hadrian partition stainless steel free standing bathroom stalls floor mounted overhead braced with a smooth surface. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60.

Hadrian Stainless Steel Color Chart

Hadrian Instructions Stainless Steel

The Partition Keeper Bumper Inswing 1-1/4" is constructed of Zamac die cast metal that is then chrome plated and polished.  Keeper is 1-1/4" tall by 2-3/8" wide by 2-9/16" deep. The strike is a17/32" thick and the slot is 7/16" deep. The opening to mount it on the square edge pilaster or post is 1-1/4" by 1-1/4" Also known as a Bathroom Stall Strike and Keeper for Inswing 1-1/4". Manufacture part # 5980.  Shipped with screws for mounting.

ASI EZ Shoe is designed to anchor directely to the floor. Made for Global Partitions and Accurate Partitions restroom stall. This allows for the pilaster to sit inside the shoe. Constructed of #304 Stainless Steel and 3" height. The ASI EZ Shoe comes in round or square edge design. Round Edge shoes are configured for Solid Plastic (1" Thick), Powder Coated Steel and Stainless Steel (1-1/4" Thick) partition pilasters. Square Edge is designed for Plastic Laminate (1" Thick) and Phenolic (3/4" Thick) partition pilasters. ASI EZ Shoes come with all hardware for anchoring shoe to floor and screws for attaching pilaster shoe to pilaster. Pilaster shoes are the base support for partitions.
