Search results for: 'bracket tube hand stall driver'

One Ear Pilaster Bracket Kit for 1-1/4" Post are available for quick deliveries and cast stainless steel plated. Includes security screws for installation. Also known as 615233.

Stainless Alcove Two Ear Bracket Panel Kit for 1/4" Offset. This kit is used for panel to pilaster 1/4" offset and for 1" panel to wall bracket cast stainless steel plated. Security screws included. Also known as 615333.

Partition panel bracket kit for 3/4" thick panel, Two eared bracket that is cast stainless steel plated. All kits include security fasteners to install the brackets. Also known as 615163.

Toilet Partition Continuous Hinge 54" With 20 Degree Cam Close Stainless Steel. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

Stainless Steel Construction, 14 gauge (.075" thick). Hinge is 3" wide when laid flat, by 54" long. Holes are spaced every 13" and are 9/32" diameter and 5 sets of holes. The hinge is self closing by a cam action, which is made possible by angle cuts on the continuous hinge leafs. Cam features 20 Degree Closing for ADA Doors. Can be raised up 3/8" for emergency entry. This hinge is also known as a Bathroom Stall Full Length Continuous Hinge. This hinge is non handed. Manufacture part # 130219, 7598, 125319, 650-9402.

Alcove Two Ear Bracket Panel Kit for 3/4" Panel to 1" Post. Wall brackets and alcove clips are cast stainless steel construction. Security screws included. Also known as 615313.

Ordering online all powder coated metal stall doors are Manufactured by Global Partitions. Partition doors that ship in 48 hours are 24, 26, 34, 36 doors. All other sizes take 5 business days to ship from the factory. Standard chrome plated door kits included with option of stainless steel door kits. When ordering a restroom stall door you need to know that the door will come 3/8" narrower than the opening.  The door size is the opening you have to replace, so a 36" door is for a 36" opening.

Global Partitions Color Chart

The Toilet Partition Continuous Hinge Stainless Steel, 54", 1/4" Pin is 54" long by 3" wide with a pin diameter of 1/4".  They are constructed of 14 gauge (.075" thick) stainless steel.  Holes are spaced every 13" and are 9/32" diameter and has 5 sets of holes. The hinge is self closing by a cam action, which is made possible by angle cuts on the continuous hinge leafs.Cam features Zero Degree Closing. Can be raised up 3/8" for emergency entry. This hinge is also known as a Bathroom Stall Full Length Continuous Hinge. This hinge is non handed. This piece features a cam, which makes it self closing.  Manufacture part # 130209,7599, 125319, 650-9402. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside. This hinge is known as 7599.

Alcove Two Ear Bracket Panel Kit for 1/2" Panel to 3/4" Post. Wall brackets and alcove clips are cast stainless steel construction. Security screws included. Also known as 615353.

This L-shaped reversible shower seat is ADA compliant and comes with a one-piece, one-half inch thick ivory phenolic top.  The reversible L-shaped component allows the handing of the seat to be determined in the field.  The seat is 32 inches by 23 inches and includes a self-locking mechanism to secure the seat in the upright position when it is not in use.  The tubular components are fabricated from stainless steel.

Chrome Plated One-Way Shoulder Screw & Barrel 1 5/16" - 1 5/8" Grip. Use a Flat Head Screw Driver to install. This is a 10-24 thread.

Continuous Hinge Stainless Steel, is 71-1/2" long by 3" wide, and is for use on Right Out Swing, Left In swing restroom stall doors.  The hinge is constructed of 16 gauge (.060" thick) stainless steel and the screws are placed every 11" or so.  The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.  Manufacture part # 7769

Toilet Partition Continuous Hinge, 57" Long Non Handed,14 Gauge Stainless Steel ,1/4" Diameter Pin, Cam Close. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

This is the most Heavy Duty Continuous Full Length Hinge we sell. 14 gauge (.075" thick) stainless steel construction with a 1/4" diameter hinge pin. The hinge leafs are angle cut so your door will close with the camming action. The hinge is 3" wide when laid flat, and 57" long. Screws are spaced 11" apart and the holes are 9/32" diameter and has 6 sets of holes. Hinge can be raised up 3/8" for emergency entry. Also known as a Bathroom Toilet Stall Full Length Continuous Hinge. Manufacturer part #7789, 160029, 650-9400.

One Ear Pilaster Bracket Kit for 1" Post are available for quick deliveries and cast stainless steel plated. Includes security screws for installation. Also known as 615253.

Alcove Two Ear Bracket Panel Kit for 3/4". This kit is used for 3/4" panel to 3/4" pilaster. Wall brackets and alcove clips are chrome plated. Security screws included. Also known as 615660.

Alcove One Ear Bracket Panel Kit for 3/4". This kit is used for 3/4" panel to 3/4" pilaster. Wall brackets and alcove clips are chrome plated zamac. Security screws included. Also known as 615400.

Hadrian partition steel stall doors are available with many colors to choose from and sizes. Quickship colors will ship in 48-72 hours. Usually one week delivery time for those colors. There is a 3 week lead time for non stock colors. The color chart shows an American flag which indicates a quickship color. All stalls doors come with a standard chrome plated door kit which includes wrap hinges, keeper and latching. Stainless steel hardware is available. The door widths start out at 23"-36" available. All doors are 1/4" narrower than door size for gapping and are 58" tall. All sizes are for the opening you have. A 36" door is for a 36" opening. Note we now offer Square Edge wrap hinges which are not very common, most have a slight round edge.

Hadrian Color Chart

Hadrian Instructions Powder Coated

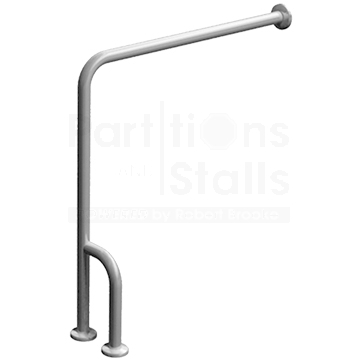

Grab Bar 30" x 33" Ht ; ADA Accessible Compartments Require: 1-1/2" diameter with concealed snap on flange 30" x 33"ht.  2nd leg sticks out 5" x 12"ht. Right hand shown, left hand is on opposite side.

Alcove One Ear Bracket Panel Kit for 1/4" Offset. This kit is used for panel to pilaster 1/4" offset and for 1" panel to wall bracket chrome plated. Security screws included. Also known as 615360.

Stainless Alcove Two Ear Bracket Panel Kit for 3/4". This kit is used for 3/4" panel to 3/4" pilaster. Wall brackets and alcove clips are cast stainless steel. Security screws included. Also known as 615663.

Hadrian partition stainless steel corner bathroom partitions floor mounted overhead braced stalls with a smooth surface. Standard stalls 36" x 60" depth (26" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60.

Hadrian Stainless Steel Color Chart

Hadrian Instructions Stainless Steel

Chrome Plated One-Way Shoulder Screw & Barrel 5/8" -7/8" Grip. Use a Flat Head Screw Driver to install. This is a 10-24 thread.

Alcove Two Ear Bracket Panel Kit for 3/4" Panel to 1" Post. Wall brackets and alcove clips are chrome plated zamac. Security screws included. Also known as 615310.

Global partitions vault door kit for Solid Plastic material. Comes in a brushed steel finish and are for 15/16" thick material only. You will need to choose in or out swing when ordering. Can be used as right or left handed. See manufacturers numbers listed below. Used with Global and Accurate partitions.

Inswing Door Kit: 40-8571007

Outswing door Kit: 40-8571008

Chrome Plated One-Way Shoulder Screw & Barrel 1 1/16" - 1 5/16" Grip. Use a Flat Head Screw Driver to install. This is a 10-24 thread.

Toilet Partition Pilaster Anchoring Device for 1" thick or larger.

Zinc plated steel bracket. For 3" to 6" wide Pilaster Posts. Also known as a Bathroom Stall Pilaster Post Anchoring Device. Ships with all the hardware and screws shown.

Global partitions complete HDPE solid plastic free standing partitions with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), Ada stall 60" x 60"depth (36" door). All standard aluminum hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an Ada stall you must select 1 Ada 24 x 60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Global Solid Plastic Color Chart

Global partitions complete stainless steel free standing partitions with overhead braced floor mounted. Standard stalls 36" x 60" depth (24" door), Ada stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60

Global Stainless Steel Brochure

Hadrian partition stainless steel free standing bathroom stalls floor mounted overhead braced with a smooth surface. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60.

Hadrian Stainless Steel Color Chart

Hadrian Instructions Stainless Steel

B-2112 Bobrick automatic wall mounted soap dispenser with satin finish in stainless steel. The vale dispenses all purpose hand soaps. Capacity 40 fl oz. The soap is refillable at the top and has an eye for soap level. The demensions are 8-1/8"w x 4-3/4" x 3-1/2"depth with push button included.

Two Ear Stainless Steel Partition Bracket for 1/2" Panel. This is used with a 1/2" thick panel only. The hole spacing is 1-1/2" and height is 3", and sticks out from the wall 2-1/2". The overall width is 3-1/4". The screw holes are 1/4" diameter at 8 places. This is also known as 2209. The stainless steel is flat and rolled to form a two ear partition bracket.

One-Way Shoulder Screw & Barrel 7/8" -1 1/16" Grip, Chrome Plated. Use a Flat Head Screw Driver to install. This is a 10-24 thread.

Global partitions vault door kit for Phenolic material. Comes in a brushed steel finish and are for 3/4" thick material only. You will need to choose in or out swing when ordering. Can be used as right or left handed. See manufacturers numbers listed below. Used with Global and Accurate partitions.

Inswing Door Kit: 40-8571005

Outswing door Kit: 40-8571006

Heavy Duty Piano Hinge Stainless Steel 57-1/2", Left Hand Outswing, Right Hand In Swing is constructed of 14 gauge (0.75" thick) stainless steel.  The internal spring makes this a self closing hinge. This toilet partition door hinge is heavy duty with a 1/4" pin for extra strength. The hinge measures 3" laying flat by 57-1/2". 9" centers with 6 holes on each side.

Hadrian Toilet Partition Stainless Steel Ada Alcove Bathroom Partitions floor mounted overhead braced stalls. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. Standard chrome plated alloy hardware included. All toilet partitions ship in 48-72 hours plus 2-4 days travel.

Hadrian Stainless Steel Color Chart

Hadrian Instructions Stainless Steel

Hadrian Alcove Channel Instruction
