Search results for: 'bracket tube hand stall driver'

B-2111 Bobrick automatic wall mounted vertical soap dispenser with satin finish in stainless steel. The vale dispenses all purpose hand soaps. Capacity 40 fl oz. The soap is refillable at the top and has an eye for soap level. The demensions are 4-3/4"w x 8-1/8"ht x 3-1/2" depth with push button included.

Toilet Partition Pilaster Anchoring Device

Zinc plated steel construction. For 3/4" thick and larger Pilaster Posts and 3" wide and larger pilaster posts. The brackets are 11/16" wide. Also known as a Bathroom Stall Pilaster Post Anchoring Pack. All the screws are included in the package.

Roval Automatic Soap Dispenser, 20364 Hands-free, battery-operated soap dispenser. Dispensing cycles adjustable with tamper proof magnetic key. Seamless drawn type 304 stainless steel cover. Translucent removable internal tank for easy-to-view soap level. LED indicates adjustment and operation. Bulk fill with a 34 oz capacity. Overall Size 5 1/2" W x 10 7/8" H x 4" D projection

Global partitions complete HDPE solid plastic in a corner with overhead braced floor mounted stalls. Standard stalls 36" x  60" depth (24" door), Ada stall 60" x 60" depth (36" door). All standard aluminum hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Global Solid Plastic Color Chart

Stainless Steel L shape Partition Brace. Do your Toilet partition panels keep falling out of the bathroom stall wall mounted brackets? If so, the answer might be a Toilet Partition brace or support, which would support the panel and pilaster from falling, or as preventive maintenance to strengthen the compartment. They are also sometimes called Pilaster Support L-Brackets. The we stock 3 versions that are adjustable from 7-1/2″ to 10″, 9-1/2″ to 12″ and 11-1/2″ to 14″, floor to bottom of panel clearance. The bathroom stall brace is made of stainless steel, with a round base of 2-3/8″ and a support bracket that is 1-1/2″ x 2-3/8″. The diameter of the toilet partition support shaft is 1″. If you have any questions on the Toilet Partition Support Braces let us know!
Same as 8513, 85183, 85193, 9a6005, 9a85183, 9a85193. Most common 9a6005.

Note the most common are 11-1/2" to 14" due to the partitions are mounted 12" off the floor.

Also note quantities of 10 or more not returnable.

Retractable Wood Grain Phenolic Seat lh,This L-shaped reversible shower seat is ADA compliant and comes with a one-piece, one-half inch thick wood-grain phenolic top.  The reversible L-shaped component allows the handing of the seat to be determined in the field.  The seat is 32 inches by 23 inches and includes a self-locking mechanism to secure the seat in the upright position when it is not in use.  The tubular components are fabricated from stainless steel.

Roval Automatic Foam Soap or Foam Hand Sanitizer Dispenser, 20365 A foam drop is dispensed out of the nozzle on unit bottom each time its battery-operated sensor is activated. Capacity: 34 oz. (1000 ml) of liquid foaming soaps within a wide range of viscosity. Overall Size 5 1/2” x 10 7/8” x 4” (140 x 276 x 102 mm) projection. Soap Requirements: Proper usage of this dispenser requires, that only soap/lotion/foaming hand sanitizer within the following range for viscosity and pH may be used.

Retractable Wood Grain Phenolic Seat rh,This L-shaped reversible shower seat is ADA compliant and comes with a one-piece, one-half inch thick wood-grain phenolic top.  The reversible L-shaped component allows the handing of the seat to be determined in the field.  The seat is 32 inches by 23 inches and includes a self-locking mechanism to secure the seat in the upright position when it is not in use.  The tubular components are fabricated from stainless steel.

Toilet Partition Pilaster Anchoring Device for 1" thick or larger.

Zinc plated steel bracket. For 7" wide and larger Pilaster Posts. Also known as a Bathroom Stall Pilaster Post Anchoring Device. Ships with all the hardware and screws shown.

The baby changing tables are ADA compliant units and are welded stainless steel for long and reliable use in commercial buildings. Exposed surfaces are satin finish. Easy one handed operation is assisted by a pull handle and concealed spring. The changing surface is high-impact-resistant plastic for easy cleaning. Its two part adjustable safety strap and 400 lb load capacity assure child protection. This unit is used for recess mounting , also know as part number 9013 with American Specialties.

Compact high-speed hand dryer for applications where less space is available. 5-year warranty. 9-25/32" W x 6-5/8" H x 5-7/16" D
FEATURES

• Quick drying — less than 15 seconds
• Operates automatically using infrared sensor
• Auto-resetting thermostat
• 60-second automatic shut off
• Cover fabricated of heavy-duty, one-piece-formed stainless steel

The baby changing tables are ADA compliant units and are welded stainless steel for long and reliable use in commercial buildings. Exposed surfaces are satin finish. Easy one handed operation is assisted by a pull handle and concealed spring. The changing surface is high-impact-resistant plastic for easy cleaning. Its two part adjustable safety strap and 400 lb load capacity assure child protection. This unit is used for surface mounting , also know as part number 9013-9 with American Specialties.

Roval Automatic Deck Mounted Soap Dispenser, 20333 Constructed of polished type 304 stainless steel on exposed surfaces with battery-operated, hands-free sensor. LEDs indicate function, battery condition and soap supply level on face front. Translucent tank holds 54 oz. (1600 ml) of liquid soap

Scranton Products solid plastic Ada Alcove partitions traditionally called Hiny Hider Partitions are great for moisture and high traffic commercial buildings. All plastic material is 1" thick, doors are self closing by gravity 8" aluminum hinges or a continuous spring piano hinge, all hardware is standard aluminum brackets. Offering only Classic color collect on the website, all textures please submit drawings for us to quote with color you are looking for. All doors and panels are 55" ht, pilasters are 82" ht mounted to the floor and an overhead aluminum headrail running across the top to support the top of the pilasters. Alcove stalls include 36" door, 2 pilasters and panel to make up the balance needed.

Scranton Color Chart

Scranton Bathroom Stall Instructions

Stainless Steel Partition Support Brace U Shape. Used with up to a 1-1/4" Thick Post. Do your Toilet partition panels keep falling out of the bathroom stall wall mounted brackets? If so, the answer might be a Toilet Partition brace or support, which would support the panel and pilaster from falling, or as preventive maintenance to strengthen the compartment. They are also sometimes called Pilaster Support U-Brackets. The we stock 3 versions that are adjustable from 7-1/2″ to 10″, 9-1/2″ to 12″ and 11-1/2″ to 14″, floor to bottom of panel clearance. The bathroom stall brace is made of stainless steel, with a round base of 2-3/8″ and a support bracket that is 1-1/2″ x 2-3/8″. The diameter of the toilet partition support shaft is 1″. If you have any questions on the Toilet Partition Support Braces let us know!
Same as 8503, 85083, 85093. Most common **8503, 9a8503, 9a85083, 9a85093. The U-Shape is for 1-1/4" panel.

Note the most common are 11-1/2" to 14" due to the partitions are mounted 12" off the floor.

Also note quantities of 10 or more not returnable.

Scranton Products solid plastic between wall partitions traditionally called Hiny Hider Partitions are great for moisture and high traffic commercial buildings. All plastic material is 1" thick, doors are self closing by gravity 8" aluminum hinges or a continuous spring piano hinge, all hardware is standard aluminum brackets. Offering only Classic color collect on the website, all textures please submit drawings for us to quote with color you are looking for. All doors and panels are 55" ht, pilasters are 82" ht mounted to the floor and an overhead aluminum headrail running across the top to support the top of the pilasters. Up to 8 standard stalls total or 7 standard and 1 Ada stall. All Scranton partitions colors take 3 weeks from the time you place the order. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Scranton Color Chart

Scranton Bathroom Stall Instructions

Available in Recessed, Semi Recessed and Surface mount. Fabricated of 22 gauge stainless steel with satin finish. Wall Opening: 15 3/4” x 26” x 10” Power Source can be hard wired is (AC) or Battery Operated (A) Battery not supplied, 4-D Batteries. Automatic Mechanism. Unit automatically dispense one predetermined length at a time when hands are placed in the sensor zone. The owner can determine the length of sheets.

Hadrian Solid Plastic Ada Alcove bathroom partitions floor mounted overhead braced stalls with a smooth surface. Alcove stall includes 36" door, 2 pilasters and panel to make up the balance needed. Partition doors are either in or out swing, the keeper bumper is what changes the door swing in or out. Standard aluminum brackets and hardware included with a choice of stainless steel. Every color Hadrian offers will ship in 5 business days plus 2-4 days travel.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

DryBaby polyethylene vertical baby changing station is ideal for narrow and smaller spaces. Provides bag hooks on both sides when open as well built-in dual liner dispensers. Safety strap designed for being able to make one handed adjustments. Comes with easy step by step installation instructions and is ADA complaint when installed in accordance to instructions provided. Known as World Dryers part number ABC-300V.

• Vertical Surface Mount Design
• High-Density Polyethylene Material
• Unit Size: 34”x19”x5.5
• Resistance to Fungi(ASTM G21) and Bacteria(ASTM G22)
• Design for children up to 3.5 years or age and weighing up to 50 lbs, Meets ASTM F2285
• CPSIA Compliant to applicable sections
• ADA and ANSI Compliant when mounted according to instructions
• Features built in liner dispenser, Liners(ABC-300L)
• Replacement Strap (93-10075)
• 5 yr Limited Warranty

Global partitions 8" wrap door kit for Solid Plastic material. Comes in anodized aluminum finish and are for 1" thick material only. You will need to choose in or out swing when ordering. Can be used as right or left hand as hinges are field reversible. This is done by taking the 3 pieces apart and reconfiguring the opposite swing. See manufacturers numbers listed below. Used with Global and Accurate partitions.

Inswing Door Kit: 40-8441007

Outswing door Kit: 40-8441008

DryBaby Polyethylene horizontal baby changing station is the industry standard as the most preferred changing position design. Provides bag hooks on both sides when open as well built-in dual liner dispensers. Safety strap designed for being able to make one handed adjustments. Comes with easy step by step installation instructions and is ADA complaint when installed in accordance to instructions provided. Known as World Dryers part number ABC-300H.

• Horizontal Surface Mount Design
• High-Density Polyethylene Material
• Unit Size: 18”x34.5”x4”
• Resistance to Fungi(ASTM G21) and Bacteria(ASTM G22)
• Design for children up to 3.5 years or age and weighing up to 50 lbs, Meets ASTM F2285
• Smooth Opening and Closing Motion with Pneumatic gas shock mechanism
• CPSIA Compliant to applicable sections
• ADA and ANSI Compliant when mounted according to instructions
• Features built in liner dispenser, Liners(ABC-300L)
• Replacement Strap (93-10075)
• 5 yr Limited Warranty

The Matte Black Hadrian Corner Headrail Kit is designed for mounting Hadrian Matte Black Headrails. Constructed of stainless steel with matte black finish. Sping clip and end cap are made of plastic. This kits includes (2) Wall Brackets, (1) Spring Clip, (1) L Bracket, (1) Headrail Endcap and fasterners. Would be used for partitions that need headrail across front of partitions as well as down one side. Spring clips would be used if you are needing to join two headrails together. L bracket is used to attach Headrail on the side of partitions to back wall. Known as manufacturers part number 675411-BLK.

Ordering Online All Solid Plastic (HDPE) Panels Manufactured by Hadrian Partitions, see color chart below. For other factory colors please call for pricing. All panels ship from the factory after 5 business day, plus 2-4 days travel. Note 14", 18", 24", 28", 34", 40", 46", 52", 55", 58", 59", 64", 70" and 76" x 55"ht are available. All panels are 1/4" less than size. The panels include standard aluminum mid bracket kit or up grade to ss channels for better support, includes 2 two ear brackets and 2 u brackets for 1" thick material.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Accurate Toilet Partition Panels are easy to reinstall when replacing. All panel dividers come with standard chrome panel kits, with upgrades to stainless steel hardware. Accurate offers 16"-76" wide panels. All panels are 1/2" less than the width size. Panles are 58" height which are mounted 12" off the ground.

color chart

Instructions

Napkin / Tampon Dispenser Recess

Fabricated of Type 304 #18 Gauge Stainless Steel With #4 Satin Finish

Holds 30 Sanitary Napkin and 27 Tampon Packages
Multiple Coinage Options Available

Door
: Fabricated of type 304 #18 ga stainless steel with #4 satin finish. Door has 1/2" returns for rigidity.

Body: Fabricated of type 304 #22 ga stainless steel with a #4 satin finish. Adj. Slip Flange: Fabricated of type 304 #22 ga stainless steel, one piece construction with no miters or welds and #4 satin finish. Flange will adjust from a 1" minimum to a 6" maximum wall depth.

Coin Mechanisms: Two independent, trouble free turn knob mechanisms, with an "EMPTY" indicator that does not allow coins to be inserted into mechanism when product has been depleted. Operational with one hand with less than 5 lbs (22.2n) of force without tight grasping. Can be operated with palm, elbow or forearm if user has a physical impairment. (Free,.25,.50)

Bobrick 1550 metro series plastic laminate between wall partition configuration, Plastic laminate overhead braced floor mounted stalls. Standard stalls 36" x 60"depth (24" door), ADA stall 60" x 60" depth (36" door). All hardware included. Doors are either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select (1) ADA 24", plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select (2) standard stalls and (1) ADA stall 24". Plastic laminate Partitions ship in 1 week.

Bobrick 1550 plastic laminate color chart

Bobrick 1550 Instructions

Global partitions ordering online all solid phenolic panels are solid phenolic color thru or black core partitions manufactured by Global Partitions. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Panel's Available for the following widths 16"-76". Actual width is 1/2" less. 58"ht panel's 4 stainless steel brackets included.
Global Solid Phenolic Color Chart

Bobrick 1550 metro series plastic laminate Ada Alcove partition configuration, Plastic laminate overhead braced floor mounted stalls. Standard stalls 36" x 60"depth (24" door), ADA stall 60" x 60" depth (36" door). All hardware included. Doors are either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select (1) ADA 24", plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select (2) standard stalls and (1) ADA stall 24". Plastic laminate Partitions ship in 1 week.

Bobrick 1550 plastic laminate color chart

Bobrick 1550 Instructions

Global partitions solid phenolic wall hung or mounted urinal privacy screens are available in a color thru or black core material. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Urinal screens are 1/2" thick by 48" high panel. Available in the following widths 12, 18, 24". Specify color and width.Cast stainless steel bracket included.
Global Solid Phenolic Color Chart

Bobrick SCRC solid phenolic partition between walls layout with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall are 60" x 60" depth (36" door). All standard stainless steel hardware included with option of full stainless channels and piano hinges. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must add Ada to add 24" to a standard stall of 36" to create 60" width, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and add Ada 24". 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

Global partitions solid plastic panel dividers are manufactured in the USA. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Panels Include 4 standard aluminum Brackets. Available for the following widths 16- 76". Panel's actual width is 1/2" less.

Global Solid Plastic Color Chart

Comtec Hiny Hider Partition Integral Hinge Pin Kit with heavy duty L brackets for extra strength. This kit includes everything you see in the picture. The long pin is 6" x 1/2" diameter, the smaller one is 3-1/2" x 1/2" diameter. These brackets help to reinforced the hinge pins so they do not break or the door breaking at the top and bottom.

Retractable Ivory Phenolic Shower Seat, 5/16″ thick, one-piece, solid, white colored, black core phenolic seat. Frame, support legs, flanges and bracket are type 304 satin finish stainless steel. Features a selflocking mechanism. Seat measures 18″ wide and projects 16" from wall. When properly mounted seat will support up to 250 lbs.

Retractable White Cushion Shower Seat, 5/16″ thick, one-piece, solid, padded, black core phenolic seat. Frame, support legs, flanges and bracket are type 304 satin finish stainless steel. Features a self-locking mechanism.

Seat is sponge cushion covered with off-white Naugahyde® mounted on 1⁄2″ (13 mm) thick marine grade plywood.

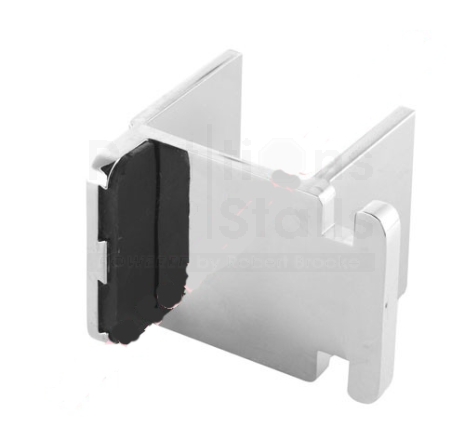

The Partition Keeper Bumper- In swing For 1-1/4"  is for in swinging doors and pilaster posts of 1-1/4" thickness.  The bracket is constructed of die cast metal and then chrome plated and polished.  The Keeper is used by many manufactures.  The manufacture part # is 40-8512353.
