The Flush Metal Partition Bottom Cam Housing Chrome Plated is constructed of Zamac die cast metal that is then chrome plated and polished.  The bottom cam housing measures 1-3/16" wide by 3" deep. The screw hole is 9/32" diameter. Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4090.

The Global Toilet Partition Bottom Cam Housing Chrome Plated is constructed of Zamac die cast metal that is then chrome plated and polished.  The bottom cam housing measures 1-3/16" wide by 3" deep. The screw hole is 9/32" diameter. Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4090.

Hadrian HDPE Solid Plastic Corner Partitions, Solid Plastic (HDPE) Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth(24" door), ADA stall 60"x60"depth(36" door). All standard aluminum brackets and hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All Hadrian partitions colors ship in 5 business days plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Hadrian HDPE Solid Plastic Between Wall Partitions, Solid Plastic (HDPE) Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth(24" door), ADA stall 60"x60"depth(36" door). All standard aluminum brackets and hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. Every color Hadrian offers will ship in 5 business days plus 2-4 days travel.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Accurate Commercial Partition Alcove Handicap Stalls in Powder Coated Steel overhead braced floor mounted compartments. The alcove stall includes 36" door, 2 pilasters and panel to make up the distance. Accurate Doors can be either in or out swing. All partition hardware included with standard chrome hardware for the door kits and brackets. All toilet partitions ship in 48-72 hours plus 2-4 days travel. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate Steel Color chart

Accurate Steel Instructions

Partition Bottom Hinge Assembly For 1" Door, 1-1/4" Post is for use with 1-1/4" thick square edged pilaster posts and 1" thick doors.  Bottom hinge measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Mounting lug projects out 1-1/4". The package includes bottom hinge, pintle, nylon cam, bottom hinge door insert and mounting screws.  The hinge is constructed of Zamac die cast metal that is chrome plated and then polished.  Also known as a Bathroom Stall Bottom Hinge Kit. Manufacture part number 63710.

The Ampco Toilet Partition Bottom Hinge is constructed of Zamac die cast metal, then chrome plated.  The hinge U channel measures 2-1/4" high by 1-1/4" deep with an insert depth of 1-5/16". The hole spacing is 1-1/2" on center. The hinge lug projects out 1-11/16" by 1/2" thick with a hole diameter of 5/16". Also known as a AMPCO Bathroom Stall Pivot Hinge - Bottom 1-1/4". Manufacture part # 3130.  Shipped with mounting screws.  A=1-11/16"

Coat Hook & Bumper 3-1/8" Projection X 2-1/8" High Cast Stainless Steel Construction

Cast stainless steel construction. Coat hook bumper projects out 3" and has a rubber insert. The hook projects out 1-7/32". The coat hook bumper base is 1-7/16" wide by 2-1/4" high with a hole spacing of 7/8". Also known as a Bathroom Stall Hook. Manufacture part # 4003.

The Flush Metal Partition Coat Hook Bumper is constructed of Zamac die cast metal that is then chrome plated and polished.  Coat hook bumper projects out 3" and has a rubber insert. The hook projects out 1-7/32". The coat hook bumper base is 1-7/16" wide by 2-1/4" high with a hole spacing of 7/8". Also known as a Bathroom Stall Hook. Manufacture part # 4000.

The Sanymetal Keeper Bumper For Concealed Latches constructed of Zamac die cast metal that is then chrome plated and polished.   And is designed for use on 1-1/4" thick square edged pilaster posts.  Keeper is 1-1/4" tall by 2-3/8" wide by 1-3/4" deep. The strike is a1/2" thick and the slot is 7/16" deep. The opening to mount it on the pilaster or post is 1-1/4" by 1-1/4".  Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5960.  Shipped with screws for mounting.

The Toilet Partition Coat Hook & Bumper 3-1/2" Projection x 2-3/4" High is constructed of Zamac die cast metal and then chrome plated and polished.  Coat hook base is 1-1/2" wide by 2-3/4" high, with screw spacing of 7/8" at the top. Hook projects out 1". Bumper projects out 3-1/2" with a rubber insert. Also known as a Bathroom Stall Coat Hook and Bumper. Manufacture part # 4260.  This product is the same as our 9OT285 and 9HA426.   We find this hooks used on Global Partition Corp and Accurate Partition Corp restroom stalls.

Hadrian Solid Plastic Ada Alcove bathroom partitions floor mounted overhead braced stalls with a smooth surface. Alcove stall includes 36" door, 2 pilasters and panel to make up the balance needed. Partition doors are either in or out swing, the keeper bumper is what changes the door swing in or out. Standard aluminum brackets and hardware included with a choice of stainless steel. Every color Hadrian offers will ship in 5 business days plus 2-4 days travel.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

The General Toilet Partitions Keeper Bumper Concealed is for used with concealed latches and 1-1/4" thick square edged pilaster posts.  It is constructed of Zamac die cast metal that is chrome plated and polished.  The keeper and strike is 2-1/2" tall by 1-7/8" wide. The stop is 17/32" thick and projects out 3/4". The mounting holes are 1-1/2" on center. The locking slot is 7/16" deep. Generally used with concealed latches. Also known as a Bathroom Stall Strike and Keeper - Inswing/Outswing 1-1/4". Manufacture part # 5230.  Shipped with mounting screws.

The Mills Toilet Partitions Keeper Bumper Concealed is for use on 1-1/4" thick round edged pilaster posts.  Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. They are constructed of Zamac die cast metal that is then chrome plated and polished.  Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5590.  Shipped with mounting screws.

Concealed Latch Keeper Bumper Outswing Cast Stainless Steel

Cast Stainless Steel casting. The strike and keeper is 1-1/4" high by 1-3/4" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. Also known as a Bathroom Stall Strike and Keeper Outswing Flat. Manufacture part # 5643.

Shipped with mounting screws.

Global partitions plastic laminate pilasters are for commercial use. All toilet partitions ship in 48 hours, 2-4 days travel. The pilasters Include floor mounting hardware and stainless steel shoes and are 1" thick.  Available for the following widths are available in 3- 24". The pilasters are for overhead braced units that use an aluminum headrail to brace the top of the pilasters. A plastic laminate pilasters are 1" thick and 85" high. If yours are less you can cut the top off and the headrail will cover the top.

Global Plastic Laminate color chart

The Top Hinge Assembly Cast SS is for use with 1" Doors, and 1-1/4" thick square edged pilaster posts.  The hinge is constructed of cast stainless steel that is then brushed to the proper finish.  The set included the top hinge, pin, door insert and mounting screws.  Also known as a Bathroom Toilet Stall Top Hinge Kit. Manufacture part #63043.

The Chrome Plated Bottom Hinge Assembly For 7/8" Door, 1-1/4" Pilaster if for use on 7/8" thick doors and 1-1/4" thick squared edged pilaster posts.  Hinge is constructed of Zamac die cast metal that is chrome plated and polished.  Kit includes Bottom Hinge, Pintle, Nylon Cam, Bottom Hinge Door Insert and mounting Screws. Bottom hinge measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Mounting lug projects out 1-1/4". Also known as a Bathroom Stall Bottom Hinge Kit. Manufacture part number 63010.

The Bobrick Toilet Partition Top Hinge is constructed of Zamac die cast metal that is then chrome plated and polished.  The hinge is designed for use on 1" thick square edged pilaster posts.  he hinge mounting U channel measures 2-1/8" high by 1" deep with an insert depth of 1". The hole spacing is 1-1/2" on centers. The hinge lug projects out 1-9/16" by 1/2" thick with a 1/2" bushing diameter. Also known as a Bobrick Bathroom Stall Pivot Hinge - Top 1". Manufacture part # 3760 and 650-8840.  Ships with mounting screws.

The Accurate Partition ADA Door Kit Old Style has been used from January 2013 to September 2021.  The door kit is replacement hardware for an Accurate Partitions Corp. metal door.  The kit includes the top and bottom hinges, nylon inserts, coat hook, keeper bumper, ADA concealed latch and security screws.  This kit will convert your door to an ADA compliant door.  They are constructed of die cast metal that is then chrome plated and polished.  The manufactures part number is 50-8511515.

These hinges will not replace previous version of Accurates old style hinges that are no longer available.

Ordering Online All Solid Plastic (HDPE) Pilasters Manufactured by Hadrian Partitions, see color chart below. For other factory colors please call for pricing. All panels ship from the factory after 5 business day, plus 2-4 days travel. Note 3", 4", 5", 6", 7", 8", 10", 12", 14", 16",20", 23", 24 x 82"ht are available. The pilaster includes the stainless steel shoe and floor hardware, all is for 1" thick material.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Chrome Plated Keeper Bumper For 1-1/4" Outswing Round Edge Post

Zamac die cast and polished chrome plate construction. The strike and keeper measure 2-1/2" high by 1-7/8" wide with a hole spacing of 1-1/2" on center. The stop is 2-1/2" tall by 3/4" wide with a rubber insert. Commonly known as a Bathrrom Stall Strike and Keeper Outswing 1-1/4". Manufacture part # 5410

Shipped with mounting screws.

The Metpar Toilet Partitions Bottom Cam Housing Unplated is constructed of Zamac die cast metal.  The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4066.

The Ampco Toilet Partitions Bottom Cam Housing Unplated is constructed of Zamac die cast metal.  The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4066.

The Toilet Partition Surface Mounted SS Hinge Set  are for use on Left Hand Out Swing and  Right Hand In Swinging Doors.  They feature 1/8" thick stainless steel construction.  Outside hinge measurements are 3-1/4" wide by 2-29/32" high. 1-1/2" hole spacing up and down, and 2-3/8" right to left hole spacing. The four mounting holes are 1/4" diameter. This hinge set includes the top and bottom hinges. Also known as Bathroom Stall Gravity Hinge Set. See "More Views" for the handing diagram. Manufacturer part # 7113.  Mounting screws are included.

Global partitions plastic laminate between 2 walls stalls for commercial businesses. Plastic laminate overhead braced floor mounted stalls are mostly used. Standard stalls are 36" x 60" depth (24" door), an Ada stall is 60" x 60" depth (36" door). All standard chrome hardware included. Doors can be either in or out swing and up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an Ada stall you must select 1 Ada 24 x 60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24 x 60. Plastic laminate Partitions ship in 2 business days.

Global Plastic Laminate color chart

Partition Door Stop, Pilaster Mounted, 2-1/2" X 4-1/4", Toilet Partition Door Stop Pilaster Mounted Polished Stainless Steel.

Partition Polished Stainless Steel Construction. The door stop base is 3" wide by 1-1/4" high with a 2-5/16" hole spacing. The stop projects out 2-1/2" and has a rubber insert in it. This door stop is usually mounted on the pilaster or post. Also known as a Bathroom Stall Door Stop. Manufacture part # 4155.

The General Partitions Bottom Cam Housing Unplated is constructed of Zamac die cast metal and is not chrome plated.  The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4066.

The Metpar Partitions Bottom Cam Housing Chrome Plated is constructed of Zamac die cast metal and then chrome plated. The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4060

The Metpar Toilet Partitions Bottom Hinge 1-1/4" Sq Edge is for use on square edged 1-1/4" thick pilaster posts.  The bottom hinge U channel measures 1-1/4" deep by 2-1/4" high with an insert depth of 1-5/16". The hole spacing is 1-1/2" between screw holes. The hinge lug projects out 1-9/16" by 1/2" thick with a 5/16" diameter hole. They are constructed of Zamac die cast metal that is then chrome plated and polished.   Also known as a Metpar Bathroom Stall Pivot Hinge - Bottom 1-1/4". Manufacture part # 3430.  Shipped with mounting screws.  A=1-9/16".

Global partitions solid plastic pilasters manufactured in the USA. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Pilasters Include floor mount hardware and stainless steel shoes. Available for the following widths 3-24" and are 1" thick by 80"ht

Global Solid Plastic Color Chart

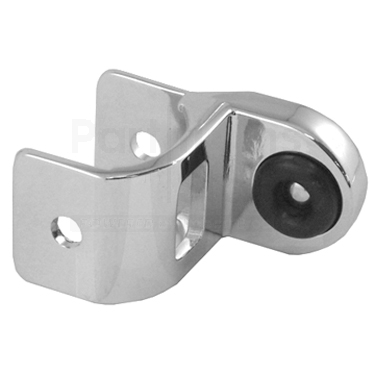

The Partition Keeper Bumper 1-1/4" Round Edge is constructed of Zamac die cast metal that is then chrome plated and polished.  Keeper is 1-1/4" tall by 2-3/8" wide by 2-9/16" deep. The strike is a17/32" thick and the slot is 1/4" deep. The opening to mount it on the round edge pilaster or post is 1-1/4" by 1-1/4" Also known as a Bathroom Stall Strike and Keeper for Inswing 1-1/4". Manufacture part # 5580.  Shipped with screws for mounting.

Hadrian plastic wall mounted privacy screen is great for a commercial setting with low maintenance. Wall hung privacy's are 48" height by 18" or 24" wide panel screens. All solid plastic Hadrian colors ship out in 5 business days and are 2-4 day travel for deliveries. Standard aluminum brackets are included with choice of continuous aluminum or stainless full length brackets.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

The General Keeper Bumper For Concealed 1-1/4" is for use with concealed latches that have 1-1/4" thick squared edged pilaster posts.  They are constructed of Zamac die cast metal that is chrome plated and then polished.  Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510.  Shipped with mounting screws.

The Flush Metal Partition Keeper Bumper Concealed is for use with concealed latches that have 1-1/4" thick squared edged pilaster posts.  They are constructed of Zamac dia cast metal that is chrome plated and then polished.  Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510.  Shipped with mounting screws.
