Partition Bathroom Stall Door Heavy Duty Piano Hinge 57-1/2", Left Hand In Swing, Right Hand Outswing is constructed of 14 gauge (0.75" thick) stainless steel.  The internal spring makes this a self closing hinge. This toilet partition door hinge is heavy duty with a 1/4" pin for extra strength. The hinge measures 3" laying flat by 57-1/2".  9" centers with 6 holes on each side.

The Partition Surface Mounted SS Hinge Set are for use on  Right Hand Inswing and Left Hand Out Swinging Doors.  One of the better reasons to use this hinge is the fact that they have a stainless steel pin.  Nearly all of the Gravity Hinges out there use plastic pins.  Stainless Steel construction, 1/8" thick. Outside dimensions of the hinge are 3-5/16" wide by 2-7/8" high. The screw spacing is 2-5/16" wide by 1-1/2" high. The mounting holes are 1/4" diameter. For use on a left hand outswing door, or right hand inswing door. See "More Views" for the handing diagram. Also known as a Bathroom Stall Gravity Hinge Set, or Toilet Partition Surface Mounted Hinge Set. Manufacture part # 7093.  Shipped with mounting screws.

Global partitions complete HDPE solid plastic between 2 wall partitions, Overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), Ada stall 60" x 60" depth (36" door). All standard aluminum hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 Ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an Ada stall you must select 1 Ada 24 x 60, plus 1 standard stall for 1 complete 60x60 Ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Aa stall 24x60.

Global Solid Plastic Color Chart

Bobrick 1550 metro series plastic laminate in a corner partitions, Plastic laminate overhead braced floor mounted stalls. Standard stalls 36" x 60"depth (24" door), ADA stall 60" x 60" depth (36" door). All hardware included. Doors are either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select (1) ADA 24", plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select (2) standard stalls and (1) ADA stall 24". Plastic laminate Partitions ship in 1 week.

Bobrick 1550 plastic laminate color chart

Bobrick 1550 Instructions

The Partition Surface Mounted SS Hinge Set are for use on  Left Hand Inswing and Right Out Swinging Doors.  One of the better reasons to use this hinge is the fact that they have a stainless steel pin in them.  Nearly all of the Gravity Hinges out there use plastic pins.  Stainless Steel construction, 1/8" thick. Outside dimensions of the hinge are 3-5/16" wide by 2-7/8" high. The screw spacing is 2-5/16" wide by 1-1/2" high. The mounting holes are 1/4" diameter. For use on a left hand inswing door, or right hand outswing door. See "More Views" for the handing diagram. Also known as a Bathroom Stall Gravity Hinge Set, or Toilet Partition Surface Mounted Hinge Set. Manufacture part # 7103.  Shipped with mounting screws.

Bobrick clothes hook for inside door mount. Also known as 1000869. For hanging coat when in toilet compartment.

Roval Paper Towel Dispenser & Removable Waste Receptacle. Dispenses 350 C-fold, 475 multi-fold paper towels. 2.96 gal. (11.2 L) removable stainless steel waste receptacle with a tumbler lock. 22 gauge type 304 stainless steel door in a satin finish with a flush lock and a heavy-duty 3/16" staked piano hinge on door. Wall Opening: 12 3/4" W x 26 1/2" H x 4 1/4" D

Bobrick 1550 metro series plastic laminate Ada Alcove partition configuration, Plastic laminate overhead braced floor mounted stalls. Standard stalls 36" x 60"depth (24" door), ADA stall 60" x 60" depth (36" door). All hardware included. Doors are either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select (1) ADA 24", plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select (2) standard stalls and (1) ADA stall 24". Plastic laminate Partitions ship in 1 week.

Bobrick 1550 plastic laminate color chart

Bobrick 1550 Instructions

Global partition plastic laminate corner stalls for commercial use. Plastic laminate overhead braced floor mounted stalls are most often used. Standard stalls are 36" x 60"depth (24" door), Ada stalls are minimum 60" x 60" depth (36" door). All standard chrome hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an Ada stall you must select 1 Ada 24  x60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60. Plastic laminate Partitions ship in 2 business days.

Global Plastic Laminate color chart

The Hiny Hider 8" ADA Hinge Set includes 3 hinges, one for the top, bottom and intermediate locations.  They constructed of clear anodized aluminum and are usually for 1" thick panels and 1" thick doors.   This hinge set meets ADA Compliance.  Used by every Bathroom Toilet Stall manufacture on Solid Plastic Toilet Partitions Doors.  Manufacturer part #'s 7978, 7988, 8974, and 8984. These hinges are reversible by taking the 3 pieces apart and reconfiguring the opposite swing.

Bobrick flat mount keeper for door latch. Also known as 1040-39. Used with slide latch for assembly

Global Partitions Complete Stainless Steel Between 2 Wall Partitions, Stainless Steel Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth (24" door), ADA stall 60"x60"depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Global Stainless Steel Color Chart

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Thick Doors- Square Edge for Plastic Laminate
All Hardware included

Global partitions complete solid phenolic free standing toilet partitions with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). All Stainless Steel hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select 1 ADA 24 x 60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24 x 60. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel.
Global Solid Phenolic Color Chart

Bobrick 5/64" allen wrench only for slide latch for partition doors. Also known as 1000900. Used with slide latch for assembly.

Hadrian Partition Metal Alcove Stalls in Powder Coated Steel overhead braced floor mounted compartments. The alcove stall includes 36" door, 2 pilasters and panel to make up the distance. Hadrian Partition Doors can be either in or out swing. All partition hardware included with standard chrome hardware for the door kits and brackets. Quick ship toilet partitions ship in 48-72 hours plus 2-3 day travel. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Hadrian Alcove Channel Instruction

Bobrick 1550 metro series plastic laminate free standing partition configuration, Plastic laminate overhead braced floor mounted stalls. Standard stalls 36" x 60"depth (24" door), ADA stall 60" x 60" depth (36" door). All hardware included. Doors are either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select (1) ADA 24", plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select (2) standard stalls and (1) ADA stall 24". Plastic laminate Partitions ship in 1 week.

Bobrick 1550 plastic laminate color chart

Bobrick 1550 Instructions

Bobrick outswing keeper for door latch. Also known as 1040-36, 7729. Used with slide latch. Hole spacing is 1-1/2".

Bobrick SCRC solid phenolic material in a Corner Partition layout with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall are 60" x 60" depth (36" door). All standard stainless steel hardware included with option of full stainless channels and piano hinges. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must add Ada to add 24" to a standard stall of 36" to create 60" width, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and add Ada 24". 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

• Partition Door Privacy Strip are aluminum construction
• 1-1/8" x 72" ht.
• Also known as 121975.
• Partition Door Privacy strips are designed to eliminate any gaps between door and pilaster. Add your own self threading screws to complete the job, includes 1 privacy strip
• This product ships in an oversize box ground.

Bobrick SCRC solid phenolic alcove partitions 1080/1090 series with overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel divider to make up the balance. Doors can be either in or out swing you choose. Standard stainless steel hardware included. 3-4  week delivery from the factory.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

Surface Mounted Stainless Hinge sets in stock for quick deliveries, this version is a right hand inswing and left hand outswing hinge set, always facing the toilet compartments. The overall wide is 3-1/4" x 3-5/32"ht, the hole spacing is 2-5/16" and 1-1/2"ht with 1/4" holes. This is a gravity type hinge that uses a stainless adjustable pintle to close the door. This part is also known for 7273. All hardware included to install. Maximum door weight is 80lbs.

Hadrian Partition Between Wall Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Global Partitions Bathroom Alcove Stall Partitions, Powder Coated Metal Overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. All Hardware included. All toilet partitions ship in 48-72 hours plus 2-4 days travel. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Global Partitions Color Chart

Hadrian HDPE Solid Plastic Free Standing Partitions, Solid Plastic (HDPE) Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth(24" door), ADA stall 60"x60"depth(36" door). All standard aluminum brackets and hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All Hadrian partitions colors ship in 5 business days plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

The Toilet Partition Keeper- Outswing, For 1-1/4" Square Edge is designed for out swinging doors and an 1-1/4" thick square edged pilaster post.  The keeper is constructed of cast stainless steel.  The part is used by many manufactures on there plastic laminate restroom stalls, and there part number is 40-8562304.

The Accurate Toilet Partition Hinge Cam Set is used on Accurate Partition Corp and Global Partition Corp plastic laminate doors.  The manufactures part numbers are 9G631E, 89820 and 89830.

The Accurate Partition Top and Bottom Hinge kit is for 1-1/4" round edge pilasters or posts.  These are used on Accurate Partition Corp's, metal doors sold before January 2013.  The kit includes the top and bottom hinges, pins and security screws.  Hinges are constructed of die cast metal that is then chrome plated and polished.  The manufactures part numbers are 50-8517300, 50-2517200 and 50-398660.   A=1-1/2". There is no exact hinge replacement available.

**Not Available anymore, see link for new doors

https://www.partitionsandstalls.com/accurate-partition-steel-doors.html

https://www.partitionsandstalls.com/partition-hardware/hinges/surface-mounted-hinge-sets.html

https://www.partitionsandstalls.com/partition-hardware/hinges/continuous-piano-hinges.html

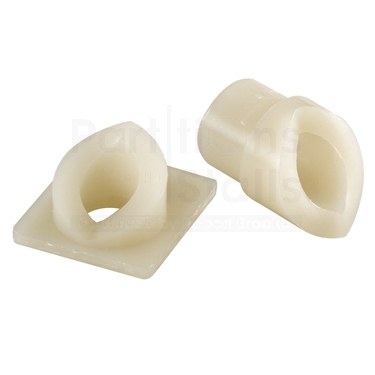

The Global Toilet Partition Cam Set For Laminate is used on Accurate Partition Corp and Global Partition Corp plastic laminate doors.  The manufactures part numbers are 9HAP35, 89820 and 89830.

Surface Mounted Stainless Hinge sets in stock for quick deliveries, this version is a left hand inswing and right hand outswing hinge set, always facing the toilet compartments. The overall wide is 3-1/4" x 3-5/32"ht, the hole spacing is 2-5/16" and 1-1/2"ht with 1/4" holes. This is a gravity type hinge that uses a stainless adjustable pintle to close the door. This part is also known for 7283. All hardware included to install. Maximum door weight is 80lbs.

The Hadrian Partition Nylon Cam is one of the components for the door hinge.  It is constructed of white nylon plastic.  The manufactures part number is 601700.

Bobrick B-36903 recessed paper towel dispenser with waste receptacle in a satin finish stainless steel. The door has a 90 degree return. dispenses 300 c-fold or 400 multifold towels. Removable leak-proof waste container has a 1.6 gal. capacity. Rough wall opening 11-1/2"w x 29-1/2"ht x 3-3/4" minimum depth.

The All American Toilet Partition Pintle 1/2" Diameter is used on metal and plastic laminate restroom stalls.  This component is used on the hinges to make the door self closing.

Hadrian HDPE Solid Plastic Corner Partitions, Solid Plastic (HDPE) Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth(24" door), ADA stall 60"x60"depth(36" door). All standard aluminum brackets and hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All Hadrian partitions colors ship in 5 business days plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Global partitions plastic laminate free standing compartment stalls. Plastic laminate overhead braced floor mounted stalls are most common and used in commercial businesses. Standard stalls are 36" x 60" depth (24" door), Ada stall 60" x 60" depth (36" door). All standard chrome hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an Ada stall you must select 1 Ada 24 x 60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60. Plastic laminate Partitions ship in 2 business days.

Global Plastic Laminate color chart

The Accurate Toilet Partition Keeper Bumper for Outswing doors is constructed of Zamac die cast metal and then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for out swinging doors. Also known as a Bathroom Stall Strike and Keeper-Out Swing 1-1/4" Square Edge. Manufacture part # 5210. Shipped with mounting screws.
