Search results for: 'base turn hand stall deep'

The Sanymetal Toilet Partitions Keeper Bumper Concealed is for use with concealed latches that have 1-1/4" thick squared edged pilaster posts.  They are constructed of Zamac die cast metal that is chrome plated and then polished.  Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510.  Shipped with mounting screws.

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-15/16" with the mounting screws are 2-3/16" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1839.

Shipped with screws

Toilet Partition Continuous Hinge 54" With 20 Degree Cam Close Stainless Steel. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

Stainless Steel Construction, 14 gauge (.075" thick). Hinge is 3" wide when laid flat, by 54" long. Holes are spaced every 13" and are 9/32" diameter and 5 sets of holes. The hinge is self closing by a cam action, which is made possible by angle cuts on the continuous hinge leafs. Cam features 20 Degree Closing for ADA Doors. Can be raised up 3/8" for emergency entry. This hinge is also known as a Bathroom Stall Full Length Continuous Hinge. This hinge is non handed. Manufacture part # 130219, 7598, 125319, 650-9402.

Cast S.S. Slide Bolt Latch 5/8" Bar To Door, 3-1/2" Between Screws. Cast stainless steel construction. Base is 4-1/2" tall with a hole spacing of 3-1/2" on center. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick and has a throw of 15/16". The latch projects out 1-9/16". The distance from the back of the base to the underside of the latch bolt is 9/16". Also known as a Bathroom Stall Slide Latch and Toilet Partition Locks. Manufacture part #5053. Shipped with screws. Used by accurate and global.

The General Toilet Partitions Slide Bolt Latch is constructed of Zamac die cast metal that is chrome plated and polished.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.  Shipped with mounting screws.

The American Sanitary Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal that is chrome plated and polished.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.  Shipped with mounting screws.

Partition Continuous One Ear Wall Bracket For 1"Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2334, one ear 1" x 57, and 650-9750-58. These brackets are shipped with all the needed fasteners.

Toilet Partition Continuous One Ear Wall Bracket For 1 1/4" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1-1/4" for 1-1/4" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2354, and 650-9186-57. These brackets are shipped with all the needed fasteners.

The American Sanitary Toilet Partition Coat Hook Bumper is constructed of Zamac die cast metal that is chrome plated and polished.  Coat hook bumper projects out 3" and has a rubber insert. The hook projects out 1-7/32". The coat hook bumper base is 1-7/16" wide by 2-1/4" high with a hole spacing of 7/8". Also known as a Bathroom Stall Hook. Manufacture part # 4000.

The Sanymetal Toilet Partition Coat Hook Bumper is constructed of Zamac die cast metal that is then chrome plated and polished.  Coat hook bumper projects out 3" and has a rubber insert. The hook projects out 1-7/32". The coat hook bumper base is 1-7/16" wide by 2-1/4" high with a hole spacing of 7/8". Also known as a Bathroom Stall Hook. Manufacture part # 4000.

Ordering online all powder coated metal stall doors are Manufactured by Global Partitions. Partition doors that ship in 48 hours are 24, 26, 34, 36 doors. All other sizes take 5 business days to ship from the factory. Standard chrome plated door kits included with option of stainless steel door kits. When ordering a restroom stall door you need to know that the door will come 3/8" narrower than the opening.  The door size is the opening you have to replace, so a 36" door is for a 36" opening.

Global Partitions Color Chart

The Partition Keeper Bumper Inswing Flat Stop Chrome Plated is a strike and keeper that measure 2-1/2" tall by 2-9/16" deep and is 1/8" thick.  The stop projects out 3/4" and has a rubber insert. The mounting holes are 1-19/32" on center. They are constructed of Zamac die cast metal that is then chrome plated and polished.   Also known as a Bathroom Stall Strike and Keeper - Inswing Flat. Flat backed for wall mounting. Manufacture part # 5140.  Shipped with mounting screws.

Partition Ada Door Handle 3-3/8" Projection X 5-1/2" Wide Cast Stainless Steel

Cast stainless steel construction. This handle a ADA compliant. The handle base is 2" diameter with 3 mounting holes on each base. The handle is made of 3/8" daimeter material. The under clearance for the handle is 3". Also known as a Bathroom Stall Door Pull. Manufacture part # 6253.

Concealed Partition Latch Keeper Bumper For 1-1/2" Between Screws Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measure 2-1/2" high by 1-13/16" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. The slot is for the concealed latch is 7/8" high by 7/16" deep. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing Flat. Manufacture part # 5243

Shipped with mounting screws.

Concealed Latch Keeper Bumper Outswing Cast Stainless Steel

Cast Stainless Steel casting. The strike and keeper is 1-1/4" high by 1-3/4" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. Also known as a Bathroom Stall Strike and Keeper Outswing Flat. Manufacture part # 5643.

Shipped with mounting screws.

Toilet Partition Wall Bracket One Ear For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3" high by 2-5/8" wide with the mounting holes 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The 8 holes are 1/4" diameter. All wall thicknesses are 1/8". This bracket is sometimes known as a Bathroom Stall One Ear Wall Bracket, or Toilet Partition One Ear Wall Bracket. The manufacturers part number is 2274 and 650-1848. This bracket ships with all the needed fasteners.

The Bobrick Toilet Partition Top Door Insert is constructed of Zamac die cast metal that is chrome plated then polished.  The hinge insert outside dimensions are 2-3/16" wide by 1-5/32" deep by 1-13/16" high. The two holes have a diameter of 13/32". Also known as a Bathroom Stall Door Insert Top 1". Manufacture part # 2400.

The Toilet Partition Continuous Hinge Stainless Steel, 54", 1/4" Pin is 54" long by 3" wide with a pin diameter of 1/4".  They are constructed of 14 gauge (.075" thick) stainless steel.  Holes are spaced every 13" and are 9/32" diameter and has 5 sets of holes. The hinge is self closing by a cam action, which is made possible by angle cuts on the continuous hinge leafs.Cam features Zero Degree Closing. Can be raised up 3/8" for emergency entry. This hinge is also known as a Bathroom Stall Full Length Continuous Hinge. This hinge is non handed. This piece features a cam, which makes it self closing.  Manufacture part # 130209,7599, 125319, 650-9402. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside. This hinge is known as 7599.

The Fiat Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal and then chrome plated and polished.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5020.  Shipped with mounting screws.

This L-shaped reversible shower seat is ADA compliant and comes with a one-piece, one-half inch thick ivory phenolic top.  The reversible L-shaped component allows the handing of the seat to be determined in the field.  The seat is 32 inches by 23 inches and includes a self-locking mechanism to secure the seat in the upright position when it is not in use.  The tubular components are fabricated from stainless steel.

Partition Door Stop, Pilaster Mounted, 2-1/2" X 4-1/4", Toilet Partition Door Stop Pilaster Mounted Polished Stainless Steel.

Partition Polished Stainless Steel Construction. The door stop base is 3" wide by 1-1/4" high with a 2-5/16" hole spacing. The stop projects out 2-1/2" and has a rubber insert in it. This door stop is usually mounted on the pilaster or post. Also known as a Bathroom Stall Door Stop. Manufacture part # 4155.

Toilet Partition Continuous Hinge, 57" Long Non Handed,14 Gauge Stainless Steel ,1/4" Diameter Pin, Cam Close. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

This is the most Heavy Duty Continuous Full Length Hinge we sell. 14 gauge (.075" thick) stainless steel construction with a 1/4" diameter hinge pin. The hinge leafs are angle cut so your door will close with the camming action. The hinge is 3" wide when laid flat, and 57" long. Screws are spaced 11" apart and the holes are 9/32" diameter and has 6 sets of holes. Hinge can be raised up 3/8" for emergency entry. Also known as a Bathroom Toilet Stall Full Length Continuous Hinge. Manufacturer part #7789, 160029, 650-9400.

Global partitions plastic laminate free standing compartment stalls. Plastic laminate overhead braced floor mounted stalls are most common and used in commercial businesses. Standard stalls are 36" x 60" depth (24" door), Ada stall 60" x 60" depth (36" door). All standard chrome hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an Ada stall you must select 1 Ada 24 x 60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60. Plastic laminate Partitions ship in 2 business days.

Global Plastic Laminate color chart

If your toilet partition (bathroom stall) wall bracket is cast 1840, then you have the One Ear Wall Bracket for 1-1/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2-3/4″ long with 1-1/2″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

Continuous Hinge Stainless Steel, is 71-1/2" long by 3" wide, and is for use on Right Out Swing, Left In swing restroom stall doors.  The hinge is constructed of 16 gauge (.060" thick) stainless steel and the screws are placed every 11" or so.  The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.  Manufacture part # 7769

The Bobrick Toilet Partition Bottom Hinge is constructed of Zamac die cast metal and then chrome plated and polished.  This hinge is designed for use on 1" thick square edged pilaster posts.  The hinge mounting U channel measures 2-1/8" high by 1" deep with an insert depth of 1". The hole spacing is 1-1/2" on centers. The hinge lug projects out 1-9/16" by 1/2" thick with a 5/16" diameter hole. Also known as a Bobrick Bathroom Stall Pivot Hinge - Bottom 1". Manufacture part # 3260 and 650-8843.  Ships with mounting screws.

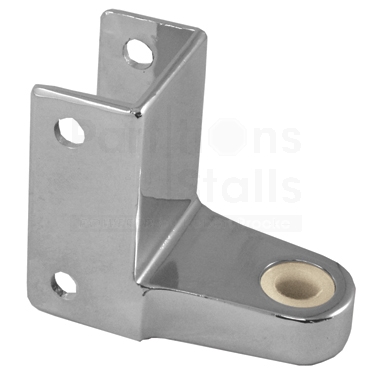

The American Sanitary Toilet Partition Top Hinge is constructed of Zamac die cast metal that is chrome plated then polished.  The hinge is designed for use on an 1-1/4" thick pilaster post.  The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a American Sanitary Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3790.  A=1-5/8"

Partition Headrail Bracket for 1 1/4" Headrail

Chrome plate Zamac die cast construction. The overall measurements of the bracket are 3-3/32" wide by 1-19/32" high by 1" deep with a hole spacing of 2-3/8". The spread for the headrail is 1-7/16" wide by 1-19/32" deep. Also known as a Bathroom Stall Headrail Bracket. Manufacture part # 2170.

Shipped with screws.

The Hiny Hider Outswing Flat Stop 6" has Clear Anodized aluminum construction. The strike and keeper is 6" tall by 1-5/8" deep by 1/8" thick. The stop is 9/16" deep by 3/4" wide with a rubber insert. The mounting holes are 3" on center. Also known as a Bathroom Stall Flat Backed for Wall Mounting Strike and Keeper. Manufacture part #5898.  Shipped with mounting screws.

If your toilet partition (bathroom stall) wall bracket is stamped 1750, then chances are you have the Two Ear Wall Bracket for 1″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3-15-16″ long with 3″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket.

Stamped SS One Ear Bracket 3/4" Panel 1-1/2" X 2-1/2"

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-5/32" with the mounting screws are 1-11/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1649.

Shipped with screws

Toilet Partition Two Ear Wall Bracket For 1 1/4" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 4" with 3" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 1". Manufacture part # 1833

Shipped with mounting screws.

Toilet Partition 'U' Wall Bracket For 1" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 1-13/16" . Leg project out 1-1/2" with the thru hole at 1-1/8" from the base. The 4 thrue holes are 1/4" diameter, two of them are the mounting holes. Also known as a Bathroom Stall U Wall Bracket. Manufacturer part # 1919.

Shipped with screws

The Hiny Hider Inswing Flat Stop 6" has Clear anodized aluminum construction. The strike and keeper is 6" tall by 2-9/16" deep and 3/4" thick on the stop. The material is 1/8" thick. The mounting holes are 3" on center. And the locking slot is 1-1/2" high by 3/8" deep. Also known as a Bathroom Stall Strike and Keeper-Inswing Flat. Manufacture part # 5798.  Shipped with mounting screws.

The Toilet Partition Slide Bolt Latch 3/8" Bar To Door Clearance is constructed of Zamac die cast metal that is chrome plated and then polished.  Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 5/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5060.  Shipped with mounting screws.
