The Hiny Hider 8" ADA Hinge Set includes 3 hinges, one for the top, bottom and intermediate locations.  They constructed of clear anodized aluminum and are usually for 1" thick panels and 1" thick doors.   This hinge set meets ADA Compliance.  Used by every Bathroom Toilet Stall manufacture on Solid Plastic Toilet Partitions Doors.  Manufacturer part #'s 7978, 7988, 8974, and 8984. These hinges are reversible by taking the 3 pieces apart and reconfiguring the opposite swing.

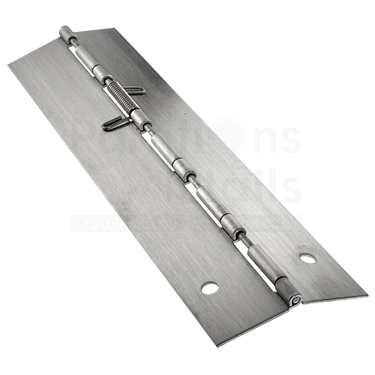

The Continuous Hinge Stainless Steel 57-1/2" long, is for use on Left Hand Inswing, Right Outswing restroom stall doors. The hinge is constructed of 16 gauge (.060" thick) stainless steel with 4 springs. It measures 3" wide when laid flat x 57-1/2" long with a 1/8" diameter hinge pin. Mounting screws are located every 11" or so. Can be raise up 3/8" for emergency entrance and springs allow the door to seft close. Also known as a Bathroom Stall Piano Hinge, or Full Length Stainless Steel Continuous Piano Hinge. Manufacture part # 7669.  Shipped with all the fasteners.

Lh Inswing or Rh Outswing See Diagram

ASI Matte Black twin hide a roll toilet paper dispenser is surface mounted. This unit holds two rolls (5-1/4") diameter roughly 1800 sheets. Designed so that when bottom roll is used top roll should drop down in place. Product comes with theft resistant spindles. The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Dimensions

6″ x 12″ x 6 1/2″ (152 x 305 x 165 mm)

Global partitions complete HDPE solid plastic between 2 wall partitions, Overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), Ada stall 60" x 60" depth (36" door). All standard aluminum hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 Ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an Ada stall you must select 1 Ada 24 x 60, plus 1 standard stall for 1 complete 60x60 Ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Aa stall 24x60.

Global Solid Plastic Color Chart

ASI Matte Black inter-lok frame angle frame mirror is constructed of 3/4"x5/8 roll formed 18 gauge 304 type stainless steel. Product offers welded corners, one piece back plate attached to the frame with theft resistant locking device and  concealed hanging brackets that locks to the top and bottom of frame. The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

The Partition Surface Mounted Hinge Set is for use on Left Hand Out Swing and Right Hand Hand In Swinging doors.  The hinges raise the door up 1/4" when opening, and then gravity causes the door to shelf close.  They measure 1-1/2" center to center hole spacing on the vertical and 2-7/16" center to center on the horizontal.  Constructed of cast brass with chrome plating and polished.  They are also known as a Bathroom Stall Gravity Hinge Set.  Manufacture part # 7011.

Accurate Toilet Stall Doors are easy to reinstall when replacing. All doors come with standard chrome door kit, with upgrades to stainless steel hardware. Accurate offers 20"-36" doors in even numbers only. All sizes are for the opening that you have. The doors are 3/8" narrower than the opening. Accurates door height for powder coated steel are 58" ht mounted 12" off the floor. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

color chart

Instructions

The Fiat Toilet Partition Pintle is for use on there steel doors and is constructed of steel and white nylon plastic.  The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.  Shipped with nut and lock washer.

The Global Toilet Partitions Pintle is for use on there steel doors and is constructed of steel and white nylon plastic.  The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.  Shipped with nut and lock washer.

The Metpar Toilet Partition Top Hinge Pin is constructed of zinc plated steel.  The hinge pin is 3/8" diameter by 3-3/4" long. Also known as a Bathroom Stall Door Hinge Pin. Manufacture part # 98544.

The General Toilet Partition Top Hinge Pin is constructed of zinc plated steel.  The hinge pin is 3/8" diameter by 3-3/4" long. Also known as a Bathroom Stall Door Hinge Pin. Manufacture part # 98544.

Global partitions complete HDPE solid plastic alcove partitions with overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. All standard aluminum hardware included. All toilet partitions ship in 48-72 hours plus 2-4 days travel.

Global Solid Plastic Color Chart

Global partitions complete HDPE solid plastic in a corner with overhead braced floor mounted stalls. Standard stalls 36" x  60" depth (24" door), Ada stall 60" x 60" depth (36" door). All standard aluminum hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Global Solid Plastic Color Chart

Brackets designed to mount plexiglass/acrylic sheets to desk top or work surface when creating separation/barrier. Brackets are adjustable for thickness from 1/8" to 3/8". It is recommended for use of 1/4" Thick material. Sold as a Pair. Made of Aluminum Alloy. Screws and inserts included. Uses a 5mm/3/16" Allen Key(Not Included) to install screws These are available in either Silver or Black Finish. Silver Finish are readily available while Black Finish may have an extended leadtime depending on quantities being ordered.

Measurements

Height: 2-1/2"

Width:1-3/4"

Depth: 5/8"

Weight:About .6lb

Global partitions complete HDPE solid plastic free standing partitions with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), Ada stall 60" x 60"depth (36" door). All standard aluminum hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an Ada stall you must select 1 Ada 24 x 60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Global Solid Plastic Color Chart

The Partition Surface Mounted SS Hinge Set are for use on  Right Hand Inswing and Left Hand Out Swinging Doors.  One of the better reasons to use this hinge is the fact that they have a stainless steel pin.  Nearly all of the Gravity Hinges out there use plastic pins.  Stainless Steel construction, 1/8" thick. Outside dimensions of the hinge are 3-5/16" wide by 2-7/8" high. The screw spacing is 2-5/16" wide by 1-1/2" high. The mounting holes are 1/4" diameter. For use on a left hand outswing door, or right hand inswing door. See "More Views" for the handing diagram. Also known as a Bathroom Stall Gravity Hinge Set, or Toilet Partition Surface Mounted Hinge Set. Manufacture part # 7093.  Shipped with mounting screws.

Bobrick SCRC solid phenolic partition free standing layout with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall are 60" x 60" depth (36" door). All standard stainless steel hardware included with option of full stainless channels and piano hinges. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must add Ada to add 24" to a standard stall of 36" to create 60" width, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and add Ada 24". 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

Bobrick SCRC solid phenolic alcove partitions 1080/1090 series with overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel divider to make up the balance. Doors can be either in or out swing you choose. Standard stainless steel hardware included. 3-4  week delivery from the factory.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

Global partitions plastic laminate free standing compartment stalls. Plastic laminate overhead braced floor mounted stalls are most common and used in commercial businesses. Standard stalls are 36" x 60" depth (24" door), Ada stall 60" x 60" depth (36" door). All standard chrome hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an Ada stall you must select 1 Ada 24 x 60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60. Plastic laminate Partitions ship in 2 business days.

Global Plastic Laminate color chart

The Bobrick Toilet Partition Top Door Insert is constructed of Zamac die cast metal that is chrome plated then polished.  The hinge insert outside dimensions are 2-3/16" wide by 1-5/32" deep by 1-13/16" high. The two holes have a diameter of 13/32". Also known as a Bathroom Stall Door Insert Top 1". Manufacture part # 2400.

The Matte Black Hadrian Anchored Pilaster Shoe is constructed of stainless steel. Designed so that the shoe anchors directly to the ground and the pilaster sits inside. Is for 3/4" thick Pilasters and is 3" in height. Shoes come with fasteners to install and is available in different lengths.

The Continuous Hinge Stainless Steel, 54"  is for use on Right Hand Outswing/ Left Hand Inswing restroom stall doors.  The hinge is constructed of 16 gauge (.060" thick) stainless steel.  The piece is 3" wide when laid flat, by 54" long. Holes are 9/32" diameter, spaced every 10-1/4" or so. Hinge can be raised up 3/8" for emergency entry. Hinge pin is 1/8" diameter. There is an internal spring to make this hinge self closing.  This Continuous Hinge is for Right Hand Outswing, and Left Hand Inswing, see handing diagram under "More Views". Also known as a Full Length Bathroom Stall Continuous Hinge. Manufacture part # 7969.

Global Partitions Bathroom Alcove Stall Partitions, Powder Coated Metal Overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. All Hardware included. All toilet partitions ship in 48-72 hours plus 2-4 days travel. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Global Partitions Color Chart

Partition Door Piano Hinge 57", 14 Gauge SS,1/4" Pin with 20 Degree Cam Close. This hinge keeps the door open 20 degree so the user knows there is nobody in the restroom toilet stall. This is the most Heavy Duty Continuous Full Length Hinge we sell. 14 gauge (.075" thick) stainless steel construction with a 1/4" diameter hinge pin. The hinge leafs are angle cut so your door will close with the camming action. The hinge is 3" wide when laid flat, and 57" long. Screws are spaced 11" apart and the holes are 9/32" diameter and has 6 sets of holes. Hinge can be raised up 3/8" for emergency entry. Also known as a Restroom Toilet Stall Full Length Continuous Hinge. Manufacturer part #650-9401 and 160039. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

The General Toilet Partition Pintle 5/8" diameter for steel  is for use on there steel doors and is constructed of steel and white nylon plastic.  The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.  Shipped with nut and lock washer.

The Matte Black Hadrian Alcove Channel is constructed of anodized aluminum. One side of the channel is for 1/2" thickness and the other is 3/4" thickness. This alcove channel is used to connect a panel and pilaster in-line with different thicknesses. The alcove channel is 57-1/2" in length and comes with fasteners to install. Known as manufacturers part number H60158-BLK.

 Continuous Hinge Stainless Steel, is 71-1/2" long by 3" wide, and is for use on Right Inswing, Left Outswing restroom stall doors.  The hinge is constructed of 16 gauge (.060" thick) stainless steel and the screws are placed every 11" or so.  The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.  Manufacture part # 7759

The Global Partition Complete Stainless Steel Door Kit is the manufactures hardware package.  They are constructed of cast stainless steel. Included in the kit is a top and bottom hinge, concealed latch, keeper bumper, pintle, cam, coat hook and bumper, all of the hinge pins and the security screws.  The manufacture part number is 40-8263501. This was used up until October 2021.

Global Partitions Free Standing Toilet Stalls in Powder Coated Metal Overhead braced floor mounted restroom stall. Standard stalls 36"x 60" depth (24" door), ADA stall 60"x60" depth (36" door). All hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Global Partitions Color Chart

Accurate toilet partitions in stainless steel in a corner commercial stalls floor mounted overhead braced stalls with a smooth surface. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate color chart

Accurate Instructions

Ordering Online All Solid Plastic (HDPE) Doors Manufactured by Hadrian Partitions, see color chart below. For other factory colors please call for pricing. All doors ship from the factory after 5 business day, plus 2-4 days travel. Note 22", 23", 24", 26",32", 34" & 36" are the opening you have between posts. The doors Include standard 8" wrap hinge sets or up grade to ss cam piano style hinges. All hardware is for 1" thick material, aluminum latching and door stop all in aluminum finish included. (actual door size is 1/2" narrower that the opening).

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

The Matte Black Hadrian 1/2" Pedestal Support Brace is constructed of stainless steel. Pedestal support brace is used in place of a traditional pilaster where the pilaster anchors to the ground. This pedestal support brace allows pilasters to be off the ground but still provide structure to partitions. Designed to be used under a pilaster or panel that is 1/2" thickness. Available in 12", 9" and 4" heights and comes with fasteners for installing. Known as manufacturers part number 673441-12AF-BLK, 673441-9AF-BLK and 673441-4AF-BLK.

Global Partitions Top or Bottom Hinge for plastic laminate doors used for top or bottom for 1 1/4" square edge post. The partition hinge mounts to the post to support the door. Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" deep with a slot depth of 1-5/16" and 1-1/2" between screws on center. Hinge lug projects out 1-11/16" and is 1/2" thick with a 5/8" diameter hole. Also known as a Bathroom Stall Pivot Hinge Top/Bottom 1-1/4". Used by Global and Accurate Partitions toilet. Manufacture part # 3540. Same as 9hap10 on our website.

The Accurate Toilet Partition Top or Bottom Hinge is for plastic laminate doors when attaching them to an 1-1/4" square edge pilaster or post.  The hinge mounts to the post to support the door. Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" deep with a slot depth of 1-5/16" and 1-1/2" between screws on center. Hinge lug projects out 1-11/16" and is 1/2" thick with a 5/8" diameter hole. Also known as a Bathroom Stall Pivot Hinge Top/Bottom 1-1/4". Manufacture part # 3540. Same as 9G631A on our website.

Hadrian Toilet Partition Stainless Steel Ada Alcove Bathroom Partitions floor mounted overhead braced stalls. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. Standard chrome plated alloy hardware included. All toilet partitions ship in 48-72 hours plus 2-4 days travel.

Hadrian Stainless Steel Color Chart

Hadrian Instructions Stainless Steel

Hadrian Alcove Channel Instruction

The Continuous Hinge Stainless Steel 57-1/2" long, is for use on Right Hand Inswing, Left Outswing restroom stall doors. The hinge is constructed of 16 gauge (.060" thick) stainless steel with 4 springs. It measures 3" wide when laid flat x 57-1/2" long with a 1/8" diameter hinge pin. Mounting screws are located every 11" or so. Can be raise up 3/8" for emergency entrance and springs allow the door to seft close. Also known as a Bathroom Stall Piano Hinge, or Full Length Stainless Steel Continuous Piano Hinge. Manufacture part # 7659.  Shipped with all the fasteners.

Rh Inswing or Lh Outswing See Diagram
