Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included

The Ampco Toilet Partition Bottom Door Insert For 7/8" Door is constructed of Zamac die cast metal and then chrome plated.  The door insert measures 2-5/16" wide by 1" wide by 1-3/16" high. The hex shaped hole is 5/8" and the round hole is 7/32" diameter. The material or rim is 5/16" high. Also known as a Bathroom Stall Door Insert Bottom 7/8". Manufacture part # 1530.

The Flush Metal Partition Top Door Insert is for use on 7/8" thick doors.  The piece is constructed of Zamac die cast metal that is then chrome plated and polished.  Top hinge insert outside dimensions are 2-3/8" by 1" wide by 1-5/8". Two of the three holes are 13/32" diameter and the third is 7/32". Also known as a Bathroom Stall Door Inser Top 7/8". Manufacture part # 1540.  Bobrick also used this insert.

Global partitions plastic laminate free standing compartment stalls. Plastic laminate overhead braced floor mounted stalls are most common and used in commercial businesses. Standard stalls are 36" x 60" depth (24" door), Ada stall 60" x 60" depth (36" door). All standard chrome hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an Ada stall you must select 1 Ada 24 x 60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60. Plastic laminate Partitions ship in 2 business days.

Global Plastic Laminate color chart

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Square edge for Plastic Laminate
All Hardware included

Global partitions complete HDPE solid plastic between 2 wall partitions, Overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), Ada stall 60" x 60" depth (36" door). All standard aluminum hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 Ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an Ada stall you must select 1 Ada 24 x 60, plus 1 standard stall for 1 complete 60x60 Ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Aa stall 24x60.

Global Solid Plastic Color Chart

Global Partitions Bathroom Alcove Stall Partitions, Powder Coated Metal Overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. All Hardware included. All toilet partitions ship in 48-72 hours plus 2-4 days travel. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Global Partitions Color Chart

Global Partitions Free Standing Toilet Stalls in Powder Coated Metal Overhead braced floor mounted restroom stall. Standard stalls 36"x 60" depth (24" door), ADA stall 60"x60" depth (36" door). All hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Global Partitions Color Chart

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included

The Fiat Toilet Partition Bottom Door Insert is for use on there 1" thick doors.   It is constructed of Zamac die cast metal that is then chrome plated and polished.  The bottom door insert measures 2-1/8" by 1" by 13/16". The insert has one hole, which is 7/32" diameter. The square hole is 29/32" wide by 1". Also known as a Fiat Bathroom Stall Door Insert Bottom 1". Manufacture part # 4700.

Toilet Partition Continuous Two Ear Wall Bracket For 3/4" Panel X 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 57" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 14" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2089.

Global partitions complete solid phenolic free standing toilet partitions with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). All Stainless Steel hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select 1 ADA 24 x 60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24 x 60. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel.
Global Solid Phenolic Color Chart

Toilet Partition Continuous 'U' Wall Bracket For 1" Thick Panel 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 57" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Continuous U Wall Bracket. Manufacturer part # 2369.

Screws included with bracket.

Accurate Toilet Stall Doors are easy to reinstall when replacing. All doors come with standard chrome door kit, with upgrades to stainless steel hardware. Accurate offers 20"-36" doors in even numbers only. All sizes are for the opening that you have. The doors are 3/8" narrower than the opening. Accurates door height for powder coated steel are 58" ht mounted 12" off the floor. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

color chart

Instructions

Accurate toilet partitions in stainless steel in a corner commercial stalls floor mounted overhead braced stalls with a smooth surface. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate color chart

Accurate Instructions

Global partitions complete HDPE solid plastic in a corner with overhead braced floor mounted stalls. Standard stalls 36" x  60" depth (24" door), Ada stall 60" x 60" depth (36" door). All standard aluminum hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Global Solid Plastic Color Chart

Global partitions complete HDPE solid plastic alcove partitions with overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. All standard aluminum hardware included. All toilet partitions ship in 48-72 hours plus 2-4 days travel.

Global Solid Plastic Color Chart

Chrome plated outswing door kit for square edge doors and posts. For 1" doors and 1" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 21300.

Global Partition Plastic Laminate Alcove Stalls are great for churches, office buildings and commercial businesses. Plastic laminate overhead braced floor mounted alcove stalls include a 36" door, 2 pilasters and panel. Doors can be either in or out swing. Plastic laminate Partitions ship in 2 business days

Global Plastic Laminate color chart

Hadrian Toilet Partition Stainless Steel Ada Alcove Bathroom Partitions floor mounted overhead braced stalls. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. Standard chrome plated alloy hardware included. All toilet partitions ship in 48-72 hours plus 2-4 days travel.

Hadrian Stainless Steel Color Chart

Hadrian Instructions Stainless Steel

Hadrian Alcove Channel Instruction

Partition Door Stop, Pilaster Mounted, 2-1/2" X 4-1/4", Toilet Partition Door Stop Pilaster Mounted Polished Stainless Steel.

Partition Polished Stainless Steel Construction. The door stop base is 3" wide by 1-1/4" high with a 2-5/16" hole spacing. The stop projects out 2-1/2" and has a rubber insert in it. This door stop is usually mounted on the pilaster or post. Also known as a Bathroom Stall Door Stop. Manufacture part # 4155.

Toilet Partition Continuous One Ear Wall Bracket For 3/4" Panel x 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 57" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2079.

Toilet Partition Continuous Two Ear Wall Bracket For 1/2" Panel X 57" Long Stamped Stainless Steel. 18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 57" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 14" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2679.

Global partitions complete HDPE solid plastic free standing partitions with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), Ada stall 60" x 60"depth (36" door). All standard aluminum hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an Ada stall you must select 1 Ada 24 x 60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Global Solid Plastic Color Chart

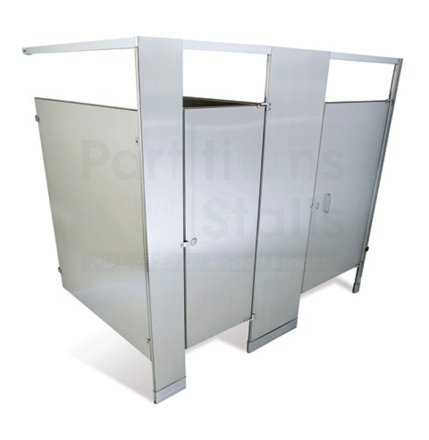

Hadrian partition stainless steel corner bathroom partitions floor mounted overhead braced stalls with a smooth surface. Standard stalls 36" x 60" depth (26" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60.

Hadrian Stainless Steel Color Chart

Hadrian Instructions Stainless Steel

The Bobrick Partitions Bottom Door Insert for 1" Door is constructed of Zamac die cast metal that is then chrome plated and polished.  The door insert outside measurements are 2-5/16" wide by 1-5/32" deep by 1-3/16" tall. The inside dimensions are 1" and the hex hole measures 3/4". The round hole measures 5/16". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 2490.

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Thick Doors- Square Edge for Plastic Laminate
All Hardware included

Accurate Partition Corner Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate Steel Color chart

Accurate Steel Instructions

The Toilet Partition Door Stop 2" High is constructed of chrome plated Zamac die cast. The door stop base is 2-1/8" diameter with a 1-19/32" hole spacing. The stop projects out 2" with a rubber insert on the end of the stop. Also known as Bathroom Stall Door Stop. Manufacture part # 4120.

The Accurate Toilet Partition U Trim Door Insert is for top or bottom 1" plastic laminate doors.  It is constructed of Zamac die cast metal, then chrome plated and polished.  Large hole is 3/4" diameter, small hole is 3/8" diameter. Hole in the U is 9/32" and counter sunk. Insert measures 1" wide by 2-9/32" deep by 2-3/16" high. Also known as a Bathroom Stall Door Insert Top/Bottom 1". Used on Accurate and Global Toilet Partitions.  Also known as 9G631B, manufacture part # 1680.

The Global Toilet Partitions U Trim Door Insert is for top or bottom 1" plastic laminate doors.  It is constructed of Zamac die cast metal, then chrome plated and polished.  Large hole is 3/4" diameter, small hole is 3/8" diameter. Hole in the U is 9/32" and counter sunk. Insert measures 1" wide by 2-9/32" deep by 2-3/16" high. Also known as a Bathroom Stall Door Insert Top/Bottom 1". Used on Accurate and Global Toilet Partitions.  Also known as 9G631B, manufacture part # 1680.

Global partition complete solid phenolic material in a corner partition with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). All Stainless Steel hardware included. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60 x 60 Ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24 x 60. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel.
Global Solid Phenolic Color Chart

Global partitions complete stainless steel free standing partitions with overhead braced floor mounted. Standard stalls 36" x 60" depth (24" door), Ada stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60

Global Stainless Steel Brochure

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Square edge for Plastic Laminate
All Hardware included
