The Sanymetal Toilet Partition Keeper 2" Between Screws is constructed of Zamac die cast metal that is then chrome plated and polished.   Keeper base is 3" high by 1-1/16" wide with a 2" hole spacing. Strike is 3" tall by 7/8" deep. The material 1/8" thick. The slot is 1-1/8" high by 1/4". Also known as a Bathroom Stall Keeper Inswing Flat. Manufacture part # 5130.  Shipped with mounting screws.

The Sanymetal Toilet Partition Door Stop is constructed of Zamac die cast metal that is then chrome plated and polished.   The strike and keeper measure 2-1/2" high by 1-7/8" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing Flat. Manufacture part # 5170.  Shipped with mounting screws.

Global Toilet stalls between walls in Powder Coated Metal Between 2 Walls Toilet Partitions. Standard stalls 36"x 60" depth (24" door), ADA stall 60"x60" depth(36" door). All hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Global Partitions Color Chart

Toilet Partition Continuous Hinge, 57" Long Non Handed,14 Gauge Stainless Steel ,1/4" Diameter Pin, Cam Close. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

This is the most Heavy Duty Continuous Full Length Hinge we sell. 14 gauge (.075" thick) stainless steel construction with a 1/4" diameter hinge pin. The hinge leafs are angle cut so your door will close with the camming action. The hinge is 3" wide when laid flat, and 57" long. Screws are spaced 11" apart and the holes are 9/32" diameter and has 6 sets of holes. Hinge can be raised up 3/8" for emergency entry. Also known as a Bathroom Toilet Stall Full Length Continuous Hinge. Manufacturer part #7789, 160029, 650-9400.

Hadrian Partition Metal Alcove Stalls in Powder Coated Steel overhead braced floor mounted compartments. The alcove stall includes 36" door, 2 pilasters and panel to make up the distance. Hadrian Partition Doors can be either in or out swing. All partition hardware included with standard chrome hardware for the door kits and brackets. Quick ship toilet partitions ship in 48-72 hours plus 2-3 day travel. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Hadrian Alcove Channel Instruction

The Toilet Partition Surface Mounted SS Hinge Set  are for use on Left Hand Out Swing and  Right Hand In Swinging Doors.  They feature 1/8" thick stainless steel construction.  Outside hinge measurements are 3-1/4" wide by 2-29/32" high. 1-1/2" hole spacing up and down, and 2-3/8" right to left hole spacing. The four mounting holes are 1/4" diameter. This hinge set includes the top and bottom hinges. Also known as Bathroom Stall Gravity Hinge Set. See "More Views" for the handing diagram. Manufacturer part # 7113.  Mounting screws are included.

The Metpar Toilet Partitions Top Hinge Pin is for plastic laminate restroom stalls.  The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.  It is constructed of threaded steel.

The Mills Toilet Partitions Top Bottom Hinge Set is for use on there 1-1/4" thick round edged pilaster posts.  The kit includes the top and bottom hinges along with the hinge pins and the security screws.  They are constructed of Zamac die cast metal that is then chrome plated and polished.  The manufacture part number is HDWT-Z01.

The Flush Metal Partition Bottom Hinge is for use on an 1-1/4" square edged pilaster post.   It is constructed of Zamac die cast metal that is then chrome plated and polished.  The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a Fiat Bathroom Stall Pivot Hinge Bottom 1-1/4". Also known as General, American Sanitary, Flush Metal, Fiat Tiolet Partition 9F0301, 9AM280, 9FL700.  Manufacture part # 3290.  Shipped with mounting screws.  A=1-5/8"

Hadrian Partition Between Wall Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Chrome Plated Toilet Partitions Bumper Keeper For 1-1/4" Round Edge

Polished chrome plated Zamac construction. The strike and keeper measures 2-1/2" tall by 1-7/8" wide. The mounting holes are 1-1/2" on center. The stop measures 3/4" wide by 17/32" deep with a rubber insert bumper. Slot is 7/16" deep. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing 1-1/4". Manufacture part # 5430.

Shipped with mounting screws.

Scranton products solid plastic Free Standing stalls traditionally called Hiny Hider Partitions are great for moisture and high traffic commercial buildings. All plastic material is 1" thick, doors are self closing by gravity 8" aluminum hinges or a continuous spring piano hinge, all hardware is standard aluminum brackets. Offering only Classic color collect on the website, all textures please submit drawings for us to quote with color you are looking for. All doors and panels are 55" ht, pilasters are 82" ht mounted to the floor and an overhead aluminum headrail running across the top to support the top of the pilasters. Up to 8 standard stalls total or 7 standard and 1 Ada stall. All Scranton partitions colors take 3 weeks from the time you place the order. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Scranton Color Chart

Scranton Bathroom Stall Instructions

The Hiny Hider 8" Wrap Around Hinge Set is constructed of clear anodized aluminum and are used on 1" thick door and panels.  Used by every Bathroom Toilet Stall manufacture on Solid Plastic Toilet Partitions Doors.  Sometimes known as part numbers, 7978, 7988, 8974, and 8984. These hinges are reversible by taking the 3 pieces apart and reconfiguring the opposite swing.

Global partitions complete stainless steel alcove partitions with overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. Standard chrome plated alloy Hardware included. All toilet partitions ship in 48-72 hours plus 2-4 days travel. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Global Stainless Steel Color Chart

The Hadrian Toilet Partition Top Hinge Pin is used to replace the old style hinge pin. If you have the old style you must also purchase the upper hinge. This hinge is used with the 9HH350, 9HH300, 9HH550, 9HH500 and also the Arch Hinges. The manufacturer's part number is 631400. This product uses a phillips head screwdriver, old style was a torx head. The dimensions are 3/8" diameter by 1-1/2" height.

The Global Toilet Partitions Top Pin is constructed of zinc plated steel.  The hinge pin is 3/8" diameter by 3-3/4" long. Also known as a Bathroom Stall Door Hinge Pin. Manufacture part # 98544.

The Toilet Partition Surface Mounted S.S. Hinge Set is for use on Right In Swing and Left Out Swinging Doors.  The hinge is constructed of 3/32" thick stainless steel. They measure 3-1/4" wide x 2-29/32" high outside dimensions. 1-1/2" hole spacing up and down, and  2-7/16" right to left hole spacing. Also known as a Bathroom Stall Surface Mounted Hinge Set. Manufactures part # 7033.  Shipped with the fasteners.

The Toilet Partition Surface Mounted S.S. Hinge Set is for use on Left In Swing and Right Out Swinging Doors.  The hinge is constructed of 3/32" thick stainless steel. They measure 3-1/4" wide x 2-29/32" high outside dimensions. 1-1/2" hole spacing up and down, and  2-7/16" right to left hole spacing. Also known as a Bathroom Stall Surface Mounted Hinge Set. Manufactures part # 7043.  Shipped with the fasteners.

The Metpar Toilet Partition Keeper Bumper Concealed is for use on 1-1/4" thick round edged pilaster posts and doors with a concealed latch.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-1/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/32" deep. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5520.  Shipped with mounting screws.

The Sanymetal Toilet Partitions Keeper Bumper Concealed is for use with concealed latches that have 1-1/4" thick squared edged pilaster posts.  They are constructed of Zamac die cast metal that is chrome plated and then polished.  Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510.  Shipped with mounting screws.

Continuous Hinge Stainless Steel, is 71-1/2" long by 3" wide, and is for use on Right Out Swing, Left In swing restroom stall doors.  The hinge is constructed of 16 gauge (.060" thick) stainless steel and the screws are placed every 11" or so.  The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.  Manufacture part # 7769

Hadrian Partition Corner Bathrom Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Hadrian partition stainless steel between wall bathroom partition stalls floor mounted overhead braced stalls with a smooth surface. Standard stalls 36" x 60" depth (26" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60.

Hadrian Stainless Steel Color Chart

Hadrian Instructions Stainless Steel

Global Partitions Complete Stainless Steel Between 2 Wall Partitions, Stainless Steel Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth (24" door), ADA stall 60"x60"depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Global Stainless Steel Color Chart

Global partitions complete stainless steel in a corner partitions with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), Ada stall 60" x 60" depth includes (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 Ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an Ada stall you must select 1 Ada 24 x 60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Global Stainless Steel Color Chart

The Metpar Toilet Partitions Bottom Cam Housing Unplated is constructed of Zamac die cast metal.  The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4066.

The Ampco Toilet Partitions Bottom Cam Housing Unplated is constructed of Zamac die cast metal.  The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4066.

Hadrian Partition Free Standing Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Global partition plastic laminate corner stalls for commercial use. Plastic laminate overhead braced floor mounted stalls are most often used. Standard stalls are 36" x 60"depth (24" door), Ada stalls are minimum 60" x 60" depth (36" door). All standard chrome hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an Ada stall you must select 1 Ada 24  x60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60. Plastic laminate Partitions ship in 2 business days.

Global Plastic Laminate color chart

The Flush Metal Toilet Partition Top Hinge Pin is for plastic laminate restroom stalls.  The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.  It is constructed of threaded steel.

The Accurate Toilet Partition Hinge Cam Set is used on Accurate Partition Corp and Global Partition Corp plastic laminate doors.  The manufactures part numbers are 9G631E, 89820 and 89830.

The American Sanitary Toilet Partition Top Hinge Pin Laminate is for plastic laminate restroom stalls.  The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.  It is constructed of threaded steel.

The Sanymetal Toilet Partitions Bottom Hinge  Sq Edge is for use on 1-1/4" thick square edged pilaster posts.  They are constructed of Zamac die cast metal that is then chrome plated and polished.  The manufacturer's part number is 3460. A=1-1/2". 1-1/4" hole.

Global partition complete compartments In a corner bathroom stalls. Powder coated steel overhead braced floor mounted stalls is most often used. Standard commercial stalls are 36"x 60" depth (24" door), ADA stall 60"x60"depth (ADA 36" door). All standard hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60 this adds 24". New Style Integragated Privacy Doors with slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Global Partitions Color Chart

Partition Bathroom Stall Door Heavy Duty Piano Hinge 57-1/2", Left Hand In Swing, Right Hand Outswing is constructed of 14 gauge (0.75" thick) stainless steel.  The internal spring makes this a self closing hinge. This toilet partition door hinge is heavy duty with a 1/4" pin for extra strength. The hinge measures 3" laying flat by 57-1/2".  9" centers with 6 holes on each side.

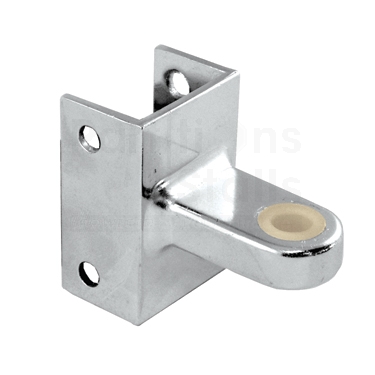

The Sanymetal Toilet Partitions Top Hinge is for use with there 1-1/4" thick square edged pilaster posts.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The manufactures part number on this is 3960.  A=1-1/2".
