Search results for: 'brackets tube hing stall days'

Accurate Commercial Partitions Between Wall Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x 60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate Steel Color chart

Accurate Steel Instructions

Accurate Toilet Partition Free Standing Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate Steel Color chart

Accurate Steel Instructions

Global partitions complete HDPE solid plastic free standing partitions with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), Ada stall 60" x 60"depth (36" door). All standard aluminum hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an Ada stall you must select 1 Ada 24 x 60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Global Solid Plastic Color Chart

Ordering Online All Solid Plastic (HDPE) Panels Manufactured by Hadrian Partitions, see color chart below. For other factory colors please call for pricing. All panels ship from the factory after 5 business day, plus 2-4 days travel. Note 14", 18", 24", 28", 34", 40", 46", 52", 55", 58", 59", 64", 70" and 76" x 55"ht are available. All panels are 1/4" less than size. The panels include standard aluminum mid bracket kit or up grade to ss channels for better support, includes 2 two ear brackets and 2 u brackets for 1" thick material.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Accurate Partition Corner Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate Steel Color chart

Accurate Steel Instructions

Global partitions complete stainless steel free standing partitions with overhead braced floor mounted. Standard stalls 36" x 60" depth (24" door), Ada stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60

Global Stainless Steel Brochure

Global partitions complete HDPE solid plastic in a corner with overhead braced floor mounted stalls. Standard stalls 36" x  60" depth (24" door), Ada stall 60" x 60" depth (36" door). All standard aluminum hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Global Solid Plastic Color Chart

Global partitions plastic laminate panels & 10' aluminum post are great for extra privacy and extra strength and support. All bathroom toilet partitions ship in 1 week, 2-4 days travel. The post is 10' x 1-3/4" Square Post, panels are 58"ht. All standard chrome hardware included. 16- 76" panels available, note panels are 1/2" less than width size.

Global Plastic Laminate color chart

Comtec Hiny Hider Partition Integral Hinge Pin Kit with heavy duty L brackets for extra strength. This kit includes everything you see in the picture. The long pin is 6" x 1/2" diameter, the smaller one is 3-1/2" x 1/2" diameter. These brackets help to reinforced the hinge pins so they do not break or the door breaking at the top and bottom.

Global Partitions Ordering Online Solid Phenolic Doors are all Solid Phenolic color thru or black core Partitions manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Includes SS Vault Hinges, latching and keeper bumper. 58" ht Doors***
Global Solid Phenolic Color Chart

Accurate Partitions Stainless Steel Ada Alcove Compartments. Stainless steel overhead braced floor mounted stalls are most commonly used. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. Standard chrome plated alloy hardware included. All toilet stalls ship in 48-72 hours plus 2-4 days travel. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate color chart

Accurate Instructions

Global partitions plastic laminate between 2 walls stalls for commercial businesses. Plastic laminate overhead braced floor mounted stalls are mostly used. Standard stalls are 36" x 60" depth (24" door), an Ada stall is 60" x 60" depth (36" door). All standard chrome hardware included. Doors can be either in or out swing and up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an Ada stall you must select 1 Ada 24 x 60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24 x 60. Plastic laminate Partitions ship in 2 business days.

Global Plastic Laminate color chart

Tubing is 1″ diameter x 20 gauge with a satin finish. 48" Length will be as specified. Rod is held captive by flanges when installed properly. Rod may rotate in flanges if turned by hand. Correctly installed rod and flanges will support specified shower curtain(s) hung on hooks 1200-SHU or others. Rod will bend and pull from flanges if significant body weight is suspended.

Global partition plastic laminate overhead braced urinal privacy dividers. All toilet partitions ship in 1 week, 2-4 days travel. 6" x 82" ht pilaster and panel included and aluminum headrail and all standard hardware included. 16-76" panels available, note panels are 1/2" less than width size.

Global Plastic Laminate color chart

Ordering online all powder coated metal stall doors are Manufactured by Global Partitions. Partition doors that ship in 48 hours are 24, 26, 34, 36 doors. All other sizes take 5 business days to ship from the factory. Standard chrome plated door kits included with option of stainless steel door kits. When ordering a restroom stall door you need to know that the door will come 3/8" narrower than the opening.  The door size is the opening you have to replace, so a 36" door is for a 36" opening.

Global Partitions Color Chart

Accurates commercial stainless steel between walls bathroom partitions floor mounted overhead braced stalls with a smooth surface. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate color chart

Accurate Instructions

Shower Room Pedestal 8" x 16-1/4"ht Sold Individually. Heavy duty Bench Pedestals shall consist of steel tubing with 10 gauge steel flanges welded to each end. The overall height of pedestal shall be 16-1/4". Pedestals are to be finished to match the lockers in  Putty color.

The Bobrick Toilet Partition Top Hinge Pin is used on there Plastic Laminate restroom stalls.  The pin features knurled steel construction, and is 3-1/2" long by 3/8" diameter.  The knurled end has a threaded hole of a 10-24 screw. Also known as a Bathroom Stall Hinge Pin. Manufacture part # 99109.

Partition "U" Bracket Chrome Plated 1" X 1-1/2" X 1-3/8" . If your toilet partition or bathroom stall wall bracket is cast with the number 1910 on the back, then you have the “U” Wall Bracket for 1″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-1/4″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.

Global partition stainless steel wall hung urinal screens are manufactured in the USA. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Standard chrome plated brackets included. Available for the following widths - 12", 18" and 24", Actual width is 1/2" less.x 48"ht screen.

Global Stainless Steel Color Chart

Hadrian Headrail Retrun Kit is designed to work with Hadrians Metal Stall Partitions. The headrail retun kit will work with 1-1/4" thickness headrails from Hadrian. Designed to work with powder coated steel and stainless steel stalls. This kit includes Brackets,Wall Anchoring Screws, Plastic Anchors, Fastening Screws and Headrail End Cap. Can be used to run across the top of partitions either between two wall or runnning from a rear wall to a pilaster. Often used in conjuction with Hadrian Headrail (60")9HR60A, (74")9HR74A and (96")9HR96A.

Manufacturer Part# 607200.

The Continuous Hinge Stainless Steel, 54"  is for use on Left Hand Outswing/ Right Hand Inswing restroom stall doors.  The hinge is constructed of 16 gauge (.060" thick) stainless steel.  The piece is 3" wide when laid flat, by 54" long. Holes are 9/32" diameter, spaced every 10-1/4" or so. Hinge can be raised up 3/8" for emergency entry. Hinge pin is 1/8" diameter. There is an internal spring to make this hinge self closing.  This Continuous Hinge is for Left Hand Outswing, and Right Hand Inswing, see handing diagram under "More Views". Also known as a Full Length Bathroom Stall Continuous Hinge. Manufacture part # 7959.

The Ampco Toilet Partition Top Hinge Pin For Laminate is constructed fo knurled steel.  This pin is used on there plastic laminate restroom stalls.   Hinge pin is 3-1/4" long by 1/4" diameter. Also known as a Bathroom Stall Hinge Pin. Manufacture part # 99585.

Toilet Partition Urinal Screen Bracket Chrome Plated

Constructed of polished chrome plated zamac die cast. The wall mounted base is 7" across with 6" center to center screw holes. The bracket projects out 12" and the two thru holes are 7" on center. The bracket is designed for use on 1" thick panels or urinal screens. The 6 holes are 1/4" diameter. This bracket is sometimes called the 2700 Wing Bracket, 650-6440 Wing Bracket, Urinal Screen Bracket, Urinal Screen Wing Bracket, Bathroom Stall Wing Bracket, or Toilet Partitoin Screen Bracket

Toilet Partition Stainless Steel Continuous U Bracket, 71", 1"x1-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge. U bracket is for 1" wide partitions and is 1-1/2" height and 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous U Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182369

Ordering Online All Solid Plastic (HDPE) Pilasters Manufactured by Hadrian Partitions, see color chart below. For other factory colors please call for pricing. All panels ship from the factory after 5 business day, plus 2-4 days travel. Note 3", 4", 5", 6", 7", 8", 10", 12", 14", 16",20", 23", 24 x 82"ht are available. The pilaster includes the stainless steel shoe and floor hardware, all is for 1" thick material.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Brackets designed to mount plexiglass/acrylic sheets to desk top or work surface when creating separation/barrier. Brackets are adjustable for thickness from 1/8" to 3/8". It is recommended for use of 1/4" Thick material. Sold as a Pair. Made of Aluminum Alloy. Screws and inserts included. Uses a 5mm/3/16" Allen Key(Not Included) to install screws These are available in either Silver or Black Finish. Silver Finish are readily available while Black Finish may have an extended leadtime depending on quantities being ordered.

Measurements

Height: 2-1/2"

Width:1-3/4"

Depth: 5/8"

Weight:About .6lb

Accurate stainless steel free standing stalls floor mounted overhead braced stalls with a smooth surface. Standard stalls are 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate color chart

Accurate Instructions

Global partitions ordering online all solid phenolic panels are solid phenolic color thru or black core partitions manufactured by Global Partitions. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Panel's Available for the following widths 16"-76". Actual width is 1/2" less. 58"ht panel's 4 stainless steel brackets included.
Global Solid Phenolic Color Chart

Global partitions solid plastic (HDPE) wall mounted urinal screens are manufactured in the USA. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Plastic wall mounted screens can be 48" in height by 1" thick panel. Available in 12, 18, 24, 30 widths. Continuous aluminum channel bracket shown in picture included.

Global Solid Plastic Color Chart

If your toilet partition (bathroom stall) wall bracket is stamped 1830, then chances are you have the Two Ear Wall Bracket for 1-1/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3-15-16″ long with 3″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket, they can be ordered on our website.

Continuous Hinge Stainless Steel, is 71-1/2" long by 3" wide, and is for use on Right Out Swing, Left In swing restroom stall doors.  The hinge is constructed of 16 gauge (.060" thick) stainless steel and the screws are placed every 11" or so.  The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.  Manufacture part # 7769

Toilet Partition Continuous Hinge, 57" Long Non Handed,14 Gauge Stainless Steel ,1/4" Diameter Pin, Cam Close. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

This is the most Heavy Duty Continuous Full Length Hinge we sell. 14 gauge (.075" thick) stainless steel construction with a 1/4" diameter hinge pin. The hinge leafs are angle cut so your door will close with the camming action. The hinge is 3" wide when laid flat, and 57" long. Screws are spaced 11" apart and the holes are 9/32" diameter and has 6 sets of holes. Hinge can be raised up 3/8" for emergency entry. Also known as a Bathroom Toilet Stall Full Length Continuous Hinge. Manufacturer part #7789, 160029, 650-9400.

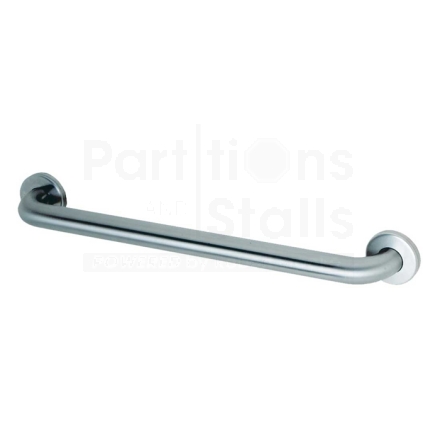

Bobrick stainless steel straight grab bars for 1-1/2" diameter with a snap on flange to conceal the screws. Type 304 stainless steel tubing. Maximum weight capacity is 250lbs Known as B-6806x18, B-6806x36 and B-6806x42.
