The General Toilet Partitions Keeper Bumper Concealed is for used with concealed latches and 1-1/4" thick square edged pilaster posts.  It is constructed of Zamac die cast metal that is chrome plated and polished.  The keeper and strike is 2-1/2" tall by 1-7/8" wide. The stop is 17/32" thick and projects out 3/4". The mounting holes are 1-1/2" on center. The locking slot is 7/16" deep. Generally used with concealed latches. Also known as a Bathroom Stall Strike and Keeper - Inswing/Outswing 1-1/4". Manufacture part # 5230.  Shipped with mounting screws.

Partition Continuous One Ear Wall Bracket For 1"Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2334, one ear 1" x 57, and 650-9750-58. These brackets are shipped with all the needed fasteners.

Toilet Partition Continuous One Ear Wall Bracket For 1 1/4" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1-1/4" for 1-1/4" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2354, and 650-9186-57. These brackets are shipped with all the needed fasteners.

The Accurate Toilet Partition Keeper Bumper for Outswing doors is constructed of Zamac die cast metal and then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for out swinging doors. Also known as a Bathroom Stall Strike and Keeper-Out Swing 1-1/4" Square Edge. Manufacture part # 5210. Shipped with mounting screws.

Toilet Partition Bracket One Ear For 3/4" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 1-1/2" x 2-5/8", with 1-3/8" hole spacing. 2-3/4" projection on the legs. Legs are 3/4" apart, and is designed for 3/4" thick panels. Also known as a Bathroom Stall One Ear Wall Bracket or One Wing Wall Bracket. The manufacturers part numbers are 1644, 650-2852, and 650-2858. Shipped with all the fasteners.

The Heavy Duty Vault Hinge Set Stainless Steel, for 3/4" Or 1" thick doors is used by all of the manufactures on their Solid Plastic (HDPE) Restroom dividers. The hinges are designed for 3/4" to 1" thick doors and 3/4" to 1" thick pilaster posts.  They use this style hinge due to the incredible strength they have, for the heavy solid plastic doors.  Also known as a Bathroom Stall Roller Bearing Hinge Set.  Manufacture part # 7813.  Shipped with mounting screws.

Toilet Partition Continuous One Ear Wall Bracket For 3/4" Panel x 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 57" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2079.

Toilet Partition Continuous Two Ear Wall Bracket For 1/2" Panel X 57" Long Stamped Stainless Steel. 18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 57" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 14" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2679.

The Fiat Partition Keeper Bumper Outswing is designed to be mounted on 1-1/4" square edged pilaster posts.   It is constructed of Zamac die cast metal that is then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for outswinging doors. Also known as a Bathroom Stall Strike and Keeper-Outswing 1-1/4". Manufacture part # 5210.  Shipped with mounting screws.

The Sanymetal Keeper Bumper For Concealed Latches constructed of Zamac die cast metal that is then chrome plated and polished.   And is designed for use on 1-1/4" thick square edged pilaster posts.  Keeper is 1-1/4" tall by 2-3/8" wide by 1-3/4" deep. The strike is a1/2" thick and the slot is 7/16" deep. The opening to mount it on the pilaster or post is 1-1/4" by 1-1/4".  Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5960.  Shipped with screws for mounting.

The Metpar Toilet Partition Keeper Bumper is for use on square edged 1-1/4" thick pilaster posts.  The keeper is constructed of Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for out swinging doors. Also known as a Bathroom Stall Strike and Keeper-Outswing 1-1/4". Manufacture part # 5210.  Shipped with mounting screws.

The Partition Slide Bolt Latch with Indicator is constructed of Cast Stainless Steel.  It is designed for 3/4" or 1" thick doors, and has a screw spacing of 2-3/4" on center.   We find this latch on Global Partition Corp and Global Partition Corp restroom stalls.  The manufacturer part number is 8563009. This latch is Ada approved. There is no exact replacement available.

Sorry no longer available, see links for options

https://www.partitionsandstalls.com/partition-hardware/latches/chrome-plated.html

https://www.partitionsandstalls.com/partition-hardware/latches/cast-stamped-stainless-steel.html

Toilet Partition Pilaster Anchoring Device for 1" thick or larger.

Zinc plated steel bracket. For 7" wide and larger Pilaster Posts. Also known as a Bathroom Stall Pilaster Post Anchoring Device. Ships with all the hardware and screws shown.

The Partition Surface Mounted Hinge Set is for use on Left Hand Out Swing and Right Hand Hand In Swinging doors.  The hinges raise the door up 1/4" when opening, and then gravity causes the door to shelf close.  They measure 1-1/2" center to center hole spacing on the vertical and 2-7/16" center to center on the horizontal.  Constructed of cast brass with chrome plating and polished.  They are also known as a Bathroom Stall Gravity Hinge Set.  Manufacture part # 7011.

The Hiny Hider Aluminum Slide Bolt Latch 3-1/2" Screws is usually used on Solid Plastic (HDPE) Toilet Partitions.  Base is 4-1/2" tall by 2" wide by 1/8" thick. Latch bolt is 3-1/8" long by 1" wide by 1/4" thick, and has a 1" throw. The latch bolt is 9/16" from the bottom of the base to the under side of the latch bolt. Also known as a Bathroom Stall Aluminum Slide Bolt Latch and Toilet Partition Locks. Clear anodized aluminum construction.  The manufacture part #'s are 4988, 650-4051, 650-8543 and HLSLA.  This latch ships with the mounting screws.

Global partitions solid phenolic floor mounted privacy's are available in phenolic color thru or black core. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Floor mounted urinal screen's are available for the following widths 16"- 52". Actual panel width is 1/2" less size ordering and all panels are 58" ht. All stainless steel brackets, 5x70 pilaster and panel included.
Global Solid Phenolic Color Chart

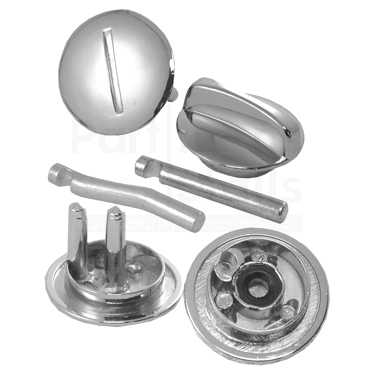

The General Toilet Partitions Latch Knob, Cover & Pin is constructed of Zamac die cast metal that is then chrome plated and polished.  Outside diameter of the knob and cover are 1-3/4" with the inner ring diameter of 1-7/32". The pegs project out 1-7/32" on the cover. Pin has a diameter of 11/32" and comes in Straight or Offset and is 2-11/32" long. Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 5190 Offset Pin is used with powder coated steel and 5080 Straight Pin is used with plastic laminate. Only 1 pin is sent. Also used with Global and Fiat partitions.

The Flush Metal Toilet Partition Bottom Hinge is for use on 1-1/4" thick round edged pilaster posts.   It is constructed on Zamac die cast metal that is chrome plated and polished.  Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Also known as a Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3010.  Shipped with mounting screws.  A=1-7/6".

Toilet Partition Continuous Two Ear Wall Bracket For 1" Panel Aluminum

Partition Keeper Bumper For 1-1/4" Square Post Outswing Cast Stainless Steel

Cast stainless steel construction. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for outswinging doors. Also known as a Bathroom Stall Strike and Keeper-Outswing 1-1/4". Manufacture part # 5213.

Shipped with mounting screws.

The Partition Keeper Bumper 1-1/4" Round Edge is constructed of Zamac die cast metal that is then chrome plated and polished.  Keeper is 1-1/4" tall by 2-3/8" wide by 2-9/16" deep. The strike is a17/32" thick and the slot is 1/4" deep. The opening to mount it on the round edge pilaster or post is 1-1/4" by 1-1/4" Also known as a Bathroom Stall Strike and Keeper for Inswing 1-1/4". Manufacture part # 5580.  Shipped with screws for mounting.

The Partition Outswing Keeper Bumper 1-1/4" Post Sq Edge is constructed of Zamac die cast metal that is then chrome plated and polished.  Keeper is 1-1/4" tall by 2-3/8" wide by 1-13/16" deep. The strike is 1/2" thick with rubber insert. The opening to mount it on the square edge pilaster or post is 1-1/4" by 1-1/4" Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5970.  Shipped with screws for mounting.

The Partition Keeper Bumper Inswing 1-1/4" is constructed of Zamac die cast metal that is then chrome plated and polished.  Keeper is 1-1/4" tall by 2-3/8" wide by 2-9/16" deep. The strike is a17/32" thick and the slot is 7/16" deep. The opening to mount it on the square edge pilaster or post is 1-1/4" by 1-1/4" Also known as a Bathroom Stall Strike and Keeper for Inswing 1-1/4". Manufacture part # 5980.  Shipped with screws for mounting.

The Flush Metal Partition Keeper Bumper is for use on square edged 1-1/4" thick pilaster posts.  The keeper is constructed of Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for out swinging doors. Also known as a Bathroom Stall Strike and Keeper-Outswing 1-1/4". Manufacture part # 5210.  Shipped with mounting screws.

Bobrick 1080/1090 series phenolic reinforced composite wall privacy. All standard stainless steel brackets included with option of a continuous full length stainless steel channel for back wall. The 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

Bobrick 1080/1090 series phenolic reinforced floor mount privacy. All standard stainless steel brackets included with option of a continuous full length stainless steel channel for back wall. The 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

The General Toilet Partitions Bottom Hinge 1-1/4" Round Edge is for use on 1-1/4" thick round edged pilaster posts.   It is constructed on Zamac die cast metal that is chrome plated and polished.  Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Also known as a Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3010.  Shipped with mounting screws.  A=1-7/6".

The bracket is a zamac die cast material that is then polished chrome plated. The base measures 1-1/2" wide x 2-21/32" long with two mounting holes 1-1/2" on centers. The bracket projects out 3-1/2" with the legs 1" apart, it is used for mounting a 1" thick panel. The mounting holes are located 3-1/8" from the base of the the bracket, and all the holes are 1/4" diameter. The bracket is sometimes called a Toilet Partition One Ear Bracket, Bathroom Stall One Ear Bracket, 1270 wall bracket, 650-6407 wall bracket or sometimes One Wing Bracket.

Aluminum One Ear Bracket 1/2" Panel, 2-1/2" X 57-1/2". Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1/2" for 1/2" thick panels. Sometimes known as Toilet Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2094. These brackets are shipped with all the needed fasteners.

Toilet Partition Stainless Steel Continuous One Ear Bracket, 71", 7/8"x2-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge. One ear bracket is for 7/8" wide partitions and is 2-1/2" height by 2-9/32" wide by 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous One Ear Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 204039

Toilet Partition Stainless Steel Continuous One Ear Bracket, 71", 1-1/4"x2-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge. One ear bracket is for 1-1/4" wide partitions and is 2-1/2" height by 2-11/16" wide by 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous One Ear Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182359

The Accurate Toilet Partition Slide Bolt Latch Stainless Steel is constructed of cast stainless steel. Base is 4-1/2" tall with a hole spacing of 3-1/2" on center. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick and has a throw of 15/16". The latch projects out 1-9/16". The distance from the back of the base to the underside of the latch bolt is 9/16". Also known as a Bathroom Stall Slide Latch and Toilet Partition Locks. Manufacture part #5053.  This latch is used by Accurate Partition Corp and Global Partition Corp.   The one way screws and barrel nuts are included with this latch.

Accurate Toilet Partition Panels are easy to reinstall when replacing. All panel dividers come with standard chrome panel kits, with upgrades to stainless steel hardware. Accurate offers 16"-76" wide panels. All panels are 1/2" less than the width size. Panles are 58" height which are mounted 12" off the ground.

color chart

Instructions

The Flush Metal Partition Top Hinge is for use on 1-1/4" thick round edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and then polished.  Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Also known as a Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3510.  Shipped with mounting screws.  A=1-7/6"
