Search results for: 'tumbler partition chrome plated door pull 2 3'

The Partition Slide Latch Stainless Steel 3/8" Bar To Door, 3-1/2" Screws is constructed of cast stainless steel.  The latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 5/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5063.  Shipped with mounting security screws.

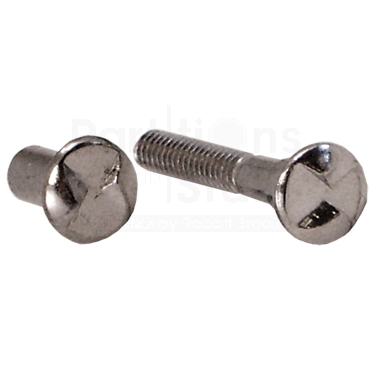

Chrome Plated One-Way Shoulder Screw & Barrel 1 5/16" - 1 5/8" Grip. Use a Flat Head Screw Driver to install. This is a 10-24 thread.

The Partition Slide Bolt Latch Stainless Steel 3/8" Bar To Door, 2-3/4" Screws is constructed of cast stainless steel.  The latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/4" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 3/8" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5033.  Shipped with mounting security screws.

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Square edge for Plastic Laminate
All Hardware included

Partition Two Ear Urinal Bracket For 1" X 1-1/2" X 3-1/2

This bracket is usually used on Urinal Screens, which are the walls between men's urinals, to hold the partitions to the wall. The bracket is made of a zamac casting that is then chrome plated. The bracket base measures 1-1/2" x 4", with a 3" center to center hole spacing. The bracket projects out 3-1/2", with the mounting holes at 2-1/8" and 3-1/8" from the base. The holes used to mount the bracket to the wall and to the urinal are 1/4" diameter. The 1280 Bracket is sometimes called a Bathroom Stall Bracket, Toilet Partition Bracket, Two Wing Bracket, or Urinal Screen Bracket.

For 1" thick panels

Partition Door Stop, Pilaster Mounted, 2-1/2" X 4-1/4", Toilet Partition Door Stop Pilaster Mounted Polished Stainless Steel.

Partition Polished Stainless Steel Construction. The door stop base is 3" wide by 1-1/4" high with a 2-5/16" hole spacing. The stop projects out 2-1/2" and has a rubber insert in it. This door stop is usually mounted on the pilaster or post. Also known as a Bathroom Stall Door Stop. Manufacture part # 4155.

If your toilet partition (bathroom stall) wall bracket is stamped 1620, then chances are you have the Two Ear Wall Bracket for 3/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3″ long with 2-7/32″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket

Toilet Partition Top & Bottom Hinge Assembly For 1" Door, 1-1/4" Pilaster Square Edge. Polished chrome plated zamac die cast construction. Kit includes Bottom & Top Hinges, Pintle, Nylon Cam, Top Pin and Bottom & Top Hinge Door Inserts. Hinges measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Manufacture part number 63130 kit. The top hinge wall to center of the 3/8" diameter hole is 1-1/4" which is known as a 3790 hinge. The bottom hinge wall is also 1-1/4" to the center of the 5/16" hole and known as 3290 hinge. The Top Pin is 3/8" x 3-1/2". Screws are also included.

If your toilet partition (bathroom stall) wall bracket is stamped 1640, then chances are you have the One Ear Wall Bracket for 3/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2″ long with 1-1/8″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

Bathroom partition chrome plated inswing door kit for square edge doors and posts. For 7/8" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 17800.

Bathroom partition chrome plated outswing door kit for square edge doors and posts. For 7/8" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 27810.

Chrome Plated One-Way Shoulder Screw & Barrel 5/8" -7/8" Grip. Use a Flat Head Screw Driver to install. This is a 10-24 thread.

If your toilet partition (bathroom stall) wall bracket is stamped 1630, then chances are you have the Two Ear Wall Bracket for 7/8″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3-1/2″ long with 2-3/4″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket.

The bracket is a zamac die cast material that is then polished chrome plated. The base measures 1-1/2" wide x 2-21/32" long with two mounting holes 1-1/2" on centers. The bracket projects out 3-1/2" with the legs 1" apart, it is used for mounting a 1" thick panel. The mounting holes are located 3-1/8" from the base of the the bracket, and all the holes are 1/4" diameter. The bracket is sometimes called a Toilet Partition One Ear Bracket, Bathroom Stall One Ear Bracket, 1270 wall bracket, 650-6407 wall bracket or sometimes One Wing Bracket.

Two Ear Urinal Bracket For 1-1/4" X 1-1/2" X 3-1/2"

This bracket is constructed of zamac die cast material that is then polished chrome plated. The base is 1-1/2" wide x 4" long, with two screws 3" on center. The legs project out 3-1/2" with the thru screws at 3-1/8" and 2-1/8" from the base. The 6 holes are 1/4" diameter. This bracket is also known as a Toilet Partition Bracket, Bathroom Stall Bracket, Two Ear Extra Long Bracket, Two Wing Bracket, Urinal Screen Bracket X-Long. The manufacturers part # are 1330, and 650-6449. The bracket includes all the fasteners.

This bracket is for a 1-1/4" thick panel

Partition Bottom Hinge Assembly For 1" Door, 1-1/4" Post is for use with 1-1/4" thick square edged pilaster posts and 1" thick doors.  Bottom hinge measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Mounting lug projects out 1-1/4". The package includes bottom hinge, pintle, nylon cam, bottom hinge door insert and mounting screws.  The hinge is constructed of Zamac die cast metal that is chrome plated and then polished.  Also known as a Bathroom Stall Bottom Hinge Kit. Manufacture part number 63710.

Chrome Plated One-Way Shoulder Screw & Barrel 1 1/16" - 1 5/16" Grip. Use a Flat Head Screw Driver to install. This is a 10-24 thread.

Chrome Plated Partition Keeper Bumper Flat Stop Outswing Door

Chrome plated Zamac die casting. The strike and keeper is 1-1/4" high by 1-3/4" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. Also known as a Bathroom Stall Strike and Keeper Outswing Flat. Manufacture part # 5640.

Shipped with mounting screws.

Partition panel bracket kit for 3/4" thick panel, Two eared bracket that is chrome plated. All kits include security fasteners to install the brackets. Also known as 615010.

If your toilet partition or bathroom stall wall bracket is cast with the number 1920 on the back, then you have the “U” Wall Bracket for 1″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-1/4″ wide x 1-3/8″ tall, with the through hole located at 2-1/8″ from the back. If features 2 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall X Long “U” Bracket, or X Long “U” Wall Bracket.

Toilet Partition Urinal Screen Bracket Chrome Plated. This bracket is for any thickness panel. The bracket is 2 separate pieces. The base is 1-1/2" x 1-1/2". The base mounting hole is 1" from the inside face of the leg face. The bracket projects out 2-1/2", and the holes are at 2-1/8" and 1-1/8" from the mounting face. The brackets are made of a zamac die cast material and polished chrome plated. This bracket is also known as a Two Piece Bracket - Two Holes, Toilet Partition Bracket, or Bathroom Stall Bracket. The manufacturers part number is 1860 or 650-6437. The bracket is shipped as two pieces plus all of the fasteners.

Torque Head Barrel Nut Shoulder Screw for 1/2" - 3/4" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe head torque. Both pieces included.

Cast Stainless Steel Partition Door Stop

Cast stainless steel construction. The strike and keeper measure 2-1/2" high by 1-7/8" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing Flat. Manufacture part # 5173.

Shipped with mounting screws.

Is your Toilet Partition Bracket stamped 1310, if it is you have a one ear urinal bracket. The bracket is made from a zamac die casting that is then polished chrome plated. It sometimes goes by the name Toilet Partition One Ear Urinal Screen Bracket, Urinal Wall Bracket, 1310 Wall Bracket, 650-6410 wall bracket, or just Wall Bracket. The base is 1-1/2" wide x 2-3/4" long with a 1-1/2" on center hole spacing. The legs project out 3-1/2" with the mounting holes at 3-1/8" from the base. The holes are 1/4" diameter.

For use on 1-1/4" thick panels

Chrome plated inswing door kit for square edge doors and posts. For 1" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 11000.

Partition Door Stop 2" High Cast Stainless Steel

Cast stainless steel construction. The door stop base is 2-1/8" diameter with a 1-19/32" hole spacing. The stop projects out 2" with a rubber insert on the end of the stop. Also known as Bathroom Stall Door Stop. Manufacture part # 4123.

Chrome Plated Partition Keeper Bumper For Throw Latch Inswing Flat Stop

Chrome plated Zamac die casting. The strike and keeper measure 2-1/2" tall by 2-9/16" deep and is 1/8" thick. The stop projects out 3/4" and has a rubber insert. The mounting holes are 1-1/2" on center. Slots are 1/4" deep by 13/16" high. Also known as a Bathroom Stall Strike and Keeper - Inswing Flat. Flat backed for wall mounting. Manufacture part # 5280

Shipped with mounting screws.

If your toilet partition (bathroom stall) wall bracket is cast 1840, then you have the One Ear Wall Bracket for 1-1/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2-3/4″ long with 1-1/2″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

The Partition Top Hinge Assembly For 1" Door, 1-1/4" Post is for use on square edged 1-1/4" thick pilaster posts and 1" thick doors.   Top hinge measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Mounting lug projects out 1-1/4".  Kit includes Top Hinge, Top Hinge Pin, Top Hinge Door Insert, and mounting screws.  The assembly is constructed of Zamac die cast metal that is then chrome plated and polished.  Also known as a Bathroom Stall Top Hinge Kit. Manufacture part number 63720.

Torque Head Barrel Nut Shoulder Screw for 1-3/16" - 1-3/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe  head torque. Both pieces included.

Toilet Partition Pilaster Floor Shoe 1-3/4" X 1-3/4" Square Post

Constructed of zamac die cast material, then polished chrome plated. Base is 2-5/32" x 3-7/8", with 3" on center hole spacing. Floor shoe projects up 2" and has a 1/4-20 treaded hole. Also known as a Bathroom Stall Pilaster Post Shoe, or Toilet Partition Pilaster Post Shoe. Manufacture part # 3040 and 40-8512510. Shipped with all the fasteners.

Toilet Partition Bracket One Ear For 3/4" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 1-1/2" x 2-5/8", with 1-3/8" hole spacing. 2-3/4" projection on the legs. Legs are 3/4" apart, and is designed for 3/4" thick panels. Also known as a Bathroom Stall One Ear Wall Bracket or One Wing Wall Bracket. The manufacturers part numbers are 1644, 650-2852, and 650-2858. Shipped with all the fasteners.

Alcove Two Ear Bracket Panel Kit for 1/2" Panel to 3/4" Post. Wall brackets and alcove clips are chrome plated zamac. Security screws included. Also known as 615350.

Toilet Partition Bracket Two Ear For 1" Thick Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3" high by 3-3/4" wide with the mounting holes 2-3/4" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The 8 holes are 1/4" diameter. All wall thicknesses are 1/8". This bracket is sometimes known as a Bathroom Stall Two Ear Wall Bracket, or Toilet Partition Two Ear Wall Bracket. The manufacturers part number is 2264 and 650-1839. This bracket ships with all the needed fasteners.

The Toilet Partition Top & Bottom Hinge Kit  is for use on 1" Doors with 1" Square Edged Pilaster Posts.  The top and bottom hinges are constructed of Zamac die cast metal that is then chrome plated and polished.  The kit includes top and bottom hinge, inserts, pintle, cam, top pin and all of the mounting screws.  This hinge set is designed for a maximum rotation of 110 degrees, past 110 degrees the hinge may fail.   Manufacture part # 63150.

Toilet Partition Continuous 'L' Wall Bracket 2-3/4" X 57-1/2" Aluminum

Extruded aluminum construction. Base is 1-3/8" and the leg projects out 2-3/4". These are sold individually. It is also known as a Bathroom Stall Continuous L Wall Bracket. The manufacturers part # is 2684.
