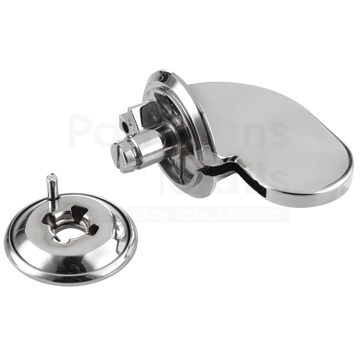

The Knickerbocker Partition Turn Latch Knob is the male portion of there concealed latches. The cover that goes with this latch is the 9K0255. They are constructed of Zamac die cast metal that is then chrome plated and polished. The manufacturer part number on this piece is 1410. Works with General partitions.Used with powder coated steel toilet partitions.

Hadrian's new style 7/15/19 Partition Ada Latch Knob includes the turn latch wit set screw and cover. The latch is ADA compliant and meets barrier free codes.  They are constructed of die cast stainless steel that is then a brushed finish. This part is used on Hadrian Partitions and will replace the old style concealed turn latch.  The new manufacturer's part number is 901150, but also associates with old parts and replaces 601100-700, 601110-700, 601200-700. This new turn latch with set screw and cover will replace all standard or old Ada latches prior to 8/1/2019.

The Accurate Partition Turn Latch & Cover is used metal doors manufactured by Accurate.  The concealed latch and cover are constructed of die cast metal and then chrome plated.  This product sometimes goes by the numbers 50-2511390, 50-2511380, 50-8511589, 50-8511500 complete. This latch assembly was used prior to January 2013. There is no exact replacement available.

This old style lock is discontinued 1/1/2022.
See link for replacement kits
https://www.partitionsandstalls.com/partition-hardware/conc-latch-fix-it-kit.html

Hadrian's new style 7/15/19 partition Ada latch knob with set screw included. The latch is ADA compliant and meets barrier free codes.  They are constructed of Zamac die cast metal that is then chrome plated and polished. This part is used on Hadrian Partitions and will replace the old style concealed turn latch. The new manufacturer's part number is 601150, but also associates with old parts and replaces 601100, 601110, 601200. This new turn latch with set screw and cover will replace all standard or old Ada latches prior to 8/1/2019.

Accurate ADA Turn Latch with Screw. This version started January 2013 for all accurate partition doors and ended September 2021. This old style is the exact same as Global's version, except the name on the cover latch part. Also known as 40-8513350. Chrome plated finish.

This turn latch will not replace previous version of Accurates old style turn latches that are no longer available.

Accurate stainless steel standard turn latch with screw. This version started January 2013 for all accurate partition doors and end September 2021. This old style is the exact same as Global's version, except the name on the cover latch part. Also known as 40-8263300. Cast stainless steel finish.

This turn latch will not replace previous version of Accurates old style turn latches that are no longer available.

Accurate Standard Turn Latch with Screw. This version started January 2013 for all accurate partition doors and ended September 2021. This old style is the exact same as Global's version, except the name on the cover latch part. Also known as 40-8513300. Chrome plated finish.

This turn latch will not replace previous version of Accurates old style turn latches that are no longer available.

Accurate stainless steel ADA turn latch with screw. This version started January 2013 for all accurate partition doors and end September 2021. This old style is the exact same as Global's version, except the name on the cover latch part. Also known as 40-8263350. Cast stainless steel finish.

This turn latch will not replace previous version of Accurates old style turn latches that are no longer available.

The Accurate Partition ADA Turn Latch & Cover is a concealed latch set designed for use on Accurate metal doors to meet ADA compliance codes. The latch and cover are constructed of die cast metal and then chrome plated. This product is sometimes called a 50-2511390, 50-2511370, 50-8511579, 50-8511510 complete. This latch assembly was used prior to January 2013. There is no exact replacement available.

This old style lock is discontinued 1/1/2022.
See link for replacement kits
https://www.partitionsandstalls.com/partition-hardware/conc-latch-fix-it-kit.html

The Toilet Partition Door Stop 2" High is constructed of chrome plated Zamac die cast. The door stop base is 2-1/8" diameter with a 1-19/32" hole spacing. The stop projects out 2" with a rubber insert on the end of the stop. Also known as Bathroom Stall Door Stop. Manufacture part # 4120.

Partition Headrail Bracket for 1" Headrail

Chrome plate Zamac die cast construction. The overall measurements of the bracket are 2-3/4" wide by 1-19/32" high by 1" deep with a hole spacing of 2". The spread for the headrail is 1-1/8" by 1-19/32" deep. Also known as a Bathroom Stall Headrail Bracket. Manufacture part # 2150.

Shipped with screws.

The Toilet Partition Coat Hook 3" Projection X 1-3/4" High is constructed of chrome plated Zamac die cast metal.  The hook base measures 1-3/16" wide by 1-9/16" high. The long hook projects out 3" and the short hook projects out 1-1/2". Also known as Bathroom Stall Hook. Manufacture part # 4020.  Same as our part # 9AM350.

Flush Metal concealed turn latch knob and cover plate with set screw is the current style. This turn latch is one of a kind, under the cover plate and under the turn latch you will notice a diamond shape that are male - female. Only buy this if this is what you have exactly. Many of these parts look the same but are not and will not work unless this is what you have. Manufactures #143520. This part has a 1-3/8" diameter.

Partition Headrail Bracket for 1 1/4" Headrail

Chrome plate Zamac die cast construction. The overall measurements of the bracket are 3-3/32" wide by 1-19/32" high by 1" deep with a hole spacing of 2-3/8". The spread for the headrail is 1-7/16" wide by 1-19/32" deep. Also known as a Bathroom Stall Headrail Bracket. Manufacture part # 2170.

Shipped with screws.

The Toilet Partition Coat Hook & Bumper 3-1/2" Projection x 2-3/4" High is constructed of Zamac die cast metal and then chrome plated and polished.  Coat hook base is 1-1/2" wide by 2-3/4" high, with screw spacing of 7/8" at the top. Hook projects out 1". Bumper projects out 3-1/2" with a rubber insert. Also known as a Bathroom Stall Coat Hook and Bumper. Manufacture part # 4260.  This product is the same as our 9OT285 and 9HA426.   We find this hooks used on Global Partition Corp and Accurate Partition Corp restroom stalls.

Hadrian HDPE Solid Plastic Free Standing Partitions, Solid Plastic (HDPE) Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth(24" door), ADA stall 60"x60"depth(36" door). All standard aluminum brackets and hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All Hadrian partitions colors ship in 5 business days plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Toilet Partition Urinal Screen Bracket Chrome Plated

Constructed of polished chrome plated zamac die cast. The wall mounted base is 7" across with 6" center to center screw holes. The bracket projects out 12" and the two thru holes are 7" on center. The bracket is designed for use on 1" thick panels or urinal screens. The 6 holes are 1/4" diameter. This bracket is sometimes called the 2700 Wing Bracket, 650-6440 Wing Bracket, Urinal Screen Bracket, Urinal Screen Wing Bracket, Bathroom Stall Wing Bracket, or Toilet Partitoin Screen Bracket

Partition "U" Bracket Chrome Plated 1" X 1-1/2" X 1-3/8" . If your toilet partition or bathroom stall wall bracket is cast with the number 1910 on the back, then you have the “U” Wall Bracket for 1″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-1/4″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.

Hadrian HDPE Solid Plastic Between Wall Partitions, Solid Plastic (HDPE) Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth(24" door), ADA stall 60"x60"depth(36" door). All standard aluminum brackets and hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. Every color Hadrian offers will ship in 5 business days plus 2-4 days travel.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

The Toilet Partition Coat Hook & Bumper 2-3/4" Projection x 2-1/4" High is mainly used on Hadrian Manufacturing Partitions.  The hook is constructed of Zamac die cast metal that is then chrome plated and polished. And measures 2-1/4" high with a projection of 2-3/4".  The manufacturer part number is 601900.

Hadrian HDPE Solid Plastic Corner Partitions, Solid Plastic (HDPE) Overhead braced floor mounted stalls. Standard stalls 36"x 60"depth(24" door), ADA stall 60"x60"depth(36" door). All standard aluminum brackets and hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All Hadrian partitions colors ship in 5 business days plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Hadrian partition steel stall Panels are available with many colors to choose from and sizes. Quick ship colors will ship in 48-72 hours. Usually one week delivery time for those colors. There is a 3 week lead time for non stock colors. The color chart shows an American flag which indicates a quickship color. All bathroom panels come with standard chrome plated panel kits which includes two each u brackets and two ear brackets. Stainless steel hardware is available as an option. The panel widths are 14"-76" wide are available. All panels are 1/2" narrower than panel size and are 58" in height.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Scranton products solid plastic Free Standing stalls traditionally called Hiny Hider Partitions are great for moisture and high traffic commercial buildings. All plastic material is 1" thick, doors are self closing by gravity 8" aluminum hinges or a continuous spring piano hinge, all hardware is standard aluminum brackets. Offering only Classic color collect on the website, all textures please submit drawings for us to quote with color you are looking for. All doors and panels are 55" ht, pilasters are 82" ht mounted to the floor and an overhead aluminum headrail running across the top to support the top of the pilasters. Up to 8 standard stalls total or 7 standard and 1 Ada stall. All Scranton partitions colors take 3 weeks from the time you place the order. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Scranton Color Chart

Scranton Bathroom Stall Instructions

If your toilet partition (bathroom stall) wall bracket is stamped 1640, then chances are you have the One Ear Wall Bracket for 3/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2″ long with 1-1/8″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

If your toilet partition (bathroom stall) wall bracket is stamped 1630, then chances are you have the Two Ear Wall Bracket for 7/8″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3-1/2″ long with 2-3/4″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket.

Hadrian Partition Between Wall Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Toilet Partition Bracket One Ear For 1" Panel Aluminum

Constructed of extruded anodized aluminum. The base is 1-1/2" high by 2-5/8" wide, with mounting holes 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs are 1" apart, and is designed for 1" thick panels. This bracket is also known as a One Ear Wall Bracket, One Wing Wall Bracket, Toilet Partition One Ear Bracket, or Bathroom Stall One Ear Bracket. The manufacturers part number is 1764. The bracket ships with all the required fasteners.

Toilet Partition Double "H" Alcove Bracket Aluminum For 1" Panel to 1" Pilaster

Constructed of extruded anodized aluminum. Bracket is 2-1/2" high, 1-1/4" wide and 3" deep. Mounting thru holes 1-1/2" on center. The legs project out 1-3/16". Designed for 1" thick panels to 1" thick pilasters. This bracket is also known as a Double H Wall Bracket, Alcove Double H Bracket, Toilet Partition Double H Wall Bracket, or Bathroom Stall Alcove Double H Bracket. The manufacturers part number is 1734. The bracket ships with all the required fasteners.

Toilet Partition Bracket Two Ear For 1" Thick Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3" high by 3-3/4" wide with the mounting holes 2-3/4" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The 8 holes are 1/4" diameter. All wall thicknesses are 1/8". This bracket is sometimes known as a Bathroom Stall Two Ear Wall Bracket, or Toilet Partition Two Ear Wall Bracket. The manufacturers part number is 2264 and 650-1839. This bracket ships with all the needed fasteners.

If your toilet partition (bathroom stall) wall bracket is cast 1840, then you have the One Ear Wall Bracket for 1-1/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2-3/4″ long with 1-1/2″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

Hadrian Partition Corner Bathrom Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. All quick ship colors are marked on the color chart with an American flag. The color choices have double stars on them for quick ship when ordering. Any other color is 3 weeks out for delivery.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Hadrian partition steel stall doors are available with many colors to choose from and sizes. Quickship colors will ship in 48-72 hours. Usually one week delivery time for those colors. There is a 3 week lead time for non stock colors. The color chart shows an American flag which indicates a quickship color. All stalls doors come with a standard chrome plated door kit which includes wrap hinges, keeper and latching. Stainless steel hardware is available. The door widths start out at 23"-36" available. All doors are 1/4" narrower than door size for gapping and are 58" tall. All sizes are for the opening you have. A 36" door is for a 36" opening. Note we now offer Square Edge wrap hinges which are not very common, most have a slight round edge.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Global partition plastic laminate corner stalls for commercial use. Plastic laminate overhead braced floor mounted stalls are most often used. Standard stalls are 36" x 60"depth (24" door), Ada stalls are minimum 60" x 60" depth (36" door). All standard chrome hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an Ada stall you must select 1 Ada 24  x60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60. Plastic laminate Partitions ship in 2 business days.

Global Plastic Laminate color chart

If your toilet partition (bathroom stall) wall bracket is stamped 1620, then chances are you have the Two Ear Wall Bracket for 3/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3″ long with 2-7/32″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket

The One Ear Hinged Bracket , 3" by  2-1/2" by 1" is constructed of 16 ga (.050") thick for the hinge and 14 ga (.075") thick on the bracket, stainless steel.  The one ear hinged bracket is Riveted and welded together. Bracket is 3" high x 2-1/2" deep for a 1" panel. This bracket is ideal for applications were the Pilaster and Panels are not at a 90 degree angle. Also known as a Bathroom Stall Hinged Wall Bracket. Manufacture part # 111359.
