Bobrick stainless steel straight grab bars for 1-1/2" diameter with a snap on flange to conceal the screws. Type 304 stainless steel tubing. Maximum weight capacity is 250lbs Known as B-6806x18, B-6806x36 and B-6806x42.

Brackets designed to mount plexiglass/acrylic sheets to desk top or work surface when creating separation/barrier. Brackets are adjustable for thickness from 1/8" to 3/8". It is recommended for use of 1/4" Thick material. Sold as a Pair. Made of Aluminum Alloy. Screws and inserts included. Uses a 5mm/3/16" Allen Key(Not Included) to install screws These are available in either Silver or Black Finish. Silver Finish are readily available while Black Finish may have an extended leadtime depending on quantities being ordered.

Measurements

Height: 2-1/2"

Width:1-3/4"

Depth: 5/8"

Weight:About .6lb

Brackets designed to mount plexiglass/acrylic sheets to desk surface edge when creating separation/barrier. Brackets are adjustable for thickness from 1/8" to 3/8". It is recommended for use of 1/4" Thick material. Sold as a Pair. Made of Aluminum Alloy. Screws and inserts included. Uses a 5mm/3/16" Allen Key(Not Included) to install screws These are available in either Silver or Black Finish. Silver Finish are readily available while Black Finish may have an extended leadtime depending on quantities being ordered.

Measurements

Height: 2-1/2"

Width: 1-3/4"

Depth: 5/8"

Weight:About 1.3lb

Top to Bottom: 3-5/8"

Plate Width: 1-3/4"

Plate Length: 5-3/4"

Plate Height: 3/16"

Gap/Spacing: 1"

Toilet Grab Bar Wall Mounted ADA Accessible Compartments Require: 1-1/4" dia. bars, Exposed Mounting. Type 34 from American Specialties. Manufacture part number 3434 Straddle Grab Bar by American Specialties. When installing to meet ADA Compliance, top of grab bar would need to be mounted minimum 33" Above Finished Floor to 36" maximum AFF.

WingIt Grab Bar Fastener for extra strength mounting grab bars. The wingit 251-4 is designed to work for a hole 2-1/2" and 3-1/2" or deeper hollow walls with finished wall surfaces 1/4" to 1-1/2" thick. Material used is a corrosion resistant stainless steel. One require for each flange. Fasteners will support up to 300 lbs load. Also known as 251-4.

ASI Matte Black grab bars are surface mount and come with conceales snap flange harwdare. This finish is only available in a 1-1/2" diamater bar, constructed from 18 guage stainless steel and ADA Complaint. Uses 2 holes for the mounting plate and 3 dimples for attaching the cover to plate.  The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

ADA Grab Bar Mounting Plates Stainless Steel actual size is 2-11/16" diameter. These plates mount to your wall and the grab bar is held on by set screws. Also known as D1512-98.

Grab Bar Installation Kit Concealed Wood Backing, wood screws only.

Grab Bar Installation Kit Exposed for Wood Backing, Wood screws are included.

Grab Bar Installation Kit Exposed Masonry Wall screws and anchors

Security Chase Mount Grab Bar fabricated with 18 gauge, 1-1/2" diameter tubing and flanges are 1/8" (3mm) thick stainless steel type 304 satin finish. The Closure Plate is 1/8" (3mm) thick and is welded the the bottom side of the grab bar. Closure plate is constructed of 12 gauge stainless steel. Unit has 3 rods welded to the back of the flange for wall mounting. Each flange is " in diameter Special Closure Plate is designed for Security and Anti-Ligature applications. Designed in mind for Behavioral Health and Detention Centers.

*** DISCOUNTINUED SIZES 36", 42" AND 48" IN 2024-25 ***

Grab Bar L 54" x 42" ADA Accessible Concealed Snap on mounting,1-1/2" Diameter. Snap Flange (1-1/2" O.D) Smooth - Horizontal Grab Bar, 54" x 42". Snaps over mounting flange dimples to conceal screws and concealed mounting flange of 3-1⁄8″ O.D. diameter with 2 screw holes and 3 locking dimples; 1/8″ thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3⁄16″ diameter. Known as 10-3857.

Grab Bar Installation Kit Exposed 1" Panel ss plate with screw and nut.

The Handicap Grab Bar is fabricated of #18 gauge stainless steel with a #4 satin finish.  They are available in 1 1/4” and 1-1/2” outside diameter.  All bars maintain a constant 1 1/2” offset, which is the distance between the inside of the bar and the mounting surface.  The mounting flanges have a 3” diameter.  We offer two types of mounting,  exposed screw mounting and snap on flange concealed. When properly installed they will easily support up to 250 pounds.  The recommended height for mounting these grab bars is 33 to 36” above the finished floor, but heights vary depending on local codes.  The overall length of a 12" grab bar is 15" due to the 3" diameter flanges.  Due to the various materials that these are mounted on, screws are not included.

Snap Flange (1-1/4" O.D) Smooth - Straight Grab Bar w/ Intermediate Support, 48". Features include cover that snaps over mounting flange dimples to conceal screws and concealed mounting flange of 31/8" O.D. diameter with 2 screw holes and 3 locking dimples; 1/8" thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3⁄16" diameter. Also know as 10-3702-48.

Grab Bar 30" x 33" Ht ; ADA Accessible Compartments Require: 1-1/2" diameter with concealed snap on flange 30" x 33"ht.  2nd leg sticks out 5" x 12"ht. Right hand shown, left hand is on opposite side.

The Partition Slide Bolt Latch Stainless Steel 3/8" Bar To Door, 2-3/4" Screws is constructed of cast stainless steel.  The latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/4" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 3/8" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5033.  Shipped with mounting security screws.

The Partition Slide Latch Stainless Steel 3/8" Bar To Door, 3-1/2" Screws is constructed of cast stainless steel.  The latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 5/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5063.  Shipped with mounting security screws.

Swing Up Grab Bar (1-1/4" O.D) - Smooth - With Detent Stops at 0°, 45° and 90° Positions.Features include flange of 3″ diameter, 1/8″ thick type 304 stainless steel with a satin finish; exposed mounting screw holes are drilled and countersunk. Swing Up Grab Bar Locks firmly into place when lifted into an upright position. 1-1/4" OD. Projects 30" from wall. When properly mounted, swing-up type bar will sustain a static load of 250 lbs. Known as 10-3414.

Hadrian partition steel stall doors are available with many colors to choose from and sizes. Quickship colors will ship in 48-72 hours. Usually one week delivery time for those colors. There is a 3 week lead time for non stock colors. The color chart shows an American flag which indicates a quickship color. All stalls doors come with a standard chrome plated door kit which includes wrap hinges, keeper and latching. Stainless steel hardware is available. The door widths start out at 23"-36" available. All doors are 1/4" narrower than door size for gapping and are 58" tall. All sizes are for the opening you have. A 36" door is for a 36" opening. Note we now offer Square Edge wrap hinges which are not very common, most have a slight round edge.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Used with ADA Grab Bars For concealed mounting to the flange and set screw.

Grab Bar Installation Kit Exposed Dry Wall screws and toggles

Grab Bar Installation Kit Concealed Dry Wall screws and toggles.

Grab Bar Installation Kit Concealed Masonry Wall screw and anchor

Grab Bar Installation Kit Concealed 1" Panel 3"dia SS plate stud/nut

Security Front Mount Grab Bar fabricated with 18 gauge, 1-1/2" diameter tubing and flanges are 1/8" (3mm) thick stainless steel type 304 satin finish. The Closure Plate is 1/8" (3mm) thick and is welded the the bottom side of the grab bar. Closure plate is constructed of 12 gauge stainless steel. Unit has 3 holes on each flange for exposed mounting. Each flange is " in diameter Special Closure Plate is designed for Security and Anti-Ligature applications. Designed in mind for Behavioral Health and Detention Centers.

Scranton products solid plastic Free Standing stalls traditionally called Hiny Hider Partitions are great for moisture and high traffic commercial buildings. All plastic material is 1" thick, doors are self closing by gravity 8" aluminum hinges or a continuous spring piano hinge, all hardware is standard aluminum brackets. Offering only Classic color collect on the website, all textures please submit drawings for us to quote with color you are looking for. All doors and panels are 55" ht, pilasters are 82" ht mounted to the floor and an overhead aluminum headrail running across the top to support the top of the pilasters. Up to 8 standard stalls total or 7 standard and 1 Ada stall. All Scranton partitions colors take 3 weeks from the time you place the order. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Scranton Color Chart

Scranton Bathroom Stall Instructions

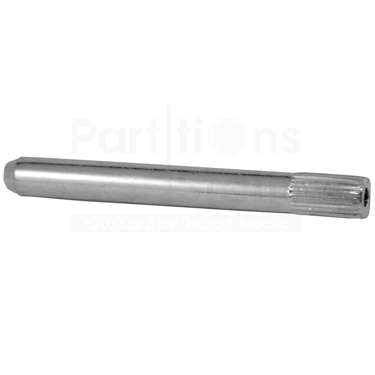

The Bobrick Toilet Partition Top Hinge Pin is used on there Plastic Laminate restroom stalls.  The pin features knurled steel construction, and is 3-1/2" long by 3/8" diameter.  The knurled end has a threaded hole of a 10-24 screw. Also known as a Bathroom Stall Hinge Pin. Manufacture part # 99109.

The Ampco Toilet Partition Top Hinge Pin For Laminate is constructed fo knurled steel.  This pin is used on there plastic laminate restroom stalls.   Hinge pin is 3-1/4" long by 1/4" diameter. Also known as a Bathroom Stall Hinge Pin. Manufacture part # 99585.

The Partition Slide Bolt Latch 9/16" Bar To Door clearance is constructed of Zamac die cast metal that is then chrome plated and polished.   Base is 3-3/8" high with 2-5/8" hole spacing. Latch bolt is 3-1/8" long by 7/8" wide by 3/16" thick with a 9/16" dimension from the door to the under side of the latch bolt. The latch projects out 1-1/2" when installed on the door. Also known as a Bathroom Toilet Stall Door Slide Latch and Toilet Partition Locks. Manufacture part # 6540.  Shipped with mounting screws.

The Continuous Hinge Stainless Steel, 54"  is for use on Left Hand Outswing/ Right Hand Inswing restroom stall doors.  The hinge is constructed of 16 gauge (.060" thick) stainless steel.  The piece is 3" wide when laid flat, by 54" long. Holes are 9/32" diameter, spaced every 10-1/4" or so. Hinge can be raised up 3/8" for emergency entry. Hinge pin is 1/8" diameter. There is an internal spring to make this hinge self closing.  This Continuous Hinge is for Left Hand Outswing, and Right Hand Inswing, see handing diagram under "More Views". Also known as a Full Length Bathroom Stall Continuous Hinge. Manufacture part # 7959.

The All American Toilet Partition Hinge Pin is used on plastic laminate restroom stalls.  The pin measures 3/8" diameter by 3-7/16" long.

Continuous Hinge Stainless Steel, is 71-1/2" long by 3" wide, and is for use on Right Out Swing, Left In swing restroom stall doors.  The hinge is constructed of 16 gauge (.060" thick) stainless steel and the screws are placed every 11" or so.  The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.  Manufacture part # 7769

The Knickerbocker Partition Bottom Hinge Housing is used on there plastic laminate or Formica restroom stalls.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The manufactures part number is 745-PC.

Toilet Partition Continuous Hinge, 57" Long Non Handed,14 Gauge Stainless Steel ,1/4" Diameter Pin, Cam Close. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

This is the most Heavy Duty Continuous Full Length Hinge we sell. 14 gauge (.075" thick) stainless steel construction with a 1/4" diameter hinge pin. The hinge leafs are angle cut so your door will close with the camming action. The hinge is 3" wide when laid flat, and 57" long. Screws are spaced 11" apart and the holes are 9/32" diameter and has 6 sets of holes. Hinge can be raised up 3/8" for emergency entry. Also known as a Bathroom Toilet Stall Full Length Continuous Hinge. Manufacturer part #7789, 160029, 650-9400.

The Metpar Toilet Partitions Top Hinge Pin is for plastic laminate restroom stalls.  The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.  It is constructed of threaded steel.
