Partition Door Piano Hinge W/Cover lh in/rh out 54" aluminum anodized is a heavy duty 1/4" pin with spring to close. this hinge has 5 holes on each side with 13" centers and starts at 1" from top and bottom. The cover makes the hinge holes not as noticeable. Also known as 8684.

The Partition Outswing Keeper Bumper 1-1/4" Post Sq Edge is constructed of Zamac die cast metal that is then chrome plated and polished.  Keeper is 1-1/4" tall by 2-3/8" wide by 1-13/16" deep. The strike is 1/2" thick with rubber insert. The opening to mount it on the square edge pilaster or post is 1-1/4" by 1-1/4" Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5970.  Shipped with screws for mounting.

The Ampco Toilet Partition Pintle is constructed of steel and white nylon plastic.  The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175. Shipped with nut and lock washer.

The Partition Keeper For Throw Latch is for use on inswinging doors.  Keeper base is 2-1/2" high by 1-3/16" wide with a 1-1/2" hole spacing. Strike is 2-1/2" tall by 7/8" deep. The material 1/8" thick. The slot is 13/16" high by 1/4".  They are constructed of Zamac die cast metal that is then chrome plated and polished.   Also known as a Bathroom Stall Keeper Inswing Flat. Manufacture part # 5180.  Shipped with mounting screws.

Concealed Partition Latch Keeper Bumper For 1-1/2" Between Screws Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measure 2-1/2" high by 1-13/16" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. The slot is for the concealed latch is 7/8" high by 7/16" deep. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing Flat. Manufacture part # 5243

Shipped with mounting screws.

Global partition stainless steel wall hung urinal screens are manufactured in the USA. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Standard chrome plated brackets included. Available for the following widths - 12", 18" and 24", Actual width is 1/2" less.x 48"ht screen.

Global Stainless Steel Color Chart

The Fiat Toilet Partition Pintle is for use on there steel doors and is constructed of steel and white nylon plastic.  The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.  Shipped with nut and lock washer.

The Global Toilet Partitions Pintle is for use on there steel doors and is constructed of steel and white nylon plastic.  The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.  Shipped with nut and lock washer.

The Knickerbocker Partition Top Hinge For 1-1/4" Sq Edge is designed for use on square edged pilaster posts that are 1-1/4" thick.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The manufactures part number is 3860.  A=1-11/16".

Hadrian Wall Mounted Privacy Screen's in powder coated are available in 48" heights by 18" or 24" wide. Standard chrome brackets are included. Wall hung screens are great for between urinals or a sink and urinal. The colors that are marked with an astris or has a usa flag on the color chart are a quick ship and take 48 hours to ship, then 2-4 day travel delivered any where in the usa. we also offer continuous aluminum and stainless steel brackets for extra support.

Hadrian Color Chart

Hadrian Instructions Powder Coated

The Ampco Toilet Partition Nylon Cam is constructed of white nylon.  The partition cam head outside diameter is 23/32" and the inside diameter is 1/2". The cams cylinder is 1-13/32" long with a diameter of 5/8". For use with a 1/2" pintle. Also known as a Bathroom Stall Cam. Manufacture part # 98275.

The Partition Inswing Keeper For Throw Latch for use on a 1-1/4" Square Post or pilaster.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The strike and keeper measure 2-1/2" high by 1-7/8" wide with a hole spacing of 1-1/2" on center. The stop is 2-1/2" tall by 3/4" wide with a rubber insert. The slot measures 13/16" high by 1/4" deep. Commonly known as a Bathroom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5340.  Shipped with mounting screws.

The Metpar Toilet Partition Nylon Cam is constructed of white nylon.  The partition cam head outside diameter is 23/32" and the inside diameter is 1/2". The cams cylinder is 1-13/32" long with a diameter of 5/8". For use with a 1/2" pintle. Also known as a Bathroom Stall Cam. Manufacture part # 98275.

The Hiny Hider Outswing Flat Stop 6" has Clear Anodized aluminum construction. The strike and keeper is 6" tall by 1-5/8" deep by 1/8" thick. The stop is 9/16" deep by 3/4" wide with a rubber insert. The mounting holes are 3" on center. Also known as a Bathroom Stall Flat Backed for Wall Mounting Strike and Keeper. Manufacture part #5898.  Shipped with mounting screws.

Scranton Products solid plastic Ada Alcove partitions traditionally called Hiny Hider Partitions are great for moisture and high traffic commercial buildings. All plastic material is 1" thick, doors are self closing by gravity 8" aluminum hinges or a continuous spring piano hinge, all hardware is standard aluminum brackets. Offering only Classic color collect on the website, all textures please submit drawings for us to quote with color you are looking for. All doors and panels are 55" ht, pilasters are 82" ht mounted to the floor and an overhead aluminum headrail running across the top to support the top of the pilasters. Alcove stalls include 36" door, 2 pilasters and panel to make up the balance needed.

Scranton Color Chart

Scranton Bathroom Stall Instructions

The Knickerbocker Toilet Partition Pintle 5/8" diameter is used on there metal and plastic laminate restroom stalls.   The Pintle measures 5/8" diameter by 2-3/16" long and the threaded end has a 10-32 x 1/2" thread.   This part also goes by the part number 97275 and 213.

The Mills Toilet Partition Slide Bolt Latch Concealed is a popular latch used by them.  Latch cover plates are 1-3/4" wide by 1-3/8" high. The latch switch is 1-15/32" wide. The latch bolt is 3/8" diameter. The spacing between the cover and the latch 1-1-32". They are constructed of Zamac die cast metal that is then chrome plated and polished.  This is a one of a kind latch. Also known as a Bathroom Stall Concealed Latch. Manufacture part # 4230, HDWT T290.

Scranton Products solid plastic between wall partitions traditionally called Hiny Hider Partitions are great for moisture and high traffic commercial buildings. All plastic material is 1" thick, doors are self closing by gravity 8" aluminum hinges or a continuous spring piano hinge, all hardware is standard aluminum brackets. Offering only Classic color collect on the website, all textures please submit drawings for us to quote with color you are looking for. All doors and panels are 55" ht, pilasters are 82" ht mounted to the floor and an overhead aluminum headrail running across the top to support the top of the pilasters. Up to 8 standard stalls total or 7 standard and 1 Ada stall. All Scranton partitions colors take 3 weeks from the time you place the order. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Scranton Color Chart

Scranton Bathroom Stall Instructions

The Hiny Hider Inswing Flat Stop 6" has Clear anodized aluminum construction. The strike and keeper is 6" tall by 2-9/16" deep and 3/4" thick on the stop. The material is 1/8" thick. The mounting holes are 3" on center. And the locking slot is 1-1/2" high by 3/8" deep. Also known as a Bathroom Stall Strike and Keeper-Inswing Flat. Manufacture part # 5798.  Shipped with mounting screws.

The General Toilet Partition Latch Knob & Cover is constructed of Zamac die cast metal that is chrome plated and then polished.  Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 1390, 6140.

The Toilet Partition Coat Hook & Bumper 3-1/2" Projection x 2-3/4" High is constructed of Zamac die cast metal and then chrome plated and polished.  Coat hook base is 1-1/2" wide by 2-3/4" high, with screw spacing of 7/8" at the top. Hook projects out 1". Bumper projects out 3-1/2" with a rubber insert. Also known as a Bathroom Stall Coat Hook and Bumper. Manufacture part # 4260.  This product is the same as our 9OT285 and 9HA426.   We find this hooks used on Global Partition Corp and Accurate Partition Corp restroom stalls.

The Fiat Toilet Partition Nylon Cam is constructed of white nylon plastic.  The square head measures 7/8" by 1-1/8" with a 11/16" diameter hole. The cylindrical part is 7/8" diameter. The overall height is 1-3/16", with square part measuring 21/32". Also known as a Fiat Bathroom Stall Cam. Manufacture part # 98195. For use with an 11/16" diameter pintle.

The Global Toilet Partitions Latch Knob Cover is constructed of Zamac die cast metal that is chrome plated and then polished.  Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 1390, 6140.

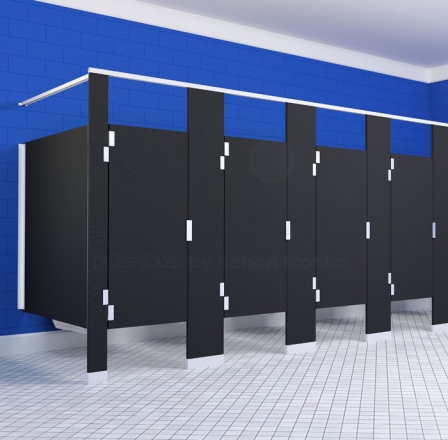

Bobrick SCRC solid phenolic partition between walls layout with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall are 60" x 60" depth (36" door). All standard stainless steel hardware included with option of full stainless channels and piano hinges. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must add Ada to add 24" to a standard stall of 36" to create 60" width, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and add Ada 24". 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

The Global Toilet Partition Nylon Cam For Steel restrooms is constructed of white nylon plastic.  Square part of nylon cam is 7/8" by 1-1/8" with a diameter of 11/16". The cam has an overall height of 1-1/4", with a cylinder diameter of 7/8". Also known as a Bathroom Stall Cam. Manufacture part # 98185.

The Metpar Toilet Partition Nylon Cam For Steel restrooms is constructed of white nylon plastic.  Square part of nylon cam is 7/8" by 1-1/8" with a diameter of 11/16". The cam has an overall height of 1-1/4", with a cylinder diameter of 7/8". Also known as a Bathroom Stall Cam. Manufacture part # 98185.

Concealed Partition Latch Keeper Bumper Outswing 1-1/4" Round Edge Cast Stainless Steel

Cast stainless Steel Construction. The outside dimensions are 2-3/8" wide by 1-1/4" high by 1-3/4" deep. Stop projects out 1-1/8" by 1/2" thick with a rubber insert. Designed for an 1-1/4" thick post round edge. Also known as a Bathroom Stall Strike and Keeper Outswing 1-1/4". Manufacture part # 5573.

Shipped with mounting screws.

The Sanymetal Toilet Partition Coat Hook Bumper is constructed of Zamac die cast metal that is then chrome plated and polished.  Coat hook bumper projects out 3" and has a rubber insert. The hook projects out 1-7/32". The coat hook bumper base is 1-7/16" wide by 2-1/4" high with a hole spacing of 7/8". Also known as a Bathroom Stall Hook. Manufacture part # 4000.

The Sanymetal Toilet Partitions Coat Hook Bumper has a 3" projection.  The coat hook base measures 2" by 1-11/16" with a 1-1/8" hole spacing. The hook projects out 1-13/16". The bumper projects out 3" with a rubber insert on the tip. They are constructed of Zamac die cast metal that is then chrome plated and polished.   Also known as a Bathroom Stall Hook. Manufacture part # 4280.  Shipped with mounting screws.

The Fiat Toilet Partition Bottom Door Insert is for use on there 1" thick doors.   It is constructed of Zamac die cast metal that is then chrome plated and polished.  The bottom door insert measures 2-1/8" by 1" by 13/16". The insert has one hole, which is 7/32" diameter. The square hole is 29/32" wide by 1". Also known as a Fiat Bathroom Stall Door Insert Bottom 1". Manufacture part # 4700.

The American Sanitary Toilet Partition Pintle 5/8" Diameter is constructed of steel and white nylon plastic.  The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.  Shipped with nut and lock washer.

The Toilet Partition Keeper- Outswing, For 1-1/4" Square Edge is designed for out swinging doors and an 1-1/4" thick square edged pilaster post.  The keeper is constructed of cast stainless steel.  The part is used by many manufactures on there plastic laminate restroom stalls, and there part number is 40-8562304.

Toilet Partition SS L Channel 2-1/2" X 57" are great for extra privacy in the bathroom toilet stalls. This product can be used for any thickness material by using two units. This product is also known as 2689. Security screws included.

Partition Keeper Inswing 1-1/4" Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measure 2-1/2" high by 1-7/8" wide with a hole spacing of 1-1/2" on center. The stop is 2-1/2" tall by 3/4" wide with a rubber insert. The slot measures 13/16" high by 1/4" deep. Commonly known as a Bathroom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5343.

Shipped with mounting screws.

The Metpar Toilet Partition Nylon Cam Pintle Combo is made of black nylon plastic.  The piece measures 7/8" diameter on the cylindrical part and 4-7/8" long to the end of the screw. This part is also known as the Metpar Bathroom Stall Candle Cam. Metpar is the only manufacture we know that uses this type of Nylon Cam Pintle Combination piece. Manufacture part # 97435.  Shipped with lock washer and screw.
