Partition "U" Bracket Chrome Plated 1" X 1-1/2" X 1-3/8" . If your toilet partition or bathroom stall wall bracket is cast with the number 1910 on the back, then you have the “U” Wall Bracket for 1″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-1/4″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.

The Accurate Toilet Partition Top or Bottom Hinge is for plastic laminate doors when attaching them to an 1-1/4" square edge pilaster or post.  The hinge mounts to the post to support the door. Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" deep with a slot depth of 1-5/16" and 1-1/2" between screws on center. Hinge lug projects out 1-11/16" and is 1/2" thick with a 5/8" diameter hole. Also known as a Bathroom Stall Pivot Hinge Top/Bottom 1-1/4". Manufacture part # 3540. Same as 9G631A on our website.

Toilet Partition Urinal Screen Bracket Chrome Plated

Constructed of polished chrome plated zamac die cast. The wall mounted base is 7" across with 6" center to center screw holes. The bracket projects out 12" and the two thru holes are 7" on center. The bracket is designed for use on 1" thick panels or urinal screens. The 6 holes are 1/4" diameter. This bracket is sometimes called the 2700 Wing Bracket, 650-6440 Wing Bracket, Urinal Screen Bracket, Urinal Screen Wing Bracket, Bathroom Stall Wing Bracket, or Toilet Partitoin Screen Bracket

Hadrian Headrail Retrun Kit is designed to work with Hadrians Metal Stall Partitions. The headrail retun kit will work with 1-1/4" thickness headrails from Hadrian. Designed to work with powder coated steel and stainless steel stalls. This kit includes Brackets,Wall Anchoring Screws, Plastic Anchors, Fastening Screws and Headrail End Cap. Can be used to run across the top of partitions either between two wall or runnning from a rear wall to a pilaster. Often used in conjuction with Hadrian Headrail (60")9HR60A, (74")9HR74A and (96")9HR96A.

Manufacturer Part# 607200.

Global partitions door kit for plastic laminate material. The hinges and door stop are for 1" thick material only. We offer in a chrome finish or a stainless steel version. You will need to choose in or out swing and which finish you would like. These manufacturers numbers below. Used with Global and Accurate partitions.
See link for Instructions ***Plastic laminate hinge instructions

Chrome inswing 8512013
Chrome outswing 8512014

Stainless Steel Inswing 8262013
Stainless Steel outswing 8262014

Toilet Partition Continuous One Ear Wall Bracket For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 54" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2878, and 650-9750-54. These brackets are shipped with all the needed fasteners.

Toilet Partition Continuous One Ear Wall Bracket For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 3/4" for 3/4" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 650-4031. These brackets are shipped with all the needed fasteners.

Aluminum U Shape Bracket 1/2" X 1-3/8" X 57". Constructed of extruded anodized aluminum. Base is 3/4 wide by 57" long, with screw holes every 13" or so. They have a clearance of 1/2" for 1/2" thick panels. Sometimes known as Bathroom Stall Continuous U Bracket. The manufacturers part numbers are 2664. These brackets are shipped with all the needed fasteners.

The Accurate Toilet Partition Keeper Bumper for In swing doors is constructed of Zamac die cast metal, then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for in swinging doors. Also known as a Bathroom Stall Strike and Keeper Inswing 1-1/4" Square Edge. Manufacture part # 5110. Shipped with mounting screws.

Hadrian Door Kit includes Ada turn latches with hinges that wrap around the edge of the pilaster type. Cast stainless steel parts include wrap hinges, keeper bumper, ada turn latch, cover plate, pintle, nylon cam, double door pulls, top pin, coat hook with bumper and all security screws included. For Hadrian partitions in steel or stainless steel partitions only. This product manufacture number is 901010, replaces the 901000.

Stainless Steel Door Hook Fix it kit comes with stainless steel plate 3"x3", stainless steel hook and screws included. Also known as 115523. Hook projects 3" also known as 4113 or 4003.

The American Sanitary Toilet Partition Keeper Bumper Inswing is designed for use on square edged 1-1/4" thick pilaster posts.  It is constructed of Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for in swinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110.  Shipped with mounting screws.

Toilet Partition two ear pilaster bracket kit for 1-1/4" thick material. This brackets base is 1-1/2″ wide x 4″ long with 3″ center to center hole spacing and comes out from the wall 2-1/2". The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. Brackets are Included with security screws for installation. Also known as 615220.

Chrome Plated Toilet Partition Flat Stop Keeper

Polished chrome plated Zamac construction. The keeper base is 2-1/2" tall by 1-3/32" wide. The latch face measures 2-1/2" tall with a 7/8" projection. The hole spacing is 1-1/2". The slot measures 5/16" by 1-9/16". Also known as a Bathroom Stall Keeper-Inswing Flat. Manufacture part # 5160.

Shipped with mounting screws.

Hadrian Headrail Retrun Kit is designed to work with Hadrians Solid Plastic Stall Partitions. The headrail retun kit will work with 1" thickness headrails from Hadrian. Designed to work with solid plastic stalls. This kit includes Brackets,Wall Anchoring Screws, Plastic Anchors, Fastening Screws and Headrail End Cap. Can be used to run across the top of partitions either between two wall or runnning from a rear wall to a pilaster. Often used in conjuction with Hadrian Headrail 9HRXXSP.

The Hadrian Partition Upper Door Casting Unplated is the component that fits into the top of the metal door to act as one of the hinge points.   They are constructed of Zamac die cast metal.  The manufactures part number is 640003.

Toilet partition door hinge side sightline filler for 1-1/4" thick powder coated steel pilaster post. This product has a slight round edge specifically for this material. The demensions are 1-1/4"x 54-1/2", this product is brushed aluminum and can be cut in the field. This product will help block the gap on the toilet partition hinge side. Known as 560458 from Hadrian partitions and can be used with other factories.

Toilet Partition Wall Bracket 'U' For 1" Panel, 3"H x 1-3/8"L

Extruded aluminum construction. The base is 3" long x 1-5/16" wide. The legs project out 1-3/8" and are 1" apart, for use with 1" panels. The six mounting holes are 1/4" diameter. Also known as a Bathroom Stall U Wall Bracket Extra Long. Manufactures part number is 2304. Shipped with all the fasteners.

Partition Inswing Surface Keeper 1-1/2" Between Screws Cast Stainless Steel

Cast stainless steel construction. The keeper base is 2-1/2" tall by 1-3/32" wide. The latch face measures 2-1/2" tall with a 7/8" projection. The hole spacing is 1-1/2". The slot measures 5/16" by 1-9/16". Also known as a Bathroom Stall Keeper-Inswing Flat. Manufacture part # 5163.

Shipped with mounting screws.

The Accurate Partition Door Kit Old Style has been used from January 2013 to September 2021.  The door kit is replacement hardware for an Accurate Partitions Corp. metal door.  The kit includes the top and bottom hinges, nylon inserts, coat hook, keeper bumper, concealed latch and security screws.  They are constructed of die cast metal that is then chrome plated and polished.  The manufactures part number is 50-8511505.

These hinges will not replace previous version of Accurates old style hinges that are no longer available.

The Sanymetal Toilet Partitions Coat Hook Bumper has a 3" projection.  The coat hook base measures 2" by 1-11/16" with a 1-1/8" hole spacing. The hook projects out 1-13/16". The bumper projects out 3" with a rubber insert on the tip. They are constructed of Zamac die cast metal that is then chrome plated and polished.   Also known as a Bathroom Stall Hook. Manufacture part # 4280.  Shipped with mounting screws.

Bobrick SCRC solid phenolic material in a Corner Partition layout with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall are 60" x 60" depth (36" door). All standard stainless steel hardware included with option of full stainless channels and piano hinges. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must add Ada to add 24" to a standard stall of 36" to create 60" width, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and add Ada 24". 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

Toilet Partition Continuous Alcove "H" Bracket For 1" Panel x 54" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Bracket is 1" x 3-1/2" x 54" long. Legs project out 1-3/4" with the thru hole at 1-3/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Alcove Bracket or "H" Bracket. Manufacturer part # 2859.

Shipped with screws.

Toilet partition continuous door stop for powder coated steel partitions, this has a slight round edge for attaching. The length is 57" and is used on a 1-1/4" slight round edge pilaster for mounting. Used with 1" doors and has a concealed turn latch with the pin coming out the center edge of the door. The hole spacing for the slot is 28-1/2" dead center of unit. The slot for the bolt to lock to is 7/16" wide x 5/8"ht. This helps with blocking the door gaps on the locking side of the door. This is made of brushed aluminum material and is used with in or out swing doors. Also known as Hadrian partitions part number 560058.

The Metpar Toilet Partition Keeper Bumper Inswing is for use on 1-1/4" thick square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110.  Shipped with mounting screws.

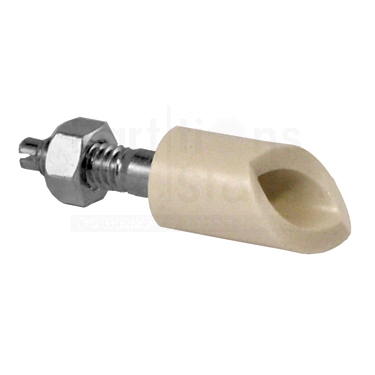

The Metpar Toilet Partitions Pintle For Laminate restroom stalls.  It is constructed of steel and white nylon plastic.  The pintle is 1/2" diameter by 2-5/16" high. The threads are 5/16-18. Also known as a Bathroom Stall Pintle. Manufacture part # 98265.  Shipped with lock washers and nut.

Toilet Partition Pilaster Floor Shoe 1-3/4" X 1-3/4" Square Post

Constructed of zamac die cast material, then polished chrome plated. Base is 2-5/32" x 3-7/8", with 3" on center hole spacing. Floor shoe projects up 2" and has a 1/4-20 treaded hole. Also known as a Bathroom Stall Pilaster Post Shoe, or Toilet Partition Pilaster Post Shoe. Manufacture part # 3040 and 40-8512510. Shipped with all the fasteners.

The Toilet Partition Surface Mounted SS Hinge Set  are for use on Left Hand Out Swing and  Right Hand In Swinging Doors.  They feature 1/8" thick stainless steel construction.  Outside hinge measurements are 3-1/4" wide by 2-29/32" high. 1-1/2" hole spacing up and down, and 2-3/8" right to left hole spacing. The four mounting holes are 1/4" diameter. This hinge set includes the top and bottom hinges. Also known as Bathroom Stall Gravity Hinge Set. See "More Views" for the handing diagram. Manufacturer part # 7113.  Mounting screws are included.

The bracket is a zamac die cast material that is then polished chrome plated. The base measures 1-1/2" wide x 2-21/32" long with two mounting holes 1-1/2" on centers. The bracket projects out 3-1/2" with the legs 1" apart, it is used for mounting a 1" thick panel. The mounting holes are located 3-1/8" from the base of the the bracket, and all the holes are 1/4" diameter. The bracket is sometimes called a Toilet Partition One Ear Bracket, Bathroom Stall One Ear Bracket, 1270 wall bracket, 650-6407 wall bracket or sometimes One Wing Bracket.

The General Toilet Partition Keeper Bumper For 1-1/4" Inswing Sq Edge is for use on 1-1/4" thick square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110.  Shipped with mounting screws.

The Ampco Toilet Partition Pintle Laminate is for laminate restroom stalls.  It is constructed of steel and white nylon plastic.  The pintle is 1/2" diameter by 2-5/16" high. The threads are 5/16-18. Also known as a Bathroom Stall Pintle. Manufacture part # 98265.  Shipped with lock washers and nut.

Stamped SS Continuous 'U' Bracket 1/2" x 1-3/8" X 57". 18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 57" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Manufacturer part # 2669. Screws included with bracket.

Partition Door Piano Hinge W/Cover rh in/lh out 54" aluminum anodized is a heavy duty 1/4" pin with spring to close. this hinge has 5 holes on each side with 13" centers and starts at 1" from top and bottom. The cover makes the hinge holes not as noticeable. Also known as 8674.

The Knickerbocker Partition Door Latch Mechanism Kit is used on there concealed latches.  The bar measures 11/32" diameter by 3-7/16" long.  The Fulcrum measures 1-11/32" by 1-11/32 by 5/16" thick.  This part is also known as 8836, H749 and H748. Works with General partitions. Used with plastic laminate toilet partitions.

Urinal Screen Bracket Chrome Plated

This bracket is usually used on Toilet Partition Stall Urinal Screens to hold the divider on the wall. The base measures 6-1/4" across, and the holes are 5" on center. The bracket projects out 6" with the two thru holes 3-7/32" on center. The channel that projects out is 1-1/4" wide. This bracket is sometimes called a 2500 Wing Bracket, 2500 Wall Bracket, 2500 Urinal Screen Bracket, Bathroom Partition Wing Bracket, ect..
