The Global Toilet Partitions Top Pin is for plastic laminate restroom stalls.  The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.  It is constructed of threaded steel.

The Toilet Partition Slide Bolt Latch 3/8" Bar To Door Clearance is just like every other slide bolt, except it has an offset bolt.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/4" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 3/8" from the back of the base to the underside of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacturer part # 5030.  Shipped with mounting screws.

The Sanymetal Toilet Partitions Ada Latch Knob Cover & Pin is an ADA Compliant latching mechanism.  The pin measures 3-1/8" overall length.   They are constructed of Zamac die cast metal that is then chrome plated and polished.  Manufactures part # 6860 and 8860.

The Handicap Grab Bar is fabricated of #18 gauge stainless steel with a #4 satin finish.  They are available in 1 1/4” and 1-1/2” outside diameter.  All bars maintain a constant 1 1/2” offset, which is the distance between the inside of the bar and the mounting surface.  The mounting flanges have a 3” diameter.  We offer two types of mounting,  exposed screw mounting and snap on flange concealed. When properly installed they will easily support up to 250 pounds.  The recommended height for mounting these grab bars is 33 to 36” above the finished floor, but heights vary depending on local codes.  The overall length of a 12" grab bar is 15" due to the 3" diameter flanges.  Due to the various materials that these are mounted on, screws are not included.

Compact high-speed hand dryer for applications where less space is available. 5-year warranty. 9-25/32" W x 6-5/8" H x 5-7/16" D
FEATURES

• Quick drying — less than 15 seconds
• Operates automatically using infrared sensor
• Auto-resetting thermostat
• 60-second automatic shut off
• Cover fabricated of heavy-duty, one-piece-formed stainless steel

The Knickerbocker Partition Turn Latch Knob is the male portion of there concealed latches. The cover that goes with this latch is the 9K0255. They are constructed of Zamac die cast metal that is then chrome plated and polished. The manufacturer part number on this piece is 1410. Works with General partitions.Used with powder coated steel toilet partitions.

Bobrick SCRC solid phenolic material in a Corner Partition layout with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall are 60" x 60" depth (36" door). All standard stainless steel hardware included with option of full stainless channels and piano hinges. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must add Ada to add 24" to a standard stall of 36" to create 60" width, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and add Ada 24". 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

ASI Matte Black turbo pro auto high speed hand dryer is ADA Compliant and is surface mounted. Features HEPA filter, air temperature controls, air speed controls and also a 5 year warranty. Some other features include energy efficient, quiet, and easy to maintain. The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Dimensions

8-5/8″ x 13-9/16″ x 4″ (219 x 345 x 101 mm)

Decibel Level

68 to 73.8 dB-A @ 2m

Electric

Different models for operating voltage
110~120 V (50/60 Hz),
220~240 V (50/60 Hz)

ON/ OFF Heat Option
Nichrome Wire
325 – 500 W

Motor: .67HP, 16 – 29 kRPM
Brush type, dual ball bearings

Stainless Steel L shape Partition Brace. Do your Toilet partition panels keep falling out of the bathroom stall wall mounted brackets? If so, the answer might be a Toilet Partition brace or support, which would support the panel and pilaster from falling, or as preventive maintenance to strengthen the compartment. They are also sometimes called Pilaster Support L-Brackets. The we stock 3 versions that are adjustable from 7-1/2″ to 10″, 9-1/2″ to 12″ and 11-1/2″ to 14″, floor to bottom of panel clearance. The bathroom stall brace is made of stainless steel, with a round base of 2-3/8″ and a support bracket that is 1-1/2″ x 2-3/8″. The diameter of the toilet partition support shaft is 1″. If you have any questions on the Toilet Partition Support Braces let us know!
Same as 8513, 85183, 85193, 9a6005, 9a85183, 9a85193. Most common 9a6005.

Note the most common are 11-1/2" to 14" due to the partitions are mounted 12" off the floor.

Also note quantities of 10 or more not returnable.

The Global Partitions stainless steel Ada latch knob & cover, with Screw, are a concealed latch that is held together by a screw.  They are constructed of cast stainless steel metal that is then brushed and polished.  The 9G3370 meets ADA compliance codes. The manufacturer part number is 40-8263370. This was used up until October 2021.

The Bobrick Toilet Partition Nylon Cam is constructed of natural nylon plastic. The nylon cam head diameter is 7/8" with an inside diameter of 11/16". The cylinder diameter is 3/4" and has an overall length of 1-11/32". For use with a 5/8" diameter pintle. Also known as a Bathroom Stall Door Hinge Cam. Manufacture part # 98245.

The Bobrick Toilet Partition Top Door Insert is constructed of Zamac die cast metal that is chrome plated then polished.  The hinge insert outside dimensions are 2-3/16" wide by 1-5/32" deep by 1-13/16" high. The two holes have a diameter of 13/32". Also known as a Bathroom Stall Door Insert Top 1". Manufacture part # 2400.

The Flush Metal Partition Top Door Insert is for use on 7/8" thick doors.  The piece is constructed of Zamac die cast metal that is then chrome plated and polished.  Top hinge insert outside dimensions are 2-3/8" by 1" wide by 1-5/8". Two of the three holes are 13/32" diameter and the third is 7/32". Also known as a Bathroom Stall Door Inser Top 7/8". Manufacture part # 1540.  Bobrick also used this insert.

Bobrick SCRC solid phenolic partition free standing layout with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall are 60" x 60" depth (36" door). All standard stainless steel hardware included with option of full stainless channels and piano hinges. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must add Ada to add 24" to a standard stall of 36" to create 60" width, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and add Ada 24". 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

Roval Recessed Hand Dryer, 20199

This high performing hand dryer, with a drying time of less than 15 seconds, has a cover made of 18 gauge stainless steel and uniquely complements the Roval™ Collection with its bowed face and gently radiused edges. 5-year warranty.

FEATURES:

• Quick drying — less than 15 seconds
• Operates automatically using infrared sensor
• Auto-resetting thermostat

The Global Partitions Ada Latch Knob Cover, with Screw, are a concealed latch that is held together by a screw.  They are constructed of Zamac die cast metal that is then chrome plated and polished.  The 9G0139AS meets ADA compliance codes.  This is one of 3 concealed latches that we know of that are held together by a screw instead of the retaining clip we find on most latches.  The manufacture part number is 40-8513370G. This was used up until October 2021.

Ordering online all global partitions in powder coated panels are Manufactured in the usa. All toilet partition panel's ship in 48-72 hours plus 2-4 days travel. All hardware chrome plated included. Available in 16"- 76". Actual width is 1/2" less. (58" Height). Panels are 1" thick.

Global Partitions Color Chart

The American Sanitary Toilet Partition Nylon Cam is constructed of natural nylon plastic. The nylon cam head diameter is 7/8" with an inside diameter of 11/16". The cylinder diameter is 3/4" and has an overall length of 1-11/32". For use with a 5/8" diameter pintle. Also known as a Bathroom Stall Door Hinge Cam. Manufacture part # 98245.

Accurates commercial stainless steel between walls bathroom partitions floor mounted overhead braced stalls with a smooth surface. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate color chart

Accurate Instructions

Square Security Clothes Hook designed to snap down if excessive load is placed on hook. Fabricated from type 304 stainless steel, 12 gauge and backplate 14 gauge with satin finish. Product is offered in 2 mounting types: Front or Chase(Rear). Front mount has 4 dimbled holes through flange bracket and comes with torx mounting screws.Chase mount will come with rods welded to back and nuts for mounting. There are 3 options for the chase mount which you will have to select and each will come with specific sized rods to affix hook through wall. Options are to accommodate the wall thickness they will be mounted though. Designed in mind for Behavioral Health and Detention Centers.

Chase Options

• Less than 6" Wall
• Between 6"-8" Wall
• More than 8" Wall, Custom size

Dimensions

4-1/4″ x 4-1/4″ x 2-1/4″ (108 x 108 x 57 mm)

*** CHASE MOUNT DISCOUNTINUED 2024-25 ***

The Fiat Toilet Partition Top Door Insert is constructed of Zamac die cast metal that is chrome plated and then polished.  The hinge U insert has outside dimesions of 2-3/16" wide by 1-1/2" by 1" deep with tow holes 1/2" diameter. The inside distance between the U's is 1-1/16". Also known as a Fiat Bathroom Stall Door Insert Top 1". Manufacture part # 4800.

Hadrian's new style 7/15/19 partition Ada latch knob with set screw included. The latch is ADA compliant and meets barrier free codes.  They are constructed of Zamac die cast metal that is then chrome plated and polished. This part is used on Hadrian Partitions and will replace the old style concealed turn latch. The new manufacturer's part number is 601150, but also associates with old parts and replaces 601100, 601110, 601200. This new turn latch with set screw and cover will replace all standard or old Ada latches prior to 8/1/2019.

Bobrick 1550 metro series plastic laminate between wall partition configuration, Plastic laminate overhead braced floor mounted stalls. Standard stalls 36" x 60"depth (24" door), ADA stall 60" x 60" depth (36" door). All hardware included. Doors are either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select (1) ADA 24", plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select (2) standard stalls and (1) ADA stall 24". Plastic laminate Partitions ship in 1 week.

Bobrick 1550 plastic laminate color chart

Bobrick 1550 Instructions

Hadrian's new style 7/15/19 Partition Ada Latch Knob includes the turn latch wit set screw and cover. The latch is ADA compliant and meets barrier free codes.  They are constructed of die cast stainless steel that is then a brushed finish. This part is used on Hadrian Partitions and will replace the old style concealed turn latch.  The new manufacturer's part number is 901150, but also associates with old parts and replaces 601100-700, 601110-700, 601200-700. This new turn latch with set screw and cover will replace all standard or old Ada latches prior to 8/1/2019.

Hadrian Door Kit for Ada Concealed Hinges. Standard hinges that butt up to the edge of the pilaster. Chrome plated parts include concealed hinges with toggle & screw, keeper bumper, ada turn latch, cover plate, pintle, nylon cam, double door pull handles, coat hook & bumper, top pin and all security screws included. For Hadrian partitions in steel or stainless steel partitions only. This product manufacture number is 601010, replaces 601000.

Bobrick SCRC solid phenolic alcove partitions 1080/1090 series with overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel divider to make up the balance. Doors can be either in or out swing you choose. Standard stainless steel hardware included. 3-4  week delivery from the factory.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

Security Clothes Hook designed to snap down if excessive load is placed on hook. Fabricated from type 304 stainless steel, bracket is 11 gauge and hook 7 gauge with satin finish. Product is offered in 2 mounting types: Front or Chase(Rear). Front mount has 4 holes through flange bracket and comes with torx mounting screws. Chase mount will come with rods welded to back and nuts for mounting. There are 3 options for the chase mount which you will have to select and each will come with specific sized rods to affix hook through wall. Options are to accommodate the wall thickness they will be mounted though. Designed in mind for Behavioral Health and Detention Centers.

Chase Options

• Less than 6" Wall
• Between 6"-8" Wall
• More than 8" Wall, Custom size

Dimensions

3″ x 5″ x 3-1/16″ (76 x 127 x 78 mm)

Bobrick 1550 metro series plastic laminate free standing partition configuration, Plastic laminate overhead braced floor mounted stalls. Standard stalls 36" x 60"depth (24" door), ADA stall 60" x 60" depth (36" door). All hardware included. Doors are either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select (1) ADA 24", plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select (2) standard stalls and (1) ADA stall 24". Plastic laminate Partitions ship in 1 week.

Bobrick 1550 plastic laminate color chart

Bobrick 1550 Instructions

The Matte Black Hadrian Door Kit is designed to work with doors and pilasters that are 3/4" thickness. Hinges, Coat Hook and Latch Keeper are constructed of stainless steel and indicator latch is constructed of zamac with all having a matte black finish. The door kits comes with (2) Hinges, (1)Indicator Latch, (1) Latch Keeper, (1) Coat Hook and fasteners for installing. Hinges are field adjustable so door and swing in or out as well as right or left. Known as manufacturers part number 671000-BLK.

The Accurate Partitions Bottom Cam Bolt is used on Accurate Partition Corps. metal partition hinges.  This bolt is used on the bottom hinge, and the bolt is a  3/8-16 x 1" hex head.   The manufacture calls this part # 50-3113810.

Global partitions plastic laminate between 2 walls stalls for commercial businesses. Plastic laminate overhead braced floor mounted stalls are mostly used. Standard stalls are 36" x 60" depth (24" door), an Ada stall is 60" x 60" depth (36" door). All standard chrome hardware included. Doors can be either in or out swing and up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an Ada stall you must select 1 Ada 24 x 60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24 x 60. Plastic laminate Partitions ship in 2 business days.

Global Plastic Laminate color chart

Bobrick 1550 metro series plastic laminate in a corner partitions, Plastic laminate overhead braced floor mounted stalls. Standard stalls 36" x 60"depth (24" door), ADA stall 60" x 60" depth (36" door). All hardware included. Doors are either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select (1) ADA 24", plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select (2) standard stalls and (1) ADA stall 24". Plastic laminate Partitions ship in 1 week.

Bobrick 1550 plastic laminate color chart

Bobrick 1550 Instructions

Accurate Partitions Stainless Steel Ada Alcove Compartments. Stainless steel overhead braced floor mounted stalls are most commonly used. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. Standard chrome plated alloy hardware included. All toilet stalls ship in 48-72 hours plus 2-4 days travel. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate color chart

Accurate Instructions

Accurate stainless steel free standing stalls floor mounted overhead braced stalls with a smooth surface. Standard stalls are 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate color chart

Accurate Instructions

Bobrick 1550 metro series plastic laminate Ada Alcove partition configuration, Plastic laminate overhead braced floor mounted stalls. Standard stalls 36" x 60"depth (24" door), ADA stall 60" x 60" depth (36" door). All hardware included. Doors are either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select (1) ADA 24", plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select (2) standard stalls and (1) ADA stall 24". Plastic laminate Partitions ship in 1 week.

Bobrick 1550 plastic laminate color chart

Bobrick 1550 Instructions

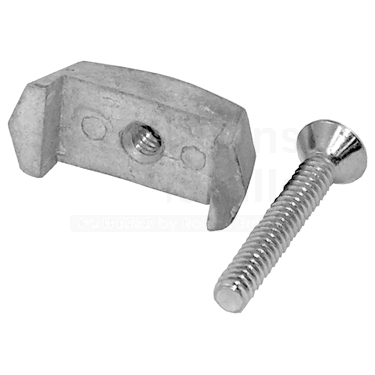

The Hadrian Toilet Partition Toggle & Screw is used to fasten the Sanymetal and Hadrian surface hinges to the pilaster post. Also known as toggle bolts for tying hinge to pilaster on the edge.
