Comtec Stealth Brackets for Integral Hinges 4 brackets included. These brackets help support the plastic pins used with the integral hinge pin system. These brackets help to reinforced the hinge pins so they do not break or the door breaking at the top and bottom.

The Hadrian Toilet Partition Top Hinge is considered a surface mounted hinge, as it mounts on the edge of the pilaster post.  They are constructed of Zamac die cast metal that is then chrome plated and polished.  The 9HH450 Toggle and Screw are not included with this hinge.   The manufactures part numbers are 601310 and 601300.

The Hiny Hider 8" Wrap Around Hinge Set is constructed of clear anodized aluminum and are used on 1" thick door and panels.  Used by every Bathroom Toilet Stall manufacture on Solid Plastic Toilet Partitions Doors.  Sometimes known as part numbers, 7978, 7988, 8974, and 8984. These hinges are reversible by taking the 3 pieces apart and reconfiguring the opposite swing.

The All American Toilet Partition Bottom Hinge is used on metal doors and is for use on round edged pilaster posts.  The manufactures part number is 103.  A=1-5/8".

Hadrian Door Kit includes Ada turn latches with hinges that wrap around the edge of the pilaster type. Cast stainless steel parts include wrap hinges, keeper bumper, ada turn latch, cover plate, pintle, nylon cam, double door pulls, top pin, coat hook with bumper and all security screws included. For Hadrian partitions in steel or stainless steel partitions only. This product manufacture number is 901010, replaces the 901000.

The Knickerbocker Partition Bottom Cam Housing Unplated is used at the bottom of the door for the hinges to mount to.  It measures 3-1/16" long by 1-1/8" wide and is constructed of Zamac die cast metal that is not plated.   The manufactures part number is 4636.

The Hadrian Partition Wrap Around Bottom Hinge is for use on 1-1/4" thick round edged pilaster posts.  They are constructed of Zamac die cast metal that is then chrome plated and polished. The manufacture part number is 601550.

The Accurate Toilet Partition Top or Bottom Hinge is for plastic laminate doors when attaching them to an 1-1/4" square edge pilaster or post.  The hinge mounts to the post to support the door. Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" deep with a slot depth of 1-5/16" and 1-1/2" between screws on center. Hinge lug projects out 1-11/16" and is 1/2" thick with a 5/8" diameter hole. Also known as a Bathroom Stall Pivot Hinge Top/Bottom 1-1/4". Manufacture part # 3540. Same as 9G631A on our website.

Partition Bathroom Stall Door Heavy Duty Piano Hinge 57-1/2", Left Hand In Swing, Right Hand Outswing is constructed of 14 gauge (0.75" thick) stainless steel.  The internal spring makes this a self closing hinge. This toilet partition door hinge is heavy duty with a 1/4" pin for extra strength. The hinge measures 3" laying flat by 57-1/2".  9" centers with 6 holes on each side.

Stainless Steel #14 x 5/8" Screw 6 Lobe(T-27), 7/16" diameter head, also known as 92199. This uses a Torx bit to drive screw.

Partition Door Piano Hinge W/Cover rh in/lh out 54" aluminum anodized is a heavy duty 1/4" pin with spring to close. this hinge has 5 holes on each side with 13" centers and starts at 1" from top and bottom. The cover makes the hinge holes not as noticeable. Also known as 8674.

#14 x 5/8" Screw 6 Lobe(T-27), Chrome, 7/16" diameter head, also known as 92193. This uses a Torx bit to drive screw.

Global Partitions Top Hinge For Flat Surface Mounting. Chrome plated Zamac die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Manufacturer part # 135580. Same part for Flush Metal and General Partitions. Shipped with mounting screws. A=1-7/6". Also used with Accurate Partition doors after January 2013.

The Global Partitions Top Hinge is for use on 1-1/4" thick round edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and then polished.  Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Also known as a Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3510.  Shipped with mounting screws.  A=1-7/6"

The General Top Hinge For 1-1/4" Square Edge Pilaster is for use on 1-1/4" square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a Fiat Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3790.  A=1-5/8"

The Fiat Toilet Partition Top Hinge is for use on 1-1/4" square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a Fiat Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3790.  A=1-5/8"

The Accurate Partition Bottom Hinge Flat Mount Chrome is used when mounting a door on a flat wall surface.  The hinge is constructed of die cast Zamac metal, that is then chrome plated and polished.  The diameter of the larger hole is 3/8".  We sometimes find the number 3210 on the back of the hinge.  A=1-1/2". Used with Accurate Partition doors prior to January 2013.

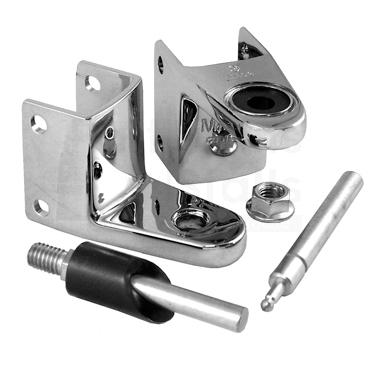

The Mills Toilet Partitions Top Bottom Hinge Set is for use on there 1-1/4" thick round edged pilaster posts.  The kit includes the top and bottom hinges along with the hinge pins and the security screws.  They are constructed of Zamac die cast metal that is then chrome plated and polished.  The manufacture part number is HDWT-Z01.

Accurate Partition Bottom Hinge Flat Mount Stainless Steel is used for a flat wall surface mount.  The hinge is constructed for cast stainless steel and brushed to the desired finish.  The hinge hole is 3/8" diameter, and the manufactures part # 3213.  A=1-1/2". Used with Accurate Partition doors prior to January 2013.

The Metpar Toilet Partitions Top Hinge is for use on there 1-1/4" thick square edged pilaster posts.  The outside dimensions of the U mounting channel are 1-1/4" deep by 2-1/4" high by 1-3/8" depth with a hole spacing of 1-1/2". The hinge lug projects out 1-1/2" by 1/2" thick with a bushing diameter of 3/8". They are constructed of Zamac die cast metal that is then chrome plated and polished.   Also known as a Metpar Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3930.  Shipped with mounting screws.  A=1-9/16".

The All American Toilet Partition Top Hinge is used on plastic laminate restroom stalls.  The hinges mounts on an 1-1/4" square edged pilaster post.  The part is constructed of die cast metal that is then chrome plated and polished.  The manufacture part number is 102PL.

The Hadrian Partition Wrap Around Bottom Hinge Cast Stainless Steel is for use on 1-1/4" thick round edged pilaster posts.  The manufactures part number is 601452.

#12 X 2" Screw 6 Lobe(T-27), Chrome, 1/2" diameter head, also known as a 91913. This uses a Torx bit to drive screw.

The General Toilet Partitions Bottom Hinge 1-1/4" Round Edge is for use on 1-1/4" thick round edged pilaster posts.   It is constructed on Zamac die cast metal that is chrome plated and polished.  Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Also known as a Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3010.  Shipped with mounting screws.  A=1-7/6".

Partition Door Integral Hinge Set Top & Bottom. The bottom pin is 4-7/8" high & the top pin 3" X 1/2" high. Most manufactures used this integral hinge pin set for solid plastic partitions. The Pilasters next to the door are cut out for this door to fit in it. The hinge pins break often due to swinging on the door which causes the pin to bend and breaks the door. Manufacture part #7005.

The All American Toilet Partition Bottom Hinge is for plastic laminate restroom stalls.  The hinge is constructed of a die cast metal that is then chrome plated and polished.  The part is for mounting on a  square edged 1-1/4" thick pilaster post.  The manufacture part number is 103PL.

The Global Toilet Partitions Bottom Hinge is for use on 1-1/4" thick round edged pilaster posts.   It is constructed on Zamac die cast metal that is chrome plated and polished.  Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Also known as a Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3010.  Shipped with mounting screws.  A=1-7/6".

#12 X 2-1/2" Screw 6 Lobe(T-27), Chrome, 1/2" diameter head, also known as a 91903. This uses a Torx bit to drive screw.

The Surface Mount Door Hinge Set RH In/ LH Out is for use on Right Hand In Swing and Left Hand Out Swinging doors.  They are self closing.  The hinges are constructed on stamped stainless steel that is then polished.  The package includes the top and bottom hinges and the mounting screws.  Hole spacing right to left 2-1/4", up and down 1-1/2",  overall 3" width by 2-1/2"height.  Also known as a toilet partition or bathroom stall gravity surface hinge set.  Manufacture part number is 7073.

The General Partition Bottom Hinge For 1-1/4" Sq Edge is for use on an 1-1/4" square edged pilaster post.   It is constructed of Zamac die cast metal that is then chrome plated and polished.  The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a Fiat Bathroom Stall Pivot Hinge Bottom 1-1/4". Also known as General, American Sanitary, Flush Metal, Fiat Tiolet Partition 9F0301, 9AM280, 9FL700.  Manufacture part # 3290.  Shipped with mounting screws.  A=1-5/8"

The Knickerbocker Toilet Partition Bottom Hinge is used on round edged 1-1/4" thick pilaster posts.  It features chrome plated Zamac die cast construction. The wrap around dimension is 1-1/4" wide by 1-3/4" high and 11-16" deep. The hole spacing is 1-1/8" on center. The lug projects out 1-3/8" to center hole with a 1/4" bushing diameter. Also known as a Bathroom Stall Pivot Hinge - Bottom 1-1/4". Manufacture part # 3420.  A=1-11/16"

The Hadrian Toilet Partition Top Hinge Pin is used to replace the old style hinge pin. If you have the old style you must also purchase the upper hinge. This hinge is used with the 9HH350, 9HH300, 9HH550, 9HH500 and also the Arch Hinges. The manufacturer's part number is 631400. This product uses a phillips head screwdriver, old style was a torx head. The dimensions are 3/8" diameter by 1-1/2" height.

Universal Stainless Steel Handing Hinge Surface mounted. This hinge is universal which means this can be in or out swing and right or left hinged. This hinge is 1/8" thick, overall width is 3" x 3-3/8" ht. The hole spacing is 2" x 1-1/2" up and down. The manufacturer's part number is 650-8241, 7199. Hardware included for 1" door and 1-1/4" thick post.

The One Ear Hinged Bracket , 3" by  2-1/2" by 1" is constructed of 16 ga (.050") thick for the hinge and 14 ga (.075") thick on the bracket, stainless steel.  The one ear hinged bracket is Riveted and welded together. Bracket is 3" high x 2-1/2" deep for a 1" panel. This bracket is ideal for applications were the Pilaster and Panels are not at a 90 degree angle. Also known as a Bathroom Stall Hinged Wall Bracket. Manufacture part # 111359.

The All American Toilet Partition Top Hinge is used on round edged pilaster posts.  It is constructed of die cast metal that is then chrome plated and polished.  The manufactures part number is 102.  A-1-5/8".

The Toilet Partition Top Hinge 1-1/4" Round Edge is constructed of Zamac die cast metal that is then chrome plated and polished.   This hinge is used on 1-1/4" thick round edged pilaster posts.  The outside dimensions of the hinge are 1-1/4" deep by 2-1/2" high by 1-7/16" wide. The U mounting channel is 2-1/8" high by 1-1/4" deep with a slot depth of 11/16". The mounting holes are 1-1/2" apart on center. The lug projects out 1-3/32" by 13/32" thick with a 3/8" diameter bushing. Also know as a Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 4530. Used on Ampco and Metpar Metal Partitions.  Shipped with mounting screws.  A=1-7/16"
