The Metpar Toilet Partition Bottom Door Insert For 7/8" Door is constructed of Zamac die cast metal and then chrome plated.  The door insert measures 2-5/16" wide by 1" wide by 1-3/16" high. The hex shaped hole is 5/8" and the round hole is 7/32" diameter. The material or rim is 5/16" high. Also known as a Bathroom Stall Door Insert Bottom 7/8". Manufacture part # 1530.

Partition Door Pull 3-1/2" Between Screws Chrome Plated

Chrome plated Zamac die cast construction. The pull measures 4-3/4" wide and projects 1" with a hole spacing of 3-1/2". The mounting holes are threaded for a 10-24 screw. Also known as a Bathroom Stall Door Pull. Manufacture part # 5400.

Partition Door Pull 5" Between Screws Stamped Stainless Steel

Stamped stainless steel construction, 3/32" thick. The door pull measures 5-21/32" wide by 5/8" high by 1-11/16" projection with a 5" on center hole spacing. Also known as a Bathroom Stall Door Pull. Manufacture part # 6419.

Shipped with mounting screws.

The Toilet Partition Continuous Hinge Stainless Steel, 54", 1/4" Pin is 54" long by 3" wide with a pin diameter of 1/4".  They are constructed of 14 gauge (.075" thick) stainless steel.  Holes are spaced every 13" and are 9/32" diameter and has 5 sets of holes. The hinge is self closing by a cam action, which is made possible by angle cuts on the continuous hinge leafs.Cam features Zero Degree Closing. Can be raised up 3/8" for emergency entry. This hinge is also known as a Bathroom Stall Full Length Continuous Hinge. This hinge is non handed. This piece features a cam, which makes it self closing.  Manufacture part # 130209,7599, 125319, 650-9402. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside. This hinge is known as 7599.

Accurate Toilet Partition Free Standing Stalls in Powder Coated Steel. Also known as Baked Enamel Partitions. Overhead braced floor mounted stalls. Standard stalls are 36"x 60" depth (with 24" door), ADA stalls are 60"x60" depth (ADA with 36" door). All brackets, door kits, headrails and brackets are included to install properly. Doors can be either an in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate Steel Color chart

Accurate Steel Instructions

Chrome plated inswing door kit for square edge doors and posts. For 1" doors and 1" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 11300.

Global partitions complete solid phenolic material alcove partitions with overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel divider to make up the balance. Doors can be either in or out swing you choose. Standard stainless steel hardware included. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel.
Global Solid Phenolic Color Chart

Accurate Partitions Stainless Steel Ada Alcove Compartments. Stainless steel overhead braced floor mounted stalls are most commonly used. Alcove stall includes 36" door, 2 pilasters and panel. Doors can be either in or out swing. Standard chrome plated alloy hardware included. All toilet stalls ship in 48-72 hours plus 2-4 days travel. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate color chart

Accurate Instructions

C-Fold, Multi Fold Towel Dispenser and Waste Receptacle
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
12 gallon waste receptacle
15"w x 54"h x 4"d

Cast stainless steel outswing door kit for square edge doors and posts. For 1" doors and 1" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 21343.

C-Fold, Multi-Fold Paper Towel Dispenser
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
13"w x 26"h x 4"d

C-Fold, Multi-Fold Paper Towel Dispenser
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
13"w x 26"h x 4"d

Door Stop, Pilaster Mounted, 2-1/2" X 4-1/4", Stainless Steel.

Cast Stainless Steel construction. The door stop base is 3" wide by 1-1/4" high with a 2-5/16" hole spacing. The stop projects out 2-1/2" and has a rubber insert in it. This door stop is usually mounted on the pilaster or post. Also known as a Bathroom Stall Door Stop. Manufacture part # 4153.

The Toilet Partition Top Hinge Door Escutcheon For 7/8" Thick Doors has chrome plated Zamac die cast construction. The outside dimensions of the escutcheon are 1" deep by 1-5/8" high by 2-3/8" wide with two of the three holes with a diameter of 5/16" and one at 7/32". The inside dimensions of the U are 1" high by 2-1/16" wide. Also known as a Bathroom Stall Door Insert - Top 7/8". Manufacture part # 2740. Used on Metpar and AMPCO Toilet Partitions.

The Bottom Hinge Assembly Cast SS is for use on 7/8" thick doors and 1-1/4" thick square edged pilaster posts.  The hinge is constructed of cast stainless steel, that is then brushed to the proper finish.  The kit includes bottom hinge, pintle, pin, insert and mounting screws.  Also known as a Bathroom Stall Bottom Pivot Hinge Set. Manufacture part # 63013

The Sanymetal Toilet Partition Door Stop is constructed of Zamac die cast metal that is then chrome plated and polished.   The strike and keeper measure 2-1/2" high by 1-7/8" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing Flat. Manufacture part # 5170.  Shipped with mounting screws.

Global Partitions Ordering Online Solid Phenolic Doors are all Solid Phenolic color thru or black core Partitions manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Includes SS Vault Hinges, latching and keeper bumper. 58" ht Doors***
Global Solid Phenolic Color Chart

C-Fold, Multi Fold Towel Dispenser and Waste Receptacle
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
12 gallon waste receptacle
15"w x 54"h x 4"d

The Chrome Plated Bottom Hinge Assembly For 7/8" Door, 1-1/4" Pilaster if for use on 7/8" thick doors and 1-1/4" thick squared edged pilaster posts.  Hinge is constructed of Zamac die cast metal that is chrome plated and polished.  Kit includes Bottom Hinge, Pintle, Nylon Cam, Bottom Hinge Door Insert and mounting Screws. Bottom hinge measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Mounting lug projects out 1-1/4". Also known as a Bathroom Stall Bottom Hinge Kit. Manufacture part number 63010.

The Flush Metal Partition Bottom Door Insert is for 7/8" thick doors and is constructed of Zamac die cast metal and then chrome plated.  The door insert measures 2-5/16" wide by 1" wide by 1-3/16" high. The hex shaped hole is 5/8" and the round hole is 7/32" diameter. The material or rim is 5/16" high. Also known as a Bathroom Stall Door Insert Bottom 7/8". Manufacture part # 1530.

Partition Door Hook & Bumper Stop Inswing Stamped Stainless Steel

Stamped stainless steel 1/16" thick construction. The hook and stop measures 5/8" wide by 2-3/4" high by 3-1/16" projection with a 1" hole spacing. There is a rubber bumper on the end of the 3-1/16" projection. Also known as a Bathroom Stall Hook. Manufacture part # 4009

Compact high-speed hand dryer for applications where less space is available. 5-year warranty. 9-25/32" W x 6-5/8" H x 5-7/16" D
FEATURES

• Quick drying — less than 15 seconds
• Operates automatically using infrared sensor
• Auto-resetting thermostat
• 60-second automatic shut off
• Cover fabricated of heavy-duty, one-piece-formed stainless steel

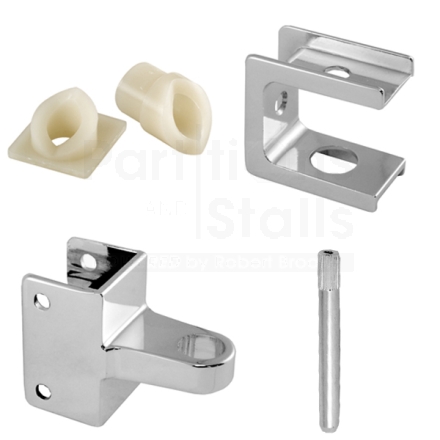

Accurate and Global partitions door hinge kits for plastic laminate partitions. The top and bottom hinge kits are the exact same. The door kit includes the hinge, hinge pin, door insert, plastic cam set and all the security screws to install. This part is also known as 63160. The hinge mounts to a pilaster with 1-1/4" thickness, the doors are 1" thick.

Partition Bottom Hinge Assembly For 1" Door, 1-1/4" Post is for use with 1-1/4" thick square edged pilaster posts and 1" thick doors.  Bottom hinge measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Mounting lug projects out 1-1/4". The package includes bottom hinge, pintle, nylon cam, bottom hinge door insert and mounting screws.  The hinge is constructed of Zamac die cast metal that is chrome plated and then polished.  Also known as a Bathroom Stall Bottom Hinge Kit. Manufacture part number 63710.

Heavy-duty 9/64" staked piano hinge adds to the robust construction. Drawn one piece seamless door of 22 gauge type 304 stainless steel with a satin finish. 1 gal. (3.7 L) waste capacity. wall opening 11-3/8"tall x 9-5/8"wide x 4"deep.

Double sided door pulls in a chrome finish. The overall width is 4-3/4" x 1" deep. The center screws are 3-1/2". This manufacturer number is 54400. This kit includes both handles and screws for 1" thick doors.

Partition Door Kit Inswing 1" Door & Post Cast Stainless Steel. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 11303.

Roval Paper Towel Dispenser & Removable Waste Receptacle. Dispenses 350 C-fold, 475 multi-fold paper towels. 2.96 gal. (11.2 L) removable stainless steel waste receptacle with a tumbler lock. 22 gauge type 304 stainless steel door in a satin finish with a flush lock and a heavy-duty 3/16" staked piano hinge on door. Wall Opening: 12 3/4" W x 26 1/2" H x 4 1/4" D

Nova 1 Plug-In provides a 3 prong 6’ cord to give consumers some flexibility on placement of unit. Designed for 110-120v ground outlets with 3 prongs and with the unit measuring 9”x9.7”x4.2”, it makes this a compact and easy unit to install. Known as World Dryers part number WHD-883.

• Economic/Entry Level Dryer
• Automatic Operation Infrared Sensor
• Surface Mounted
• Low Sound Level
• Compact Design
• Durable Die Cast Aluminum with White Epoxy Enamel Finish
• 110-120v
• Provided with 6’ cord.
• 2 yr Limited Warranty

Restroom Door Kit Inswing 7/8" Door & 1-1/4" Post Cast SS. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 17803.

The Toilet Partition Slide Bolt Latch 3/8" Bar To Door Clearance is constructed of Zamac die cast metal that is chrome plated and then polished.  Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 5/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5060.  Shipped with mounting screws.

The Fiat Toilet Partition Top Door Insert is constructed of Zamac die cast metal that is chrome plated and then polished.  The hinge U insert has outside dimesions of 2-3/16" wide by 1-1/2" by 1" deep with tow holes 1/2" diameter. The inside distance between the U's is 1-1/16". Also known as a Fiat Bathroom Stall Door Insert Top 1". Manufacture part # 4800.
