 Continuous Hinge Stainless Steel, is 71-1/2" long by 3" wide, and is for use on Right Inswing, Left Outswing restroom stall doors.  The hinge is constructed of 16 gauge (.060" thick) stainless steel and the screws are placed every 11" or so.  The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.  Manufacture part # 7759

Toilet Partition One Ear Wall Bracket For 1" Panel Cast Stainless Steel

Cast stainless steel construction. Base of the bracket is 2" x 1-1/2", with 1-1/2" hole spacing. Bracket legs project out 2-1/2" with the screws at 2-1/8" on center from the base. The four holes are 1/4" diameter. Also known as a Bathroom Stall One Ear Wall Bracket or One Ear 1". Manufacture part # 1763.

Shipped with mounting screws.

The Partition Keeper Bumper 1-1/4" Round Edge is constructed of Zamac die cast metal that is then chrome plated and polished.  Keeper is 1-1/4" tall by 2-3/8" wide by 2-9/16" deep. The strike is a17/32" thick and the slot is 1/4" deep. The opening to mount it on the round edge pilaster or post is 1-1/4" by 1-1/4" Also known as a Bathroom Stall Strike and Keeper for Inswing 1-1/4". Manufacture part # 5580.  Shipped with screws for mounting.

The Continuous Hinge Stainless Steel 57-1/2" long, is for use on Left Hand Inswing, Right Outswing restroom stall doors. The hinge is constructed of 16 gauge (.060" thick) stainless steel with 4 springs. It measures 3" wide when laid flat x 57-1/2" long with a 1/8" diameter hinge pin. Mounting screws are located every 11" or so. Can be raise up 3/8" for emergency entrance and springs allow the door to seft close. Also known as a Bathroom Stall Piano Hinge, or Full Length Stainless Steel Continuous Piano Hinge. Manufacture part # 7669.  Shipped with all the fasteners.

Lh Inswing or Rh Outswing See Diagram

Kit includes rod with exposed flanges.

Flanges fabricated of 20ga. stainless steel with a satin finish. Flanges have (3) countersunk 13/64" dia. holes to accept #10 flat or oval head screws furnished by others.

Rod is installed in straight section between two (2) mounting flanges. Rods longer than 42′′ require ceiling hanger Model No 1204-C18.

For use with standard shower curtain model No ’s 1200 or 1200-V having 42′′ length and standard hooks Model No 1200-SHU unit should be installed with rod centerline 74-1/2′′ AFF or 67′′  above tub rim to obtain 6′′ bottom overlap.

Concealed Partition Latch Keeper Bumper 1-1/4" Square Edge Cast Stainless Steel

Cast stainless steel construction. The keeper and strike is 2-1/2" tall by 1-7/8" wide. The stop is 17/32" thick and projects out 3/4". The mounting holes are 1-1/2" on center. The locking slot is 7/16" deep. Generally used with concealed latches. Also known as a Bathroom Stall Strike and Keeper - Inswing/Outswing 1-1/4". Manufacture part # 5233.

Shipped with mounting screws.

Toilet Partition Double "H" Alcove Bracket Aluminum For 1" Panel to 1" Pilaster

Constructed of extruded anodized aluminum. Bracket is 2-1/2" high, 1-1/4" wide and 3" deep. Mounting thru holes 1-1/2" on center. The legs project out 1-3/16". Designed for 1" thick panels to 1" thick pilasters. This bracket is also known as a Double H Wall Bracket, Alcove Double H Bracket, Toilet Partition Double H Wall Bracket, or Bathroom Stall Alcove Double H Bracket. The manufacturers part number is 1734. The bracket ships with all the required fasteners.

Partition Headrail Bracket for 1 1/4" Headrail

Chrome plate Zamac die cast construction. The overall measurements of the bracket are 3-3/32" wide by 1-19/32" high by 1" deep with a hole spacing of 2-3/8". The spread for the headrail is 1-7/16" wide by 1-19/32" deep. Also known as a Bathroom Stall Headrail Bracket. Manufacture part # 2170.

Shipped with screws.

Toilet partition square edge pilaster shoe split, stamped stainless steel construction. Pilaster Shoe measures 2" to 24" wide by -1-1/4" thick by 3" high. This size pilaster post shoe is split on one end for easy installation. Also known as a bathroom stall pilaster post shoe square edge. Used for the base of the support system with floor mounted pilaster.

SLIMdri hand dryer’s uses up to 70-80 % less energy and up to 40% faster dry time than competitive surface mounted ADA dryers. Its compact and low-profile design makes this an ideal dryer for small and limited space areas. White Cover is made of Cast Aluminum and Brushed is made from Stainless Steel. Known as World Dryers part numbers L-973A and L-974A.

• Finish: White and Brushed Stainless Steel
• Universal Voltage: Uses smart technology to adapt to almost any facilities voltage. Voltage extends from 110-240v(Min. 15 Amp Recommended).
• ADA Complaint, designed to protrudes less than 4” away from wall ensuring walkway and pathway clearance.
• Touchless operation offers a More Hygienic Experience
• Utilizes Anti-microbial technology on treated surfaces to protect from bacteria, mold and fungus growth that can cause staining, odors and product deterioration.
• On/Off Heat Switch
• Auto Infrared Sensor 3 second run-on time and 60 second vandal shut-off.
• Unit Size: 10-11/16”x12.25”x3.9”
• Durable and Vandal Resistant
• 10 yr Limited Warranty, 5 yr Motor and Sensor

Toilet Partition Top & Bottom Hinge Assembly For 1" Door, 1-1/4" Pilaster Square Edge. Polished chrome plated zamac die cast construction. Kit includes Bottom & Top Hinges, Pintle, Nylon Cam, Top Pin and Bottom & Top Hinge Door Inserts. Hinges measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Manufacture part number 63130 kit. The top hinge wall to center of the 3/8" diameter hole is 1-1/4" which is known as a 3790 hinge. The bottom hinge wall is also 1-1/4" to the center of the 5/16" hole and known as 3290 hinge. The Top Pin is 3/8" x 3-1/2". Screws are also included.

Chrome Plated Toilet Partition Keeper Bumper For 1-1/4" Round Edge Post

Polished chrome plated Zamac construction. The strike and keeper measure 1-1/4" high by 2-3/8" wide by 1-3/4" deep. The stop is 1/2" thick and projects out 1-1/8". The slot is 7/16" wide by 5/8" high. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing 1-1/4". Manufacture part # 5590.

Shipped with mounting screws.

The Partition Slide Bolt Latch is constructed of Cast Stainless Steel and has a Hole Spacing 1-3/4" X 1-1/2" center to center.  The latch base is 2-31/32" wide by 1-15/16" high and projects 1-1/8" high. The hole spacing is 1-3/4" wide by 1-1/2" high. The four mounting holes have a diameter of 1/4". The Slide Latch base is 1/4" thick. The latch bolt is 7/8" wide by 3-7/16" long. This toilet stall latch is used on Accurate Partition Corp and Mills Partitions. Also known as a Bathroom Stall Slide Latch. Manufacture part # 6983.  This product is shipped with mounting screws.

The Coat Hook & Bumper Cast SS 2-3/4" Projection x 2-1/4" High is mainly used on Hadrian Manufacturing Partitions.  The hook is constructed of cast stainless steel and measures 2-1/4" high with a projection fo 2-3/4".  The manufacture part number is 601900-700.

The Partition Bottom Hinge Assembly Cast Stainless Steel is for use on 1" Door and 1-1/4" thick square edged Pilaster Posts.  They are constructed of cast stainless steel.  Set includes bottom hinge, pin, door insert and mounting screws. Also known as a Bathroom Toilet Stall Bottom Hinge Kit. Manufacture part #63033.

Partition Two Ear Bracket Cast SS 1" Panel 1-1/2" X 2-1/2"

Cast stainless steel construction. Base is 1-1/2" x 4" with 3" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 1". Manufacture part # 1753

Shipped with mounting screws.

The Toilet Partition Coat Hook & Bumper 2-3/4" Projection x 2-1/4" High is mainly used on Hadrian Manufacturing Partitions.  The hook is constructed of Zamac die cast metal that is then chrome plated and polished. And measures 2-1/4" high with a projection of 2-3/4".  The manufacturer part number is 601900.

Toilet partition continuous door stop for powder coated steel partitions, this has a slight round edge for attaching. The length is 57" and is used on a 1-1/4" slight round edge pilaster for mounting. Used with 1" doors and has a concealed turn latch with the pin coming out the center edge of the door. The hole spacing for the slot is 28-1/2" dead center of unit. The slot for the bolt to lock to is 7/16" wide x 5/8"ht. This helps with blocking the door gaps on the locking side of the door. This is made of brushed aluminum material and is used with in or out swing doors. Also known as Hadrian partitions part number 560058.

Toilet Partition Continuous One Ear Wall Bracket For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 3/4" for 3/4" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 650-4031. These brackets are shipped with all the needed fasteners.

Toilet Partition Continuous Hinge 54" With 20 Degree Cam Close Stainless Steel. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

Stainless Steel Construction, 14 gauge (.075" thick). Hinge is 3" wide when laid flat, by 54" long. Holes are spaced every 13" and are 9/32" diameter and 5 sets of holes. The hinge is self closing by a cam action, which is made possible by angle cuts on the continuous hinge leafs. Cam features 20 Degree Closing for ADA Doors. Can be raised up 3/8" for emergency entry. This hinge is also known as a Bathroom Stall Full Length Continuous Hinge. This hinge is non handed. Manufacture part # 130219, 7598, 125319, 650-9402.

Concealed Partition Latch Keeper Bumper 1-1/4" Post Round Edge Cast Stainless Steel

Cast stainless steel construction. Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5513.

Shipped with mounting screws.

7/16" X 3/4" SLOT

Alcove One Ear Bracket Panel Kit for 1/4" Offset. This kit is used for panel to pilaster 1/4" offset and for 1" panel to wall bracket cast stainless steel plated. Security screws included. Also known as 615363.

Concealed Partition Latch Keeper Bumper Outswing 1-1/4" Square Edge Cast Stainless Steel

Cast stainless steel construction. Keeper is 1-1/4" tall by 2-3/8" wide by 1-13/16" deep. The strike is 1/2" thick with rubber insert. The opening to mount it on the square edge pilaster or post is 1-1/4" by 1-1/4" Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5973.

Shipped with screws for mounting.

One Ear Pilaster Bracket Kit for 1-1/4" Post are available for quick deliveries and chrome plated. Includes security screws for installation. Also known as 615230.

ASI Roval cast iron hand dryers offers many features, Quick Dry (Under 25 Secs), No Touch (Energy Efficient), Universal Voltage (100-240 VAC & 50/60 Hz), Only Available in White, Cover made from ¼” Thick Heavy Duty Cast Iron, ADA Compliant, Durable yet Modern Design. Dimensions are 15-3⁄32"W x 11-7⁄32"H x 3-15⁄16"D (383 x 285 x 100 mm).

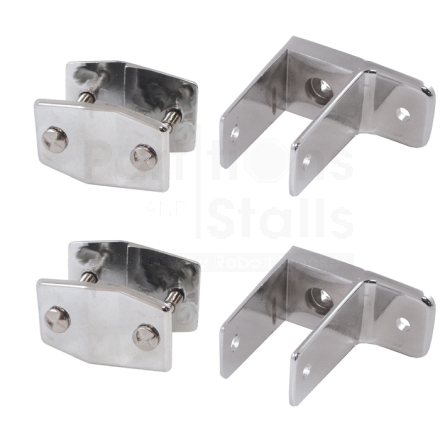

Alcove One Ear Bracket Panel Kit for 1/4" Offset. This kit is used for panel to pilaster 1/4" offset and for 1" panel to wall bracket chrome plated. Security screws included. Also known as 615360.

The One Ear Hinged Bracket Stainless Steel , measures 3" high by 2-1/2" deep by 1-1/4" and is designed for an 1-1/4" thick panel.  Hinge is 16 ga (.060") thick, Bracket is 14 ga (.075") thick. The one ear hinged bracket is Riveted and welded together.  This bracket is ideal for applications were the Pilaster and Panels are not at a 90 degree angle. Also known as a Bathroom Stall Hinged Wall Bracket. Manufacture part # 111369.

The General Toilet Partitions Keeper Bumper For 1-1/4" Outswing Sq Edge is for use on square edged 1-1/4" thick pilaster posts.  The keeper is constructed of Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for out swinging doors. Also known as a Bathroom Stall Strike and Keeper-Outswing 1-1/4". Manufacture part # 5210.  Shipped with mounting screws.

Continuous Hinge Stainless Steel, is 71-1/2" long by 3" wide, and is for use on Right Out Swing, Left In swing restroom stall doors.  The hinge is constructed of 16 gauge (.060" thick) stainless steel and the screws are placed every 11" or so.  The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.  Manufacture part # 7769

The Toilet Partition Coat Hook 3" Projection X 1-3/4" High is constructed of chrome plated Zamac die cast metal.  The hook base measures 1-3/16" wide by 1-9/16" high. The long hook projects out 3" and the short hook projects out 1-1/2". Also known as Bathroom Stall Hook. Manufacture part # 4020.  Same as our part # 9AM350.

The Partition Outswing Keeper Bumper 1-1/4" Post Sq Edge is constructed of Zamac die cast metal that is then chrome plated and polished.  Keeper is 1-1/4" tall by 2-3/8" wide by 1-13/16" deep. The strike is 1/2" thick with rubber insert. The opening to mount it on the square edge pilaster or post is 1-1/4" by 1-1/4" Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5970.  Shipped with screws for mounting.

The Toilet Partition Surface Mounted SS Hinge Set  are for use on Left Hand Out Swing and  Right Hand In Swinging Doors.  They feature 1/8" thick stainless steel construction.  Outside hinge measurements are 3-1/4" wide by 2-29/32" high. 1-1/2" hole spacing up and down, and 2-3/8" right to left hole spacing. The four mounting holes are 1/4" diameter. This hinge set includes the top and bottom hinges. Also known as Bathroom Stall Gravity Hinge Set. See "More Views" for the handing diagram. Manufacturer part # 7113.  Mounting screws are included.

The Top Hinge Assembly Cast SS is for use with 1" Doors, and 1-1/4" thick square edged pilaster posts.  The hinge is constructed of cast stainless steel that is then brushed to the proper finish.  The set included the top hinge, pin, door insert and mounting screws.  Also known as a Bathroom Toilet Stall Top Hinge Kit. Manufacture part #63043.

The Metpar Toilet Partitions Bottom Hinge 1-1/4" Sq Edge is for use on square edged 1-1/4" thick pilaster posts.  The bottom hinge U channel measures 1-1/4" deep by 2-1/4" high with an insert depth of 1-5/16". The hole spacing is 1-1/2" between screw holes. The hinge lug projects out 1-9/16" by 1/2" thick with a 5/16" diameter hole. They are constructed of Zamac die cast metal that is then chrome plated and polished.   Also known as a Metpar Bathroom Stall Pivot Hinge - Bottom 1-1/4". Manufacture part # 3430.  Shipped with mounting screws.  A=1-9/16".

The Continuous Hinge Stainless Steel, 54"  is for use on Right Hand Outswing/ Left Hand Inswing restroom stall doors.  The hinge is constructed of 16 gauge (.060" thick) stainless steel.  The piece is 3" wide when laid flat, by 54" long. Holes are 9/32" diameter, spaced every 10-1/4" or so. Hinge can be raised up 3/8" for emergency entry. Hinge pin is 1/8" diameter. There is an internal spring to make this hinge self closing.  This Continuous Hinge is for Right Hand Outswing, and Left Hand Inswing, see handing diagram under "More Views". Also known as a Full Length Bathroom Stall Continuous Hinge. Manufacture part # 7969.
