Search results for: 'base partition for a fold tables'

If your toilet partition (bathroom stall) wall bracket is stamped 1630, then chances are you have the Two Ear Wall Bracket for 7/8″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3-1/2″ long with 2-3/4″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket.

Partition One Ear Wall Bracket For 7/8" Panel Cast Stainless Steel

Cast stainless steel construction. Base of the bracket is 2" x 1-1/2", with 1-1/8" hole spacing. Bracket legs project out 2-1/2" with the screws at 2-1/8" on center from the base. The four holes are 1/4" diameter. Also known as a Bathroom Stall One Ear Wall Bracket or One Ear 7/8". Manufacture part # 1653.

Shipped with mounting screws.

The Ampco Toilet Partition Coat Hook Bumper is constructed of Zamac die cast metal and then chrome plated.  Coat hook bumper projects out 3" and has a rubber insert. The hook projects out 1-7/32". The coat hook bumper base is 1-7/16" wide by 2-1/4" high with a hole spacing of 7/8". Also known as a Bathroom Stall Hook. Manufacture part # 4000.

Toilet Partition Continuous U Bracket For 1" Thick Panels Aluminum

Constructed of extruded anodized aluminum. Base is 1-5/16" wide by 54" long, with screw holes every 13" or so. The legs project out 1-3/8" with the thru hole at 1" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous U Bracket. The manufacturers part numbers are 2794, 650-1968, 650-1968-54 and U Channel 1 x 54. These brackets are shipped with all the needed fasteners.

The Fiat Toilet Partition Coat Hook Bumper is constructed of Zamac die cast metal that is then chrome plated and polished.  Coat hook bumper projects out 3" and has a rubber insert. The hook projects out 1-7/32". The coat hook bumper base is 1-7/16" wide by 2-1/4" high with a hole spacing of 7/8". Also known as a Bathroom Stall Hook. Manufacture part # 4000.

Toilet Partition Continuous Two Ear Wall Bracket For 1"Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3-3/4" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous Two Ear Wall Bracket. The manufacturers part numbers are 2344, and 650-4029. These brackets are shipped with all the needed fasteners.

Toilet Partition Wall Bracket One Ear For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3" high by 2-5/8" wide with the mounting holes 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The 8 holes are 1/4" diameter. All wall thicknesses are 1/8". This bracket is sometimes known as a Bathroom Stall One Ear Wall Bracket, or Toilet Partition One Ear Wall Bracket. The manufacturers part number is 2274 and 650-1848. This bracket ships with all the needed fasteners.

The Toilet Partition Slide Bolt Latch 3/8" Bar To Door Clearance is constructed of Zamac die cast metal that is chrome plated and then polished.  Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 5/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5060.  Shipped with mounting screws.

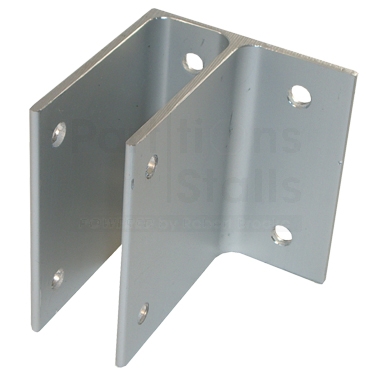

Toilet Partition Bracket Two Ear For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 1-1/2" high by 3-3/4" wide, with mounting screws at 2-3/4" on center. Legs project out at 2-3/4" with the thru hole at 2-1/2" for the back of the base. The legs are 1" apart. Also known as a Bathroom Stall Two Ear Wall Bracket and Toilet Partition Two Wing Wall Bracket. The manufacturers part numbers are 1754, 650-1839, and 40-8445210. Bracket is shipped with all the fasteners.

The Sanymetal Toilet Partition Keeper 2" Between Screws is constructed of Zamac die cast metal that is then chrome plated and polished.   Keeper base is 3" high by 1-1/16" wide with a 2" hole spacing. Strike is 3" tall by 7/8" deep. The material 1/8" thick. The slot is 1-1/8" high by 1/4". Also known as a Bathroom Stall Keeper Inswing Flat. Manufacture part # 5130.  Shipped with mounting screws.

Toilet Partition Two Ear Wall Bracket For 1 1/4" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 4" with 3" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 1". Manufacture part # 1833

Shipped with mounting screws.

The Partition Keeper For Throw Latch is for use on inswinging doors.  Keeper base is 2-1/2" high by 1-3/16" wide with a 1-1/2" hole spacing. Strike is 2-1/2" tall by 7/8" deep. The material 1/8" thick. The slot is 13/16" high by 1/4".  They are constructed of Zamac die cast metal that is then chrome plated and polished.   Also known as a Bathroom Stall Keeper Inswing Flat. Manufacture part # 5180.  Shipped with mounting screws.

Chrome Plated Toilet Partition Flat Stop Keeper

Polished chrome plated Zamac construction. The keeper base is 2-1/2" tall by 1-3/32" wide. The latch face measures 2-1/2" tall with a 7/8" projection. The hole spacing is 1-1/2". The slot measures 5/16" by 1-9/16". Also known as a Bathroom Stall Keeper-Inswing Flat. Manufacture part # 5160.

Shipped with mounting screws.

Toilet Partition two ear pilaster bracket kit for 1-1/4" thick material. This brackets base is 1-1/2″ wide x 4″ long with 3″ center to center hole spacing and comes out from the wall 2-1/2". The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. Brackets are Included with security screws for installation. Also known as 615220.

Toilet Partition Urinal Screen Bracket Chrome Plated

Constructed of polished chrome plated zamac die cast. The wall mounted base is 7" across with 6" center to center screw holes. The bracket projects out 12" and the two thru holes are 7" on center. The bracket is designed for use on 1" thick panels or urinal screens. The 6 holes are 1/4" diameter. This bracket is sometimes called the 2700 Wing Bracket, 650-6440 Wing Bracket, Urinal Screen Bracket, Urinal Screen Wing Bracket, Bathroom Stall Wing Bracket, or Toilet Partitoin Screen Bracket

Toilet Partition One Ear Wall Bracket For 1" Panel,Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-13/32" with the mounting screws are 1-15/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1769.

Shipped with screws

ASI EZ Shoe is designed to anchor directely to the floor. Made for Global Partitions and Accurate Partitions restroom stall. This allows for the pilaster to sit inside the shoe. Constructed of #304 Stainless Steel and 3" height. The ASI EZ Shoe comes in round or square edge design. Round Edge shoes are configured for Solid Plastic (1" Thick), Powder Coated Steel and Stainless Steel (1-1/4" Thick) partition pilasters. Square Edge is designed for Plastic Laminate (1" Thick) and Phenolic (3/4" Thick) partition pilasters. ASI EZ Shoes come with all hardware for anchoring shoe to floor and screws for attaching pilaster shoe to pilaster. Pilaster shoes are the base support for partitions.

Toilet Partition One Ear Wall Bracket For 3/4" Panel Cast Stainless Steel

Cast stainless steel construction. Base of the bracket is 2" x 1-1/2", with 1-1/8" hole spacing. Bracket legs project out 2-1/2" with the screws at 2-1/8" on center from the base. The four holes are 1/4" diameter. Also known as a Bathroom Stall One Ear Wall Bracket or One Ear 3/4". Manufacture part # 1643.

Shipped with mounting screws.

If your toilet partition (bathroom stall) wall bracket is stamped 1750, then chances are you have the Two Ear Wall Bracket for 1″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3-15-16″ long with 3″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket.

If your toilet partition (bathroom stall) wall bracket is stamped 1830, then chances are you have the Two Ear Wall Bracket for 1-1/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3-15-16″ long with 3″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket, they can be ordered on our website.

The Hiny Hider Aluminum Slide Bolt Latch 3-1/2" Screws is usually used on Solid Plastic (HDPE) Toilet Partitions.  Base is 4-1/2" tall by 2" wide by 1/8" thick. Latch bolt is 3-1/8" long by 1" wide by 1/4" thick, and has a 1" throw. The latch bolt is 9/16" from the bottom of the base to the under side of the latch bolt. Also known as a Bathroom Stall Aluminum Slide Bolt Latch and Toilet Partition Locks. Clear anodized aluminum construction.  The manufacture part #'s are 4988, 650-4051, 650-8543 and HLSLA.  This latch ships with the mounting screws.

Toilet Partition Two Ear Wall Bracket For 1" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-11/16" with the mounting screws are 2-15/16" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1759.

Shipped with screws

Toilet Partition Two Ear Wall Bracket For 3/4" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 3" with 2-7/32" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 3/4". Manufacture part # 1623

Shipped with mounting screws.

Coat Hook & Bumper 3-1/8" Projection X 2-1/8" High Cast Stainless Steel Construction

Cast stainless steel construction. Coat hook bumper projects out 3" and has a rubber insert. The hook projects out 1-7/32". The coat hook bumper base is 1-7/16" wide by 2-1/4" high with a hole spacing of 7/8". Also known as a Bathroom Stall Hook. Manufacture part # 4003.

Partition Inswing Surface Keeper 1-1/2" Between Screws Cast Stainless Steel

Cast stainless steel construction. The keeper base is 2-1/2" tall by 1-3/32" wide. The latch face measures 2-1/2" tall with a 7/8" projection. The hole spacing is 1-1/2". The slot measures 5/16" by 1-9/16". Also known as a Bathroom Stall Keeper-Inswing Flat. Manufacture part # 5163.

Shipped with mounting screws.

Partition Bracket One Ear Aluminum 1 1/4" Panel, 3" H X 2-3/4" L

Toilet Partition Continuous One Ear Wall Bracket For 1" Panel x 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 57" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2339.

Toilet Partition Continuous Two Ear Wall Bracket For 1" Panel X 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 57" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 14" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2349.

Toilet Partition Continuous Two Ear Wall Bracket Forl 1" Panel X 41" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 41" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2609.

The Partition Slide Bolt Latch Stainless Steel 3/8" Bar To Door, 2-3/4" Screws is constructed of cast stainless steel.  The latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/4" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 3/8" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5033.  Shipped with mounting security screws.

The Toilet Partition ADA Throw Latch & Keeper Chrome Plated is constructed of brass that is chrome plated and polished.  This heavy duty latch has a base that is 2" by 2" and is 3/16" thick. The throw latch is 5-7/16" long by 1-1/4" by 7/32" thick. The keeper is 2" by 2" by 21-32" high. Meets ADA codes in most States. Also known as a Bathroom Stall Heavy Duty ADA Throw Latch and Keeper and Toilet Partition Locks. Manufacture part # 5701.  Shipped with mounting screws.

The Partition Slide Bolt Latch 9/16" Bar To Door clearance is constructed of Zamac die cast metal that is then chrome plated and polished.   Base is 3-3/8" high with 2-5/8" hole spacing. Latch bolt is 3-1/8" long by 7/8" wide by 3/16" thick with a 9/16" dimension from the door to the under side of the latch bolt. The latch projects out 1-1/2" when installed on the door. Also known as a Bathroom Toilet Stall Door Slide Latch and Toilet Partition Locks. Manufacture part # 6540.  Shipped with mounting screws.

Toilet Partition One Ear Bracket For 7/8" Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-5/16" with the mounting screws are 1-13/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1659.

Shipped with screws

Bobrick B262 surface mounted paper towel dispenser on sale today. Satin finish stainless steel. Paper dispenser holds 400 c fold or 525 multifold towels. The door has a tumbler lock with key and piano hinge for extra strength. Hemmed towel tray opening. The unit is 10-3/4" x 14"ht x 4" depth.
