Search results for: 'Pilaster Shoe for 1-1/4" Thick x 3" ht SKU: 9A030612 Size 12 inch 6 $143.82'

Partition Bracket One Ear Aluminum 1 1/4" Panel, 3" H X 2-3/4" L

The Toilet Partition Coat Hook 3" Projection X 1-3/4" High is constructed of chrome plated Zamac die cast metal.  The hook base measures 1-3/16" wide by 1-9/16" high. The long hook projects out 3" and the short hook projects out 1-1/2". Also known as Bathroom Stall Hook. Manufacture part # 4020.  Same as our part # 9AM350.

Toilet Partition Continuous One Ear Wall Bracket For 1 1/4" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1-1/4" for 1-1/4" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2354, and 650-9186-57. These brackets are shipped with all the needed fasteners.

The Handicap Grab Bar is fabricated of #18 gauge stainless steel with a #4 satin finish.  They are available in 1 1/4” and 1-1/2” outside diameter.  All bars maintain a constant 1 1/2” offset, which is the distance between the inside of the bar and the mounting surface.  The mounting flanges have a 3” diameter.  We offer two types of mounting,  exposed screw mounting and snap on flange concealed. When properly installed they will easily support up to 250 pounds.  The recommended height for mounting these grab bars is 33 to 36” above the finished floor, but heights vary depending on local codes.  The overall length of a 12" grab bar is 15" due to the 3" diameter flanges.  Due to the various materials that these are mounted on, screws are not included.

Ordering Online All Solid Plastic (HDPE) Panels Manufactured by Hadrian Partitions, see color chart below. For other factory colors please call for pricing. All panels ship from the factory after 5 business day, plus 2-4 days travel. Note 14", 18", 24", 28", 34", 40", 46", 52", 55", 58", 59", 64", 70" and 76" x 55"ht are available. All panels are 1/4" less than size. The panels include standard aluminum mid bracket kit or up grade to ss channels for better support, includes 2 two ear brackets and 2 u brackets for 1" thick material.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Hadrian Partitions Aluminum Headrail for 1" thick material Type A used on overhead braced floor mounted Solid Plastic Partitions. The headrail goes over the top of the pilaster which is 1" for the headrail to fit over the top of the pilaster. The slot is for 1/4" curtain hook. The headrail bolts to the pilaster for stability at the top. Overall dimension is 1-1/4"x1-3/4"ht. Also known as part number 620060, 620074.

Also known as Part# 9HR60SP, 9HR74SP and 9HR96SP.

If your toilet partition (bathroom stall) wall bracket is stamped 1640, then chances are you have the One Ear Wall Bracket for 3/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2″ long with 1-1/8″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

Toilet partition Aluminum Pilaster Stiffeners for restroom stalls. The Pilaster Stiffener is constructed of extruded aluminum. Measures 3-1/2" wide by 75" length. Used to help stablize restroom pilasters that carry the weight of a door or alcove panel. Typically used on pilasters that are 8" and lager in size and that support a door of 32" and larger. Designed to help provide stability to the partitions structure my making the pilaster less likey to bend, warp and break. To be installed as close as possible to the edge of the pilaster that is closest to the door. Comes pre-drilled with 14 holes and comes with screws for mounting. Can be utilized with any manufacturer for partitions but sizes could vary. Commonly known as 40-8447334(Global/Accurate), CI-76STIFFENER(Scranton) and 627240(Hadrian).

Toilet Partition Bracket One Ear For 3/4" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 1-1/2" x 2-5/8", with 1-3/8" hole spacing. 2-3/4" projection on the legs. Legs are 3/4" apart, and is designed for 3/4" thick panels. Also known as a Bathroom Stall One Ear Wall Bracket or One Wing Wall Bracket. The manufacturers part numbers are 1644, 650-2852, and 650-2858. Shipped with all the fasteners.

Hadrian partition steel pilasters are available with many colors to choose from and sizes. Quick ship colors will ship in 48-72 hours. Usually one week delivery time for those colors. There is a 3 week lead time for non stock colors. The color chart shows an American flag which indicates a quickship color. All bathroom pilasters come with a stainless steel shoe and floor hardware. Pilaster widths start out at 3"-23". The pilasters are 82" height with a u shape at the top for a head rail to fit into.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Partition Anti-Grip Headrail 1-1/4" X 95" Type B Aluminum. Extruded anodized aluminum construction. The cross section measures 2-3/4" high by 1-11/32" by 95" long. The part that fits on top of the pilaster is 1-1/4" wide by 3/4" deep. The wall thickness on this part is 3/64". Also known as a Bathroom Stall Headrail. Manufacture part # 80052.

If your toilet partition (bathroom stall) wall bracket is stamped 1830, then chances are you have the Two Ear Wall Bracket for 1-1/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3-15-16″ long with 3″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket, they can be ordered on our website.

Toilet Partition Two Ear Wall Bracket For 3/4" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-13/32" with the mounting screws are 2-21/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1629.

Shipped with screws

The Hiny Hider Aluminum 6" Outswing Keeper Bumper For 1" pilaster post has Clear Anodized aluminum construction. Strike and Keeper is 6" high by 1-15/16" wide. The three mounting screws are 2" on center apart. Also known as a Bathroom Stall Strike and Keeper outswing 1". Used mostly on Solid Plastic (HDPE) Toilet Partitions.  Shipped with mounting screws.

One Ear Pilaster Bracket Kit for 1-1/4" Post are available for quick deliveries and cast stainless steel plated. Includes security screws for installation. Also known as 615233.

Toilet Partition Top & Bottom Hinge Assembly For 1" Door, 1-1/4" Pilaster Square Edge. Polished chrome plated zamac die cast construction. Kit includes Bottom & Top Hinges, Pintle, Nylon Cam, Top Pin and Bottom & Top Hinge Door Inserts. Hinges measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Manufacture part number 63130 kit. The top hinge wall to center of the 3/8" diameter hole is 1-1/4" which is known as a 3790 hinge. The bottom hinge wall is also 1-1/4" to the center of the 5/16" hole and known as 3290 hinge. The Top Pin is 3/8" x 3-1/2". Screws are also included.

Stamped SS One Ear Bracket 3/4" Panel 1-1/2" X 2-1/2"

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-5/32" with the mounting screws are 1-11/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1649.

Shipped with screws

Toilet Partition Bracket Two Ear For 1" Thick Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3" high by 3-3/4" wide with the mounting holes 2-3/4" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The 8 holes are 1/4" diameter. All wall thicknesses are 1/8". This bracket is sometimes known as a Bathroom Stall Two Ear Wall Bracket, or Toilet Partition Two Ear Wall Bracket. The manufacturers part number is 2264 and 650-1839. This bracket ships with all the needed fasteners.

Partition Anti-Grip Headrail 1" X 95" Type B Aluminum

Extruded anodized aluminum construction. The cross section measures 2-3/4" high by 1-3/32" by 95" long. The part that fits on top of the pilaster is 1" wide by 3/4" deep. The wall thickness on this part is 3/64". Also known as a Bathroom Stall Headrail. Manufacture part # 80042.

This product is usually used on Solid Plastic (HDPE) Toilet Partitions.

Bobrick frameless mirror known as B-1556 series. Bright polished stainless steel. The mirror has a 1/4" return concealing 1/4" tempered masonite backing. Includes four mounting screws.

Partition Continuous One Ear Wall Bracket For 1"Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2334, one ear 1" x 57, and 650-9750-58. These brackets are shipped with all the needed fasteners.

Is your Toilet Partition Bracket stamped 1310, if it is you have a one ear urinal bracket. The bracket is made from a zamac die casting that is then polished chrome plated. It sometimes goes by the name Toilet Partition One Ear Urinal Screen Bracket, Urinal Wall Bracket, 1310 Wall Bracket, 650-6410 wall bracket, or just Wall Bracket. The base is 1-1/2" wide x 2-3/4" long with a 1-1/2" on center hole spacing. The legs project out 3-1/2" with the mounting holes at 3-1/8" from the base. The holes are 1/4" diameter.

For use on 1-1/4" thick panels

Aluminum U Shape Bracket 1/2" X 1-3/8" X 57". Constructed of extruded anodized aluminum. Base is 3/4 wide by 57" long, with screw holes every 13" or so. They have a clearance of 1/2" for 1/2" thick panels. Sometimes known as Bathroom Stall Continuous U Bracket. The manufacturers part numbers are 2664. These brackets are shipped with all the needed fasteners.

If your toilet partition (bathroom stall) wall bracket is stamped 1620, then chances are you have the Two Ear Wall Bracket for 3/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3″ long with 2-7/32″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket

The Coat Hook & Bumper Cast SS 2-3/4" Projection x 2-1/4" High is mainly used on Hadrian Manufacturing Partitions.  The hook is constructed of cast stainless steel and measures 2-1/4" high with a projection fo 2-3/4".  The manufacture part number is 601900-700.

Toilet Partition Bracket One Ear For 1" Panel Aluminum

Constructed of extruded anodized aluminum. The base is 1-1/2" high by 2-5/8" wide, with mounting holes 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs are 1" apart, and is designed for 1" thick panels. This bracket is also known as a One Ear Wall Bracket, One Wing Wall Bracket, Toilet Partition One Ear Bracket, or Bathroom Stall One Ear Bracket. The manufacturers part number is 1764. The bracket ships with all the required fasteners.

The General Toilet Partition Top Hinge For 1-1/4" Round Edge is for use on 1-1/4" thick round edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and then polished.  Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Also known as a Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3510.  Shipped with mounting screws.  A=1-7/6"

Partition Two Ear Urinal Bracket For 1" X 1-1/2" X 3-1/2

This bracket is usually used on Urinal Screens, which are the walls between men's urinals, to hold the partitions to the wall. The bracket is made of a zamac casting that is then chrome plated. The bracket base measures 1-1/2" x 4", with a 3" center to center hole spacing. The bracket projects out 3-1/2", with the mounting holes at 2-1/8" and 3-1/8" from the base. The holes used to mount the bracket to the wall and to the urinal are 1/4" diameter. The 1280 Bracket is sometimes called a Bathroom Stall Bracket, Toilet Partition Bracket, Two Wing Bracket, or Urinal Screen Bracket.

For 1" thick panels

The Top Hinge Assembly Cast SS is for use with 1" Doors, and 1-1/4" thick square edged pilaster posts.  The hinge is constructed of cast stainless steel that is then brushed to the proper finish.  The set included the top hinge, pin, door insert and mounting screws.  Also known as a Bathroom Toilet Stall Top Hinge Kit. Manufacture part #63043.

Stainless Steel Double Door Pull made for 3/4” and 1” thick doors. Measurements for the handle 6-5/8" width, 5-1/2" hole to hole spacing, 5" interior opening and 2" height. Constructed of stainless steel with though bolts for mounting back to back on partition doors.Commonly known as part number 189373. This double door pull kit comes with fasteners and Torx Bit(T-20) for 3/4" and 1" thck doors.

The Matte Black Hadrian 1/2" Pedestal Support Brace is constructed of stainless steel. Pedestal support brace is used in place of a traditional pilaster where the pilaster anchors to the ground. This pedestal support brace allows pilasters to be off the ground but still provide structure to partitions. Designed to be used under a pilaster or panel that is 1/2" thickness. Available in 12", 9" and 4" heights and comes with fasteners for installing. Known as manufacturers part number 673441-12AF-BLK, 673441-9AF-BLK and 673441-4AF-BLK.

The Partition Slide Bolt Latch is constructed of Cast Stainless Steel and has a Hole Spacing 1-3/4" X 1-1/2" center to center.  The latch base is 2-31/32" wide by 1-15/16" high and projects 1-1/8" high. The hole spacing is 1-3/4" wide by 1-1/2" high. The four mounting holes have a diameter of 1/4". The Slide Latch base is 1/4" thick. The latch bolt is 7/8" wide by 3-7/16" long. This toilet stall latch is used on Accurate Partition Corp and Mills Partitions. Also known as a Bathroom Stall Slide Latch. Manufacture part # 6983.  This product is shipped with mounting screws.

One Ear Pilaster Bracket Kit for 3/4" Post are available for quick deliveries and chrome plated. Includes security screws for installation. Also known as 615810.

The Hiny Hider Inswing Flat Stop 6" has Clear anodized aluminum construction. The strike and keeper is 6" tall by 2-9/16" deep and 3/4" thick on the stop. The material is 1/8" thick. The mounting holes are 3" on center. And the locking slot is 1-1/2" high by 3/8" deep. Also known as a Bathroom Stall Strike and Keeper-Inswing Flat. Manufacture part # 5798.  Shipped with mounting screws.

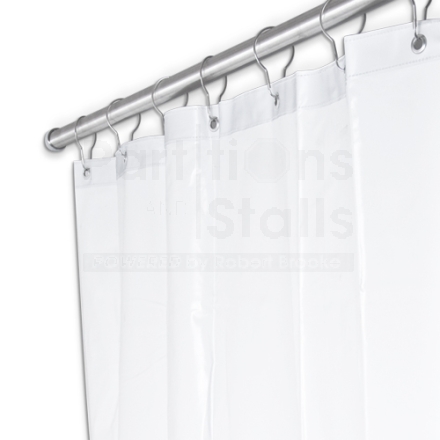

Shower Curtain - 10 Ga. White Vinyl, Order 12 Hooks Separately - 72"W X 72"H

Flame-resistant, anti-bacterial, 10 gauge white vinyl fabric with standard height of 72". Curtain should be 6" wider than opening up to 78" and 12" wider than opening exceeding 78".

Shower curtain should be attached with hooks (not provided, order separately) to rod (not provided, order separately). Known as 10-1200-V72 by American Specialties.

If your toilet partition (bathroom stall) wall bracket is cast 1840, then you have the One Ear Wall Bracket for 1-1/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2-3/4″ long with 1-1/2″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.
