Search results for: 'end partition bracket'

The Surface Mount Door Hinge Set RH In/ LH Out is for use on Right Hand In Swing and Left Hand Out Swinging doors.  They are self closing.  The hinges are constructed on stamped stainless steel that is then polished.  The package includes the top and bottom hinges and the mounting screws.  Hole spacing right to left 2-1/4", up and down 1-1/2",  overall 3" width by 2-1/2"height.  Also known as a toilet partition or bathroom stall gravity surface hinge set.  Manufacture part number is 7073.

The Slide Bolt Latch With Indicator Cast Stainless Steel is a newer product for us.  The kit includes an adjustable spindle that will work on toilet partition door thicknesses of 3/4" all the way up to 2-1/2".  The latch body measures 2-11/16" by 1-5/8" tall by 1/2" thick.  The hole spacing on the latch body is 1-1/8" on the vertical and 1-11/16" on the horizontal.  The throw on the latch is 3/4".  The indicator plate measures 1-11/16" by 2-3/8".  This part is also known as the "Latch Slide S/M-Indicator-W/Keeper-Cast Stainless" and the manufacture part number is 124563. The bolt comes out 3/4" x 7/16" wide x 1/4" thick.

Concealed Partition Latch Keeper Bumper Inswing 1-1/4" Round Edge Cast Stainless Steel

Cast stainless steel construction. Keeper is 1-1/4" tall by 2-3/8" wide by 2-9/16" deep. The strike is a17/32" thick and the slot is 1/4" deep. The opening to mount it on the round edge pilaster or post is 1-1/4" by 1-1/4" Also known as a Bathroom Stall Strike and Keeper for Inswing 1-1/4". Manufacture part # 5583.

Shipped with screws for mounting.

 Continuous Hinge Stainless Steel, is 71-1/2" long by 3" wide, and is for use on Right Inswing, Left Outswing restroom stall doors.  The hinge is constructed of 16 gauge (.060" thick) stainless steel and the screws are placed every 11" or so.  The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.  Manufacture part # 7759

Stainless Steel Double Door Pull made for 3/4” and 1” thick doors. Measurements for the handle 6-5/8" width, 5-1/2" hole to hole spacing, 5" interior opening and 2" height. Constructed of stainless steel with though bolts for mounting back to back on partition doors.Commonly known as part number 189373. This double door pull kit comes with fasteners and Torx Bit(T-20) for 3/4" and 1" thck doors.

Concealed Partition Latch Keeper Bumper Outswing 1-1/4" Round Edge Cast Stainless Steel

Cast stainless Steel Construction. The outside dimensions are 2-3/8" wide by 1-1/4" high by 1-3/4" deep. Stop projects out 1-1/8" by 1/2" thick with a rubber insert. Designed for an 1-1/4" thick post round edge. Also known as a Bathroom Stall Strike and Keeper Outswing 1-1/4". Manufacture part # 5573.

Shipped with mounting screws.

Partition Strike And Keeper For 3/4" Door, 1-7/8" Between Screws Stamped Stainless Steel

Stamped stainless steel .075" thick construction. The strike and keeper measure 2-7/8" high by 2" wide with a 1-7/8" hole spacing. The stop posts are 5/8" wide by 7/8" tall with rubber inserts. For use with 3/4" square edge posts. Also known as a Bathroom Stall Strike and Keeper Outswing 3/4". Manufacture part # 6379.

Shipped with mounting screws.

The Stainless Stel Indicator Latch and Keeper are designed to work with for 1" doors and 1-1/4" pilasters thickness. Constructed of stainless steel with a brushed finish. Comes fasteners for installation. Known as manufacturers part numbers 905200,910128 and 910129.

Concealed Partition Latch Keeper Bumper 1-1/4" Post Round Edge Cast Stainless Steel

Cast stainless steel construction. Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5513.

Shipped with mounting screws.

7/16" X 3/4" SLOT

The Matte Black Indicator Latch and Keeper are designed to work with doors and pilasters that are 3/4" thickness. Constructed of zamac metal with a matte black finish. Comes fasteners for installation. Known as manufacturers part numbers 671600-BLK and 671601-BLK.

Toilet partition full length aluminum door stop for 1" panel outswing doors. This product is clear anodized aluminum. This full length door stop with block the gap between the door and the post next to it. For an outswing the latch locks on the back side of the bumper. The door keeper and strike is 54" in length and has 5 holes spaced at 13" apart and starts at 1" from the top and the bottom. Also known as 134314 strike & keeper channel. Includes all hardware.

Global aluminum slide latch for solid plastic partitions typically. This latch has a brushed look to it. The hole spacing is 2-3/4". This products manufacture is global 8442899. Security screws included. The bolt extends 1" out from the edge.

The Matte Black Hadrian Anchored Pilaster Shoe is constructed of stainless steel. Designed so that the shoe anchors directly to the ground and the pilaster sits inside. Is for 3/4" thick Pilasters and is 3" in height. Shoes come with fasteners to install and is available in different lengths.

The Matte Black Hadrian Alcove Channel is constructed of anodized aluminum. One side of the channel is for 1/2" thickness and the other is 3/4" thickness. This alcove channel is used to connect a panel and pilaster in-line with different thicknesses. The alcove channel is 57-1/2" in length and comes with fasteners to install. Known as manufacturers part number H60158-BLK.

The American Sanitary Bottom hinge Insert For 1" Door is constructed of Zamac die cast metal that is then chrome plated and polished.  The door insert outside measurements are 2-5/16" wide by 1-5/32" deep by 1-3/16" tall. The inside dimensions are 1" and the hex hole measures 3/4". The round hole measures 5/16". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 2490.

The Sanymetal Keeper Bumper For Concealed Latches constructed of Zamac die cast metal that is then chrome plated and polished.   And is designed for use on 1-1/4" thick square edged pilaster posts.  Keeper is 1-1/4" tall by 2-3/8" wide by 1-3/4" deep. The strike is a1/2" thick and the slot is 7/16" deep. The opening to mount it on the pilaster or post is 1-1/4" by 1-1/4".  Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5960.  Shipped with screws for mounting.

The General Top Hinge For 1-1/4" Square Edge Pilaster is for use on 1-1/4" square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a Fiat Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3790.  A=1-5/8"

The Matte Black Hadrian Door Kit is designed to work with doors and pilasters that are 3/4" thickness. Hinges, Coat Hook and Latch Keeper are constructed of stainless steel and indicator latch is constructed of zamac with all having a matte black finish. The door kits comes with (2) Hinges, (1)Indicator Latch, (1) Latch Keeper, (1) Coat Hook and fasteners for installing. Hinges are field adjustable so door and swing in or out as well as right or left. Known as manufacturers part number 671000-BLK.

The Toilet Partition Continuous Hinge Stainless Steel, 54", 1/4" Pin is 54" long by 3" wide with a pin diameter of 1/4".  They are constructed of 14 gauge (.075" thick) stainless steel.  Holes are spaced every 13" and are 9/32" diameter and has 5 sets of holes. The hinge is self closing by a cam action, which is made possible by angle cuts on the continuous hinge leafs.Cam features Zero Degree Closing. Can be raised up 3/8" for emergency entry. This hinge is also known as a Bathroom Stall Full Length Continuous Hinge. This hinge is non handed. This piece features a cam, which makes it self closing.  Manufacture part # 130209,7599, 125319, 650-9402. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside. This hinge is known as 7599.

The General Keeper Bumper For Concealed 1-1/4" is for use with concealed latches that have 1-1/4" thick squared edged pilaster posts.  They are constructed of Zamac die cast metal that is chrome plated and then polished.  Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510.  Shipped with mounting screws.

Partition Door Piano Hinge 57", 14 Gauge SS,1/4" Pin with 20 Degree Cam Close. This hinge keeps the door open 20 degree so the user knows there is nobody in the restroom toilet stall. This is the most Heavy Duty Continuous Full Length Hinge we sell. 14 gauge (.075" thick) stainless steel construction with a 1/4" diameter hinge pin. The hinge leafs are angle cut so your door will close with the camming action. The hinge is 3" wide when laid flat, and 57" long. Screws are spaced 11" apart and the holes are 9/32" diameter and has 6 sets of holes. Hinge can be raised up 3/8" for emergency entry. Also known as a Restroom Toilet Stall Full Length Continuous Hinge. Manufacturer part #650-9401 and 160039. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

Toilet Partition Continuous Hinge 54" With 20 Degree Cam Close Stainless Steel. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

Stainless Steel Construction, 14 gauge (.075" thick). Hinge is 3" wide when laid flat, by 54" long. Holes are spaced every 13" and are 9/32" diameter and 5 sets of holes. The hinge is self closing by a cam action, which is made possible by angle cuts on the continuous hinge leafs. Cam features 20 Degree Closing for ADA Doors. Can be raised up 3/8" for emergency entry. This hinge is also known as a Bathroom Stall Full Length Continuous Hinge. This hinge is non handed. Manufacture part # 130219, 7598, 125319, 650-9402.

Generic Plastic Rod fits most manufactures like Global, Hadrian, Accurate Toilet Partitions. These might not fit exactly. Shave off two sides to make smaller. The configuration is the same for all manufactures, some just a little wider in the diameter. This is the replacement hinge pin on there Solid Plastic bottom hinges. Also known as a Bathroom Stall 8" Bottom Repair Kit.  Manufacture part # 8475.

Plastic Rod works with most manufactures like Global, Hadrian, Accurate Toilet Partitions. This is the replacement pin used on Solid Plastic restroom stall top hinges. These might not fit exactly. Shave off two sides to make smaller. The configuration is the same for all manufactures, some just a little wider in the diameter. Also known as a Bathroom Stall 8" Top Repair Kit.  Manufacture part # 8465.

The Hiny Hider Inswing Flat Stop 6" has Clear anodized aluminum construction. The strike and keeper is 6" tall by 2-9/16" deep and 3/4" thick on the stop. The material is 1/8" thick. The mounting holes are 3" on center. And the locking slot is 1-1/2" high by 3/8" deep. Also known as a Bathroom Stall Strike and Keeper-Inswing Flat. Manufacture part # 5798.  Shipped with mounting screws.

The Hiny Hider Outswing Flat Stop 6" has Clear Anodized aluminum construction. The strike and keeper is 6" tall by 1-5/8" deep by 1/8" thick. The stop is 9/16" deep by 3/4" wide with a rubber insert. The mounting holes are 3" on center. Also known as a Bathroom Stall Flat Backed for Wall Mounting Strike and Keeper. Manufacture part #5898.  Shipped with mounting screws.

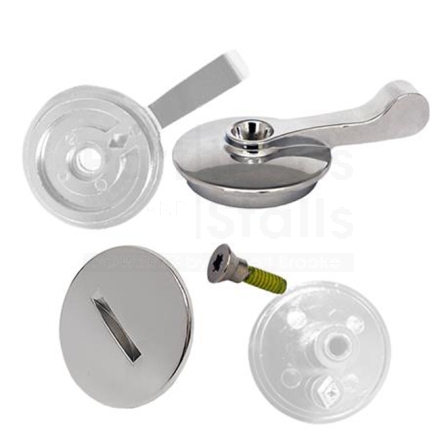

Flush Metal concealed turn latch knob and cover plate with set screw is the current style. This turn latch is one of a kind, under the cover plate and under the turn latch you will notice a diamond shape that are male - female. Only buy this if this is what you have exactly. Many of these parts look the same but are not and will not work unless this is what you have. Manufactures #143520. This part has a 1-3/8" diameter.

Dual Access Napkin Disposal

Body: Type 304 #22 ga stainless steel, #4 satin finish.

Flanges: Type 304 #22 ga stainless steel, drawn one-piece construction with 1/4" returns to wall surface. One flange is welded to body the other is adjustable to fit 3/4" - 1 1/4" thick partitions. (No miters or welds)

Push Panels: Type 304 #22 ga stainless steel self closing push panel door. *International graphic symbol optional*

Waste: Type 304 #22 ga stainless steel removable from one side with pin tumbler type lock securing in place.

*Optional finger grip in lieu of lock* Also known as 0472.
