Slide Bolt Latch W/Indicator Cast Stainless Steel
Description

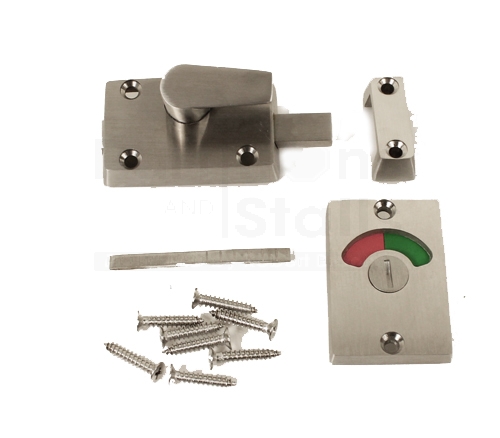

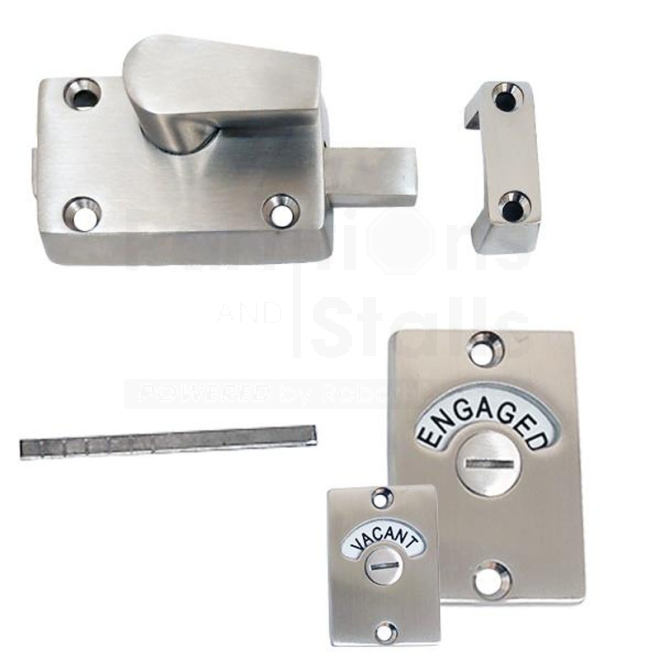

The Slide Bolt Latch With Indicator Cast Stainless Steel is a newer product for us. The kit includes an adjustable spindle that will work on toilet partition door thicknesses of 3/4" all the way up to 2-1/2". The latch body measures 2-11/16" by 1-5/8" tall by 1/2" thick. The hole spacing on the latch body is 1-1/8" on the vertical and 1-11/16" on the horizontal. The throw on the latch is 3/4". The indicator plate measures 1-11/16" by 2-3/8". This part is also known as the "Latch Slide S/M-Indicator-W/Keeper-Cast Stainless" and the manufacture part number is 124563. The bolt comes out 3/4" x 7/16" wide x 1/4" thick.
The Slide Bolt Latch With Indicator Cast Stainless Steel is a newer product for us. The kit includes an adjustable spindle that will work on toilet partition door thicknesses of 3/4" all the way up to 2-1/2". The latch body measures 2-11/16" by 1-5/8" tall by 1/2" thick. The hole spacing on the latch body is 1-1/8" on the vertical and 1-11/16" on the horizontal. The throw on the latch is 3/4". The indicator plate measures 1-11/16" by 2-3/8". This part is also known as the "Latch Slide S/M-Indicator-W/Keeper-Cast Stainless" and the manufacture part number is 124563. The bolt comes out 3/4" x 7/16" wide x 1/4" thick.
| SKU | 9A1245 |
|---|---|
| Availability | 6-8 Weeks Lead Time |
| Manufacturer | Generic |
| Description | The Slide Bolt Latch With Indicator Cast Stainless Steel is a newer product for us. The kit includes an adjustable spindle that will work on toilet partition door thicknesses of 3/4" all the way up to 2-1/2". The latch body measures 2-11/16" by 1-5/8" tall by 1/2" thick. The hole spacing on the latch body is 1-1/8" on the vertical and 1-11/16" on the horizontal. The throw on the latch is 3/4". The indicator plate measures 1-11/16" by 2-3/8". This part is also known as the "Latch Slide S/M-Indicator-W/Keeper-Cast Stainless" and the manufacture part number is 124563. The bolt comes out 3/4" x 7/16" wide x 1/4" thick. |
| Detailed Description | The Slide Bolt Latch With Indicator Cast Stainless Steel is a newer product for us. The kit includes an adjustable spindle that will work on toilet partition door thicknesses of 3/4" all the way up to 2-1/2". The latch body measures 2-11/16" by 1-5/8" tall by 1/2" thick. The hole spacing on the latch body is 1-1/8" on the vertical and 1-11/16" on the horizontal. The throw on the latch is 3/4". The indicator plate measures 1-11/16" by 2-3/8". This part is also known as the "Latch Slide S/M-Indicator-W/Keeper-Cast Stainless" and the manufacture part number is 124563. The bolt comes out 3/4" x 7/16" wide x 1/4" thick. |
