The Slide Bolt Latch With Indicator Cast Stainless Steel is a newer product for us.  The kit includes an adjustable spindle that will work on toilet partition door thicknesses of 3/4" all the way up to 2-1/2".  The latch body measures 2-11/16" by 1-5/8" tall by 1/2" thick.  The hole spacing on the latch body is 1-1/8" on the vertical and 1-11/16" on the horizontal.  The throw on the latch is 3/4".  The indicator plate measures 1-11/16" by 2-3/8".  This part is also known as the "Latch Slide S/M-Indicator-W/Keeper-Cast Stainless" and the manufacture part number is 124563. The bolt comes out 3/4" x 7/16" wide x 1/4" thick.

Global partitions stainless steel doors are manufactured in the USA. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Note only 24, 26, 34 & 36 are quick ship, note 22, 28, 30 and 32 doors ship out after 1 week. Stainless Steel Doors Include: Hinges for 1-1/4" round edge pilaster, Bumper keeper hardware and turn latch locking system all in standard chrome plated finish. The size of the door is the exact opening width. All doors are 3/8" less than the opening for gapping.

Global Stainless Steel Color Chart

Global Partitions Ordering Online Solid Phenolic Doors are all Solid Phenolic color thru or black core Partitions manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Includes SS Vault Hinges, latching and keeper bumper. 58" ht Doors***
Global Solid Phenolic Color Chart

Accurate and Global partitions door hinge kits for plastic laminate partitions. The top and bottom hinge kits are the exact same. The door kit includes the hinge, hinge pin, door insert, plastic cam set and all the security screws to install. This part is also known as 63160. The hinge mounts to a pilaster with 1-1/4" thickness, the doors are 1" thick.

Global Partitions Top Hinge For Flat Surface Mounting. Chrome plated Zamac die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Manufacturer part # 135580. Same part for Flush Metal and General Partitions. Shipped with mounting screws. A=1-7/6". Also used with Accurate Partition doors after January 2013.

The Partition Keeper Bumper- In swing For 1-1/4"  is for in swinging doors and pilaster posts of 1-1/4" thickness.  The bracket is constructed of die cast metal and then chrome plated and polished.  The Keeper is used by many manufactures.  The manufacture part # is 40-8512353.

Current style Global stainless steel door catch includes screws for mounting. This is used with the 9g700 latch in ss. Product part number is 8262360. This part has a 3/8" gap for the catch and is 2-1/8" in length, 1-5/8" hole spacing and is 3/4" wide.

Current style Global chrome plated door catch includes screws for mounting. This is used with the 9g600 latch in ss. Product part number is 40-8212360. This part has a 3/8" gap for the catch and is 2-1/8" in length, 1-5/8" hole spacing and is 3/4" wide.

Toilet Partition Top & Bottom Hinge Assembly For 1" Door, 1-1/4" Pilaster Square Edge. Polished chrome plated zamac die cast construction. Kit includes Bottom & Top Hinges, Pintle, Nylon Cam, Top Pin and Bottom & Top Hinge Door Inserts. Hinges measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Manufacture part number 63130 kit. The top hinge wall to center of the 3/8" diameter hole is 1-1/4" which is known as a 3790 hinge. The bottom hinge wall is also 1-1/4" to the center of the 5/16" hole and known as 3290 hinge. The Top Pin is 3/8" x 3-1/2". Screws are also included.

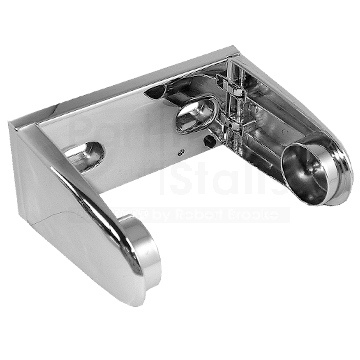

Single Roll
Deluxe Chrome
Die Cast
tension spring controls tissue flow for 4-1/2" wide rolls

Double Roll
Deluxe Chrome
Die Cast
tension spring controls tissue flow for 4-1/2" wide rolls

Global partitions new style door kits, used September 2021 to current. This door kit includes cast stainless steel hardware, hinges and associated parts, slide latch with indicator and door keeper, coat hook. The adder is for outswing doors that included double door pulls, stainless steel top pin and 2" door stop. All security screws included. Factory part number 8263513 for inswing parts and 8263514 for the adder which is double door pulls and door stop. The hinges have been used for over 30 years.

To order out swing version you must order both parts as pictures shown for complete door kit.

Global Partitions Top Hinge For Flat Surface Mounting. Stainless Steel die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Manufacturer part # 135580, 111723. Same part for Flush Metal and General Partitions. Shipped with mounting screws. A=1-7/6". Also used with Accurate Partition doors after January 2013.

The Hadrian Partition Nylon Cam is one of the components for the door hinge.  It is constructed of white nylon plastic.  The manufactures part number is 601700.

The Hadrian Partition Wrap Around Top Hinge is constructed of cast stainless steel, making it a very strong hinge.  The manufactures part number is 601451.

The Hadrian Partition Wrap Around Bottom Hinge Cast Stainless Steel is for use on 1-1/4" thick round edged pilaster posts.  The manufactures part number is 601452.

The Knickerbocker Partition Top Hinge Casting is constructed of Zamac die cast metal and is not plated.  This piece is used on Knickerbocker, Global and General Partitions metal doors, there maybe more, but this is all we know at this point.  The outside measurements are 2-7/31" by 2-11/16" x 2-5/8", which is the measurement, less the tabs that go into the door.  The hole throgh the center has a diameter of 1/4".  The manufactures part number is 4646.

Global Partitions Bottom Hinge For Surface Mount. Stainless Steel die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-9/16" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Manufacture part # 3010, 111710, 111713. Also used with Flush Metal and General Partitions. Shipped with mounting screws. A=1-9/16". Also used with Accurate Partition doors after January 2013.

Cast stainless steel 5-1/2" double door pulls, for 3/4" thick doors. Also known as 900112 Replaced by 630112. Overall width is 6-3/4" and has hole spacing of 5-7/8" between screws.

The Accurate Partitions Bottom Cam Bolt is used on Accurate Partition Corps. metal partition hinges.  This bolt is used on the bottom hinge, and the bolt is a  3/8-16 x 1" hex head.   The manufacture calls this part # 50-3113810.

24"x36" Urinal Splash Stainless Steel Plates Cover panels or screens near urinal. Stainless Steel  rivets are included. This is mainly in the men's bathroom caused by the urinals next to the partition divider or wall hung screen.

Urinal Splash Stainless Steel Plates Cover panels or screens 36"x36" near urinal. Stainless Steel rivets are included. This is mainly in the men's bathroom caused by the urinals next to the partition divider or wall hung screen.

The Hadrian Partition Lower Door Casting Unplated is the component that fits into the bottom of a metal door.   This piece acts as one of the pivot points in the hinge.   They are constructed of Zamac die cast metal.  The manufacture part number is 640004.

The Knickerbocker Partition Bottom Hinge 1-1/4" Sq Post are for use on 1-1/4" thick square edged pilaster post.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The manufacture part is 3310.   A=1-11/16".

The Hadrian Partition Lower Door Casting SS is the component that fits into the bottom of a metal door.   This piece acts as one of the pivot points in the hinge.   They are constructed of cast stainless steel.  The manufacture part number is 640004-700.

The Hadrian Partition Upper Door Casting SS is the component that fits into the top of the metal door to act as one of the hinge points.   They are constructed of cast stainless steel.  The manufactures part number is 640003-700.

The Matte Black Hadrian Continuous U Bracket is constructed of stainless steel. This continuous U bracket is designed for 1/2" thickness material and measures 57-1/2" in length. Bracket comes with fasteners to install. Known as manufacturers part number H60258-BLK.

The Matte Black Hadrian Two Ear Bracket is constructed of stainless steel and measures 3-1/8"Wx1-1/4"Hx47"L. This two ear bracket is designed for 1/2" thickness material. Bracket comes with fasteners to install. Known as manufacturers part number H20559-BLK.

Hadrian Partition Headrail End Cap for Overhead braced partitions. This headrail end cap is used with solid plastic partitions. This will plug up the end of the headrail if it is exposed. Also known as 627220.

The Hadrian Partition Keeper Bumper is for use on 1-1/4" thick round edged pilaster posts.  The rectangular slot measures 9/16" by 11/16" and is meant to be the receiver for a concealed latch.  They are constructed of Zamac die cast metal that is then chrome plated and polished.  The manufactures part number is 601800.

The Sanymetal Partitions Ada Latch Cover Knob is constructed of Zamac die cast metal that is then chrome plated and polished.  This latch is unique in that it has a flat surface on the male portion of the cover to prevent slipping.  This latch is ADA Compliant.  This piece is also known as the 111940 and 650-9117, 8809, 8818.

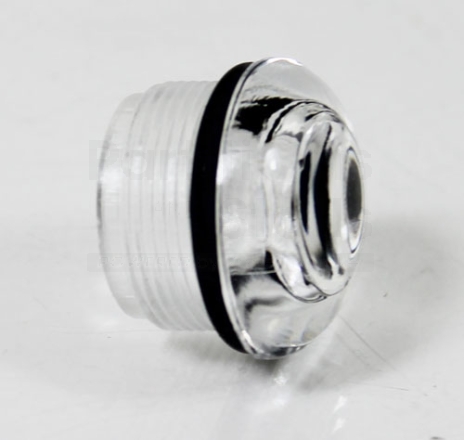

replacement eye piece. also known as P15-405.

22.5"x41" Urinal Splash Stainless Steel Plates Cover panels or screens near urinal. Stainless Steel  rivets are included. This is mainly in the men's bathroom caused by the urinals next to the partition divider or wall hung screen.

The Knickerbocker Partition Top Hinge For 1-1/4" Sq Edge is designed for use on square edged pilaster posts that are 1-1/4" thick.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The manufactures part number is 3860.  A=1-11/16".

The Global Partitions stainless steel Ada latch knob & cover, with Screw, are a concealed latch that is held together by a screw.  They are constructed of cast stainless steel metal that is then brushed and polished.  The 9G3370 meets ADA compliance codes. The manufacturer part number is 40-8263370. This was used up until October 2021.

The Accurate Partition Door Kit Old Style has been used from January 2013 to September 2021.  The door kit is replacement hardware for an Accurate Partitions Corp. metal door.  The kit includes the top and bottom hinges, nylon inserts, coat hook, keeper bumper, concealed latch and security screws.  They are constructed of die cast Stainless steel. The manufactures part number is 40-8261505.
