Partition Surface Mounted Stainless Steel Slide Bolt Latch 1-7/8" Screws. Stamped stainless steel construction. Base is 2-7/8" high by 1-3/8" wide by 5/32" thick. Latch bolt is 2-1/4" long x 13/16" wide x 1/8" thick, and the slide distance is 25/32". Also known as a Bathroom Stall Stainless Steel Slide Latch and Toilet Partition Locks. Manufacture part # 6309. Shipped with mounting screws.

The Accurate Toilet Partition Slide Bolt Latch Stainless Steel is constructed of cast stainless steel. Base is 4-1/2" tall with a hole spacing of 3-1/2" on center. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick and has a throw of 15/16". The latch projects out 1-9/16". The distance from the back of the base to the underside of the latch bolt is 9/16". Also known as a Bathroom Stall Slide Latch and Toilet Partition Locks. Manufacture part #5053.  This latch is used by Accurate Partition Corp and Global Partition Corp.   The one way screws and barrel nuts are included with this latch.

The Metpar Toilet Partition Slide Bolt Latch with indicator is constructed of Zamac die cast metal that is then chrome plated and polished.   The latch housing face plates measure 1-3/4" wide by 1-1/4" high. The latch thickness is 1-1/16". The latch bolt measures 3/4" by 3/16" with a 15/32" throw. Also known as a Metpar Bathroom Stall Concealed Latch. Manufacture part # 4240, 13882. Metpar Toilet Partitions is the only manufacture that we know of that uses this latch.

The Toilet Partition ADA Slide Bolt Latch Inswing Latch & Keeper is constructed of Stamped Stainless Steel.  The latch is 2" wide by 2-7/8" tall. Latch bolt is 2-3/4" long by 13/16" wide by 1/8" thick and has a throw of 25/32". The keeper is 1-1/2" by 1-1/2" by .075" thick, and projects out 7/16". Commonly called a Bathroom Stall Latch for inswinging doors and Toilet Partition Locks. Manufacture part # 6409 and 6539.  Shipped with mounting screws.

Scranton products solid plastic corner stalls traditionally called Hiny Hider Partitions are great for moisture and high traffic commercial buildings. All plastc material is 1" thick, doors are self closing by gravity 8" aluminum hinges or a continuous spring piano hinge, all hardware is standard aluminum brackets. Offering only Classic color collect on the website, all textures please submit drawings for us to quote with color you are looking for. All doors and panels are 55" ht, pilasters are 82" ht mounted to the floor and an overhead aluminum headrail running across the top to support the top of the pilasters. Up to 8 standard stalls total or 7 standard and 1 Ada stall. All Scranton partitions colors take 3 weeks from the time you place the order. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Scranton Color Chart

Scranton Bathroom Stall Instructions

The Partition Slide Bolt Latch 1-1/2" wide x 3-1/4 Long is constructed of cast stainless steel, and then brushed to the desired finish.  The hole spacing is 2-3/4" center to center.  This latch is used on Global Partition Corp and Accurate Partition Corp products.  The manufacture part numbers are  40-256300, 40-8562899, and 8698. This latch is Ada approved.

The Partition Slide Bolt Latch is constructed of Cast Stainless Steel and has a Hole Spacing 1-3/4" X 1-1/2" center to center.  The latch base is 2-31/32" wide by 1-15/16" high and projects 1-1/8" high. The hole spacing is 1-3/4" wide by 1-1/2" high. The four mounting holes have a diameter of 1/4". The Slide Latch base is 1/4" thick. The latch bolt is 7/8" wide by 3-7/16" long. This toilet stall latch is used on Accurate Partition Corp and Mills Partitions. Also known as a Bathroom Stall Slide Latch. Manufacture part # 6983.  This product is shipped with mounting screws.

Single Roll
Deluxe Chrome
Die Cast
tension spring controls tissue flow for 4-1/2" wide rolls

Double Roll
Deluxe Chrome
Die Cast
tension spring controls tissue flow for 4-1/2" wide rolls

Double Roll Type Control-o-Roll
tough high impact plastic holder

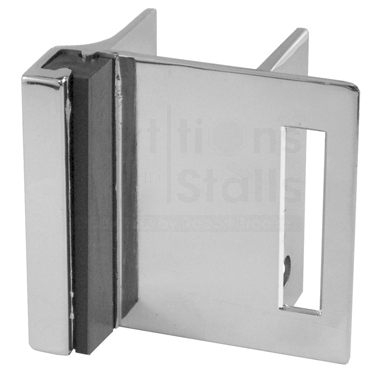

The General Toilet Partition Keeper Bumper For 1-1/4" Inswing Sq Edge is for use on 1-1/4" thick square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110.  Shipped with mounting screws.

The Toilet Partition ADA Slide Bolt Latch & Keeper Stainless Steel is constructed of black acetate plastic and stainless steel.  This latch meets ADA Compliance Codes.   Slide lock measures 4-3/16" long by 1-1/8" tall by 15/32" thick. The mounting plate has mounting screws 1-1/4" on center and is 2-15/32" long. The lock projects out 1-3/16" from the face of the door. The keeper is 1-1/2" wide by 1-1/8" tall by 3/32" thick. Commonly known as a Bathroom Stall Surface Mounted ADA Slide Lock and Toilet Partition Locks. Manufacturer part # 6049, 1002927.  Shipped with mounting screws. For 1" thick doors.

The Slide Bolt Latch With Indicator Cast Stainless Steel is a newer product for us.  The kit includes an adjustable spindle that will work on toilet partition door thicknesses of 3/4" all the way up to 2-1/2".  The latch body measures 2-11/16" by 1-5/8" tall by 1/2" thick.  The hole spacing on the latch body is 1-1/8" on the vertical and 1-11/16" on the horizontal.  The throw on the latch is 3/4".  The indicator plate measures 1-11/16" by 2-3/8".  This part is also known as the "Latch Slide S/M-Indicator-W/Keeper-Cast Stainless" and the manufacture part number is 124563.

The Flush Metal Partition Latch Housing is constructed of Zamac die cast metal.  The latch body measures 3-3/8" deep by 1-15/16" high. The face plate is 3-1/4" high. The latch bolt is 11/32" diameter and has a travel of 7/16". Also known as a Flush Metal Bathroom Stall Concealed Latch Housing. Manufacture part # 6606. This part has a 1-1/4" diameter.

The Metpar Toilet Partition Keeper Bumper Inswing is for use on 1-1/4" thick square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110.  Shipped with mounting screws.

Partition Keeper Bumper Inswing 1-1/4" Post Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5113.

Shipped with mounting screws.

B-264 Bright polished chrome plated steel single toilet paper holder. The unit has a self locking mechanism with a controlled delivery. Holds one roll up to 4-1/2" in diameter. The unit is 6"w x 2-3/4"h x 4-1/4" depth.

The American Sanitary Toilet Partition Keeper Bumper Inswing is designed for use on square edged 1-1/4" thick pilaster posts.  It is constructed of Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for in swinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110.  Shipped with mounting screws.

The Partition Slide Latch Stainless Steel 3/8" Bar To Door, 3-1/2" Screws is constructed of cast stainless steel.  The latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 5/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5063.  Shipped with mounting security screws.

The Accurate Toilet Partition Keeper Bumper for In swing doors is constructed of Zamac die cast metal, then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for in swinging doors. Also known as a Bathroom Stall Strike and Keeper Inswing 1-1/4" Square Edge. Manufacture part # 5110. Shipped with mounting screws.

The Fiat Partition Keeper Bumper Inswing is for use on 1-1/4" thick square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110.  Shipped with mounting screws.

The Mills Toilet Partition Keeper Bumper is for use on 1-1/4" thick square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110.  Shipped with mounting screws.

The Flush Metal Toilet Partition Keeper Bumper Inswing is for use on 1-1/4" thick square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110.  Shipped with mounting screws.

Chrome Plated Partition Keeper Bumper For Throw Latch, For Inswing Flat Stop

Chrome plated Zamac die casting. The strike and keeper is 1-1/4" high by 2-1/2" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. The slots are 1/4" deep. Also known as a Bathroom Stall Strike and Keeper Inswing Flat. Manufacture part # 5650.

Shipped with mounting screws.

Restroom Door Kit Inswing 7/8" Door & 1-1/4" Post Cast SS. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 17803.

Chrome Plated Toilet Partition Keeper Bumper Flat Stop 1-1/2" Between Screws

Polished chrome plated Zamac construction. The strike and keeper measure 2-1/2" high by 1-13/16" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. The slot is for the concealed latch is 7/8" high by 7/16" deep. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing Flat. Manufacture part # 5240

Shipped with mounting screws.

Partition Headrail Bracket for 1" Headrail

Chrome plate Zamac die cast construction. The overall measurements of the bracket are 2-3/4" wide by 1-19/32" high by 1" deep with a hole spacing of 2". The spread for the headrail is 1-1/8" by 1-19/32" deep. Also known as a Bathroom Stall Headrail Bracket. Manufacture part # 2150.

Shipped with screws.

Chrome plated inswing door kit for square edge doors and posts. For 1" doors and 1" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 11300.

Cast stainless steel outswing door kit for square edge doors and posts. For 1" doors and 1" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 21343.

Toilet Partition Continuous One Ear Wall Bracket For 1" Panel x 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 57" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2339.

Toilet Partition Continuous Two Ear Wall Bracket For 1" Panel X 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 57" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 14" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2349.

Toilet Partition Continuous Two Ear Wall Bracket Forl 1" Panel X 41" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 41" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2609.
