The Toilet Partition Slide Bolt Latch is constructed of Cast Stainless Steel.  The latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5023.  Shipped with mounting security screws.  Also known as 9F0302SS.

This latch is the same as our 9F0302 (5020), but is made of cast stainless steel, which is much more durable and heavy duty.

Partition Door Stop 2" High Cast Stainless Steel

Cast stainless steel construction. The door stop base is 2-1/8" diameter with a 1-19/32" hole spacing. The stop projects out 2" with a rubber insert on the end of the stop. Also known as Bathroom Stall Door Stop. Manufacture part # 4123.

Door Stop, Pilaster Mounted, 2-1/2" X 4-1/4", Stainless Steel.

Cast Stainless Steel construction. The door stop base is 3" wide by 1-1/4" high with a 2-5/16" hole spacing. The stop projects out 2-1/2" and has a rubber insert in it. This door stop is usually mounted on the pilaster or post. Also known as a Bathroom Stall Door Stop. Manufacture part # 4153.

Chrome Plated Toilet Partition Keeper Bumper Flat Stop 1-1/2" Between Screws, For Outswing

Polished chrome plated Zamac construction. The strike and keeper measure 2-1/2" high by 1-5/8" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. Also known as a Bathroom Stall Strike and Keeper Outswing Flat. Manufacture part # 5260

Shipped with mounting screws.

Partition Door Stop, Pilaster Mounted, 2-1/2" X 4-1/4", Toilet Partition Door Stop Pilaster Mounted Polished Stainless Steel.

Partition Polished Stainless Steel Construction. The door stop base is 3" wide by 1-1/4" high with a 2-5/16" hole spacing. The stop projects out 2-1/2" and has a rubber insert in it. This door stop is usually mounted on the pilaster or post. Also known as a Bathroom Stall Door Stop. Manufacture part # 4155.

Partition Door Hook & Bumper Stop Inswing Stamped Stainless Steel

Stamped stainless steel 1/16" thick construction. The hook and stop measures 5/8" wide by 2-3/4" high by 3-1/16" projection with a 1" hole spacing. There is a rubber bumper on the end of the 3-1/16" projection. Also known as a Bathroom Stall Hook. Manufacture part # 4009

Chrome Plated Partition Keeper Bumper Flat Stop Outswing Door

Chrome plated Zamac die casting. The strike and keeper is 1-1/4" high by 1-3/4" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. Also known as a Bathroom Stall Strike and Keeper Outswing Flat. Manufacture part # 5640.

Shipped with mounting screws.

Toilet partition full length aluminum door stop for 1" panel Inswing doors. This product is clear anodized aluminum. This full length door stop with block the gap between the door and the post next to it. For an inswing the slot is 3/8"x1-1/4" wide for the slide latch to latch it. The door keeper and strike is 54" in length and has 5 holes spaced at 13" apart and starts at 1" from the top and the bottom. Also known as 134304 strike & keeper channel. Includes all hardware.

Chrome Plated Partition Keeper Bumper For Throw Latch Inswing Flat Stop

Chrome plated Zamac die casting. The strike and keeper measure 2-1/2" tall by 2-9/16" deep and is 1/8" thick. The stop projects out 3/4" and has a rubber insert. The mounting holes are 1-1/2" on center. Slots are 1/4" deep by 13/16" high. Also known as a Bathroom Stall Strike and Keeper - Inswing Flat. Flat backed for wall mounting. Manufacture part # 5280

Shipped with mounting screws.

The Partition Slide Bolt Latch Stainless Steel 3/8" Bar To Door, 2-3/4" Screws is constructed of cast stainless steel.  The latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/4" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 3/8" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5033.  Shipped with mounting security screws.

Partition Keeper Flat Stop 1-1/2" Between Screws Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measure 2-1/2" tall by 2-9/16" deep and is 1/8" thick. The stop projects out 3/4" and has a rubber insert. The mounting holes are 1-1/2" on center. Slots are 1/4" deep by 13/16" high. Also known as a Bathroom Stall Strike and Keeper - Inswing Flat. Flat backed for wall mounting. Manufacture part # 5283.

Shipped with mounting screws.

The Partition Aluminum Slide Bolt Latch 3-1/2" Screws is constructed of extruded aluminum that is then anodized.  Base is 4-1/2" by 2" by 1/8" thick and projects out 1-5/8". Latch bolt is 1" wide by 3-1/8" long by 1/4" thick, and has a 1" throw. This Bathroom Stall Latch is usually used on Solid Plastic (HDPE) Toilet Partition's. Manufactures part # are 5054, and 650-8543. Also known as Toilet Partition Locks.  Shipped with mounting hardware.

Chrome Plated Toilet Partition Keeper Bumper Flat Stop 1-1/2" Between Screws

Polished chrome plated Zamac construction. The strike and keeper measure 2-1/2" high by 1-13/16" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. The slot is for the concealed latch is 7/8" high by 7/16" deep. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing Flat. Manufacture part # 5240

Shipped with mounting screws.

Cast S.S. Slide Bolt Latch 5/8" Bar To Door, 3-1/2" Between Screws. Cast stainless steel construction. Base is 4-1/2" tall with a hole spacing of 3-1/2" on center. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick and has a throw of 15/16". The latch projects out 1-9/16". The distance from the back of the base to the underside of the latch bolt is 9/16". Also known as a Bathroom Stall Slide Latch and Toilet Partition Locks. Manufacture part #5053. Shipped with screws. Used by accurate and global.

Cast Stainless Steel Partition Door Stop

Cast stainless steel construction. The strike and keeper measure 2-1/2" high by 1-7/8" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing Flat. Manufacture part # 5173.

Shipped with mounting screws.

Toilet partition full length aluminum door stop for 1" panel outswing doors. This product is clear anodized aluminum. This full length door stop with block the gap between the door and the post next to it. For an outswing the latch locks on the back side of the bumper. The door keeper and strike is 54" in length and has 5 holes spaced at 13" apart and starts at 1" from the top and the bottom. Also known as 134314 strike & keeper channel. Includes all hardware.

The Toilet Partition Slide Bolt Latch 3/8" Bar To Door Clearance is constructed of Zamac die cast metal that is chrome plated and then polished.  Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 5/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5060.  Shipped with mounting screws.

Partition Surface Mounted Stainless Steel Slide Bolt Latch 1-7/8" Screws. Stamped stainless steel construction. Base is 2-7/8" high by 1-3/8" wide by 5/32" thick. Latch bolt is 2-1/4" long x 13/16" wide x 1/8" thick, and the slide distance is 25/32". Also known as a Bathroom Stall Stainless Steel Slide Latch and Toilet Partition Locks. Manufacture part # 6309. Shipped with mounting screws.

Chrome Plated Toilet Partition Flat Stop Keeper

Polished chrome plated Zamac construction. The keeper base is 2-1/2" tall by 1-3/32" wide. The latch face measures 2-1/2" tall with a 7/8" projection. The hole spacing is 1-1/2". The slot measures 5/16" by 1-9/16". Also known as a Bathroom Stall Keeper-Inswing Flat. Manufacture part # 5160.

Shipped with mounting screws.

The Toilet Partition ADA Slide Bolt Latch Inswing Latch & Keeper is constructed of Stamped Stainless Steel.  The latch is 2" wide by 2-7/8" tall. Latch bolt is 2-3/4" long by 13/16" wide by 1/8" thick and has a throw of 25/32". The keeper is 1-1/2" by 1-1/2" by .075" thick, and projects out 7/16". Commonly called a Bathroom Stall Latch for inswinging doors and Toilet Partition Locks. Manufacture part # 6409 and 6539.  Shipped with mounting screws.

The Slide Bolt Latch With Indicator Cast Stainless Steel is a newer product for us.  The kit includes an adjustable spindle that will work on toilet partition door thicknesses of 3/4" all the way up to 2-1/2".  The latch body measures 2-11/16" by 1-5/8" tall by 1/2" thick.  The hole spacing on the latch body is 1-1/8" on the vertical and 1-11/16" on the horizontal.  The throw on the latch is 3/4".  The indicator plate measures 1-11/16" by 2-3/8".  This part is also known as the "Latch Slide S/M-Indicator-W/Keeper-Cast Stainless" and the manufacture part number is 124563.

Partition Keeper Bumper Inswing 1-1/4" Post Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5113.

Shipped with mounting screws.

The Partition Slide Latch Stainless Steel 3/8" Bar To Door, 3-1/2" Screws is constructed of cast stainless steel.  The latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 5/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5063.  Shipped with mounting security screws.

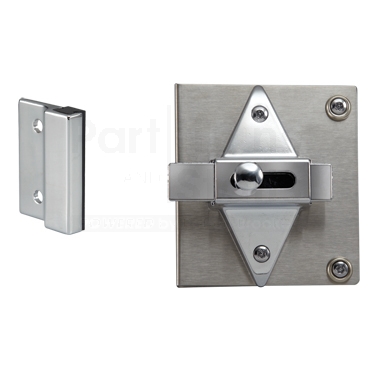

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Square edge for Plastic Laminate
All Hardware included

Chrome Plated Partition Keeper Bumper For Throw Latch, For Inswing Flat Stop

Chrome plated Zamac die casting. The strike and keeper is 1-1/4" high by 2-1/2" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. The slots are 1/4" deep. Also known as a Bathroom Stall Strike and Keeper Inswing Flat. Manufacture part # 5650.

Shipped with mounting screws.

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Square edge for Plastic Laminate
All Hardware included

Toilet Partition Continuous One Ear Wall Bracket For 1" Panel x 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 57" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2339.

Toilet Partition Continuous Two Ear Wall Bracket For 1" Panel X 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 57" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 14" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2349.

Toilet Partition Continuous Two Ear Wall Bracket Forl 1" Panel X 41" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 41" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2609.

Toilet Partition Continuous One Ear Wall Bracket For 1-1/4" Panel x 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 2-11/16" x 57" long. Mounting holes are 1-19/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 14" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2359.

Partition Keeper Bumper Outswing 1-1/2" Between Screws Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measure 2-1/2" high by 1-5/8" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. Also known as a Bathroom Stall Strike and Keeper Outswing Flat. Manufacture part # 5263.

Shipped with mounting screws.

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included

Chrome Plated Toilet Partition Keeper Bumper Inswing 1-1/4" Round Edge

Polished chrome plated Zamac die casting. The strike and keeper measures 1-7/8" wide by 2-1/2" tall by 1-1/2" deep. The stop measures 2-1/2" tall and projects out 3/4" and has a rubber insert. The two slots have a 1/4" opening by 13/16". Also known as a Bathroom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5330

Partition Keeper Bumper For 1" Square Post Outswing Cast Stainless Steel

Cast stainless steel construction. Strike and Keeper measures 2-1/2" high by 1-15/16" wide. Stop is 17/32" thick and projects out 13/16". The screw holes are 1-1/2" on center. This Bathroom Toilet Door Keeper is designed for use on 1" thick square edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Outswing 1". Manufacture part # 5723.

Shipped with mounting screws.
