The Toilet Partition Square Barrel Nylon Insert Replacement Hinge Kit is for use with our 9A7051 (7413) and 9A7052 (7423) surface mounted bathroom stall hinge.  The kit includes new pins for the upper and lower hinges in this 9 piece package. Replacements for 13/16"-7/8" square.

Toilet Partition SS L Channel 2-1/2" X 57" are great for extra privacy in the bathroom toilet stalls. This product can be used for any thickness material by using two units. This product is also known as 2689. Security screws included.

Toilet Partition Pilaster Anchoring Device

Zinc plated steel construction. For 3/4" thick and larger Pilaster Posts and 3" wide and larger pilaster posts. The brackets are 11/16" wide. Also known as a Bathroom Stall Pilaster Post Anchoring Pack. All the screws are included in the package.

The Continuous Hinge Stainless Steel 57-1/2" long, is for use on Left Hand Inswing, Right Outswing restroom stall doors. The hinge is constructed of 16 gauge (.060" thick) stainless steel with 4 springs. It measures 3" wide when laid flat x 57-1/2" long with a 1/8" diameter hinge pin. Mounting screws are located every 11" or so. Can be raise up 3/8" for emergency entrance and springs allow the door to seft close. Also known as a Bathroom Stall Piano Hinge, or Full Length Stainless Steel Continuous Piano Hinge. Manufacture part # 7669.  Shipped with all the fasteners.

Lh Inswing or Rh Outswing See Diagram

Partition Door Pull 3-1/2" Between Screws Chrome Plated

Chrome plated Zamac die cast construction. The pull measures 4-3/4" wide and projects 1" with a hole spacing of 3-1/2". The mounting holes are threaded for a 10-24 screw. Also known as a Bathroom Stall Door Pull. Manufacture part # 5400.

Partition Door Pull 2-3/4" Between Screws Cast Stainless Steel

Cast stainless steel construction. Door pull measures 4-1/16" wide by 13/16" projection with a 2-3/4" hole spacing. The holes are threaded for a 8-32 screw. Also known as a Bathroom Stall Door Pull. Manufacture part # 6203.

The Bottom Hinge Assembly Cast SS is for use on 7/8" thick doors and 1-1/4" thick square edged pilaster posts.  The hinge is constructed of cast stainless steel, that is then brushed to the proper finish.  The kit includes bottom hinge, pintle, pin, insert and mounting screws.  Also known as a Bathroom Stall Bottom Pivot Hinge Set. Manufacture part # 63013

Partition Door Hook & Bumper Stop Inswing Stamped Stainless Steel

Stamped stainless steel 1/16" thick construction. The hook and stop measures 5/8" wide by 2-3/4" high by 3-1/16" projection with a 1" hole spacing. There is a rubber bumper on the end of the 3-1/16" projection. Also known as a Bathroom Stall Hook. Manufacture part # 4009

Partition Headrail Bracket for 1" Headrail

Chrome plate Zamac die cast construction. The overall measurements of the bracket are 2-3/4" wide by 1-19/32" high by 1" deep with a hole spacing of 2". The spread for the headrail is 1-1/8" by 1-19/32" deep. Also known as a Bathroom Stall Headrail Bracket. Manufacture part # 2150.

Shipped with screws.

Chrome Plated Partition Keeper Bumper For Throw Latch, For Inswing Flat Stop

Chrome plated Zamac die casting. The strike and keeper is 1-1/4" high by 2-1/2" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. The slots are 1/4" deep. Also known as a Bathroom Stall Strike and Keeper Inswing Flat. Manufacture part # 5650.

Shipped with mounting screws.

Partition Bathroom Stall Door Heavy Duty Piano Hinge 57-1/2", Left Hand In Swing, Right Hand Outswing is constructed of 14 gauge (0.75" thick) stainless steel.  The internal spring makes this a self closing hinge. This toilet partition door hinge is heavy duty with a 1/4" pin for extra strength. The hinge measures 3" laying flat by 57-1/2".  9" centers with 6 holes on each side.

Toilet Partition Keeper For Inswing Doors 1-7/8" Between Screws Stainless Steel

14 gauge (.075" thick) stainless steel construction. Keeper is 2-7/8" high x 1-13/16" wide with 1-7/8" hole spacing. Lip is 9/16" and the slot or cut out is 7/32" x 1". Also known as Bathroom Stall Keeper Inswing. Manufacture part # 6319.

Shipped with screws.

Partition Door Pull 5" Between Screws Stamped Stainless Steel

Stamped stainless steel construction, 3/32" thick. The door pull measures 5-21/32" wide by 5/8" high by 1-11/16" projection with a 5" on center hole spacing. Also known as a Bathroom Stall Door Pull. Manufacture part # 6419.

Shipped with mounting screws.

Partition Anti-Grip Headrail 1" X 95" Type B Aluminum

Extruded anodized aluminum construction. The cross section measures 2-3/4" high by 1-3/32" by 95" long. The part that fits on top of the pilaster is 1" wide by 3/4" deep. The wall thickness on this part is 3/64". Also known as a Bathroom Stall Headrail. Manufacture part # 80042.

This product is usually used on Solid Plastic (HDPE) Toilet Partitions.

Partition Anti-Grip Headrail 1-1/4" X 95" Type B Aluminum. Extruded anodized aluminum construction. The cross section measures 2-3/4" high by 1-11/32" by 95" long. The part that fits on top of the pilaster is 1-1/4" wide by 3/4" deep. The wall thickness on this part is 3/64". Also known as a Bathroom Stall Headrail. Manufacture part # 80052.

Concealed Partition Latch Keeper Bumper 1" Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measures 2-1/2" tall by 1-15/16" wide by 1-17/32 deep. The mounting holes are 1-1/2" on center. The stop measures 7/8" wide by 17/32" deep with a rubber insert bumper. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing 1". Manufacture part # 5733.

Shipped with mounting screws.

Partition Anti-Grip Headrail 1-1/4" X 65" Type B Aluminum

Extruded anodized aluminum construction. The cross section measures 2-3/4" high by 1-11/32" by 65" long. The part that fits on top of the pilaster is 1-1/4" wide by 3/4" deep. The wall thickness on this part is 3/64". Also known as a Bathroom Stall Headrail. Manufacture part # 80052.



Also know as Part# 9THS621-1/4, 9THSSXX, and 9THLXX.

Chrome Plated Keeper Bumper For 1-1/4" Outswing Round Edge Post

Zamac die cast and polished chrome plate construction. The strike and keeper measure 2-1/2" high by 1-7/8" wide with a hole spacing of 1-1/2" on center. The stop is 2-1/2" tall by 3/4" wide with a rubber insert. Commonly known as a Bathrrom Stall Strike and Keeper Outswing 1-1/4". Manufacture part # 5410

Shipped with mounting screws.

Toilet Partition Top Hinge Assembly For 7/8" Thick Door, 1-1/4" Pilaster Square Edge Chrome Plated Polished chrome plated zamac die cast construction. Kit includes Top Hinge, Pintle, Nylon Cam, and Top Hinge Door Insert. Bottom hinge measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Mounting lug projects out 1-1/4". Also known as a Bathroom Stall Bottom Hinge Kit. Manufacture part number 63020. Screws are also included.

Chrome Plated Toilet Partitions Bumper Keeper For 1-1/4" Round Edge

Polished chrome plated Zamac construction. The strike and keeper measures 2-1/2" tall by 1-7/8" wide. The mounting holes are 1-1/2" on center. The stop measures 3/4" wide by 17/32" deep with a rubber insert bumper. Slot is 7/16" deep. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing 1-1/4". Manufacture part # 5430.

Shipped with mounting screws.

The Continuous Hinge without Spring Stainless Steel, is 57-1/2" long by 3".   It is constructed of 16 gauge (.060" thick) stainless steel.  Holes are located every 11" or so, and the hinge pin diameter is 1/8".  Hinge can be raised up 3/8" for emergency entry. This hinge is not self closing.  Also known as a Bathroom Stall Piano Hinge, or Full Length Stainless Steel Continuous Piano Hinge. Manufacture part # 7649.  Shipped with all the fasteners.

Chrome Plated Alcove Clip

Chrome plated zamac die casting, for use on 1" doors and 1-1/4" posts. Horizontal leg in picture is 1-1/4" wide and 1-1/2" tall. The vertical leg is 1-5/32" wide. The holes are 1/4" diameter. Also known as Bathroom Stall Alcove Clip, Toilet Partition Alcove Clip, and Toilet Stall Alcove Clip. The manufacturers part number is 1550 Alcove Clip and 650-6650 Alcove Clip.

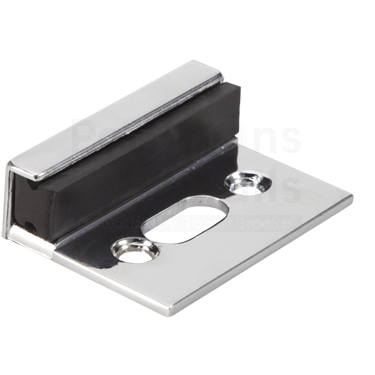

Chrome Plated Partition Keeper Bumper Flat Stop Outswing Door

Chrome plated Zamac die casting. The strike and keeper is 1-1/4" high by 1-3/4" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. Also known as a Bathroom Stall Strike and Keeper Outswing Flat. Manufacture part # 5640.

Shipped with mounting screws.

Chrome Plated Toilet Partition Keeper Bumper Flat Stop 1-1/2" Between Screws, For Outswing

Polished chrome plated Zamac construction. The strike and keeper measure 2-1/2" high by 1-5/8" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. Also known as a Bathroom Stall Strike and Keeper Outswing Flat. Manufacture part # 5260

Shipped with mounting screws.

Chrome Plated Toilet Partition Keeper Bumper Inswing 1-1/4" Round Edge

Polished chrome plated Zamac die casting. The strike and keeper measures 1-7/8" wide by 2-1/2" tall by 1-1/2" deep. The stop measures 2-1/2" tall and projects out 3/4" and has a rubber insert. The two slots have a 1/4" opening by 13/16". Also known as a Bathroom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5330

Partition Keeper Bumper For 1" Square Post Outswing Cast Stainless Steel

Cast stainless steel construction. Strike and Keeper measures 2-1/2" high by 1-15/16" wide. Stop is 17/32" thick and projects out 13/16". The screw holes are 1-1/2" on center. This Bathroom Toilet Door Keeper is designed for use on 1" thick square edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Outswing 1". Manufacture part # 5723.

Shipped with mounting screws.

Toilet Partition Continuous Alcove "H" Bracket For 1" Panel x 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Bracket is 1" x 3-1/2" x 71" long. Legs project out 1-3/4" with mounting holes typically spaced every 14". Also known as a Bathroom Stall Alcove Bracket or "H" Bracket. Bracket has rounded edge radius. Designed to attach pilasters to panels inline. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182859

The Top Hinge Assembly Cast SS is for use on a Square Edged 1-1/4" thick Pilaster Post and 7/8" thick Door.  The hinge is constructed of cast stainless steel that is then brushed to the proper finish.  The kit includes top hinge, pintle, pin, inserts and mounting screws.  Also known as a Bathroom Stall Top Pivot Hinge Set. Manufacture part # 63023.

Partition Keeper Bumper Outswing 1-1/2" Between Screws Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measure 2-1/2" high by 1-5/8" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. Also known as a Bathroom Stall Strike and Keeper Outswing Flat. Manufacture part # 5263.

Shipped with mounting screws.

Chrome Plated Partition Keeper Bumper For Throw Latch Inswing Flat Stop

Chrome plated Zamac die casting. The strike and keeper measure 2-1/2" tall by 2-9/16" deep and is 1/8" thick. The stop projects out 3/4" and has a rubber insert. The mounting holes are 1-1/2" on center. Slots are 1/4" deep by 13/16" high. Also known as a Bathroom Stall Strike and Keeper - Inswing Flat. Flat backed for wall mounting. Manufacture part # 5280

Shipped with mounting screws.

Toilet Partition Stainless Steel Continuous U Bracket, 71", 1"x1-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge. U bracket is for 1" wide partitions and is 1-1/2" height and 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous U Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182369

Toilet Partition Keeper Bumper Inswing With 1-7/8" Between Screws

Stainless steel construction, 14 gauge (.075" thick). Plate measures 2-7/8" high x 1-7/8" wide including lugs. Lugs are 7/8" high and 9/16" thick. Screw holes are 1/4" diameter. Sometimes called Bathroom Stall Strike and Keeper-Inswing/Outswing Flat. Manufacuture part # 6329 and 650-8226.

Screws are included with this keeper.

The Toilet Partition ADA Slide Bolt Latch Inswing Latch & Keeper is constructed of Stamped Stainless Steel.  The latch is 2" wide by 2-7/8" tall. Latch bolt is 2-3/4" long by 13/16" wide by 1/8" thick and has a throw of 25/32". The keeper is 1-1/2" by 1-1/2" by .075" thick, and projects out 7/16". Commonly called a Bathroom Stall Latch for inswinging doors and Toilet Partition Locks. Manufacture part # 6409 and 6539.  Shipped with mounting screws.

Concealed Partition Latch Keeper Bumper Inswing 1-1/4" Round Edge Cast Stainless Steel

Cast stainless steel construction. Keeper is 1-1/4" tall by 2-3/8" wide by 2-9/16" deep. The strike is a17/32" thick and the slot is 1/4" deep. The opening to mount it on the round edge pilaster or post is 1-1/4" by 1-1/4" Also known as a Bathroom Stall Strike and Keeper for Inswing 1-1/4". Manufacture part # 5583.

Shipped with screws for mounting.

 Continuous Hinge Stainless Steel, is 71-1/2" long by 3" wide, and is for use on Right Inswing, Left Outswing restroom stall doors.  The hinge is constructed of 16 gauge (.060" thick) stainless steel and the screws are placed every 11" or so.  The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.  Manufacture part # 7759

Chrome Plated Toilet Partition Keeper Bumper Flat Stop 1-1/2" Between Screws

Polished chrome plated Zamac construction. The strike and keeper measure 2-1/2" high by 1-13/16" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. The slot is for the concealed latch is 7/8" high by 7/16" deep. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing Flat. Manufacture part # 5240

Shipped with mounting screws.
