If your toilet partition (bathroom stall) wall bracket is stamped 1830, then chances are you have the Two Ear Wall Bracket for 1-1/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3-15-16″ long with 3″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket, they can be ordered on our website.

Partition "U" Bracket Chrome Plated For 7/8" X 1-1/2" X 1-3/8 . If your toilet partition or bathroom stall wall bracket is cast with the number 1900 on the back, then you have the “U” Wall Bracket for 7/8″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-5/32″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.

If your toilet partition (bathroom stall) wall bracket is stamped 1630, then chances are you have the Two Ear Wall Bracket for 7/8″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3-1/2″ long with 2-3/4″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket.

If your toilet partition (bathroom stall) wall bracket is stamped 1640, then chances are you have the One Ear Wall Bracket for 3/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2″ long with 1-1/8″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

Toilet Partition Pilaster Anchoring Device for 1" thick or larger.

Zinc plated steel bracket. For 3" to 6" wide Pilaster Posts. Also known as a Bathroom Stall Pilaster Post Anchoring Device. Ships with all the hardware and screws shown.

If your toilet partition (bathroom stall) wall bracket is cast 1840, then you have the One Ear Wall Bracket for 1-1/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2-3/4″ long with 1-1/2″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

If your toilet partition (bathroom stall) wall bracket is stamped 1750, then chances are you have the Two Ear Wall Bracket for 1″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3-15-16″ long with 3″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket.

Toilet Partition Pilaster Anchor 'L' Bracket For 1-1/8"-1-1/4" Thick Pilaster Posts

Zinc plated brackets and screws. Also known as a Bathroom Stall Pilaster Post Anchoring Pack. Package includes all needed screws and brackets.

Toilet Partition Aluminum Square Post 1-3/4" X 10'

Extruded anodized aluminum. 1-3/4" x 1-3/4" x 10' long. Also known as a Bathroom Stall Aluminum Square Post. Manufacture part # 40-5443400G. Oversized part, has to ship Truck.

The Toilet Partition Nylon Hinge Insert Replacement Kit is for use on the 9A7043 (7043), 9A7033 (7033), 9A7SS1 (7123), 9A7SS2 (7113), 9A70B1 (7021) and 9A70B2 (7011) bathroom stall surface hinges.  The pins measure 5/8" diameter by 2-3/4" long.  Manufacture part # 7035.

The Toilet Partition Square Barrel Nylon Insert Replacement Hinge Kit is for use with our 9A7051 (7413) and 9A7052 (7423) surface mounted bathroom stall hinge.  The kit includes new pins for the upper and lower hinges in this 9 piece package. Replacements for 13/16"-7/8" square.

Toilet Partition SS L Channel 2-1/2" X 57" are great for extra privacy in the bathroom toilet stalls. This product can be used for any thickness material by using two units. This product is also known as 2689. Security screws included.

If your toilet partition (bathroom stall) wall bracket is stamped 1620, then chances are you have the Two Ear Wall Bracket for 3/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3″ long with 2-7/32″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket

Toilet Partition Pilaster Anchoring Device

Zinc plated steel construction. For 3/4" thick and larger Pilaster Posts and 3" wide and larger pilaster posts. The brackets are 11/16" wide. Also known as a Bathroom Stall Pilaster Post Anchoring Pack. All the screws are included in the package.

The Slide Bolt Latch With Indicator Cast Stainless Steel is a newer product for us.  The kit includes an adjustable spindle that will work on toilet partition door thicknesses of 3/4" all the way up to 2-1/2".  The latch body measures 2-11/16" by 1-5/8" tall by 1/2" thick.  The hole spacing on the latch body is 1-1/8" on the vertical and 1-11/16" on the horizontal.  The throw on the latch is 3/4".  The indicator plate measures 1-11/16" by 2-3/8".  This part is also known as the "Latch Slide S/M-Indicator-W/Keeper-Cast Stainless" and the manufacture part number is 124563.

If your toilet partition (bathroom stall) wall bracket is cast 1760, then chances are you have the One Ear Wall Bracket for 1″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2-21/32″ long with 1-1/2″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

Coat Hook & Bumper 3-1/8" Projection X 2-1/8" High Cast Stainless Steel Construction

Cast stainless steel construction. Coat hook bumper projects out 3" and has a rubber insert. The hook projects out 1-7/32". The coat hook bumper base is 1-7/16" wide by 2-1/4" high with a hole spacing of 7/8". Also known as a Bathroom Stall Hook. Manufacture part # 4003.

Aluminum U Shape Bracket 1/2" X 1-3/8" X 57". Constructed of extruded anodized aluminum. Base is 3/4 wide by 57" long, with screw holes every 13" or so. They have a clearance of 1/2" for 1/2" thick panels. Sometimes known as Bathroom Stall Continuous U Bracket. The manufacturers part numbers are 2664. These brackets are shipped with all the needed fasteners.

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-15/16" with the mounting screws are 2-3/16" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1839.

Shipped with screws

Toilet Partition Continuous 'L' Wall Bracket 2-3/4" X 57-1/2" Aluminum

Extruded aluminum construction. Base is 1-3/8" and the leg projects out 2-3/4". These are sold individually. It is also known as a Bathroom Stall Continuous L Wall Bracket. The manufacturers part # is 2684.

Partition Headrail Bracket for 1" Headrail

Chrome plate Zamac die cast construction. The overall measurements of the bracket are 2-3/4" wide by 1-19/32" high by 1" deep with a hole spacing of 2". The spread for the headrail is 1-1/8" by 1-19/32" deep. Also known as a Bathroom Stall Headrail Bracket. Manufacture part # 2150.

Shipped with screws.

Toilet Partition One Ear Wall Bracket For 1" Panel,Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-13/32" with the mounting screws are 1-15/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1769.

Shipped with screws

Chrome Plated Partition Keeper Bumper For Throw Latch, For Inswing Flat Stop

Chrome plated Zamac die casting. The strike and keeper is 1-1/4" high by 2-1/2" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. The slots are 1/4" deep. Also known as a Bathroom Stall Strike and Keeper Inswing Flat. Manufacture part # 5650.

Shipped with mounting screws.

Coat Hook 3" Projection x 1-3/4" High Cast Stainless Steel

Cast stainless steel construction. The hook base measures 1-3/16" wide by 1-9/16" high. The long hook projects out 3" and the short hook projects out 1-1/2". Also known as Bathroom Stall Hook. Manufacture part # 4023.

Partition U Bracket For 3/4" Thick Panel Cast Stainless Steel. Cast stainless steel construction. Bracket base is 1-3/8" x 1" with two mounting screw holes. Bracket legs project out 1-3/8" with the thru hole at 1" on center from the bottom of the base. Also known as a Bathroom Partition Stall U-Bracket or Wall Bracket 3/4". Manufacture part number 1893. Shipped with mounting screws.

Partition Surface Mounted Stainless Steel Slide Bolt Latch 1-7/8" Screws. Stamped stainless steel construction. Base is 2-7/8" high by 1-3/8" wide by 5/32" thick. Latch bolt is 2-1/4" long x 13/16" wide x 1/8" thick, and the slide distance is 25/32". Also known as a Bathroom Stall Stainless Steel Slide Latch and Toilet Partition Locks. Manufacture part # 6309. Shipped with mounting screws.

The Surface Mounted. Square Barrel Hinge Set- Right Hand Out Swing and Left Hand In swing are our most heavy duty hinges.  They are constructed of 1/8" thick stainless steel.  1-1/2" hole spacing up and down and 2-3/8" right to left hole spacing. Outside dimensions are 3-1/8" wide x 3" high. Also known as Bathroom Stall Gravity Hinge Sets. Manufacture part # 7051.  Includes all screws.

Toilet Partition Continuous 'U' Wall Bracket For 3/4" Thick Panel 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 57" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Continuous U Wall Bracket. Manufacturer part # 2069.

Screws included with bracket.

Partition Anti-Grip Headrail 1" X 95" Type B Aluminum

Extruded anodized aluminum construction. The cross section measures 2-3/4" high by 1-3/32" by 95" long. The part that fits on top of the pilaster is 1" wide by 3/4" deep. The wall thickness on this part is 3/64". Also known as a Bathroom Stall Headrail. Manufacture part # 80042.

This product is usually used on Solid Plastic (HDPE) Toilet Partitions.

Toilet Partition Two Ear Wall Bracket For 1" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-11/16" with the mounting screws are 2-15/16" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1759.

Shipped with screws

Partition Anti-Grip Headrail 1-1/4" X 95" Type B Aluminum. Extruded anodized aluminum construction. The cross section measures 2-3/4" high by 1-11/32" by 95" long. The part that fits on top of the pilaster is 1-1/4" wide by 3/4" deep. The wall thickness on this part is 3/64". Also known as a Bathroom Stall Headrail. Manufacture part # 80052.

Toilet Partition Angle Bracket Chrome Plated 1 3/4" X 1 3/4"

Constructed of stainless polished finish with chrome plated zamac die casting. Base is 1-3/4" x 1-3/8", projects out 1-3/4". Two screw holes are 1/4" diameter, and are located 1-1/4" from opposing face. Sometimes called Bathroom Stall Angle Bracket. Sold individually, and shipped with required screws. Manufacturer part number 2015.

Toilet Partition Two Ear Wall Bracket For 3/4" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 3" with 2-7/32" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 3/4". Manufacture part # 1623

Shipped with mounting screws.

Toilet Partition One Ear Wall Bracket For 1" Panel Cast Stainless Steel

Cast stainless steel construction. Base of the bracket is 2" x 1-1/2", with 1-1/2" hole spacing. Bracket legs project out 2-1/2" with the screws at 2-1/8" on center from the base. The four holes are 1/4" diameter. Also known as a Bathroom Stall One Ear Wall Bracket or One Ear 1". Manufacture part # 1763.

Shipped with mounting screws.

Concealed Partition Latch Keeper Bumper 1" Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measures 2-1/2" tall by 1-15/16" wide by 1-17/32 deep. The mounting holes are 1-1/2" on center. The stop measures 7/8" wide by 17/32" deep with a rubber insert bumper. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing 1". Manufacture part # 5733.

Shipped with mounting screws.

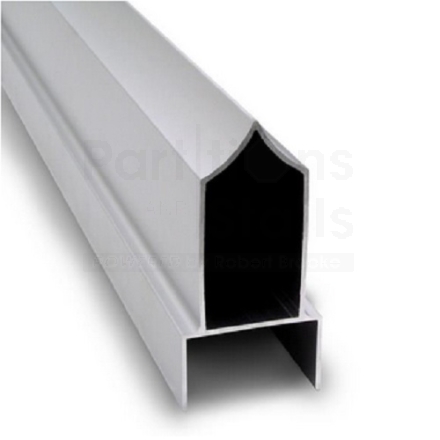

Partition Anti-Grip Headrail 1-1/4" X 65" Type B Aluminum

Extruded anodized aluminum construction. The cross section measures 2-3/4" high by 1-11/32" by 65" long. The part that fits on top of the pilaster is 1-1/4" wide by 3/4" deep. The wall thickness on this part is 3/64". Also known as a Bathroom Stall Headrail. Manufacture part # 80052.

Also know as Part# 9THS621-1/4, 9THSSXX, and 9THLXX.
